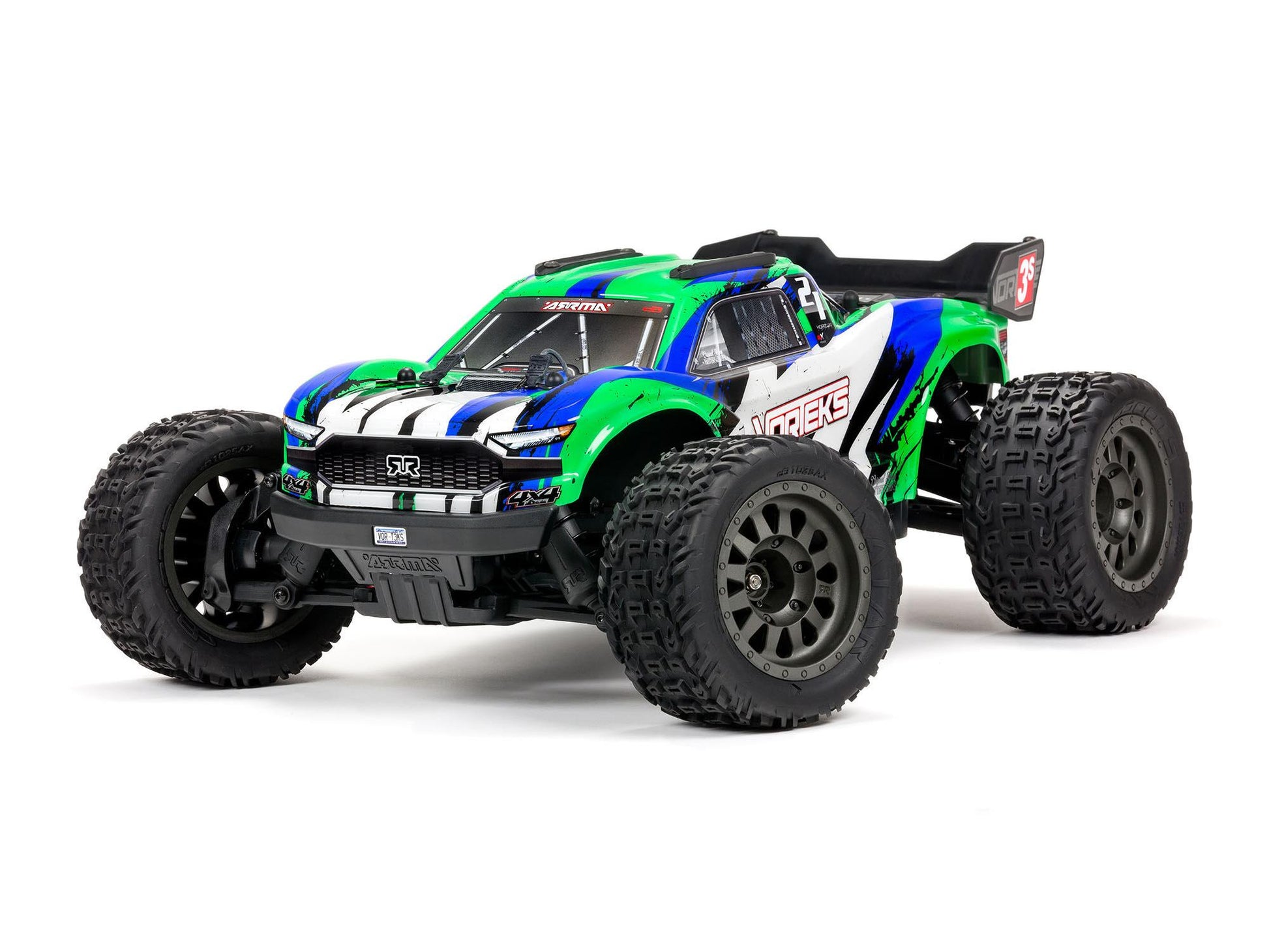

Arrma Vorteks 4X4 3S BLX 1/10 Stadium Truck RTR, Green

Product Details
ARRMA takes its 4X4 3S BLX speed bashing platform to the next level with the VORTEKS Stadium Truck RTR. It's the fastest, most advanced ARRMA 1/10 scale 4X4 model yet, and the first to include the benefits of Spektrum Smart electronics and AVC.
Key Features
Strong Composite Chassis
Convenient Modular Design
Multi-surface, vented dBoots Katar tread tyres
Durable 37T 1.35 module metal differential gears and silicone O-rings

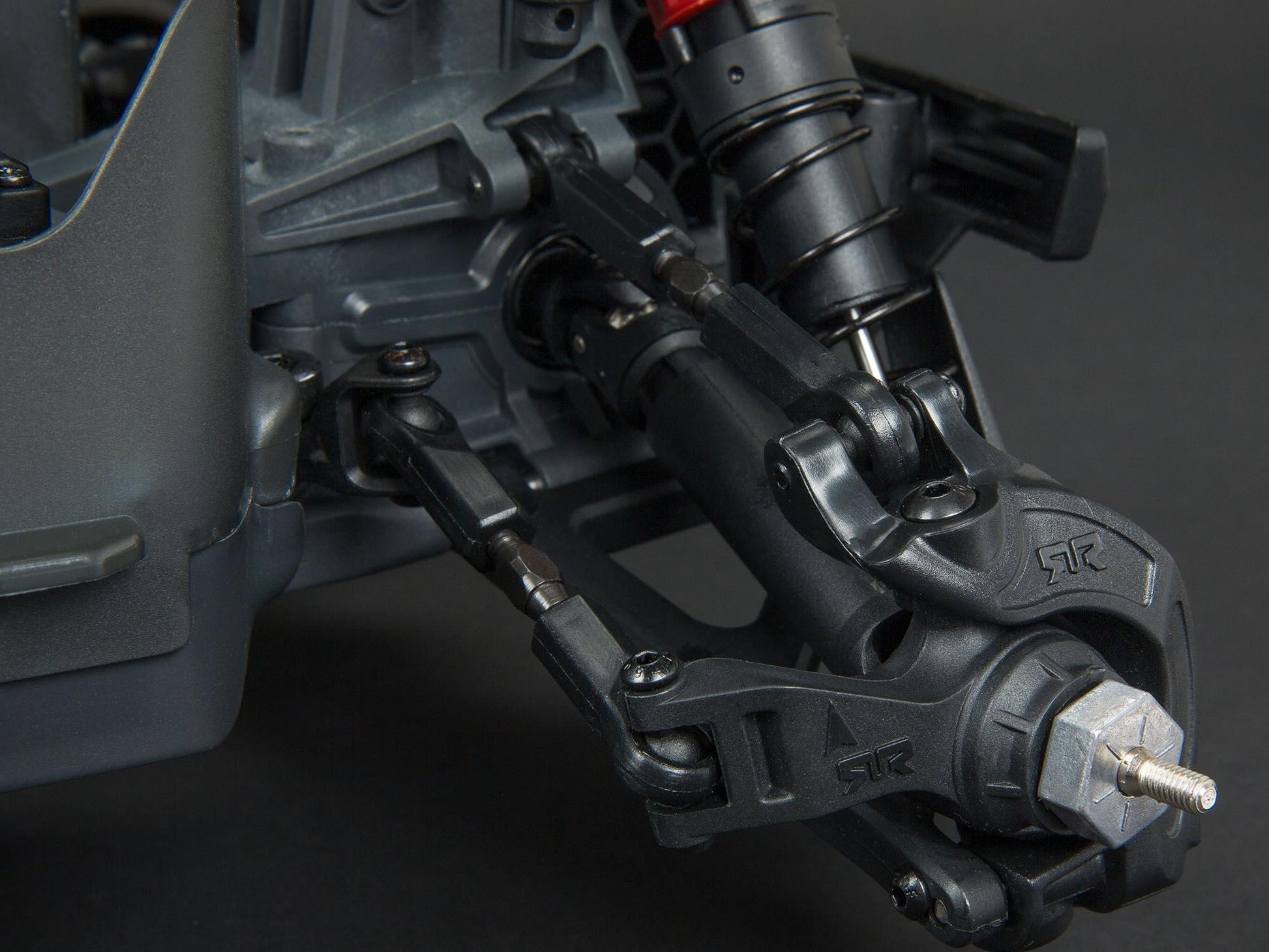

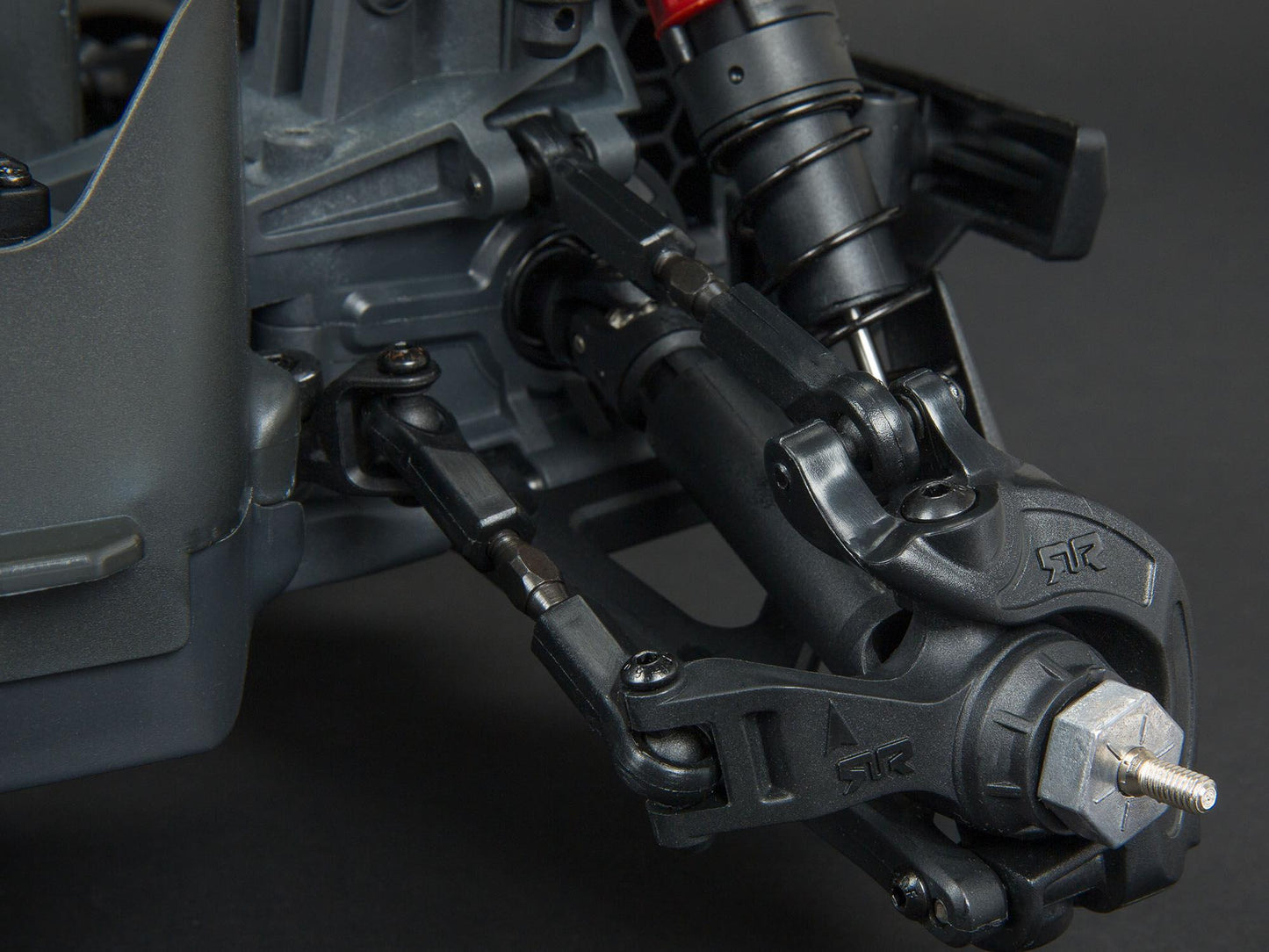

Double wishbone suspension front and rear
In The Box
(1) ARRMA VORTEKS 4X4 3S BLX 1/10 Scale 4WD Electric Stadium Truck RTR
(1) Spektrum Firma 100A Smart Waterproof ESC
(1) Spektrum Firma 3660 3200Kv Brushless Motor
(1) Spektrum 2.4GHz DX3 Smart DSMR 3-Channel Transmitter
(1) Spektrum SR6200A AVC Receiver
(1) Spektrum SPMS651 7kg Waterproof Metal-Geared Digital Servo
(1) 23T Spline servo saver
(1) Product Manual
Needed to Complete
2S or 3S Hardcase LiPo Battery (Maximum battery dimensions 6.14x2.01x1.89 in (156x51x48mm). Minimum battery specs 5000mAh 50C)
Compatible Charger
(4) AA Batteries
LiPo Safe Charging Bag
The Fastest ARRMA 1/10 Scale 4x4 Yet!
Speed Bashing at Its Best
ARRMA

has taken its 4X4 3S BLX speed bashing platform to the next level with the VORTEKS

Stadium Truck. This is the fastest and most technically advanced 1/10 scale 4X4 vehicle in the ARRMA

lineup, and it's engineered to deliver astonishing speed, control and durability - at an incredibly affordable price.
Features
Stadium truck body with tough, injection moulded wing and protective roof skids
Adjustable body mounts
High-traction, vented dBoots

Katar

multi-terrain tyres mounted to tough, gun-metal color wheels
Spektrum

3660 3200Kv brushless motor with ARRMA

heatsink and cooling fan and Safe D pinion
Spektrum

Firma

100A Smart ESC
Spektrum

2.4GHz DX3 transmitter and SR6200A receiver Smart radio system with AVC

(Active Vehicle Control

)
Spektrum

SPMS651 metal-geared servo
Strong composite chassis with extended height dirt defenders
Easy-access modular design
Adjustable turnbuckles
Steering system with stone clearance
Adjustable ride height

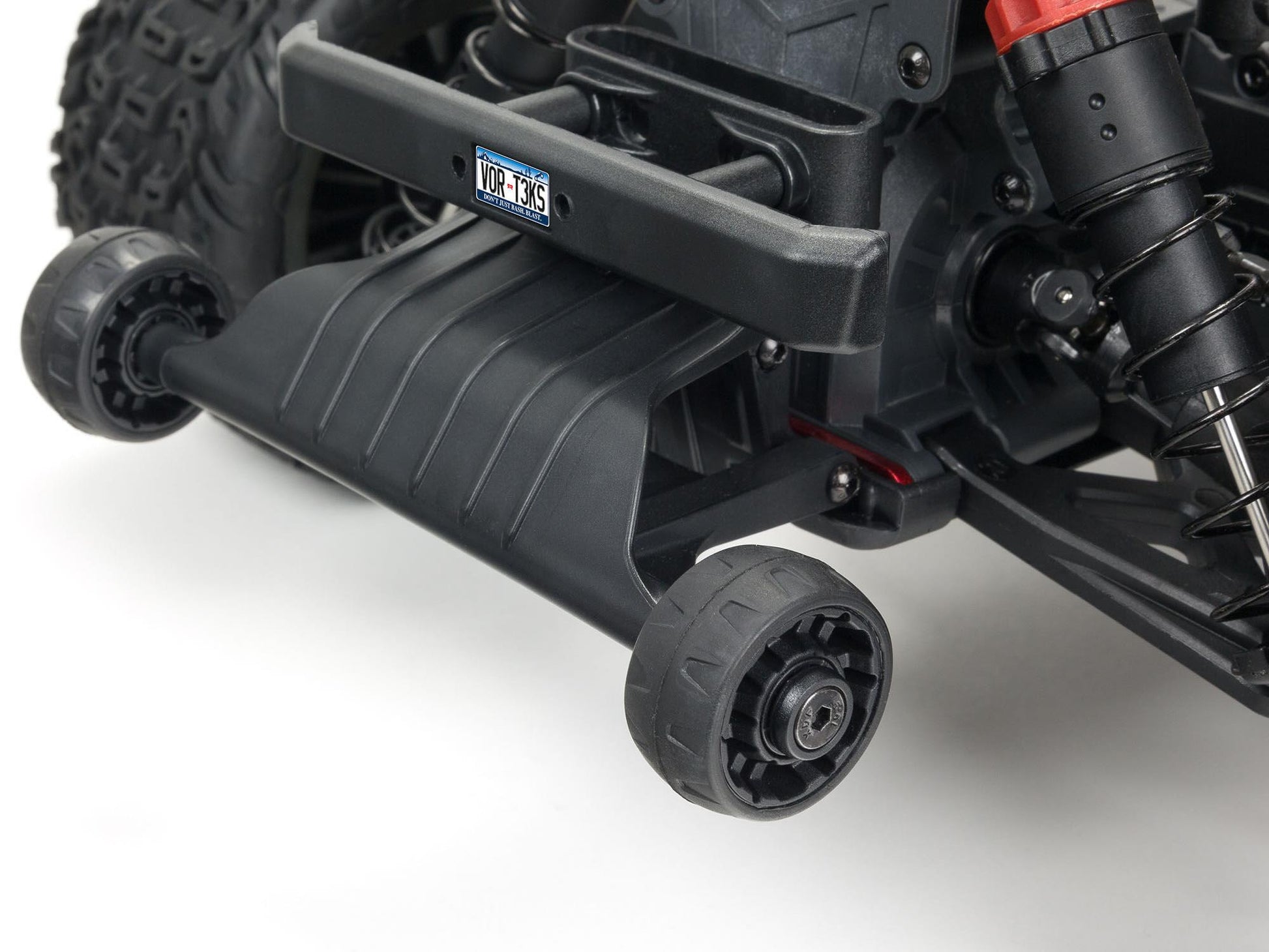

Wheelie bar
Rubber shielded bearings throughout
Durable 37T 1.35 module metal differential gears and silicone O-rings
Castellated slipper pad and sliding gear mesh
Plastic locknut for slipper

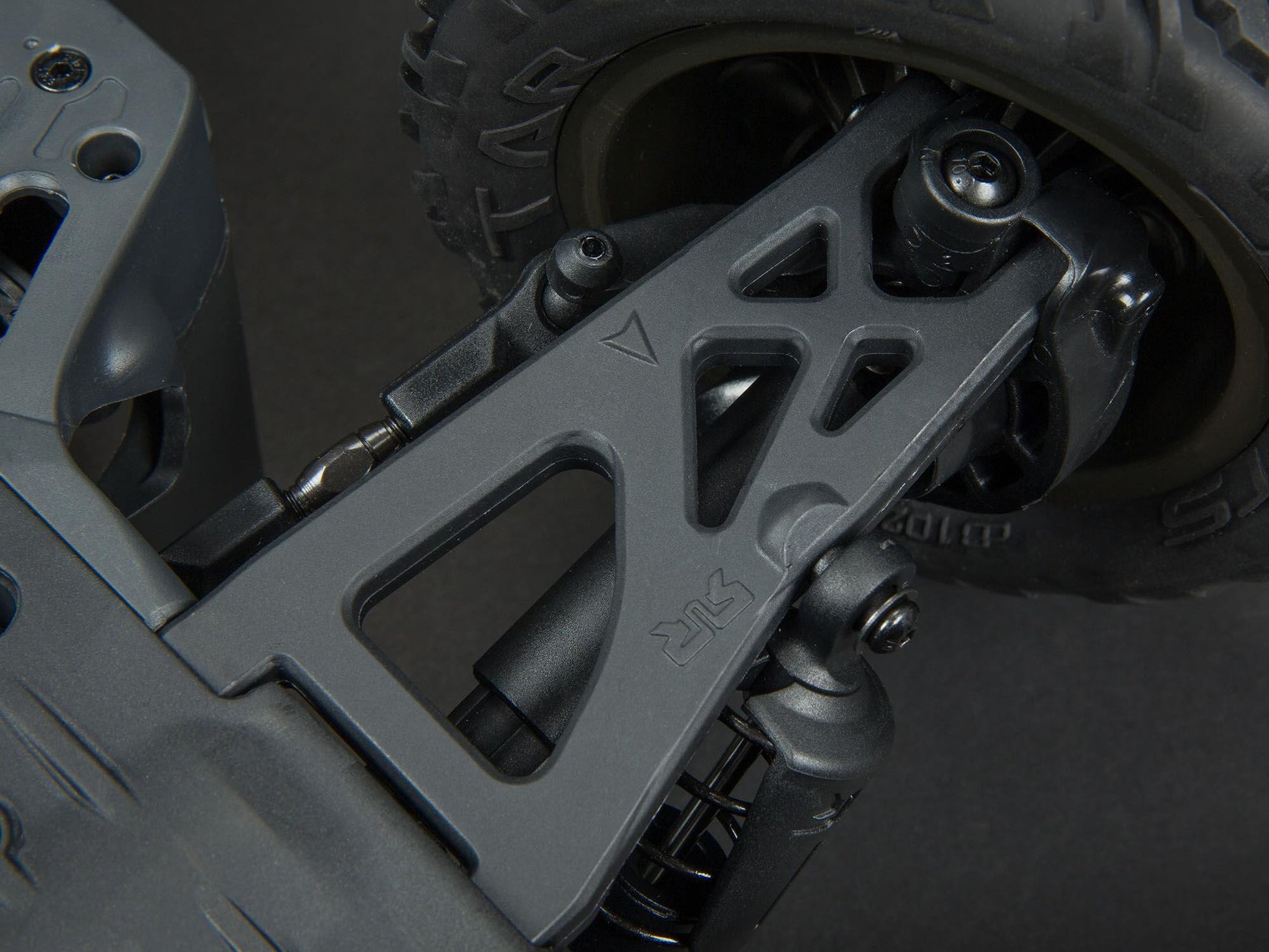

Double wishbone suspension front and rear
Oil-filled shocks with silicone O-rings
Overview
With the installed, 2S or 3S compatible Spektrum

Firma

3200Kv brushless motor, the VORTEKS

is fast right out of the box. Using a 3S LiPo battery and an optional pinion gear, it easily becomes the first ARRMA

4X4 3S BLX model capable of 60 mph and more!
The proven tough ARRMA

4X4 platform lets you bash at high speeds in almost any environment - off-road, on dirt and grass, on parking lots and over paved and asphalt surfaces. Its durability comes from a strong composite chassis featuring extended height dirt defenders, oil-filled shocks with silicone O-rings, metal geared differentials and more. Rugged bumpers and high-traction dBoots

Katar

tyres mounted on tough, gun-metal colored wheels add to its unstoppable performance. The VORTEKS

4X4 3S BLX also includes a sleek, new stadium truck body with tough, injection-moulded wing and protective roof skids.
ARRMA

adds the security of advanced Spektrum

electronics to the VORTEKS

Stadium Truck's speed and toughness to create a totally exhilarating bashing experience. With its included DX3 DSMR

2.4GHz radio system, SR6200A receiver and Firma

100A ESC, this is the first ARRMA

1/10 scale 4X4 model to provide the benefits of AVC

(Active Vehicle Control

) and Smart technology straight out of the box.
With the AVC

system's on-demand traction control, you can dial-in extra stability as needed to carve corners or nail jumps without backing off the power. You have full-throttle freedom over rough terrain, slick surfaces and loose dirt. When you don't want the extra traction, just dial back the stability. The DX3 radio's AVC

system works behind the scenes, making hundreds of minute steering and throttle adjustments per second to keep the VORTEKS

Stadium Truck precisely on the line you want to hold.
Download the optional Spektrum

Dashboard

app to your mobile device - it's available free from the iPhone App Store and Google Play - to take full advantage of the Smart electronics' telemetry capabilities. Once you connect your mobile device wirelessly via Bluetooth to the VORTEKS

Stadium Truck's DX3 transmitter, you can use it to view top speed, battery voltage and other essential data in real time (requires an optional BT2000 Bluetooth Module, available separately).
The ARRMA

VORTEKS

4X4 3S BLX Stadium Truck RTR represents the highest level of speed and technology found yet in the proven tough ARRMA

4X4 platform. If you're a basher who wants the best - and who appreciates outstanding value - it's all right here.

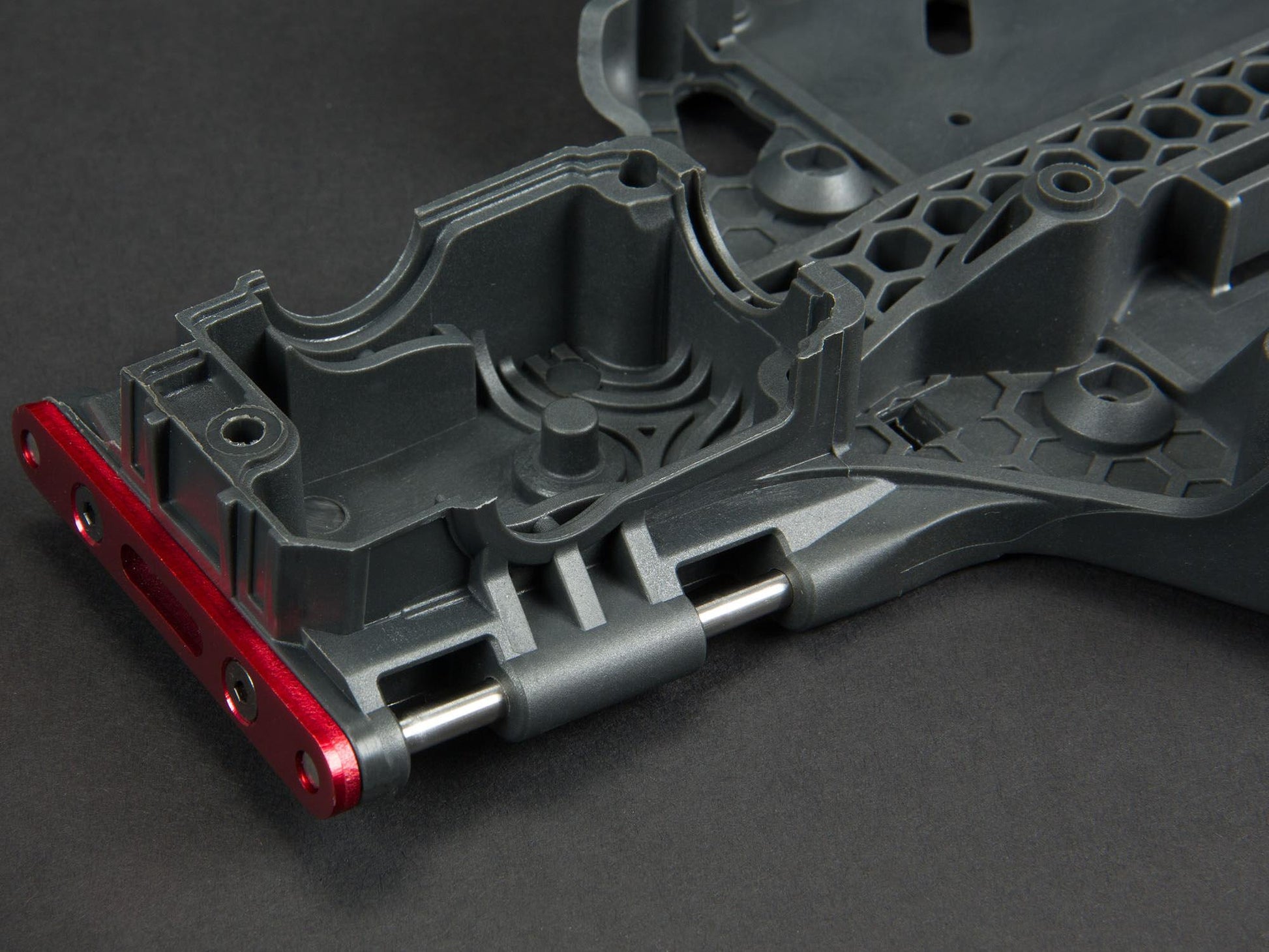

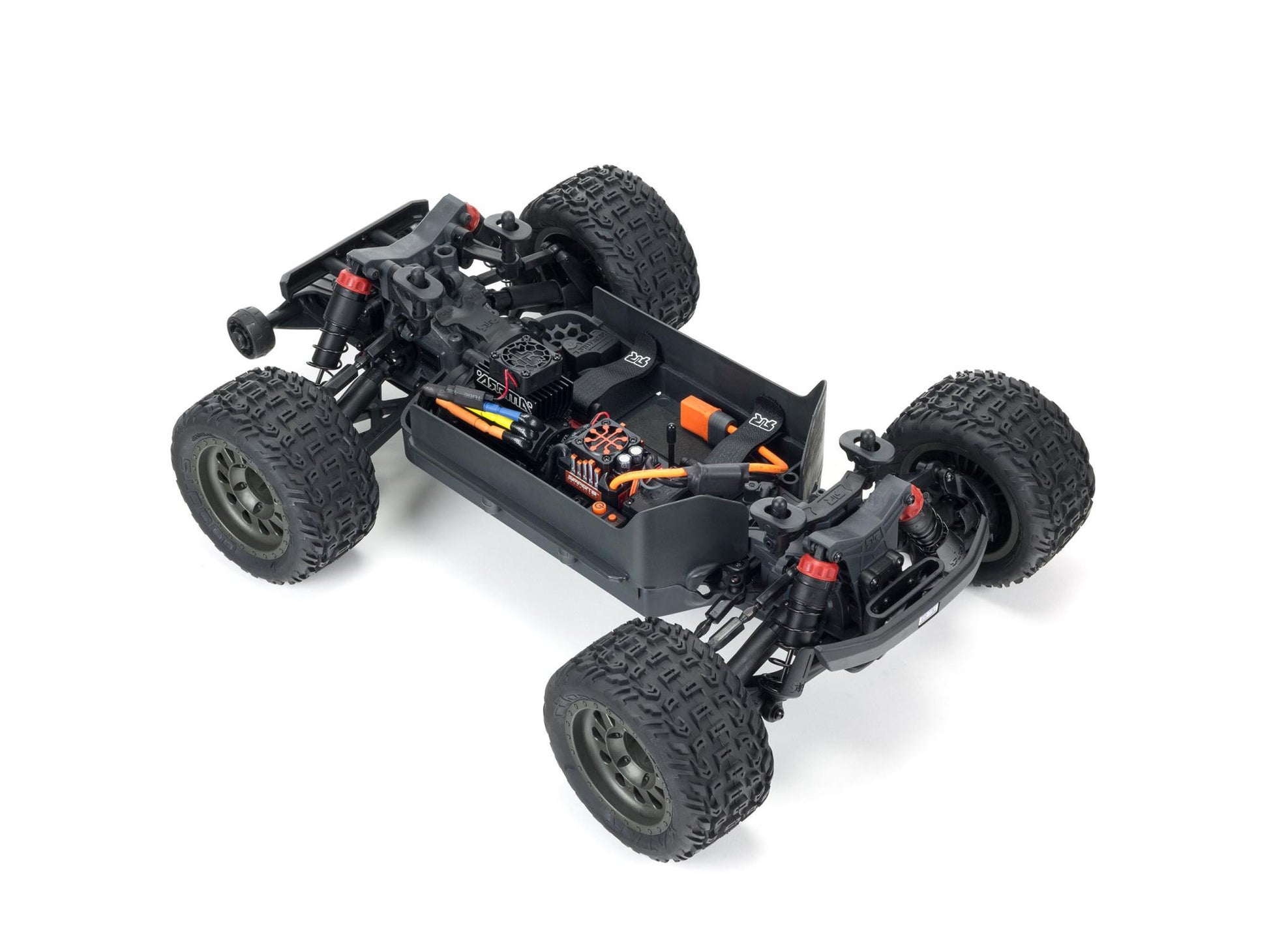

STRONG COMPOSITE CHASSIS
Features that contribute to the 4X4 3S BLX platform's unstoppable performance include a stronger composite chassis and retained hinge pin plates; steering with more clearance for stones; castellated slipper pads and sliding gear mesh; and rubber-shielded bearings throughout.Extended height dirt defenders limit the amount of dirt and debris that can get into the chassis tub. Front and rear bumpers offer defense against impacts.

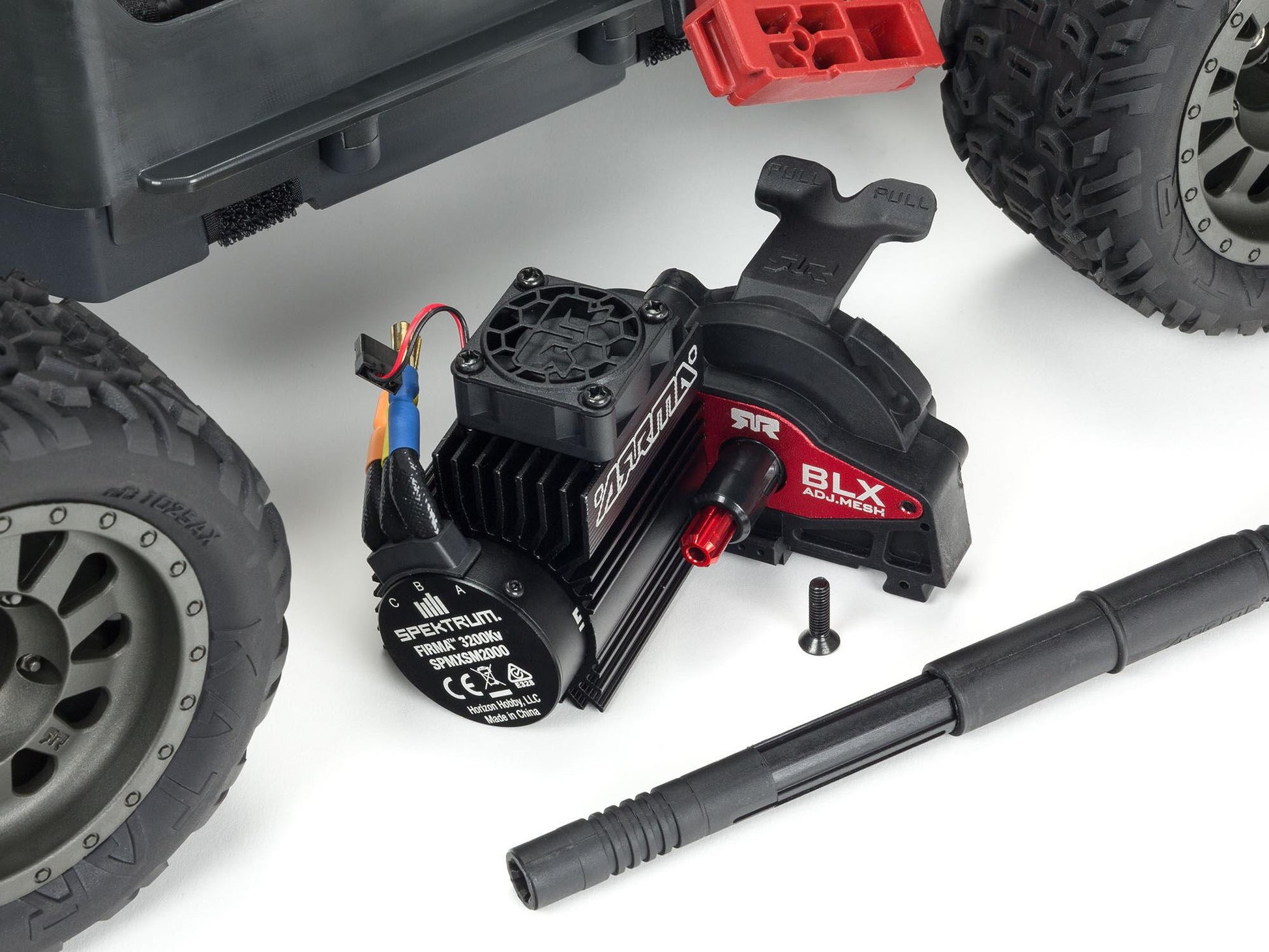

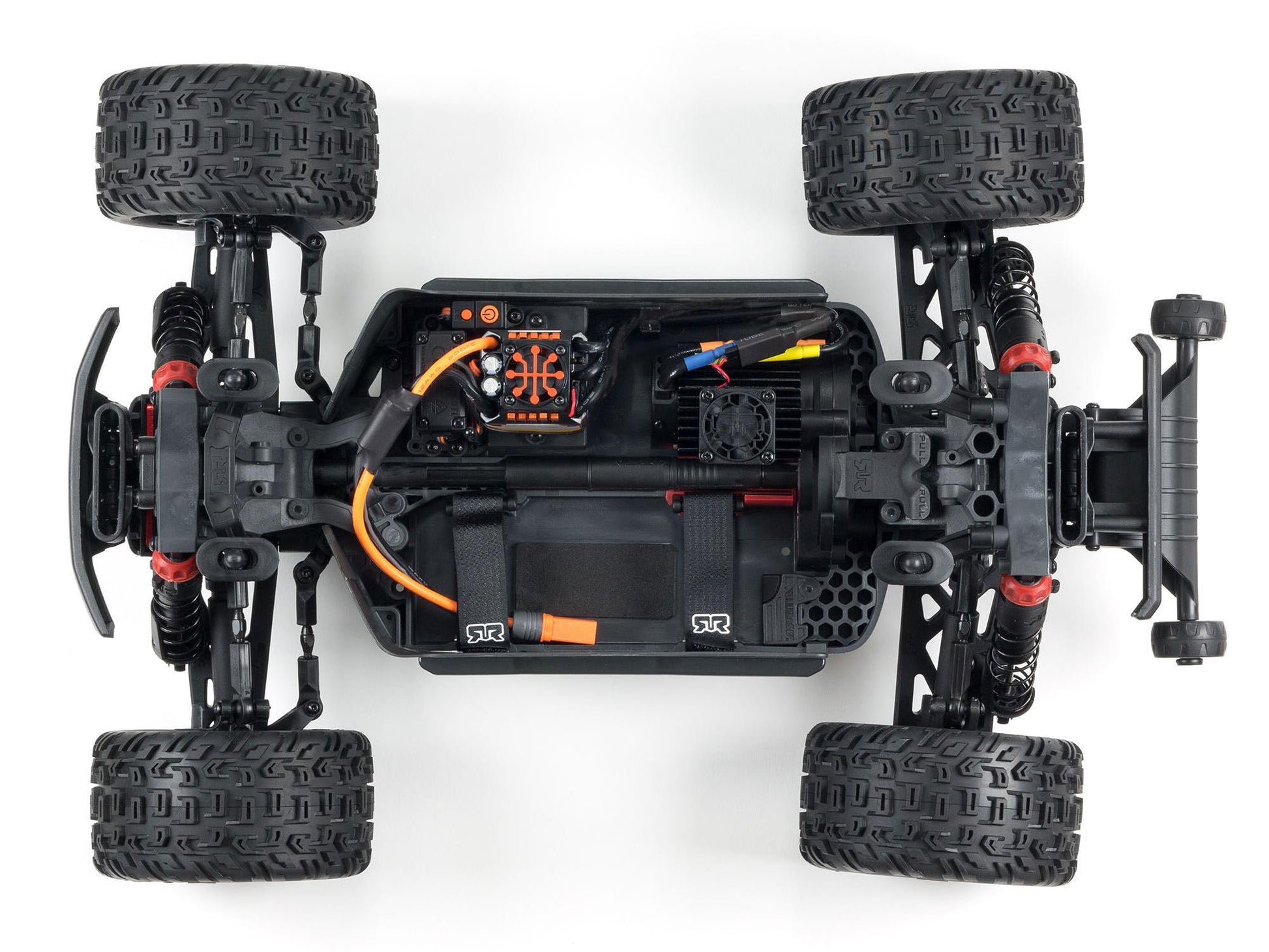

CONVENIENT MODULAR DESIGN
The VORTEKS

4X4 3S BLX Stadium Truck RTR incorporates the signature ARRMA

easy-access modular design. Separate, easily removable chassis modules for the power system, electronics and differential components make routine maintenance fast and simple. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for servicing by taking out three screws that attach the gear cover.

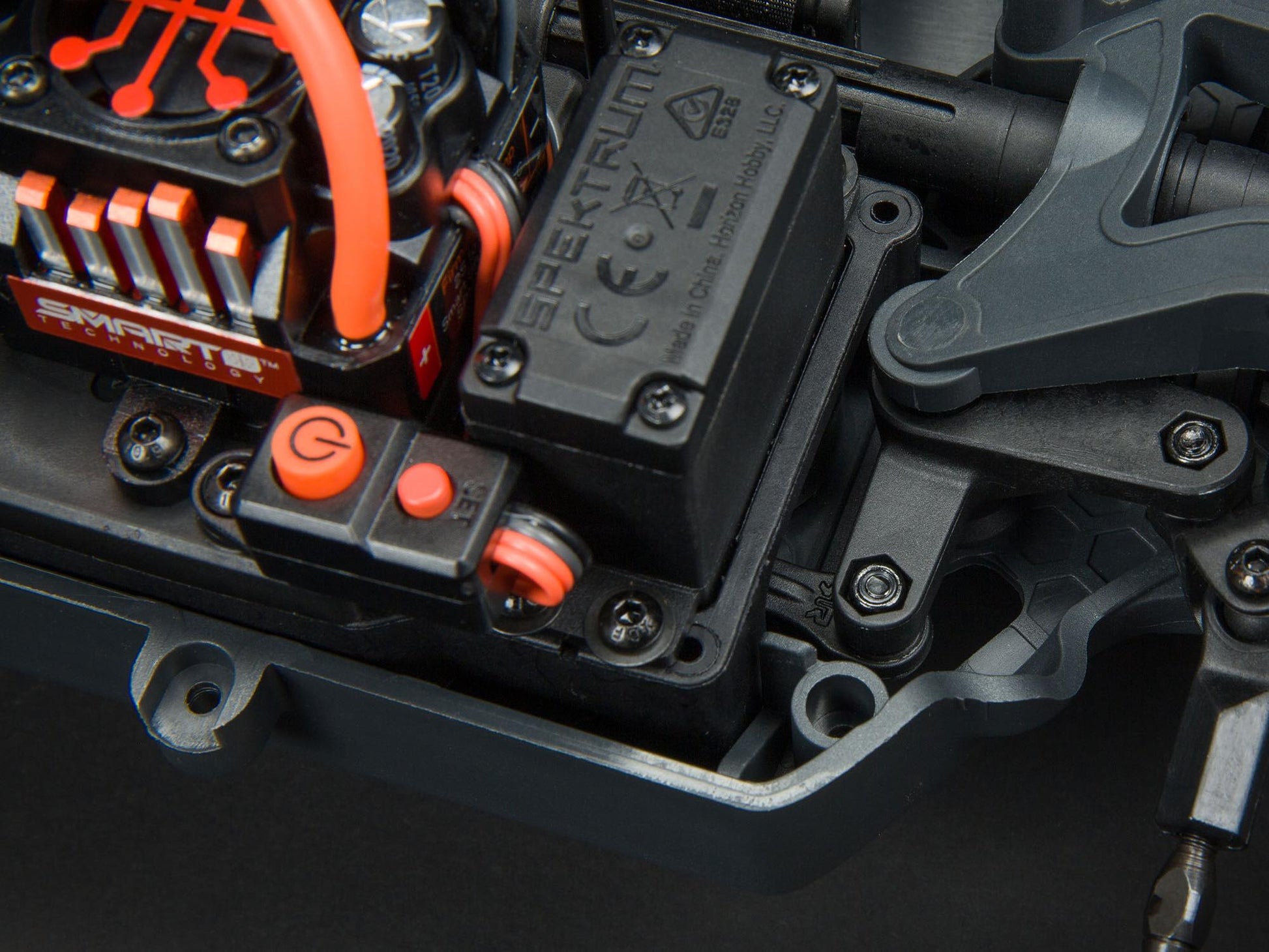

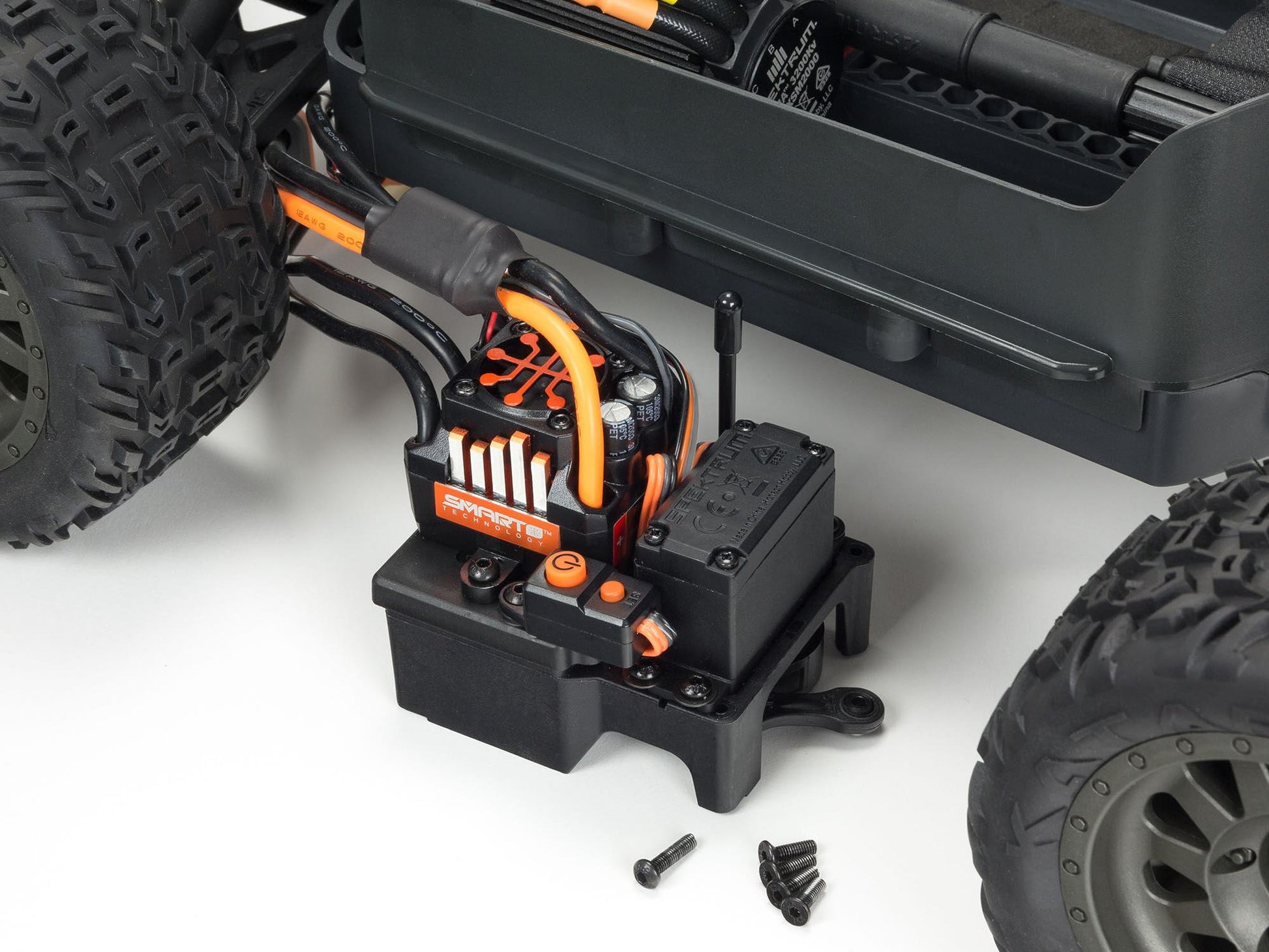

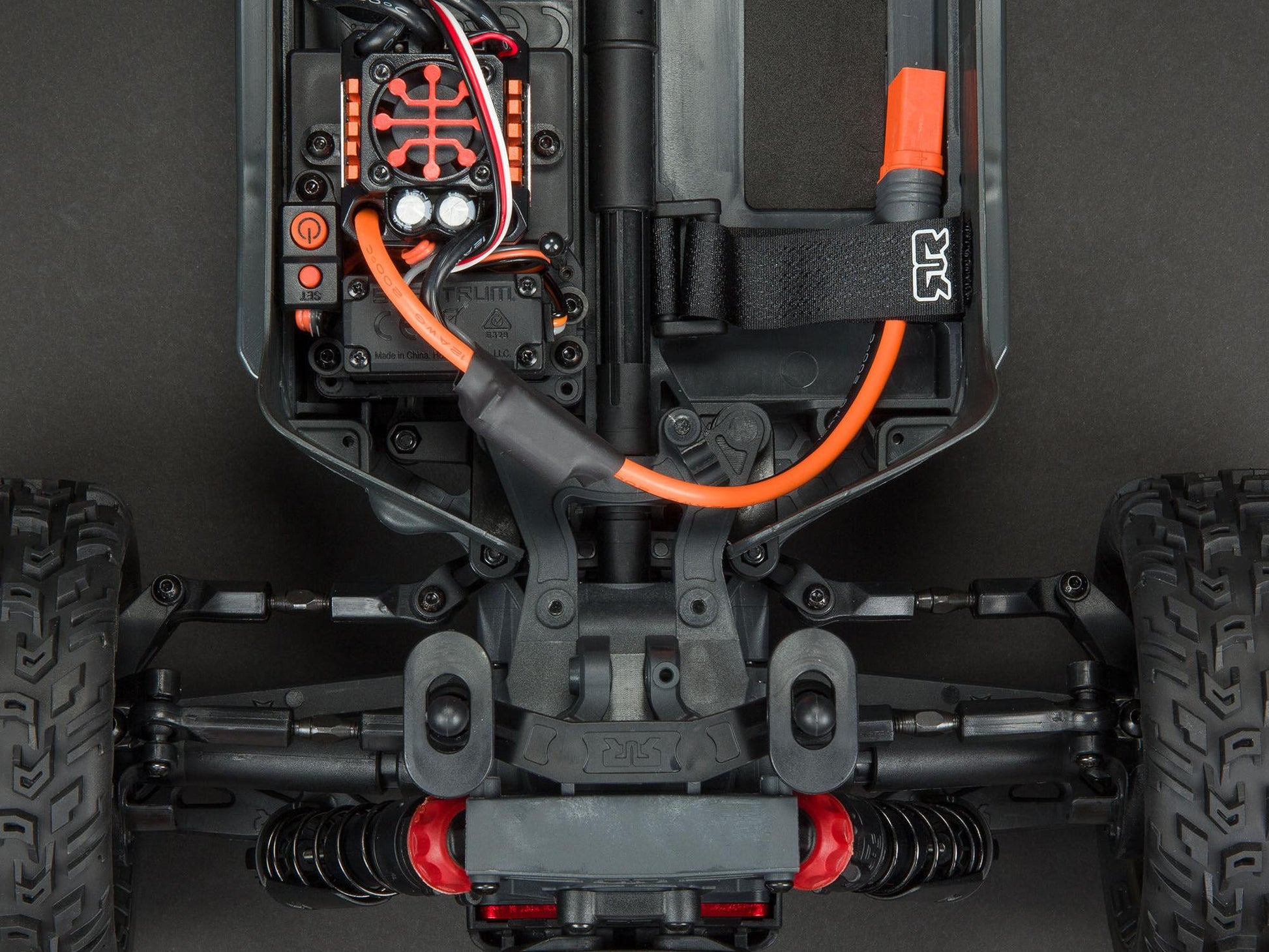

ELECTRONICS MODULE
A two-piece molding screwed to the VORTEKS

Stadium Truck's chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray.

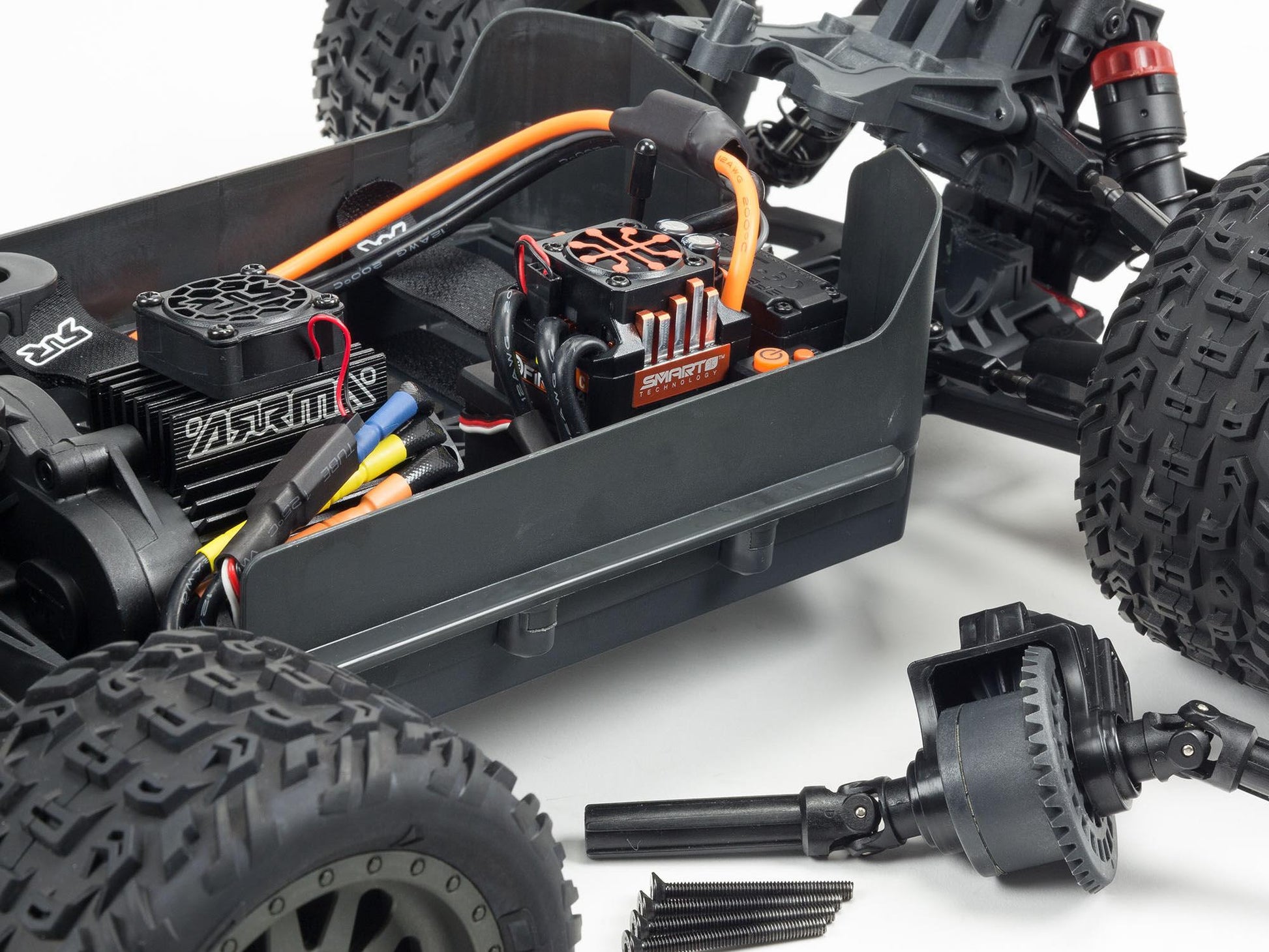

DIFFERENTIAL MODULE
The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access.

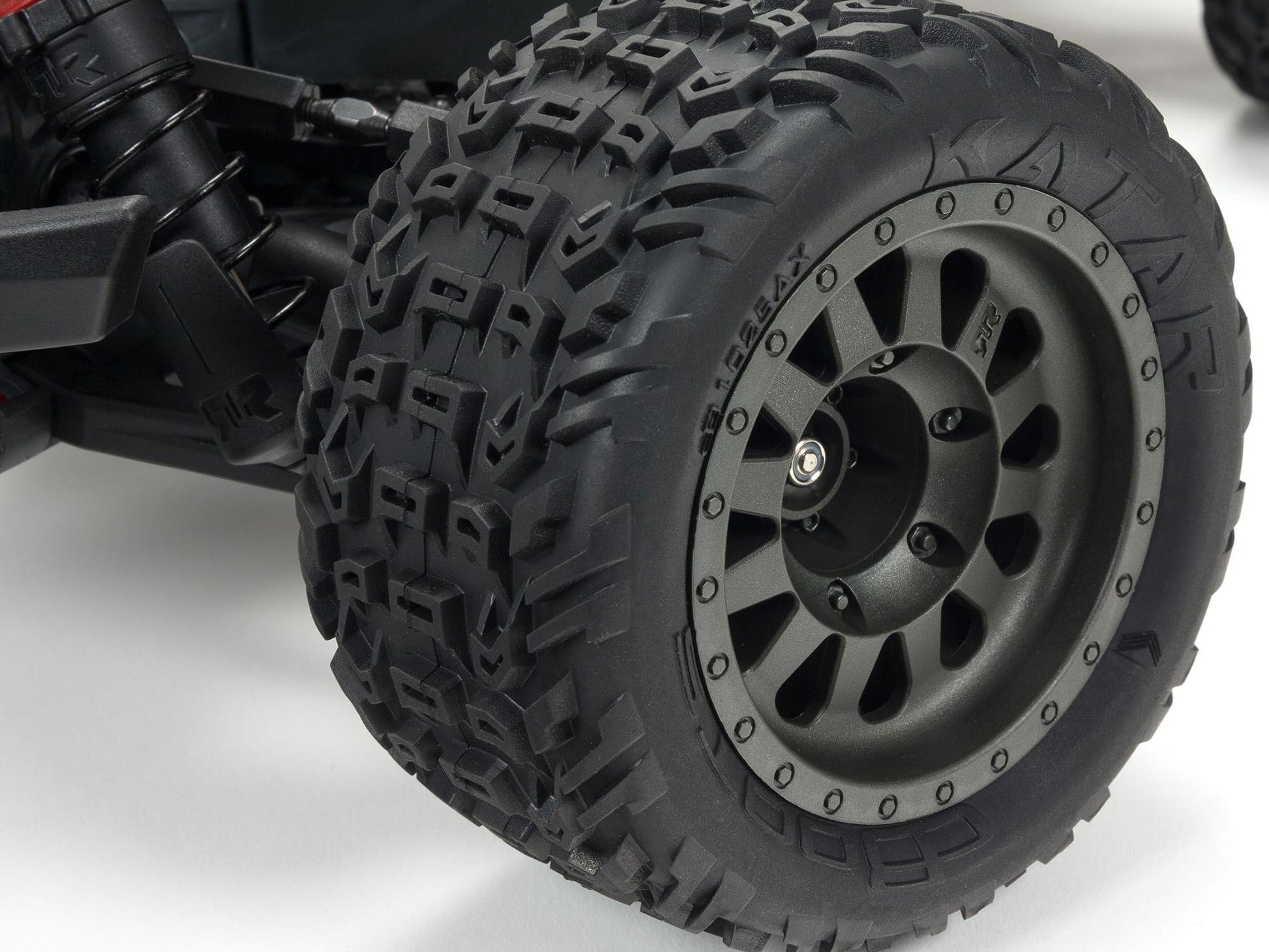

WHEELS AND TYRES
Multi-surface, vented dBoots

Katar

tread tyres are mounted to tough, gun-metal color nylon wheels. The tyres provide aggressive grip and easy handling characteristics in all conditions and are made of high-quality rubber for long-lasting durability.

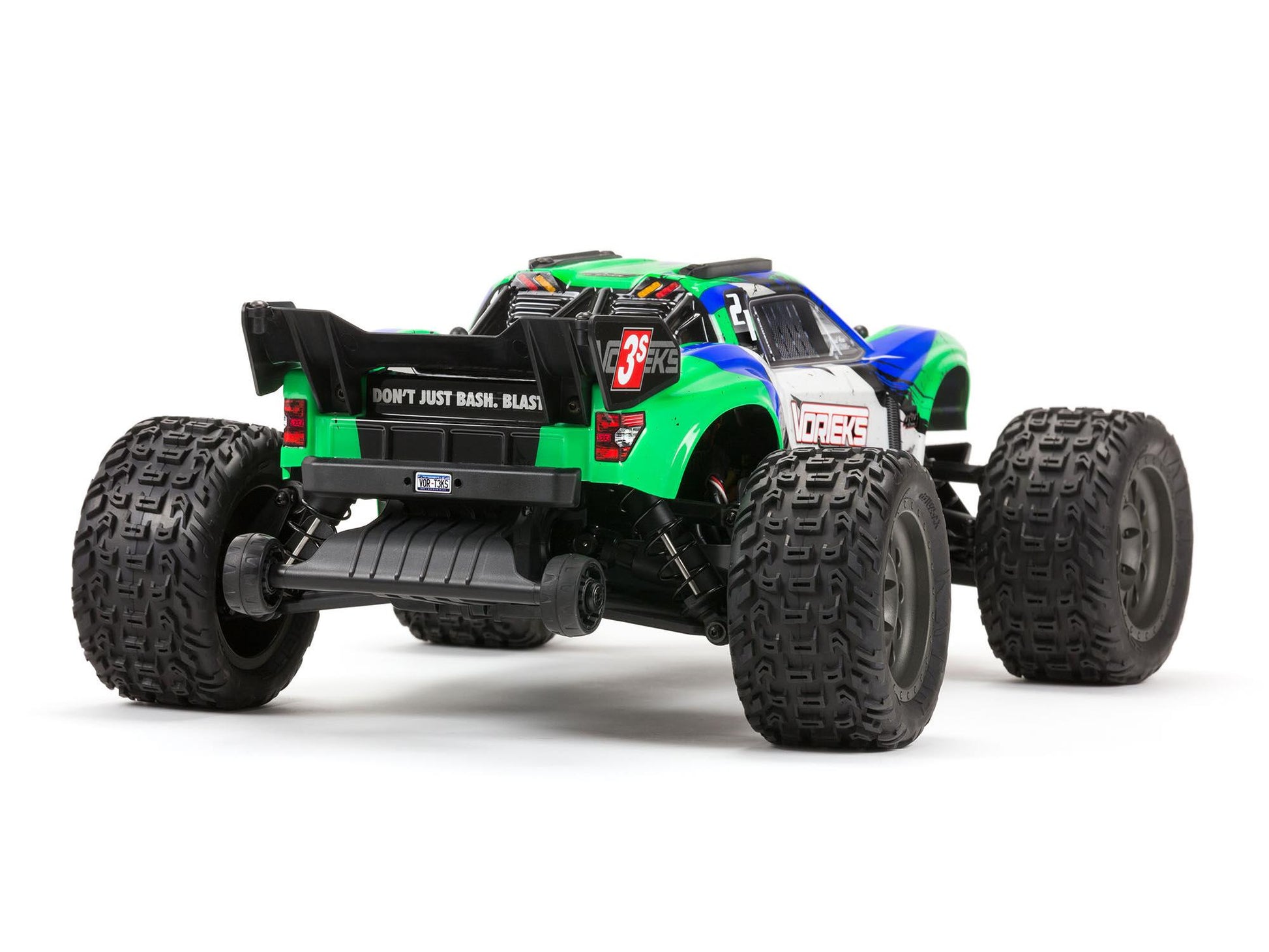

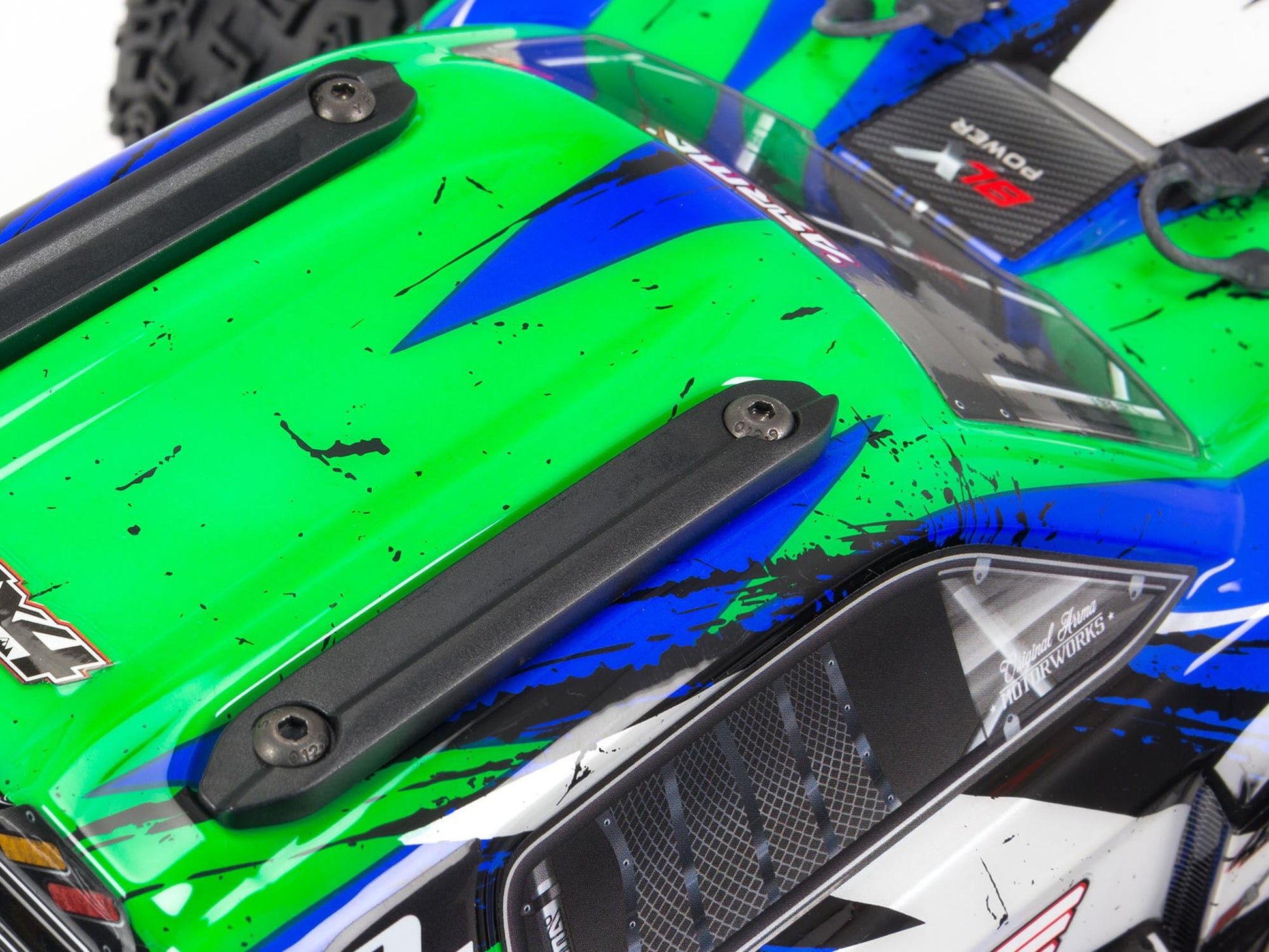

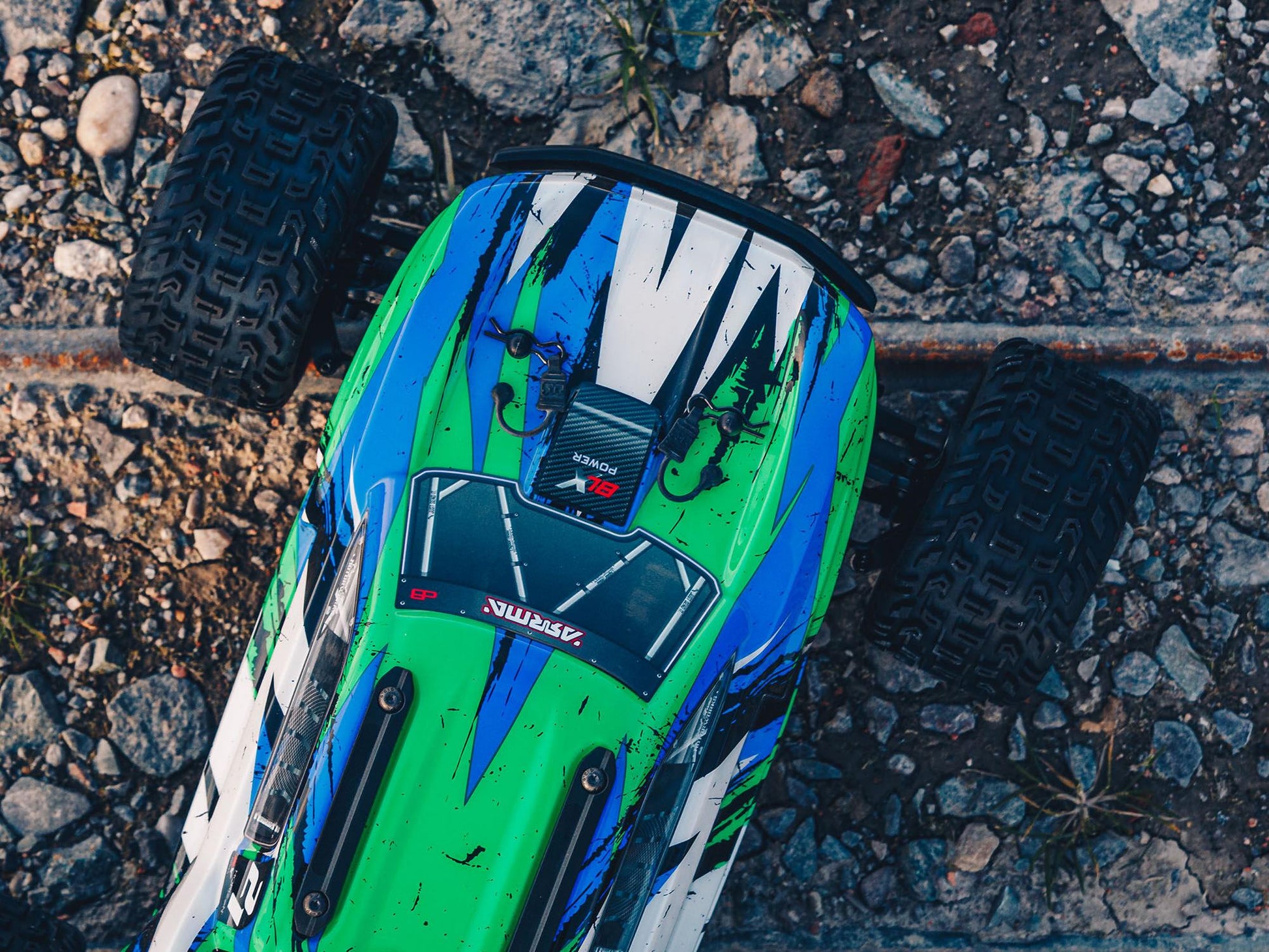

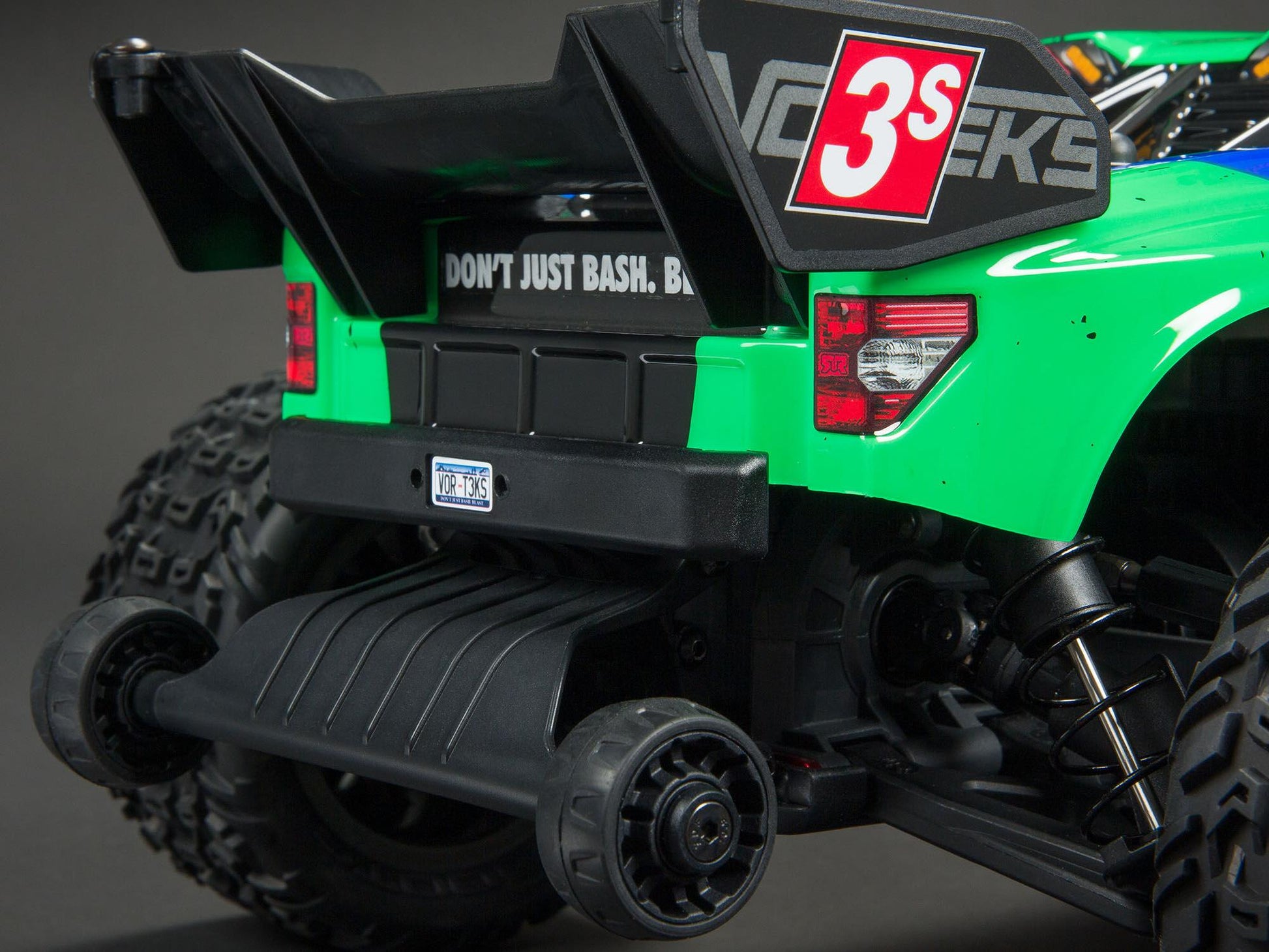

STADIUM TRUCK BODY

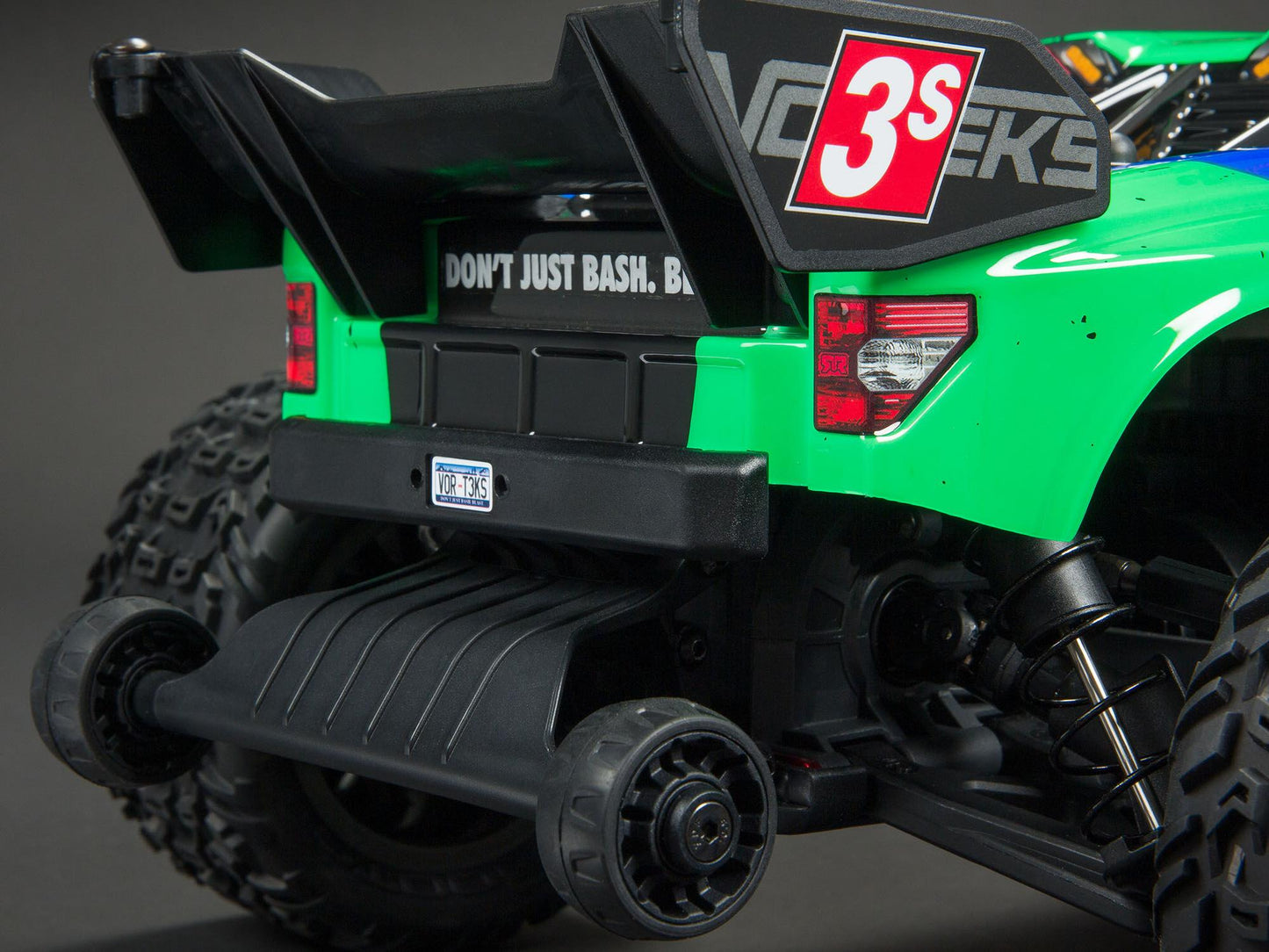

The sleek stadium truck body features a tough, injection-moulded rear wing and protective roof skids. It's available finished in your choice of three exciting color combinations. Front and rear bumpers protect against impacts and a wheelie bar provides stunt potential.
SPEKTRUM

RADIO AND ELECTRONICS
A first for any ARRMA

1/10 scale 4X4 RTR, the VORTEKS

Stadium Truck includes Spektrum

radio equipment with telemetry-capable Smart Technology plus AVC

on-demand traction control for extra stability when you need it.

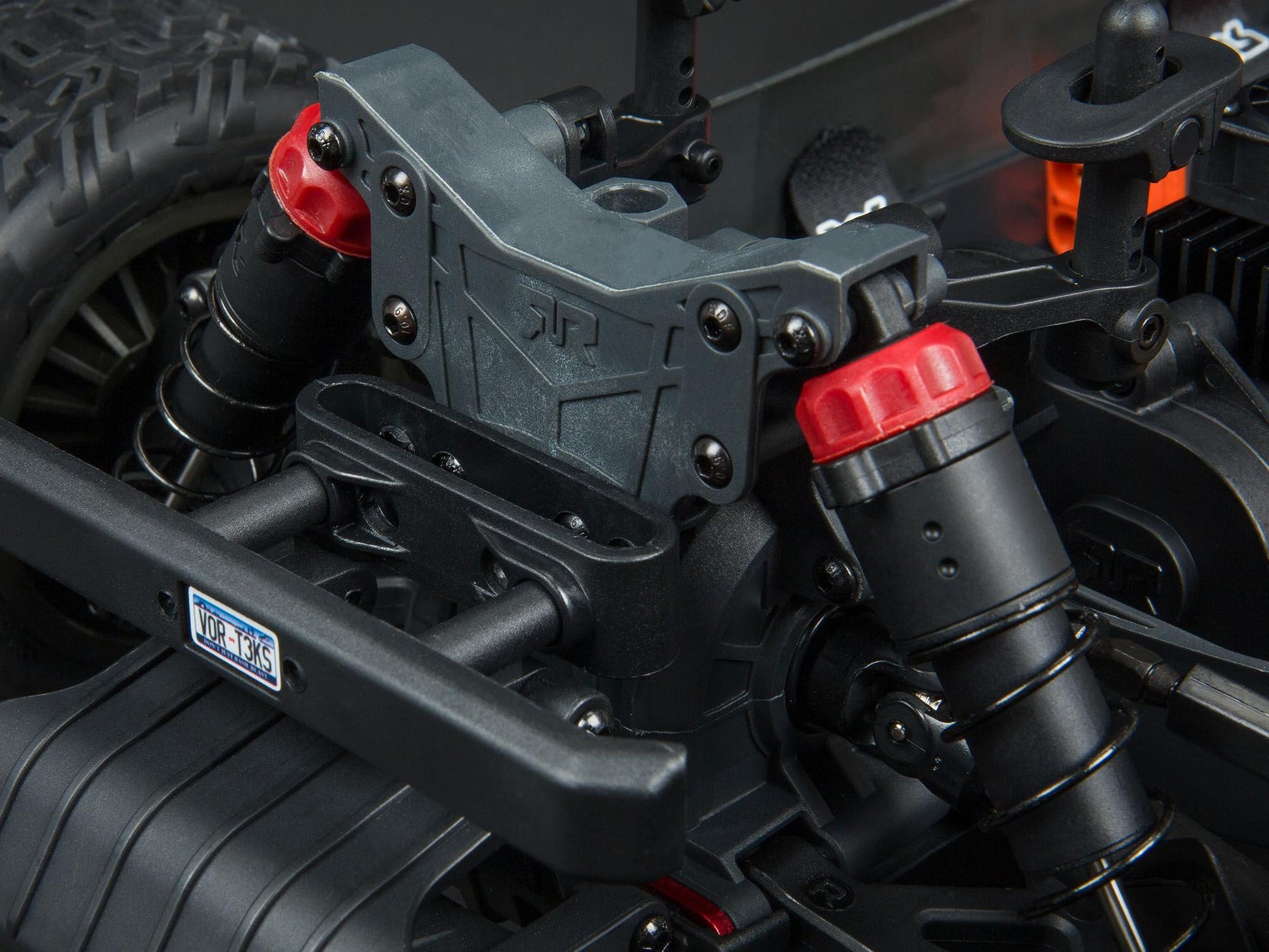

OIL-FILLED SHOCKS
The self-bleeding, oil-filled shocks with silicone O-rings use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a moulded-in spring perch for extra toughness.
