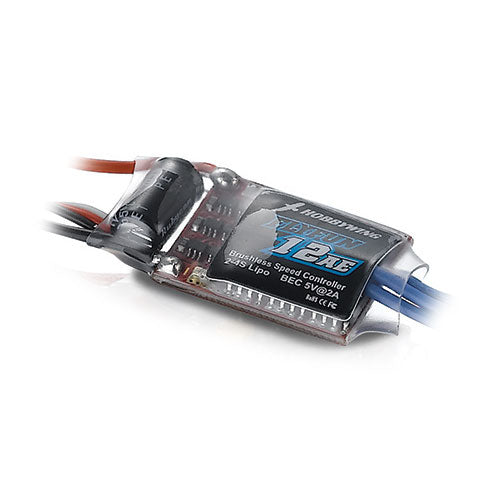

HOBBYWING FLYFUN 12AE SPEED CONTROLLER

Imported components and PCB (printed circuit board) with extremely low impedance adopted by FlyFun ESCs guarantees great current endurance, good performance and high reliability with a rich set of programmable parameters (via a LED program card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing, heli, multirotor and etc.)

Multiple protection features include abnormal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Features

• Great Performance
• Programmable Parameters
• Efficient Heat-dissipating System
• Four Flight Modes & “Auto Restart” Function
• Multiple Protections

Specifications

• Brushed/Brushless: Brushless
• Cont./Peak Current: 12A/15A
• Input Voltage: 2-4S LiPo
• BEC Output: Linear mode:5V,1A
• Input Wires: Red-20AWG-100mm*1, Black-20AWG-100mm*1
• Output Wires: Blue-20AWG-100mm*3
• Input Connectors: No
• Output Connectors: No
• LED Program Card: Supported
• WiFi Module: Not Supported
• Size: 38.0x18.0x7.0mm
• Weight: 10g
