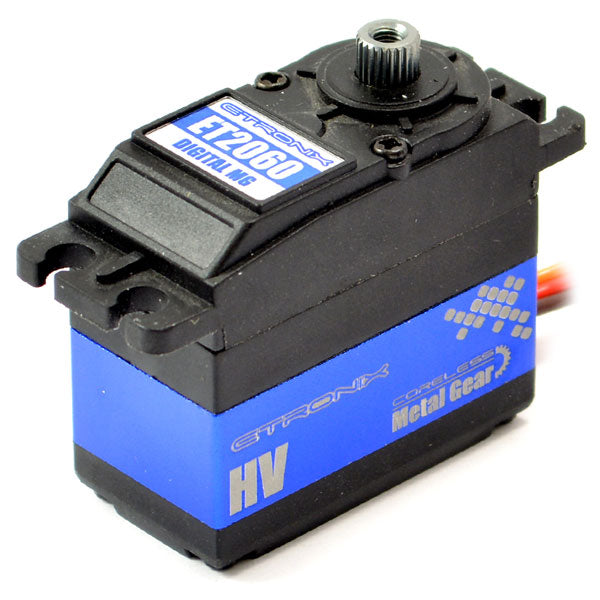

ETRONIX 11.25kg/0.07s STD DIGITAL HIGH VOLTAGE SERVO METAL GEAR

Features

• High performance digital high voltage coreless standard servo
• High-precision aluminium gears with hard anodizing
• Dual ball bearings
• CNC aluminium middle hull
• Waterproof

Specifications

Dead Band: 1μs
Working Frequency: 1520μs / 330hz
Motor: Coreless motor
Operating Speed (6.0V): 0.095sec/60°
Operating Speed (8.4V): 0.072sec/60°
Stall Torque (6.0V): 8.75 kg.cm (121.51oz/in)
Stall Torque (8.4V): 11.25kg.cm (156.23oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 59.3 g (2.09oz)
Connector Wire Length: JR 265 mm (10.43in)
