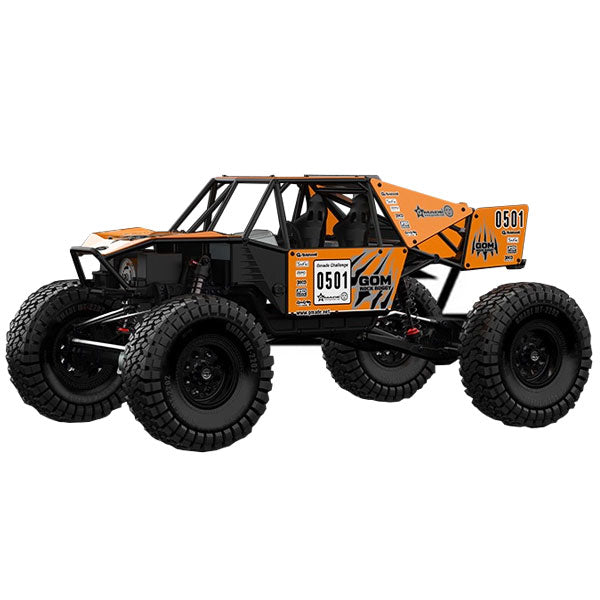

GMADE 1/10 GOM ROCK BUGGY PLUS KIT

The GOM (translates to "Bear") features a lightweight, extremely rigid tube chassis that not only looks extremely scale, but protects against impact. The steering servo is mounted to the chassis, and bump steer has been minimized to provide the best possible steering performance. The dustproof receiver box and easy access battery door provide plenty of space for your components. The GOM's front weight balance is designed to increase traction to the front wheels, improving climbing on steep angles and minimizing roll-overs.

Other notable features include a scale looking transmission and transfer case with a 2 speed transmission, awesome XD Aeration shocks, standard 2.2 size wheels. The Gmade GOM is destined to become a standard in the world of rock crawlers.

The GOM Rock Buggy Plus kit features a few special part not seen on the standard GOM rock buggy, these include a Grey tube chassis, Aluminium balls, Brass steering knuckle bushings, Hardened universal shafts, Aluminium 12mm hex hubs, Aluminium front shock spacers, GA60 CVA kit, Aluminium adjustable motor plate, Additional ball bearings, Grey aluminium rods and 2.2" GT03 wheels. All of these parts add up to make the GOM Plus pretty special.

Please Note: This version of the Gmade GOM Plus is sold in ARTR format (requires electrics and tyres).

GOM Plus Tube Chassis

The tube chassis is lightweight and extremely rigid. The three-dimensionally connected frame structure effectively protects the internals from external impact. The GOM Plus features a stealth grey coloured tube chassis.

GOM Plus Drive Train

The GA60 axles are structurally reinforced with an axle truss to not only reduce the risk of breakage, but to give a great scale appearance. They feature Hi Steer Zero Ackerman Knuckle Arms for improved clearance and a tight turning radius.

GOM Plus Transmission and Case

The 2 speed transmission, and transfer case with built in dig function, are designed to enhance the scale appearance of the vehicle. The 1st gear is for hardcore rock climbing and the 2nd gear is for hill climbing or high speed driving. Drivetrain efficiency has been improved by lowering the transfer case and reducing the driveline angle. The dual pad slipper holds the spur gear firmly and evenly, making precision settings easy to achieve.

GOM Plus XD Aeration Shock Absorber

Suspension utilizes 103mm aeration coil-over shocks for smooth driving on rough surfaces. Shock bodies are CNC machined, and 3.5mm shock shafts provide high durability. Rebound can be adjusted without disassembling the shock by simply using the aeration shock cap screw. Dual shocks can be added at a later date for the ultimate suspension setup for rough terrain.

Features

Plus Version Includes

• Aluminium balls
• Brass steering knuckle bushings
• Hardened universal shafts
• Aluminium 12mm hex hubs
• Aluminium front shock spacers
• GA60 CVA kit
• Aluminium adjustable motor plate
• Additional ball bearings
• Grey aluminium rods
• Grey tube chassis parts

Specifications

Scale: 1/10th
Width: 318mm
Height: 248mm
Length: 523mm
Wheelbase: 380mm
Ground Clearance: 88mm
Weight (No Electronics): 2kg

2.2 inch GT03 Wheel

The GT03 wheel is a great looking wheel in stealth grey, add your favourite tyres to the GT03 and your GOM Plus is able to tackle any terrain you throw at it.

Required To Complete

• RC radio system
• 7.2V battery pack
• Battery charger
• Electronic speed control
• RC electric motor
• Steering servo
• Paint for polycarbonate body
