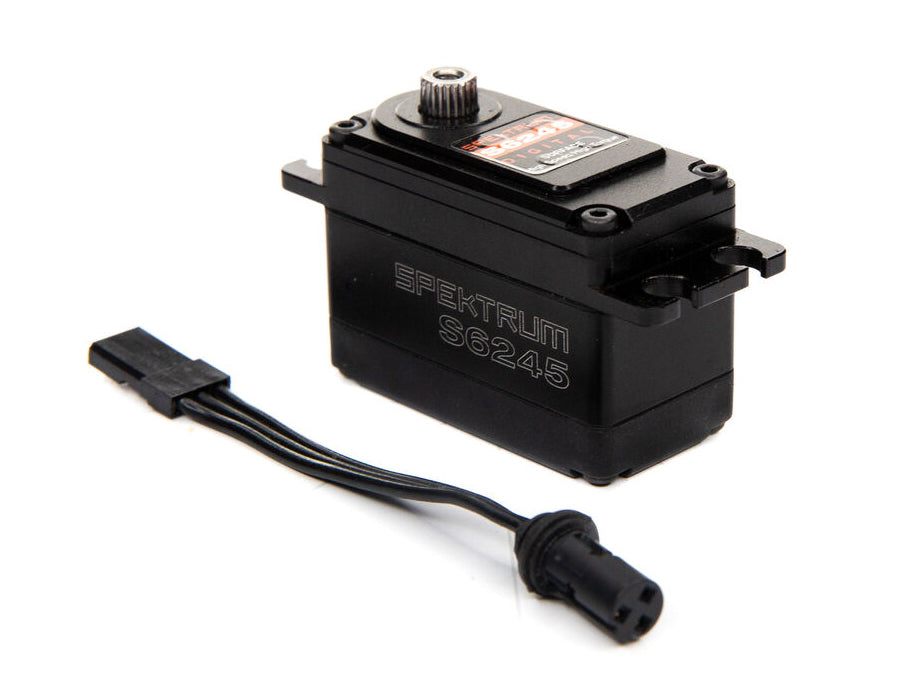

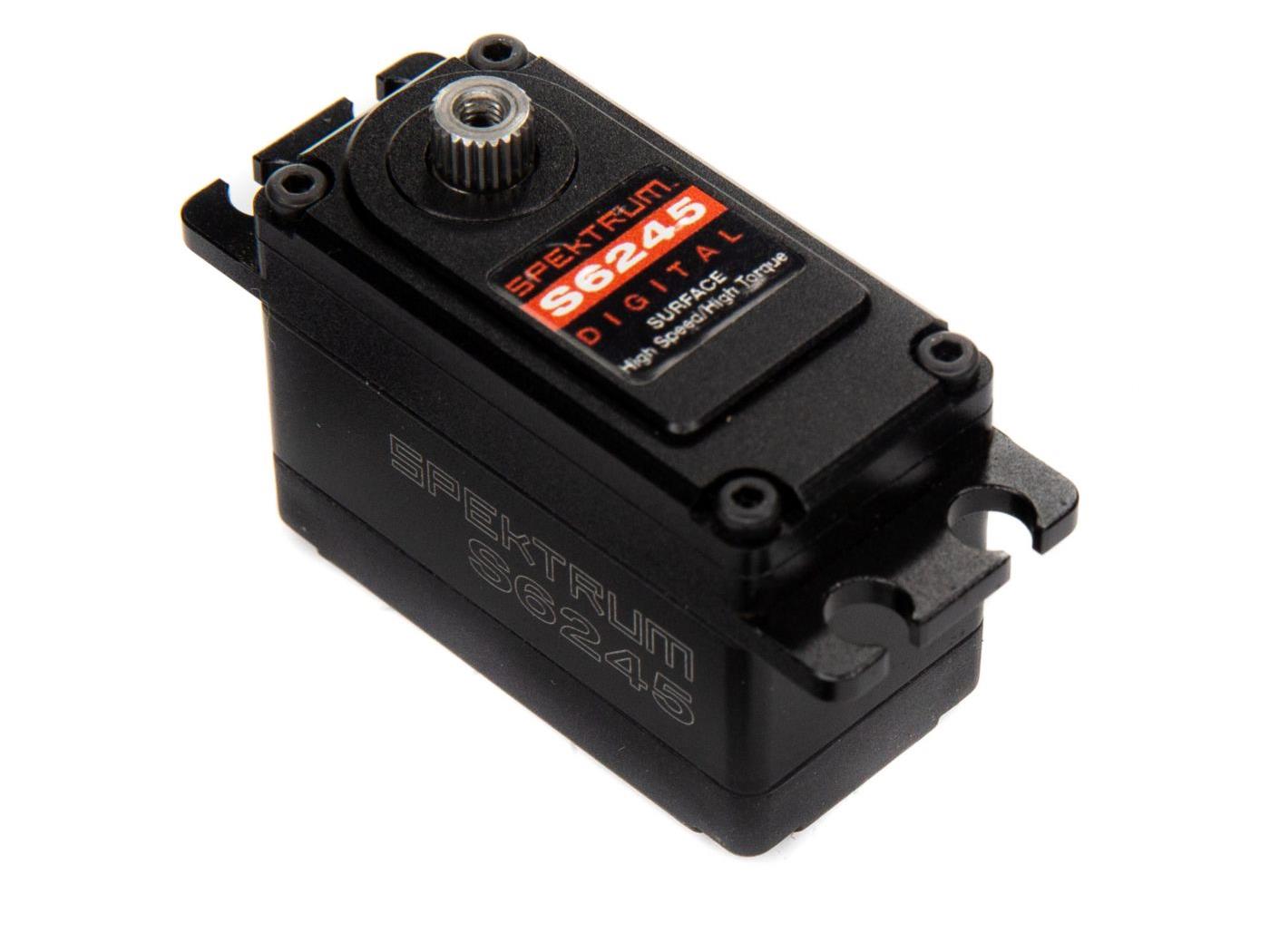

S6245 High Speed/Torque Servo

Features
Stylish stealth black and silver anodized aluminum case*
Aluminum case provides great heat dissipation
High Voltage HV compatible (7.4V/2S Max)*
Improved torque and speed*
Removable wire harness with different lengths available
Improved gear design for added durability*
7075 Aluminum hard anodized output shaft/main gear with steel internal gears
Includes 2 inch extension for easy minimum wire installs
Robust aluminum mounting tabs
NMB dual main output shaft bearings
23T output shaft
Waterproof
*Compared to S6240 Racing Servo
Overview
The latest generation of Spektrum surface servos provides you with the performance you need for any 1/10th scale vehicle application. The S6245 takes the race winning S6240 servo and upgrades it with a sleek, all aluminum, black anodized finish. The low profile design allows for space saving installation, making it the perfect servo for 1/10 racing buggies and trucks, bashers looking to upgrade their RTR vehicle, or for crawlers that need that extra speed and torque to push through demanding terrain.
Specification
Motor Type Coreless
Height 30mm
Length 41mm
Weight 2.2oz (62.37g)
Width 20.8mm
Programmable: No
Servo Operating Voltage: 6.0 - 7.4V (HV)
Speed: 0.08 sec/60 deg @ 6V, 0.06 sec/60 deg @ 7.4V
Spline Count: 23 Teeth
Torque: 206 oz-in (14.8kg-cm) @ 6V, 266 oz-in (19.2 kg-cm) @ 7.4V
