Typhon 4X4 3S BLX Firma SLT3 Speed Buggy RTR

Features
Stronger chassis and retained hinge pin plates
Steering with more clearance for stones
Castellated slipper pad and sliding gear mesh
Plastic locknut for slipper
23T Spline servo saver
37T 1.35Mod diffs with silicone O-rings
Power Module with sliding gear mesh and improved dirt management
Rubber shielded bearings throughout
Oil-filled shocks with silicone O-rings
Tough gunmetal colored multi-spoke wheels
Vented multi-terrain dBoots 2-HO tyres
BLX100 2S/3S waterproof* ESC
*For details on waterproof standards, refer to the instruction manual.
IC5 connectors (EC5 ) compatible
Signature easy-access modular design
Easy-access power module
Easy-access electronics module
Easy-access diff module removal front and rear
Double wishbone suspension front and rear
Metal-geared differentials
Adjustable ride height
Adjustable body mounts
Adjustable turnbuckles
High-speed center driveshaft support
High downforce wing
50+ MPH (80+ km/h) speed achievable in optimum driving conditions on 3S LiPo
Overview
Making your move into brushless 1/8 scale Speed Buggy action has never been easier. Fast, rugged and factory-built, the 3S LiPo-compatible ARRMA TYPHON 4X4 3S BLX RTR comes ready out of the box to bash on any terrain. Precision aluminium, tough steel and composite materials come together for an easy-to-maintain, super-durable vehicle design whose high downforce wing and low center of gravity, with wide arms and narrow wheels and tyres, improve handling over race tracks, trails, muddy courses, skate parks and more. This version features new equipment that further increases the original buggy’s already impressive performance and durability.
The TYPHON 4X4 3S BLX RTR is DESIGNED FAST, DESIGNED TOUGH — built for exciting bashing speeds and extreme, all-terrain durability. New features that enhance its unstoppable performance include a stronger chassis and retained hinge pin plates; steering with more clearance for stones; a castellated slipper pad and sliding gear mesh; and rubber-shielded bearings throughout.
It also now includes a Spektrum SLT3 transmitter and SLR300 receiver. The transmitter is ergonomically designed for long periods of fatigue-free bashing and has a foam wheel for precise fingertip control plus an improved hand grip and trigger feel. New bashers will be able to set throttle limits at 50% or 75% until they are ready to use the full speed potential. The SLT3 is compatible with Tactic SLT receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
ARRMA now powers the TYPHON 4X4 3S BLX with a brushless system featuring its BLX100 ESC and the Spektrum Firma 3200Kv brushless motor. The combination provides incredible torque, acceleration and speed. The transmission and chassis are ruggedly engineered to take full advantage of the electronics’ power — in ARRMA tradition, DESIGNED FAST, DESIGNED TOUGH.
It has the ingenious modular design perfected by ARRMA engineers for easy component access and maintenance. The power module, with improved dirt management, consists of the motor with ARRMA heatsink and cooling fan, plus motor plate, slipper clutch assembly and gear cover. The power module can be detached from the chassis as a complete unit by removing just one screw. With the power module removed, the slipper clutch can be reached easily for adjustments by taking out three screws that attach the gear cover. The gear ratio can be finely tuned as the power module now uses a sliding motor mesh design.
A two-piece moulding screwed to the Speed Buggy’s chassis serves as its electronics module, containing a waterproof receiver box, servo mount and ESC tray. The SLR300 receiver mounts inside the receiver box for protection from dirt and moisture. The ultra-compact ESC is screwed to the top of the module, allowing quick access to the on/off switch, while the servo mounts to the side. All three components can be removed together, quickly and easily.
The differential module houses each differential unit in an innovative yoke design. Only eight screws need to be removed to release the front and rear yokes. The power module can then be detached, allowing you to pivot the gearbox cases for differential access. The TYPHON 4X4 3S BLX RTR comes brushless-ready with 37T 1.35mod diffs with silicone O-rings. The large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.
Its full-time 4WD transmission uses strong front, rear, and centerline telescopic driveshafts that can’t be lost during heavy impacts, unlike dogbones. A simple, dependable, responsive steering assembly complements the ultra-reliable drive system and features a servo horn with built-in servo saver. The TYPHON 4X4 3S BLX RTR includes the waterproof Spektrum SPMS651 metal-geared digital servo for 15% more torque than the previous version’s ADS-7M servo.
The self-bleeding, oil-filled shocks, now with silicone O-rings, use a tried and tested, coil-over design for simple maintenance and amazing handling. Their innovative rod-end has a moulded-in spring perch for extra toughness. High chassis sides and a close-fitting buggy body limit the amount of dirt and debris that can get into the chassis tub. Front and rear bumpers offer defense against impacts.
Tough gunmetal colored, multi-spoke wheels with vented dBoots 2-HO tyres give the 1/8 scale TYPHON 4X4 3S BLX RTR Speed Buggy effective traction for bashing on almost any terrain. With the metallic-finish body and forged composite detail, it also looks as great as it performs. A stylish, high-downforce wing keeps all four wheels planted as you explore the upper limits of its outrageous speed range.
Needed to Complete
2S LiPo or 3S Hardcase LiPo Battery
Compatible Charger
LiPo Safe Charging Bag
(4) AA Batteries
What's in the Box?
(1) ARRMA

TYPHON

4X4 3S BLX 1/8 Scale 4WD Electric Speed Buggy RTR
(1) BLX100 2S/3S Waterproof* ESC
(1) Spektrum

Firma

3660 3200Kv Brushless Motor
(1) Spektrum

2.4GHz SLT3

3-Channel Transmitter
(1) Spektrum

SLR300 Receiver
(1) Spektrum

SPMS651 Waterproof* Metal-Geared Digital Servo
(1) Product Manual
*For details on waterproof standards, refer to the instruction manual.
Spektrum 3-Channel SLT3 2.4GHz radio and SLR300 Waterproof* Receiver
Fast response SLT protocol
Foam wheel
Improved grip and trigger feel
Improved wheel and trigger force
2-way thumb switch third channel
50% and 75% Throttle mode (for beginners)
Tactic SLT receiver compatible
Spektrum SPMS651 Metal-Geared Digital Servo
101 oz-in (7.27 kg-cm) @ 6V
15% more torque than the previous ADS-7M servo for improved steering feel
Waterproof*
*For details on waterproof standards, refer to the instruction manual.
Spektrum Firma 3660 3200Kv brushless motor with Safe D pinion and ARRMA heatsink and cooling fan
Strengthened Chassis
Stronger chassis and retained hinge pin plates
Larger pull tab on power module
Castellated slipper pad and sliding gear mesh
Rubber shielded bearings
Redesigned Steering
Steering with more clearance for stones.
Tougher brushless ready transmission
Metal input spline moulded into composite gear. Same gears as the ARRMA 4S.
Sealed Wheels & Vented Tyres
Stops dirt getting in and allows water to escape.
dBoots 2-HO tyres
Tough gunmetal colored, multi-spoke wheels with vented dBoots 2-HO tyres give the 1/8 scale TYPHON 4X4 3S BLX RTR Speed Buggy effective traction for bashing on almost any terrain.
Silicone O-rings
Oil-filled shocks with silicone O-rings
Heavy Duty Bumpers
Proven Power Package
Amazing power and performance.
Easy-access power module
Detaches from chassis as a complete unit by removing one screw.
Contains motor, motor plate, slipper clutch assembly and gear cover.

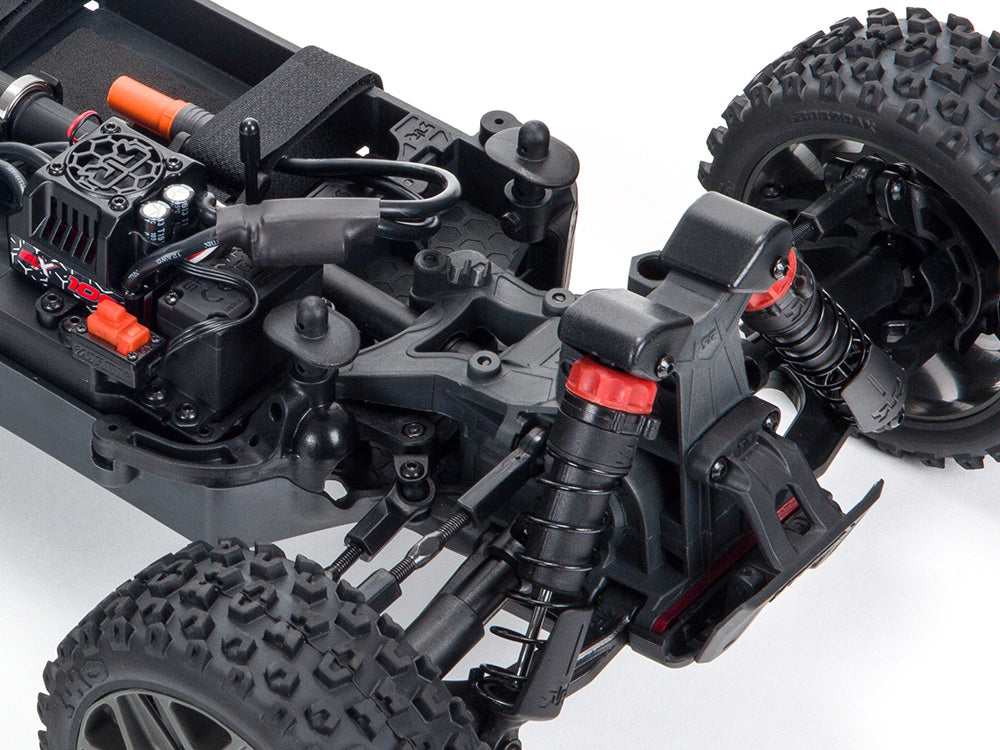

Easy-access electronics module
Two-piece moulding screwed to the chassis contains a waterproof receiver box, servo mount, and ESC tray.
Receiver mounts inside sealed module for protection from dirt and moisture.
ESC screws to the top for easy maintenance and switch access.
Servo mounts on the side for quick servicing.
Metal-geared differentials
Large gears can withstand huge torque, and internal metal gears have been chosen for reliability during extreme bashing.
Easy-access front and rear diff module removal.
Proven tough composite shock towers
