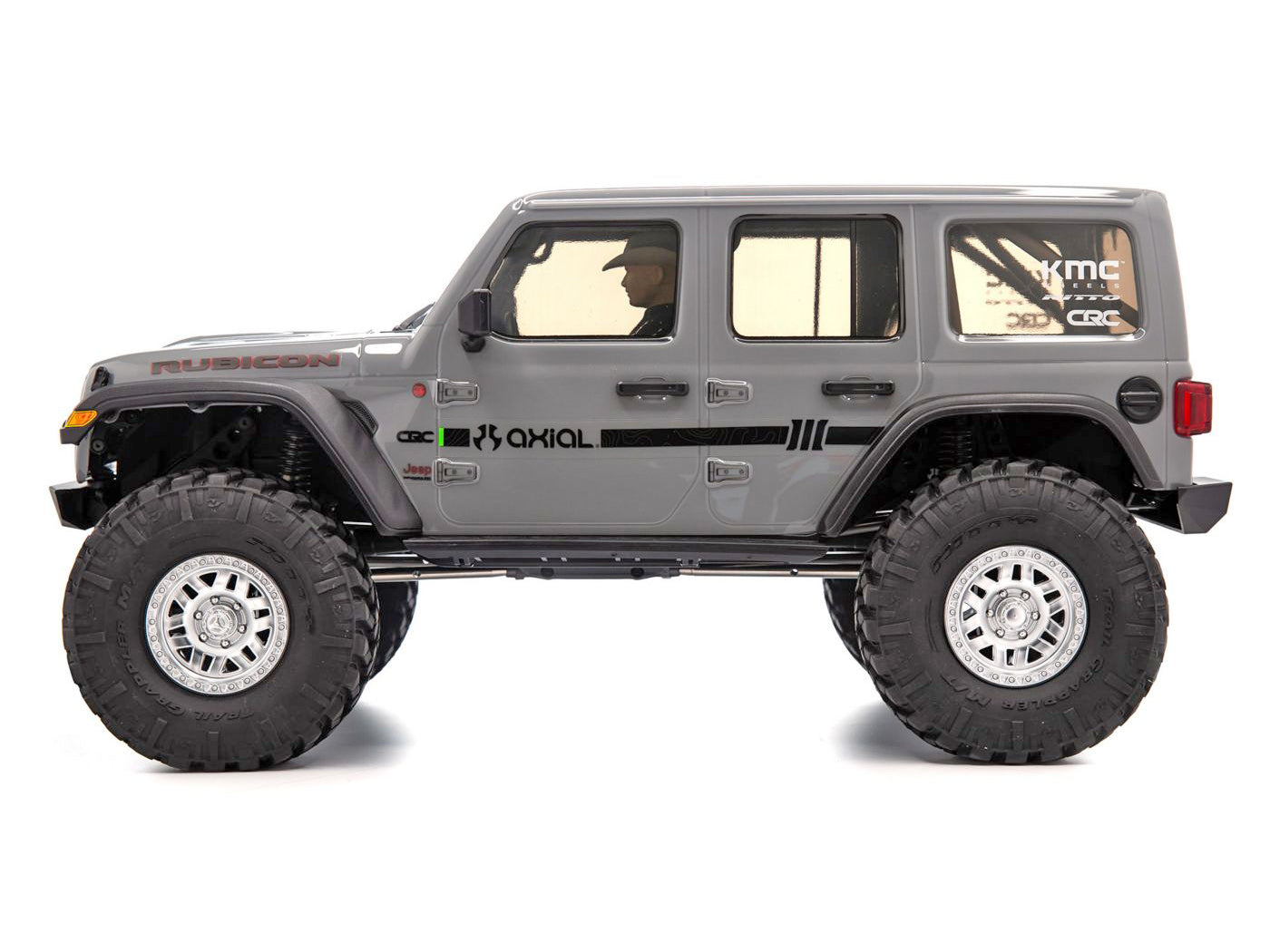

1/10 SCX10III Jeep JLU Wrangler with Portals RTR, Grey

Introduction
The 1/10 scale, ready-to-run Axial

SCX10

III Jeep

JLU Wrangler 4WD marks the next step forward in scale off-road action. While continuing to incorporate key components that have made SCX10

vehicles successful, the SCX10

III increases chassis realism with details that include a replica V8 engine to house the installed brushed motor. It's mated to a realistic transmission housing and transfer case, like a 1:1 vehicle. The RTR also comes complete with the Spektrum

DX3

3-channel 2.4GHz DSMR

transmitter and Firma

40A ESC/receiver - for a radio system that's ready to give you the advantages of innovative Spektrum

Smart technology.
Features
Replica V8 engine, transmission housing and transfer case cover and protect the motor while improving scale appearance
Chassis tray accepts full-size, "standard" LiPo or NiMH batteries, with space on the side rails for running small pack sizes
DIG function lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius
Two-speed transmission option available for high and low speeds
Portal axles increase ground clearance and reduce torque twist
Adjustable wheelbase chassis allows each driver to choose the size of their chassis
Inner fenders and floor sides hide internal components usually visible from the side of the chassis
Licensed KMC Machete 3-piece beadlock wheels provide scale looks and let you remove and replace tyres without gluing
Officially licensed Nitto Trail Grappler tyres in a new taller and wider size increase ground clearance and grip
Fully rebuildable, oil-filled shocks include clear anodized, threaded shock bodies, coilover springs, and an emulsion-style cap with screw for easier rebuilds
Spektrum

DX3

2.4GHz DSMR

radio offers superior range, response, and interference resistance and is Smart technology compatible
High-quality Spektrum

Firma

Smart 40A ESC/receiver provides the innovative telemetry capabilities of exclusive Spektrum

Smart technology
Metal gear, 15kg high torque servo is waterproof for driving with confidence in any weather and trail conditions
Scale Jeep

Wrangler Unlimited body with detailed interior
Overview
Out of the box, the SCX10

III Jeep

JLU Wrangler transmission features a third-channel DIG function that lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius. As an alternative, you can set up the vehicle with a two-speed transmission instead and select between high and low speeds. If you'd like to use both the two-speed transmission and DIG function, just add another servo and a radio with at least four channels (such as the 5-channel Spektrum

DX5).
The SCX10

III Jeep

JLU Wrangler uses portal axles to improve performance by increasing the ground clearance and reducing torque twist. Its standard battery tray accepts full-size "standard" LiPo or NiMH packs. There's space on the side rails as well for drivers who prefer smaller packs. Inner fenders and floor sides hide internal components that would usually be visible from the side of the chassis.
The chassis is topped off with a Jeep

Wrangler Unlimited four-door body that includes a roll cage, front hood vents and cowl, windshield wipers, mirrors, door handles and other moulded-in details, plus a detailed interior and LED lighting. New taller and wider, officially licensed Nitto Trail Grappler tyres on 3-piece beadlock wheels add more scale realism and more grip on dirt, rocks, and all other off-road trails.
With the Spektrum

DX3

radio's exclusive DSMR

technology, you'll enjoy the superior range, response, and interference resistance of exclusive DSMR

technology. Together with the installed Firma

Smart 40A ESC/receiver, it also offers the advantages of exclusive Spektrum

Smart technology. Install a Spektrum Smart LiPo battery and you can view vehicle battery capacity at a glance on the DX3 transmitter's voltage level indicator. Outfit the DX3 with the optional BT2000 Bluetooth module and download the free Spektrum Dashboard

app to your smart device, and you're also ready to use Smart real-time telemetry - without needing on-board sensors or modules.
Needed to Complete
Vehicle Battery (accepts standard and shorty packs)
Compatible charger
What's in the Box?
(1) Axial

SCX10

III Jeep

JLU Wrangler 4WD RTR
(1) Spektrum

DX3

3-Channel 2.4GHz DSMR

Radio System
(1) Product Manual
SCALE ENGINE DETAIL
Scale features including a replica V8 engine, transmission housing, and transfer case all cover and protect the included brushed motor while adding to the realistic appearance.
MULTIPLE BATTERY MOUNTING LOCATIONS
The SCX10

III Jeep

JLU Wrangler has a standard battery tray that accepts full-size "standard" LiPo or NiMH packs. There's space on the side rails, too, for drivers who prefer smaller size packs.
DIG TRANSMISSION WITH TWO-SPEED OPTION
The transmission arrives set up with a DIG function for locking the rear axle from the transmitter, giving you the tight turning radius of front wheel drive on demand - Micro Dig Servo (SPMSSX107) included! You can also choose to set up the vehicle for a two-speed transmission instead, by taking the included Micro Dig Servo and moving it to the two-speed linkage. The transmission also includes a full set of ball bearings and all-metal internal gears for strength and durability.
PORTAL OFFSET AXLE HOUSING WITH HYPOID RING AND PINION GEAR
Portal Axles like those found in some full-size off-roaders provide higher ground clearance and reduce the torque on other drivetrain components for improved performance.
ADJUSTABLE WHEELBASE CHASSIS
The SCX10

III Jeep

JLU Wrangler wheelbase is adjustable to let you choose the size of your chassis. The chassis is stiffer than the previous SCX10

II chassis, for less frame flexing and more precise suspension movement.
OPTIMIZED SUSPENSION GEOMETRY
The suspension geometry is based on the SCX10

II but refined slightly for the new chassis layout. The front suspension has been optimized to reduce bump steer, while the rear 4-link reduces torque twist.
FENDER LINERS AND FLOOR SIDES
The SCX10

III Jeep

JLU Wrangler body's fender liners and floor sides hide internal components that would usually be visible from the side of the chassis.
LICENSED 3-PIECE BEADLOCK WHEELS
Legendary in the off-road world, these officially licensed KMC XD Machete wheels are moulded in black and include stunning scale details. Because they're 3-piece beadlock wheels, tyres can be mounted, removed and replaced easily without gluing.
NITTO TRAIL GRAPPLER TYRES
The R35 compound Nitto Trail Grappler tyres included with the SCX10

III Jeep

JLU Wrangler are taller and wider (4.7 x 1.7), providing more ground clearance and more grip on dirt, rocks, and all other off-road trails.
ALUMINUM ADJUSTABLE COILOVER SHOCKS
The oil-filled shocks have hard anodized, threaded bodies, a single coilover spring, plus an emulsion-style cap with screw for easier rebuilds. The shocks are tunable for achieving the best dampening rate. Their increased bore size also creates more fluid volume for better performance.
SPEKTRUM

DX3

2.4GHz DSMR

TRANSMITTER
The included Spektrum

DX3

radio features exclusive DSMR

technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential provided by the vehicle's installed Spektrum

Firma

Smart 40A ESC/receiver.
SPEKTRUM

FIRMA

SMART 40A ESC/Rx & WATERPROOF SERVO
With the Firma

Smart 40A ESC/receiver and DX3

transmitter, you're equipped to experience the telemetry advantages of exclusive Spektrum

Smart technology. Install a Spektrum Smart LiPo battery to follow vehicle battery capacity on the transmitter's voltage level indicator. Drive with confidence in any weather and trail conditions - the electronics are also protected by a waterproof design.
JEEP WRANGLER UNLIMITED 4-DOOR BODY
The scale Jeep

Wrangler Unlimited body mirrors its full-size counterpart with a detailed interior for "super scale" looks. The interior has a moulded roll cage, steering wheel, and driver head. There are many moulded scale details on the body, too: front radiator/light buckets; front hood vents; front cowl; windshield wipers; mirrors; door handles; fuel door; and spare tyre.
Extensive Programming Parameters
From Low Voltage Cutoff to Throttle Punch settings and everything in-between, the Firma Smart 40 Amp Brushed ESC can be tuned for your model's needs and your personal driving style. To adjust these parameters, all you need is the user-friendly Dynamite LED Program Card (DYNS3005). The Program Card includes everything you need to program your Firma 40 Amp Brushed ESC. It has a simple-to-read LED display and a helpful programming legend on its face to assist with programming while you're on the trail.
