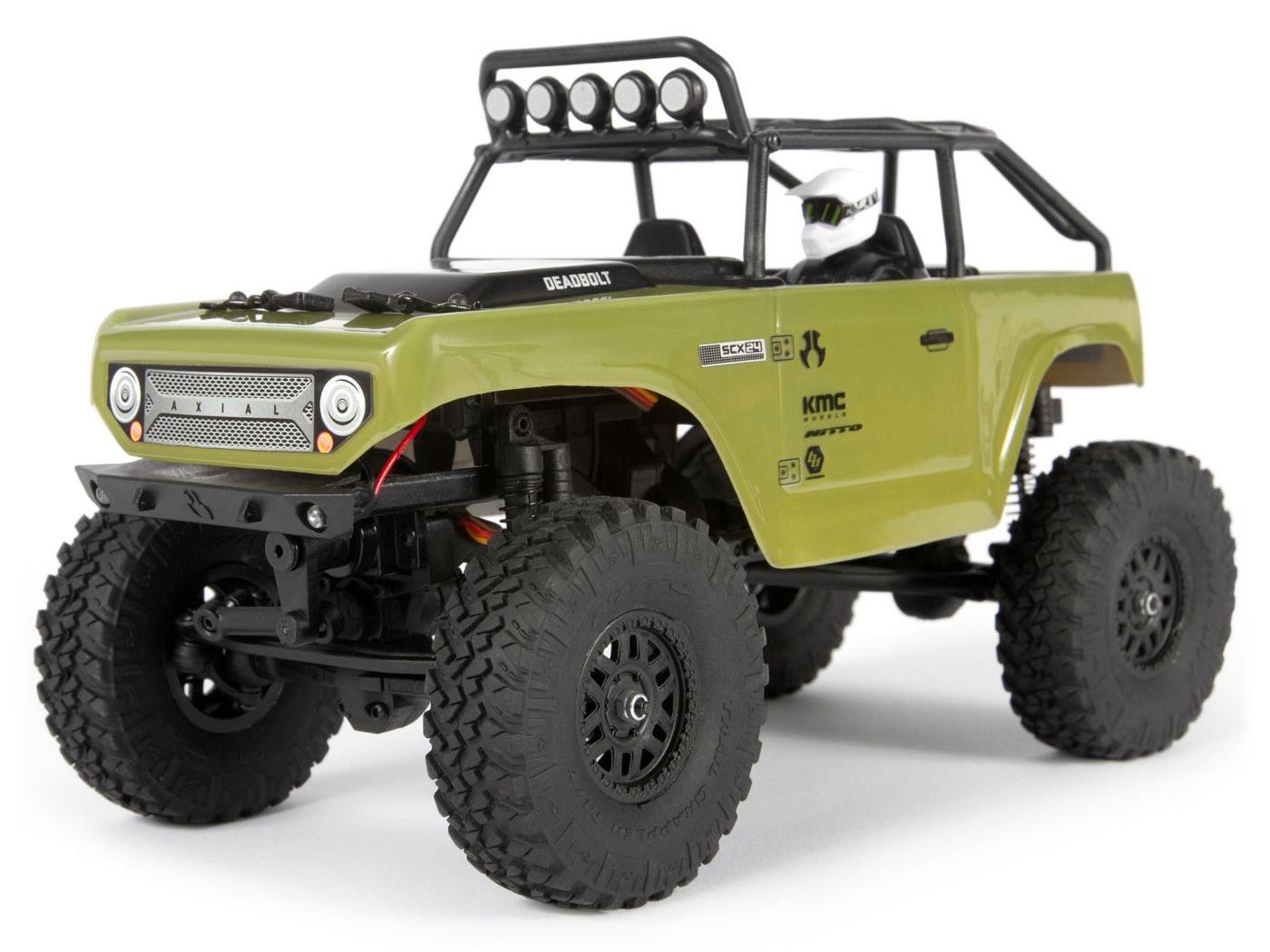

SCX24 Deadbolt 1/24th Scale Elec 4WD - RTR, Green

Features
Includes 3 channel radio system, ESC and transmitter batteries
Includes motor and on-board LiPo battery

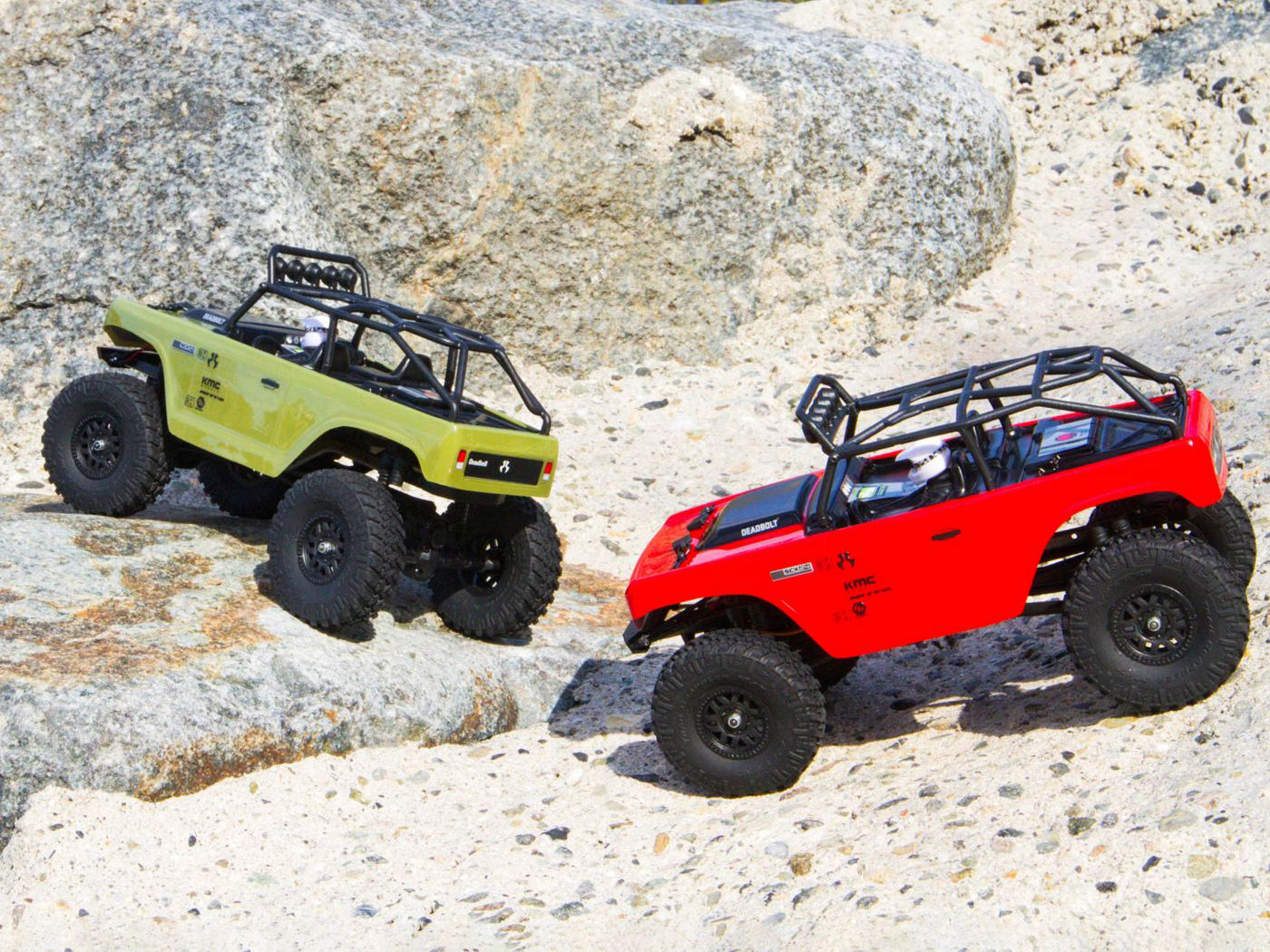

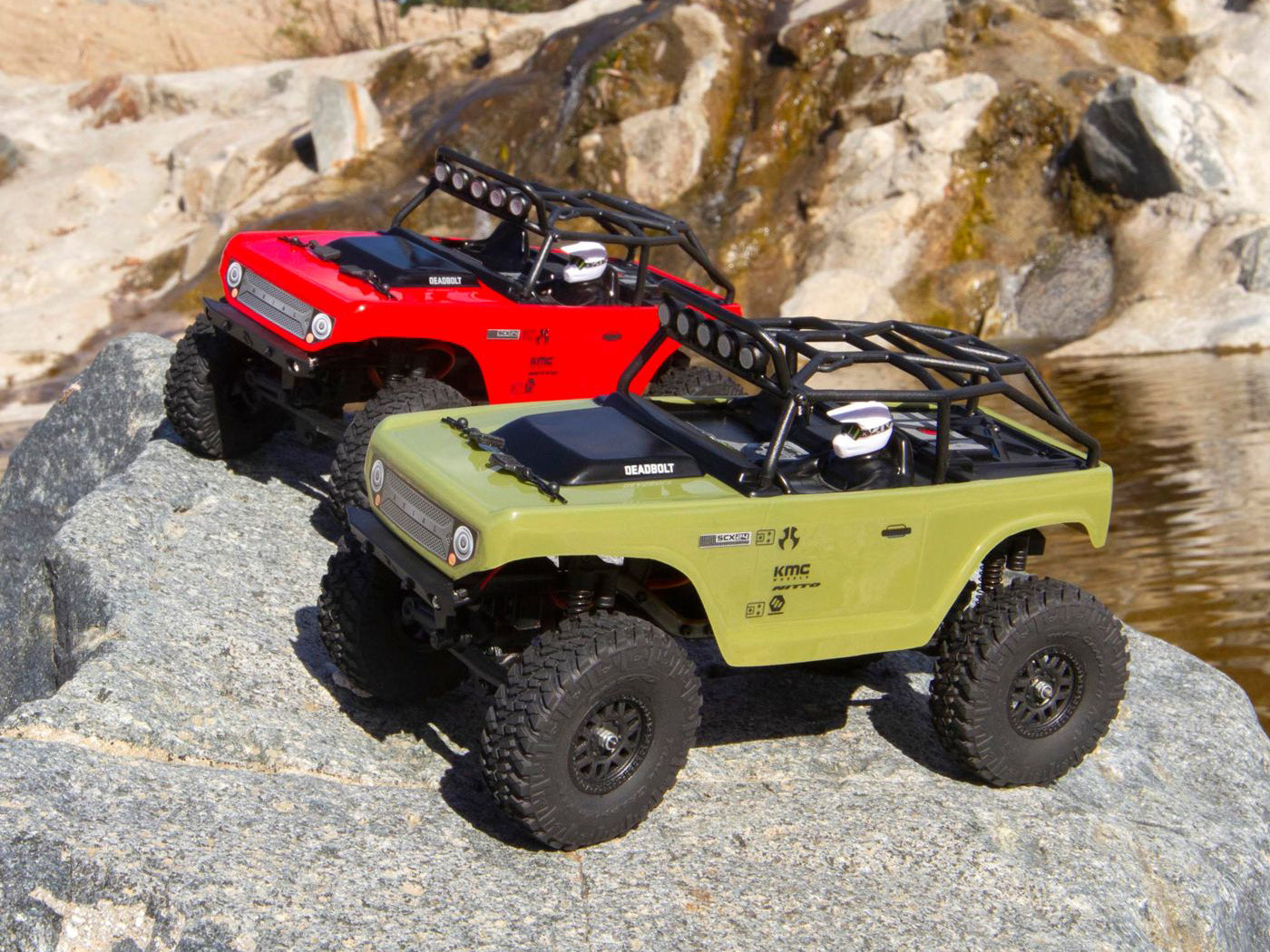

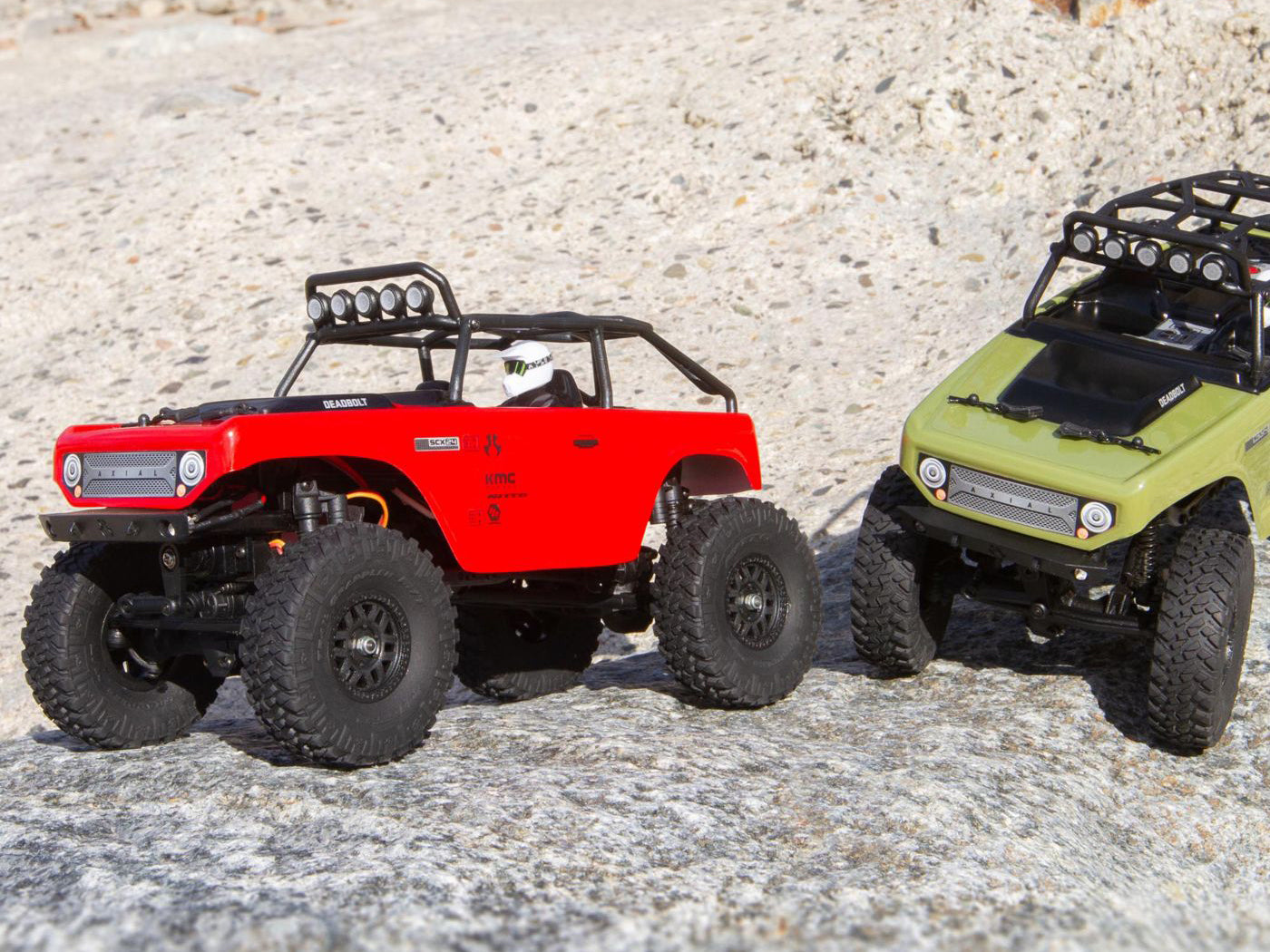

Realistic narrow-stance rock crawler body in olive green or red
Moulded roll cage with realistic light bar
Realistic driver figure and many other scale details
Officially licensed KMC XD229 Machete Crawl wheels
Officially licensed Nitto Trail Grappler M/T tyres (S30 compound, large block tread)
Full-time 4WD
Splined and sleeved front and rear drive shafts allow for maximum suspension travel while keeping the power to the wheels
Steel front and rear axles, front stub axles and dogbones provide strength and durability
Rugged steel C-channel frame rails with bracing keep everything rigid and aligned
Front and rear axles consist of a two-piece, moulded plastic solid axle design
3-Link front and 4-link rear suspension supply optimal handling
Coil-over shocks with simulated reservoir and durable plastic suspension links deliver proven Axial crawling performance
Front and rear differentials each house a worm gear setup to power the axles and create higher ground clearance. Worm gear drive also provides a low gear ratio to reduce torque twist
Two LEDs in the front bumper for night driving
Needed to Complete
Nothing! Everything you need to begin having fun with your 1/24 scale Deadbolt is included!
What's in the Box?
(1) SCX24

Deadbolt

1/24 Scale 4WD Truck

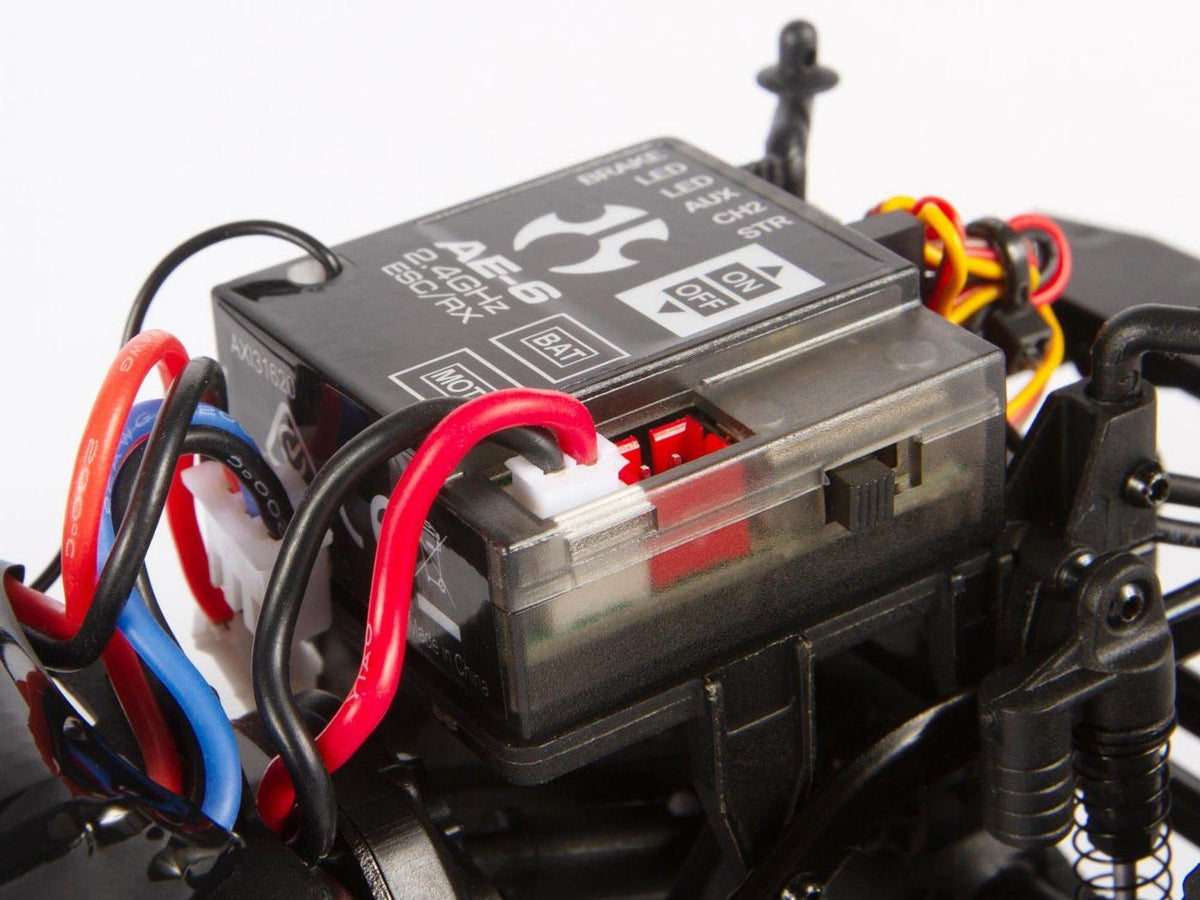

(1) Axial AE-6 ESC/receiver combo (installed)
(1) Dynamite

88T brushed electric motor (installed)
(1) Axial AS-1 steering servo (installed)
(1) Axial

AX-4 2.4GHz 3-channel radio
(4) AA transmitter batteries
(1) 350mAh 2S 7.4V LiPo battery
(1) USB LiPo charger
(1) Product Manual
Overview
At less than 8" long, it's the perfect rig to take along on your hiking, camping, and other outdoor and indoor adventures - offering factory-assembled ease, scale looks, and confident handling on any trail.

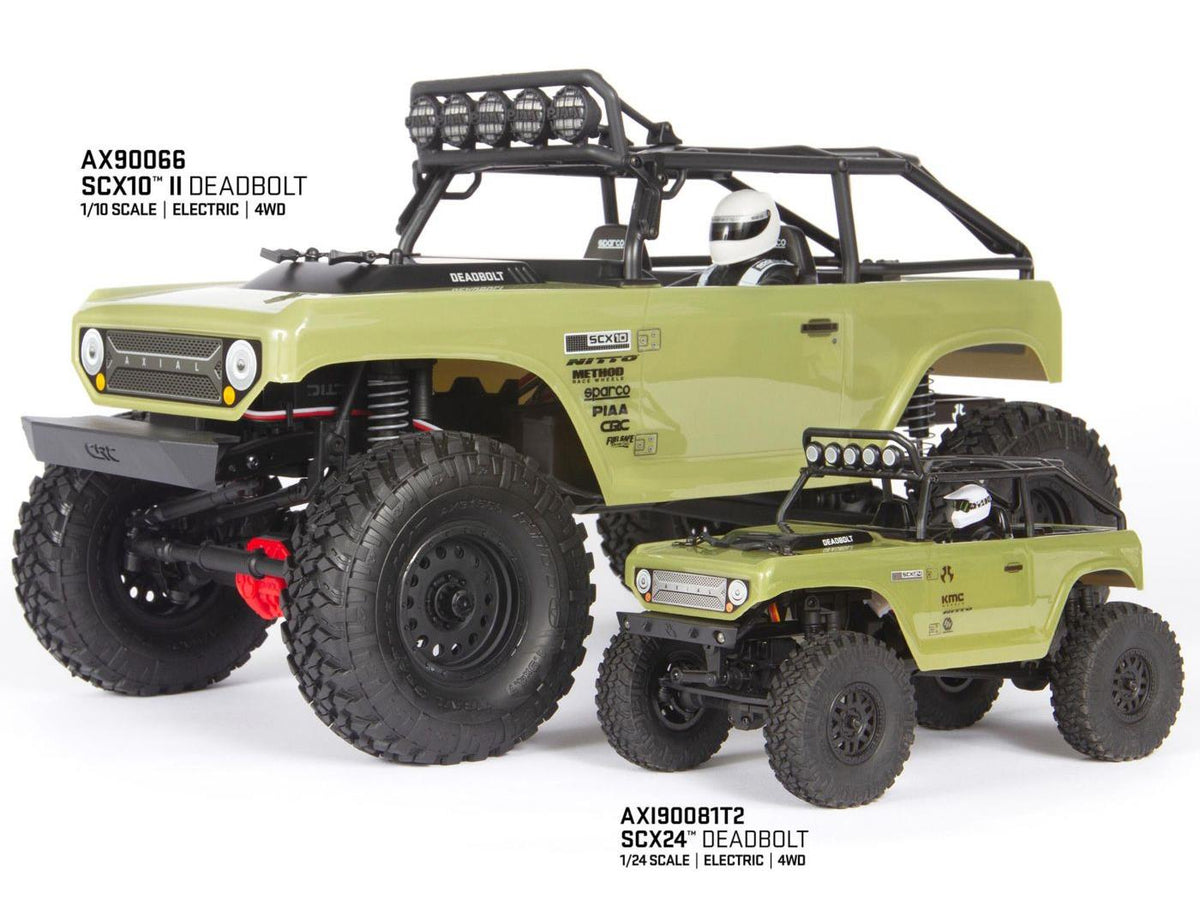

Even new modelers driving the SCX24 chassis will be well-equipped to tackle tough climbs and rough trails. Like the larger SCX10

II chassis, this smaller version uses plenty of steel components - from the C-channel frame rails to the front and rear axles and dogbones. Even over off-road, mountainous, rocky and desert terrain, it has the strength to keep pushing onward and upward.
For the most reliable handling, the SCX24 chassis features a three-link front and four-link rear suspension. The combination of coil-over shocks and durable plastic suspension links delivers Axial-worthy crawling performance even at this small scale. The worm gear drive setup permits a high ground clearance plus a low gear ratio that reduces torque twist.

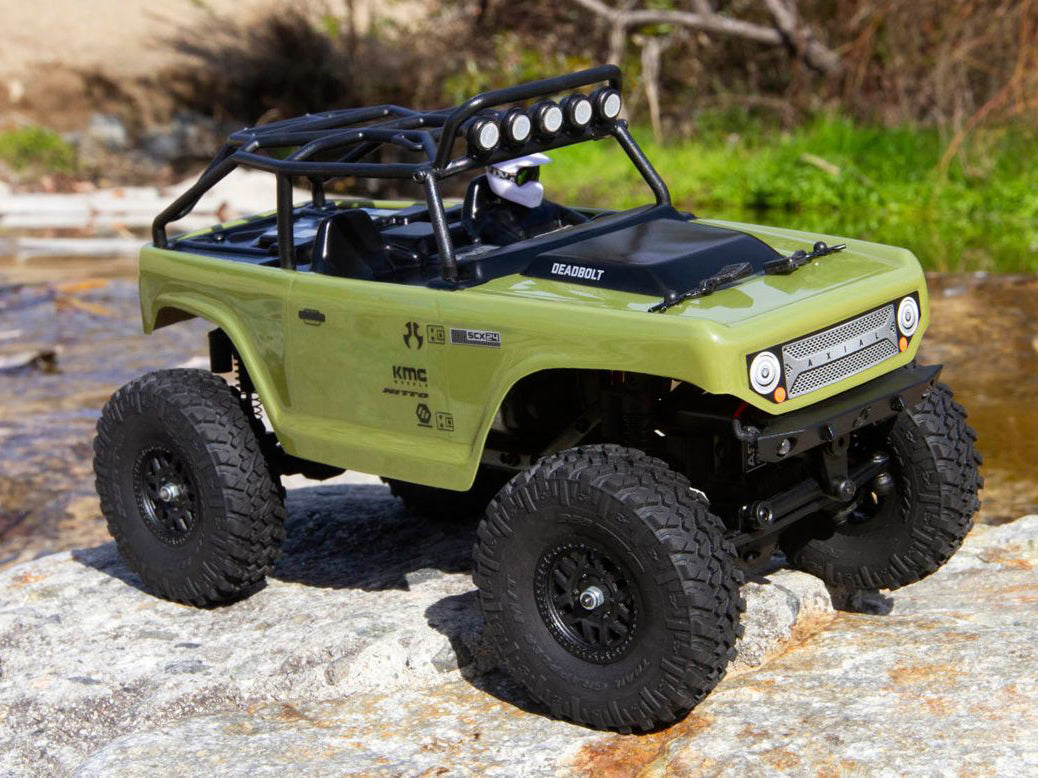

Powered by an included 180-size motor and LiPo battery, the SCX24 Deadbolt shows off competence and charisma on the trails. Check out that Deadbolt body - with its narrow stance, bulging hood, realistic driver figure, and moulded roll cage with realistic light bar. The realism continues right down to the ground, where you'll find licensed KMC XD229 Machete Crawl wheels wrapped in Nitto Trail Grappler tyres.
Adding even more to its beginner appeal, the SCX24 Deadbolt comes 100% complete and ready to run. Everything required for action is in the box: assembled and finished vehicle; Axial 3-channel 2.4GHz radio system with servo and ESC/receiver unit; Dynamite

88T brushed electric motor and 350mAh 2S 7.4V LiPo battery; USB LiPo charger; and even four AA cells for the transmitter!

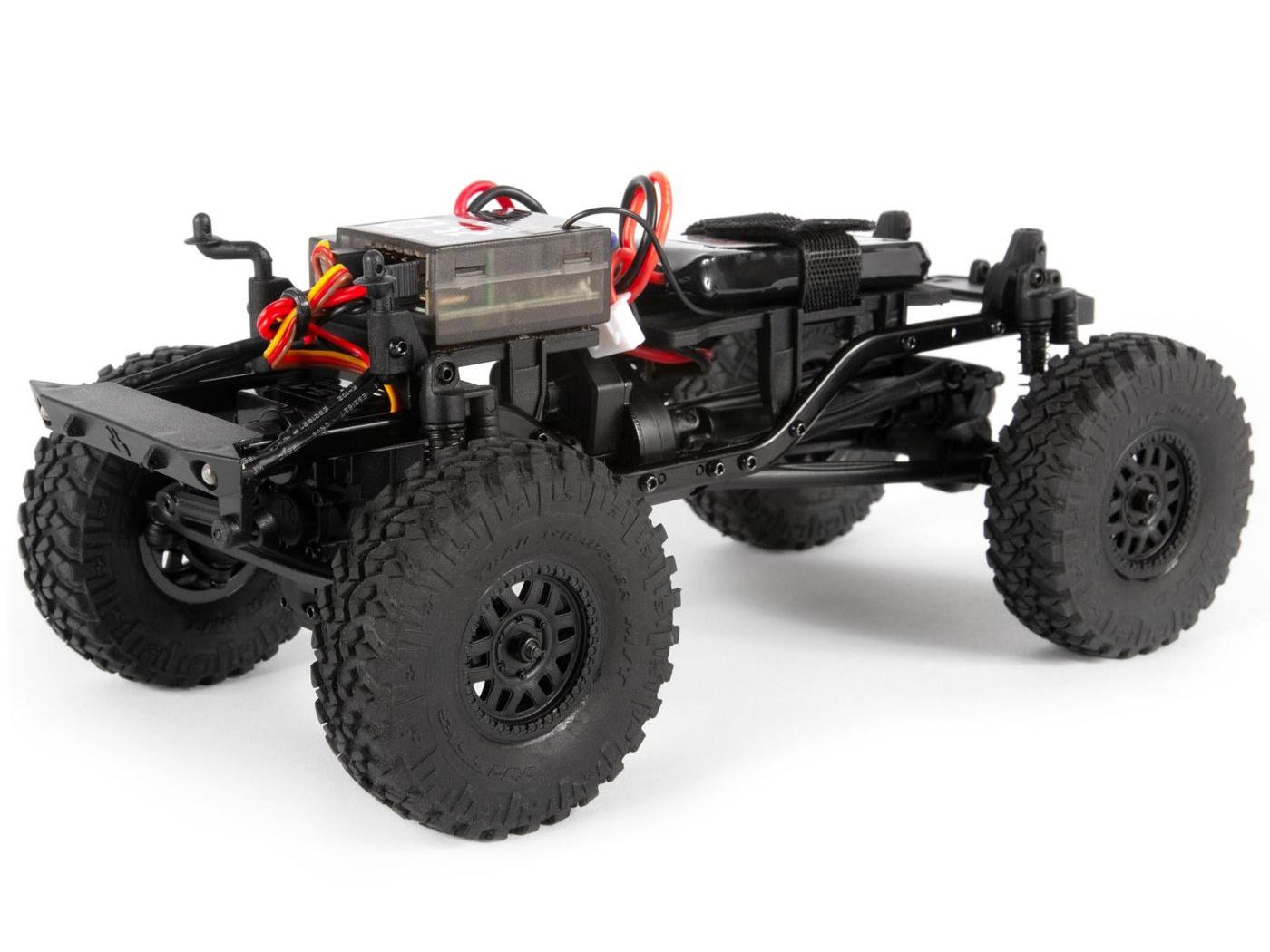

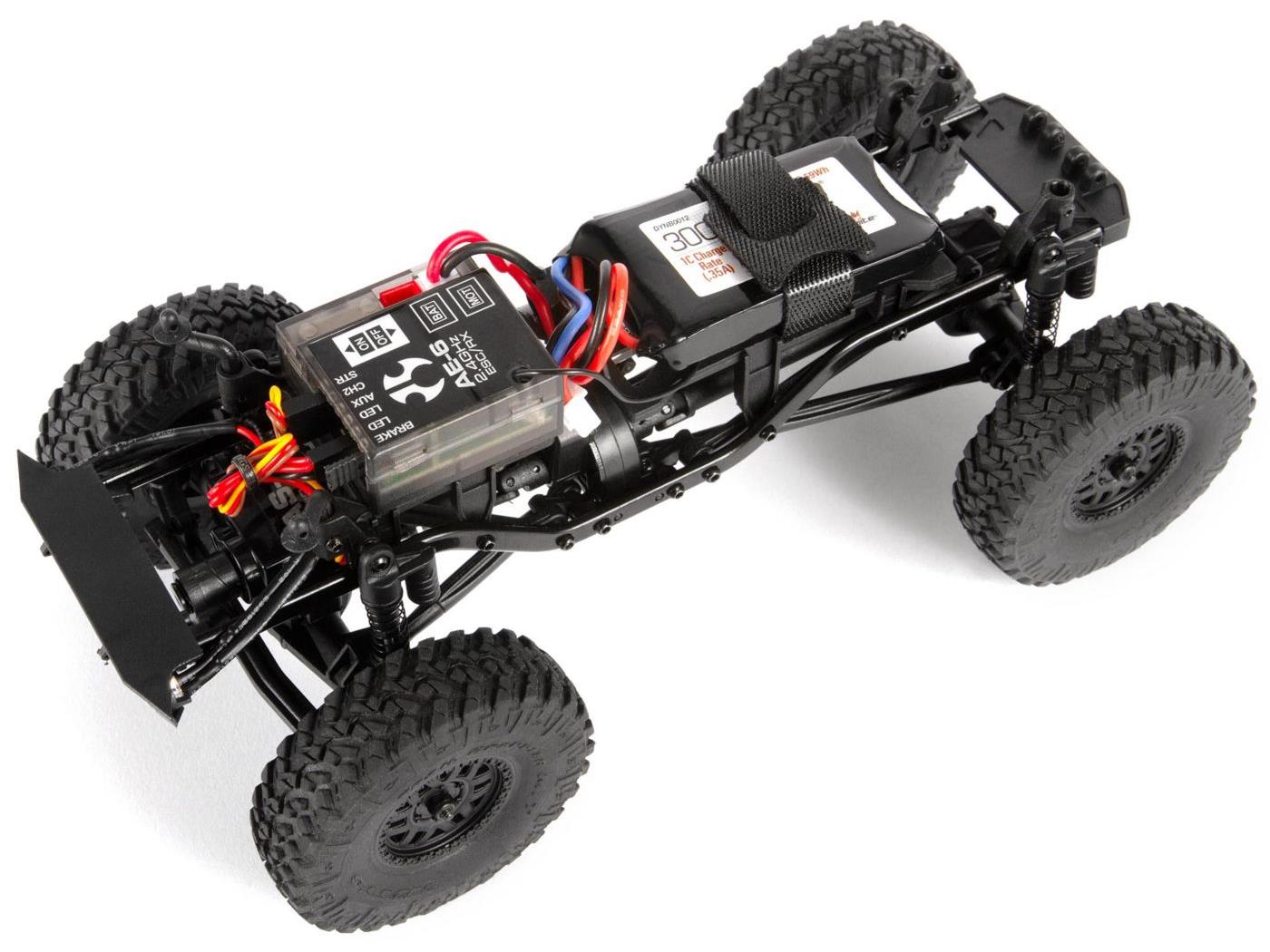

STEEL C-CHANNEL CHASSIS FRAME RAILS
Just like the 1/10th scale SCX10

II platform, the SCX24

chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.
DYNAMITE

88T BRUSHED MOTOR
The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It's mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.
WORM GEARS
The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.
DURABLE STEEL AXLES
Steel front and rear axles, front stub axles along with steel dogbones provide strength and durability to keep things running during tough climbs and rough trails.
SPLINED DRIVE SHAFTS
The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.
COILOVER SHOCK ABSORBERS
Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you've known and expect from Axial.

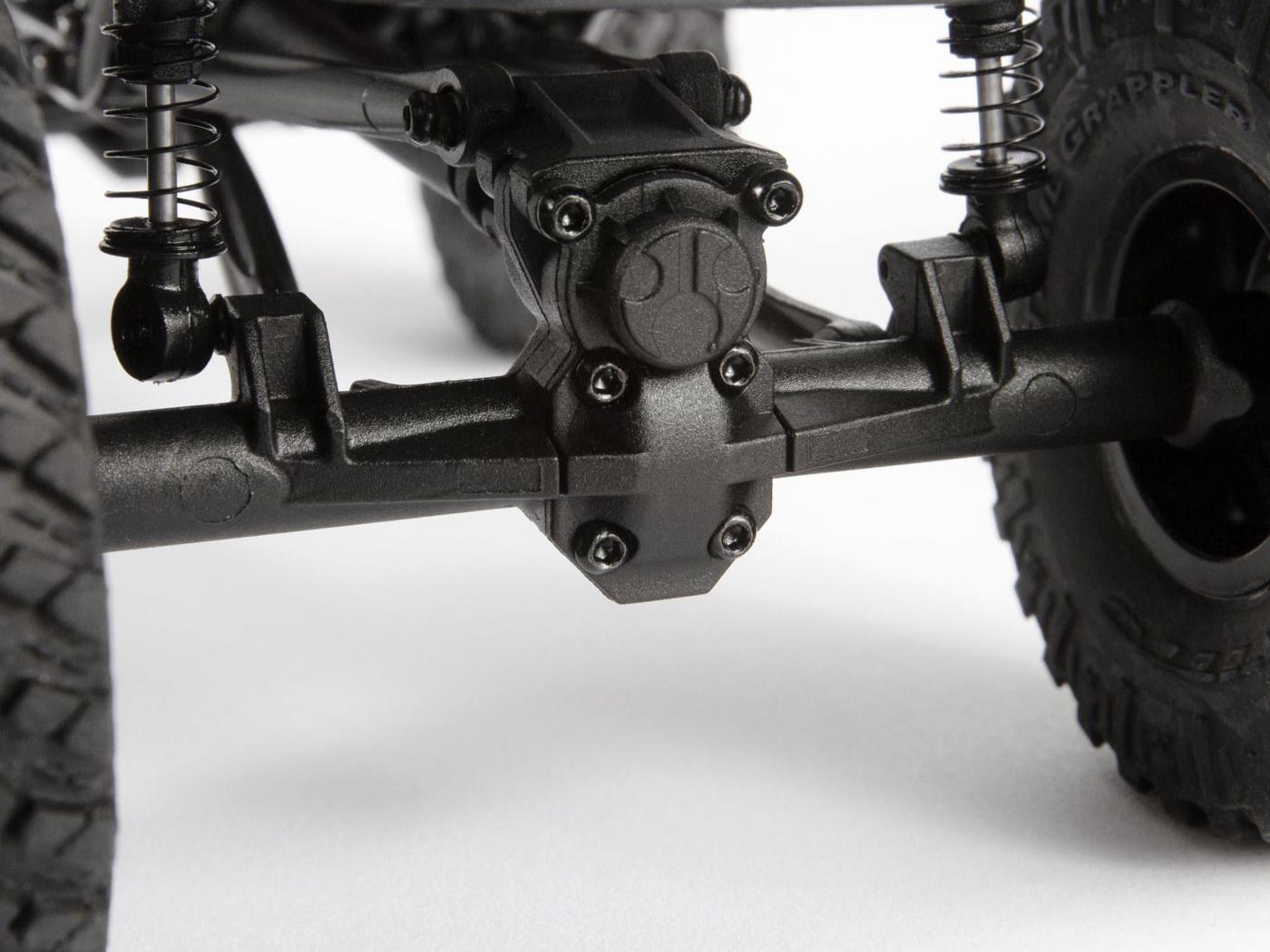

FRONT AND REAR SOLID AXLES
The front and rear axles consist of a two piece, moulded plastic solid axle design. For optimal handling, the SCX24

suspension features a three-link front and four-link rear setup.
LED LIGHTS INCLUDED
Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
4-LINK REAR SUSPENSION
The suspension geometry utilizes a 4-Link design for the rear which is optimized to reduce axle steer and torque twist. We've also included extra suspension links for adjusting your wheelbase length.
KMC XD229 MACHETE CRAWL WHEELS & NITTO TRAIL GRAPPLER M/T TYRES
Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are moulded in black and feature stunning scale details, despite the small scale.
The officially licensed Nitto Trail Grappler M/T Tyres offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use.
HINGED BODY SYSTEM
The hinged body system offers easy access to on-board components. You can quickly reach the battery and chassis by removing just two body clips and swinging the body up.
FULL BALL BEARINGS
Just because the SCX24

is smaller in size doesn't mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entyre vehicle.

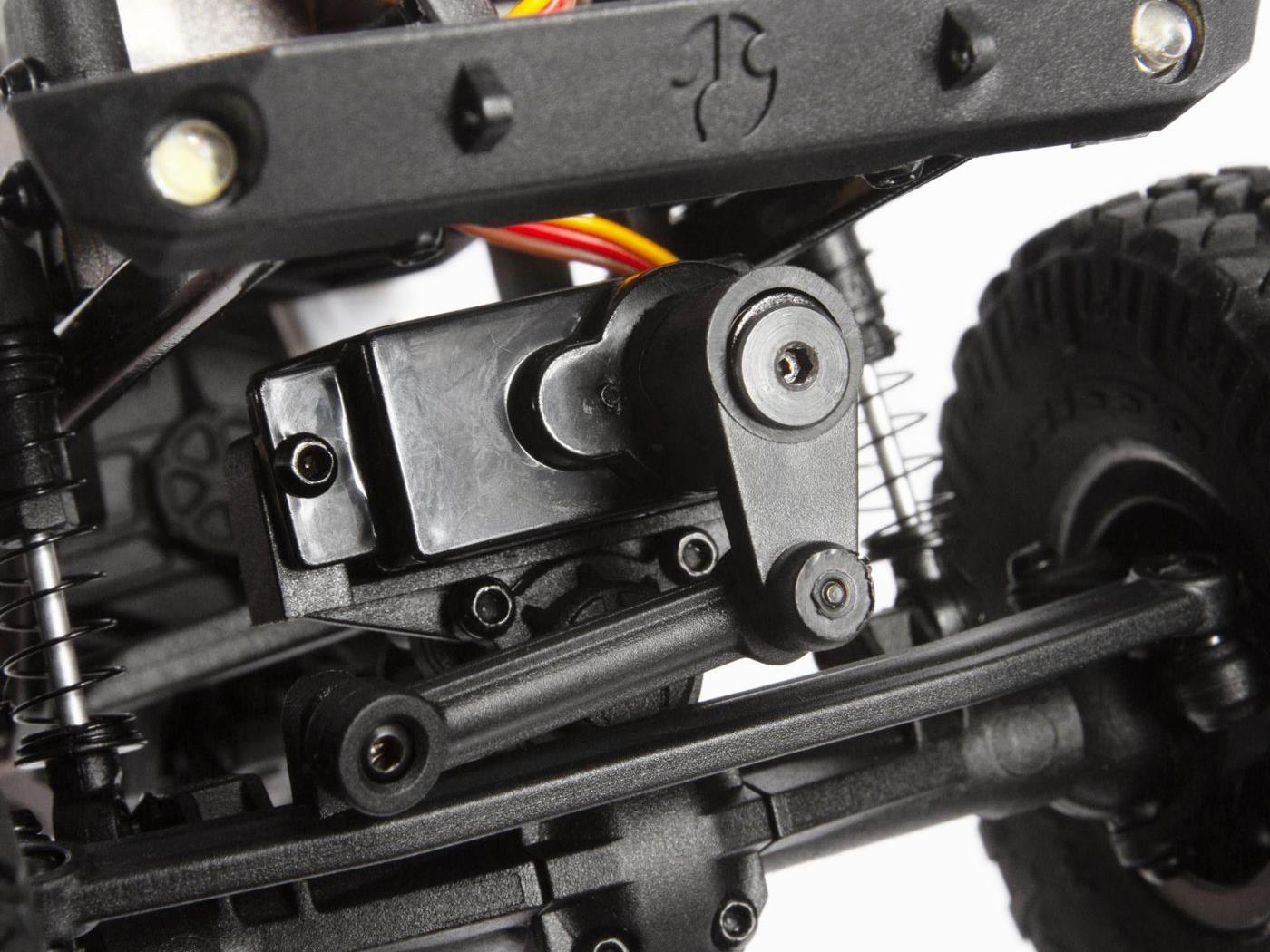

AXIAL AS-1 SERVO
Mounted just above the front axle is the Axial AS-1 servo, with a servo saver that allows for steering accuracy, while also providing protection for the servo gears in the event of a bind or impact.
