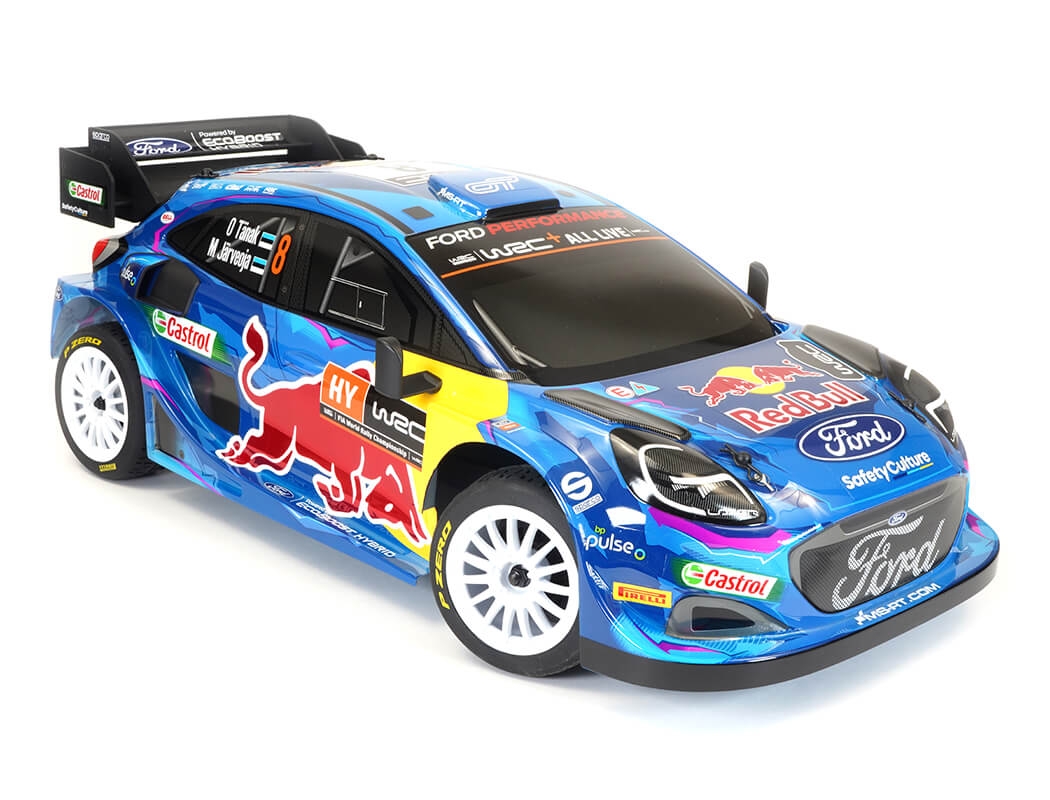

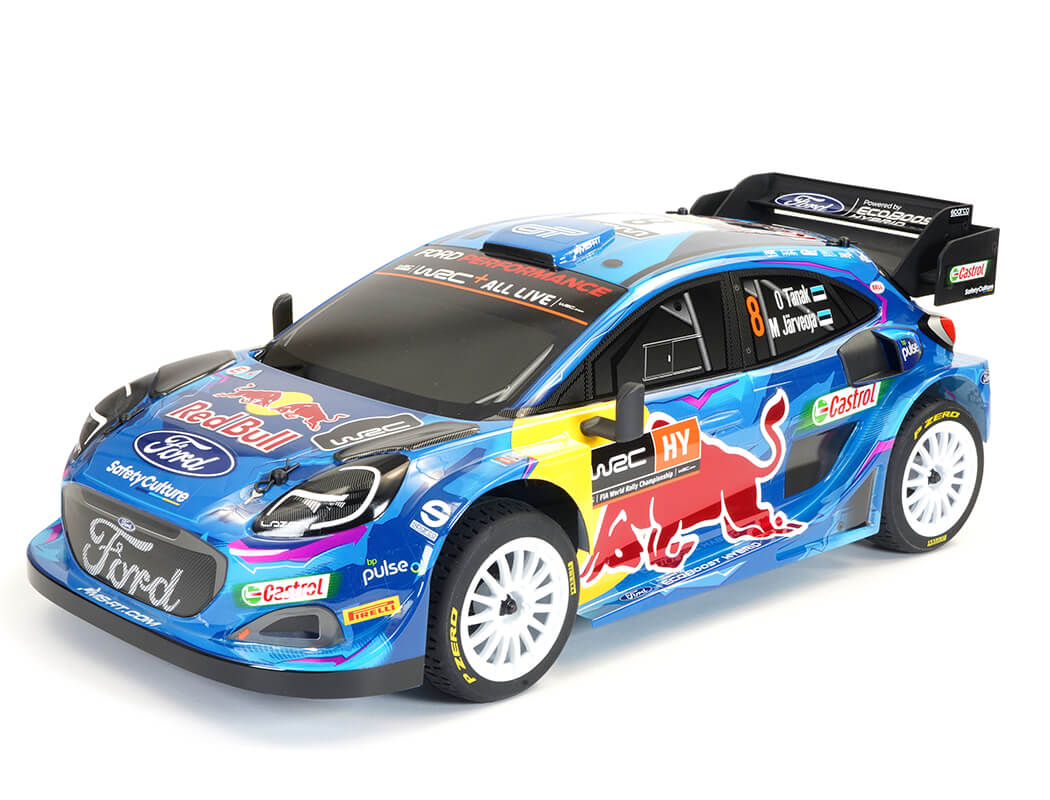

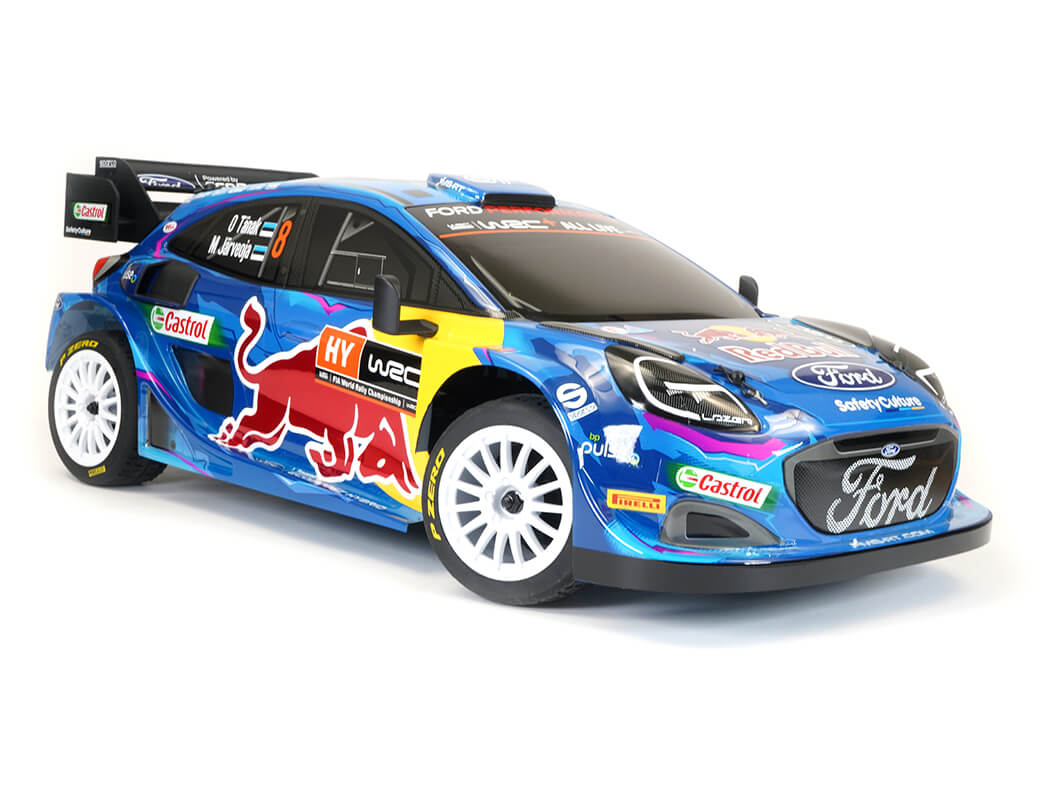

CEN RACING 2023 M-SPORT FORD PUMA RALLY1 1/8 RTR BRUSHLESS

Features

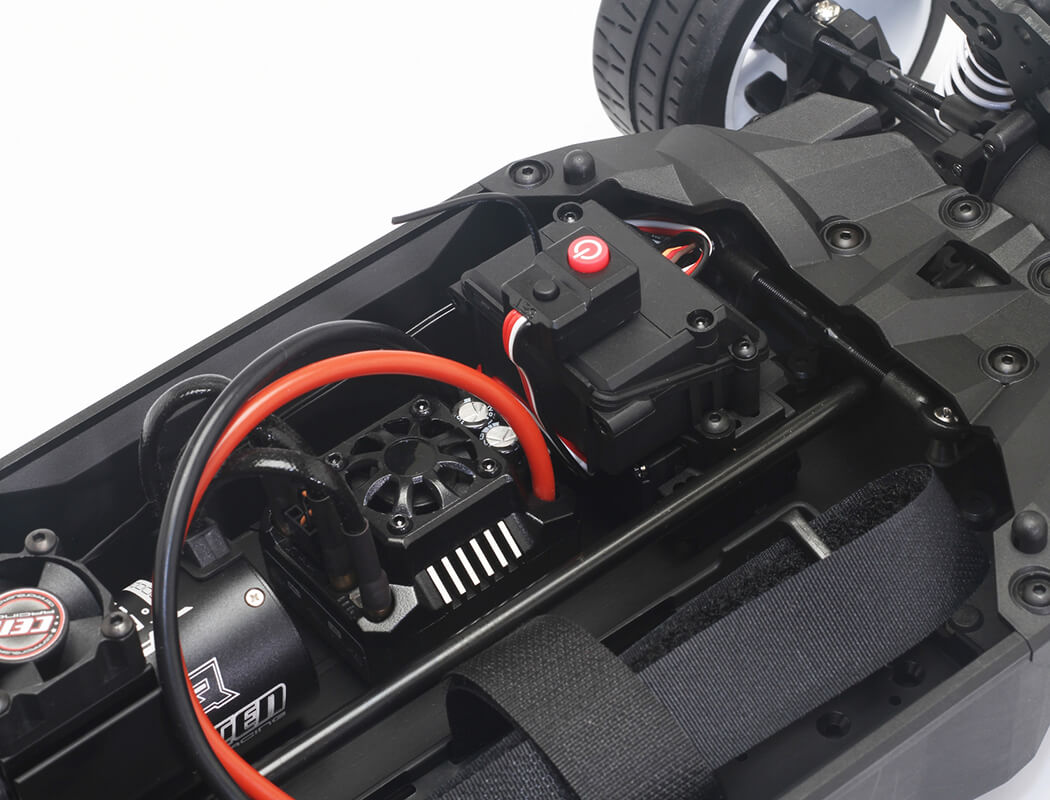

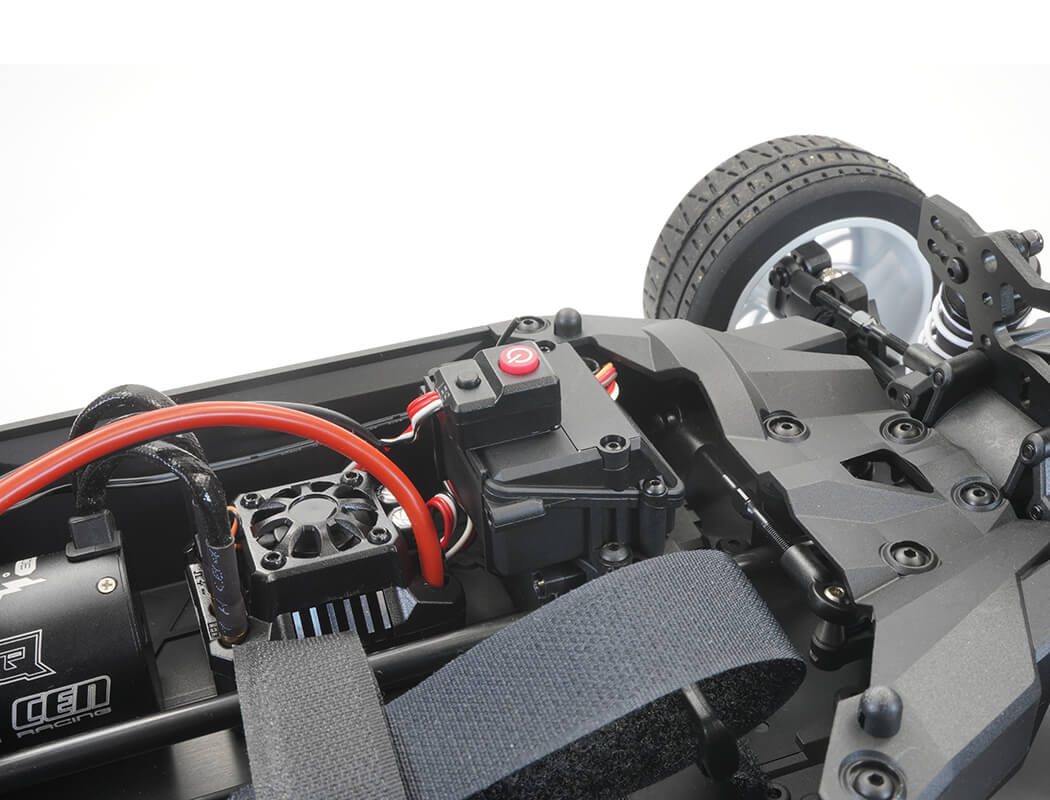

ESC

• 100A WP-MAX10-SCT-100A-3S RTR Sensorless with T-Plug (powered by HobbyWing).
• 2-3S Li-po (Lithium-polymer) or 6-9 Cell Ni-Mh Batteries.
• Water-Proof and Dust-Proof for All Weather.
• Super Internal Switch-Mode BEC with 6V / 7.4V for Usage with High Voltage Servo.
• Built-In Capacitor Module.
• Automatic Throttle Range Calibration.
• Low Voltage Cut-Off Protection for Li-Po and NiMH Battery.
• Over-Heat Protection and Throttle Signal Loss Protection.
• 5 Levels of acceleration/punch.
• 9 Levels of maximum brake force.

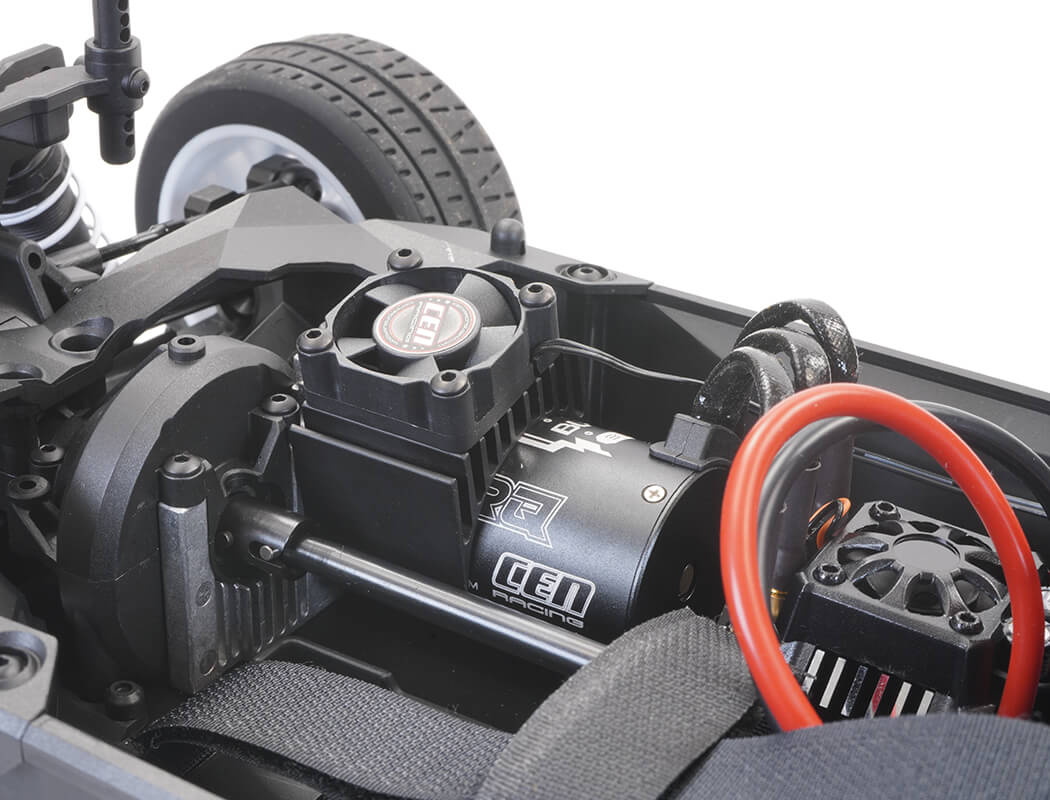

Motor

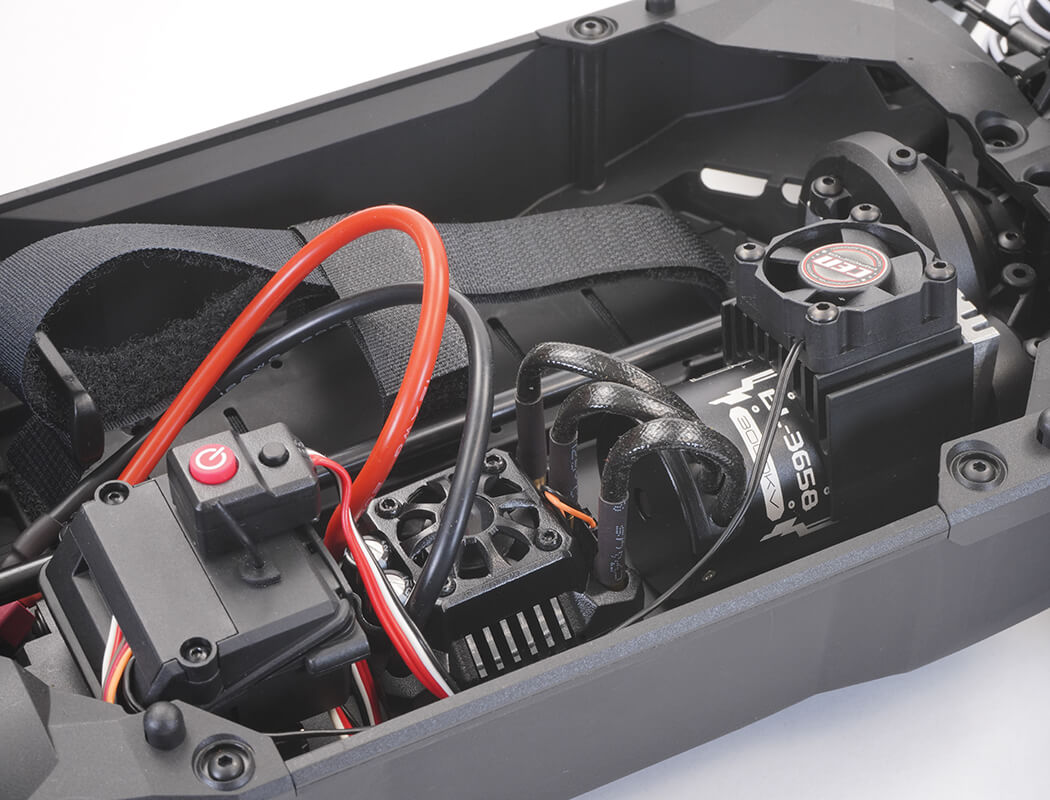

• CEN Racing High Performance 3658 3000KV Brushless Motor (Sensorless).

 Servo

• 12Kg Metal Gear Servo (By Savox).
• 4.8V - 0.26 sec/60° 10.0 kg-cm.
• 6.0V - 0.23 sec/60° 12.0 kg-cm.
• With 25T Horn Gear Spline.

Radio System

AMP-30 TX 3-Channel Transmitter.

• Frequencies: 2.4GHz.
• Digital Trimming.
• Steering Dual-Rate (ST D/R) Adjustment.
• End Point Adjustment (EPA).
• Build in Failsafe.
• Power Supply: 4 x AA Batteries (Not Included).

AMP30 RX 3-Channel Receiver.

• Frequency: 2.4GHz.
• Power Supply: DC 4.8 ~ 6.0V.
• Dimensions: 1.35” (L) x 0.72” (W) x 0.53” (H).

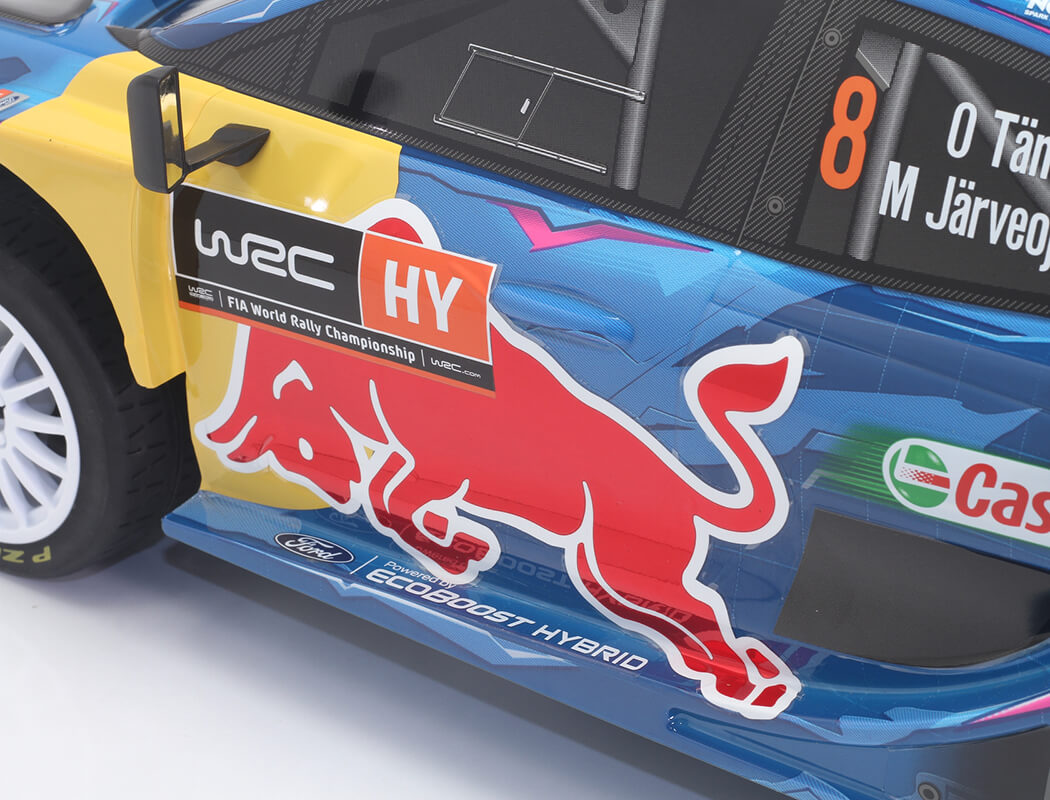

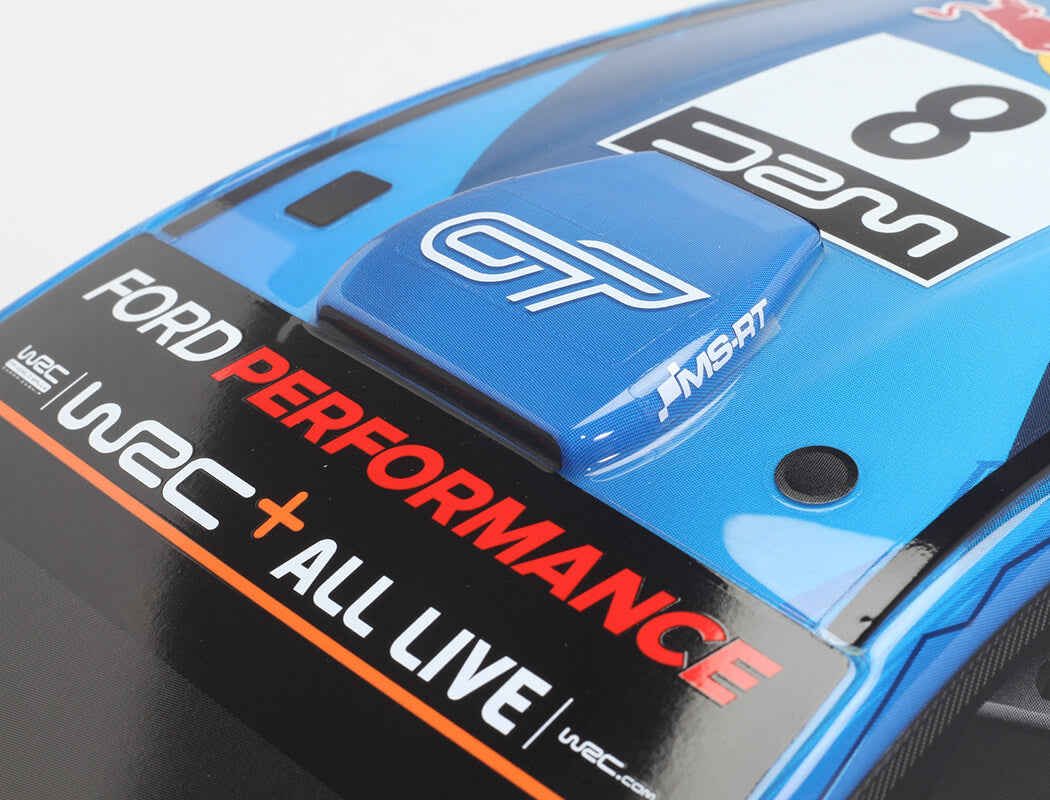

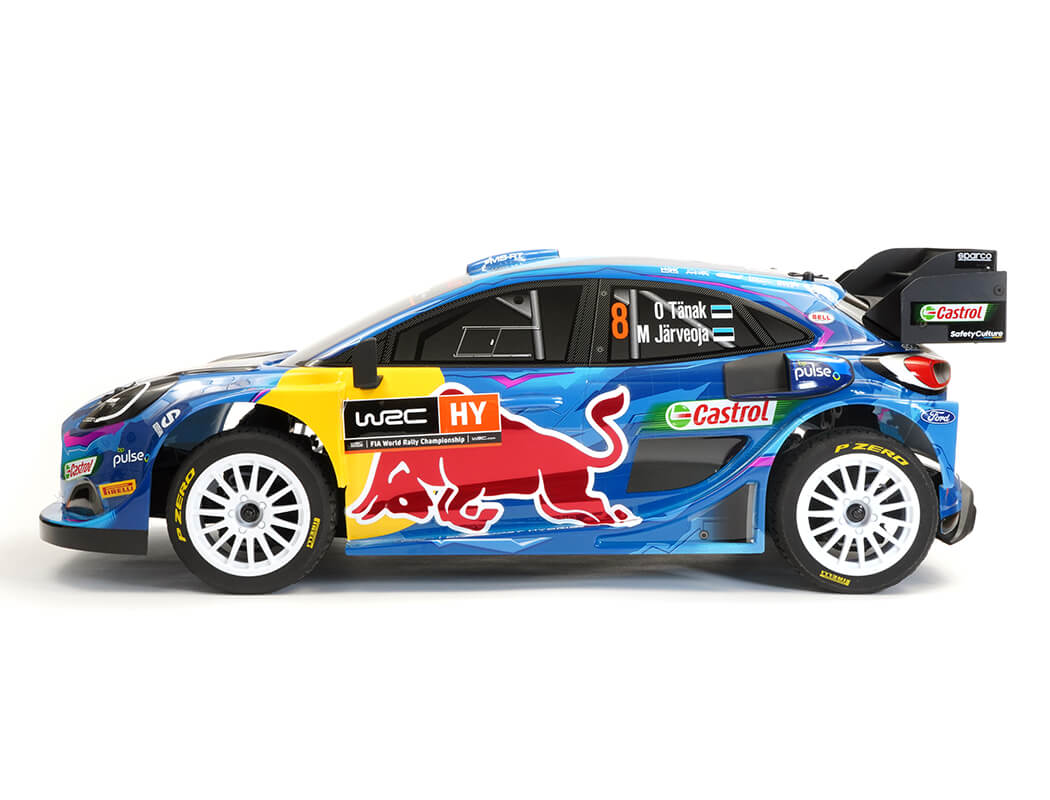

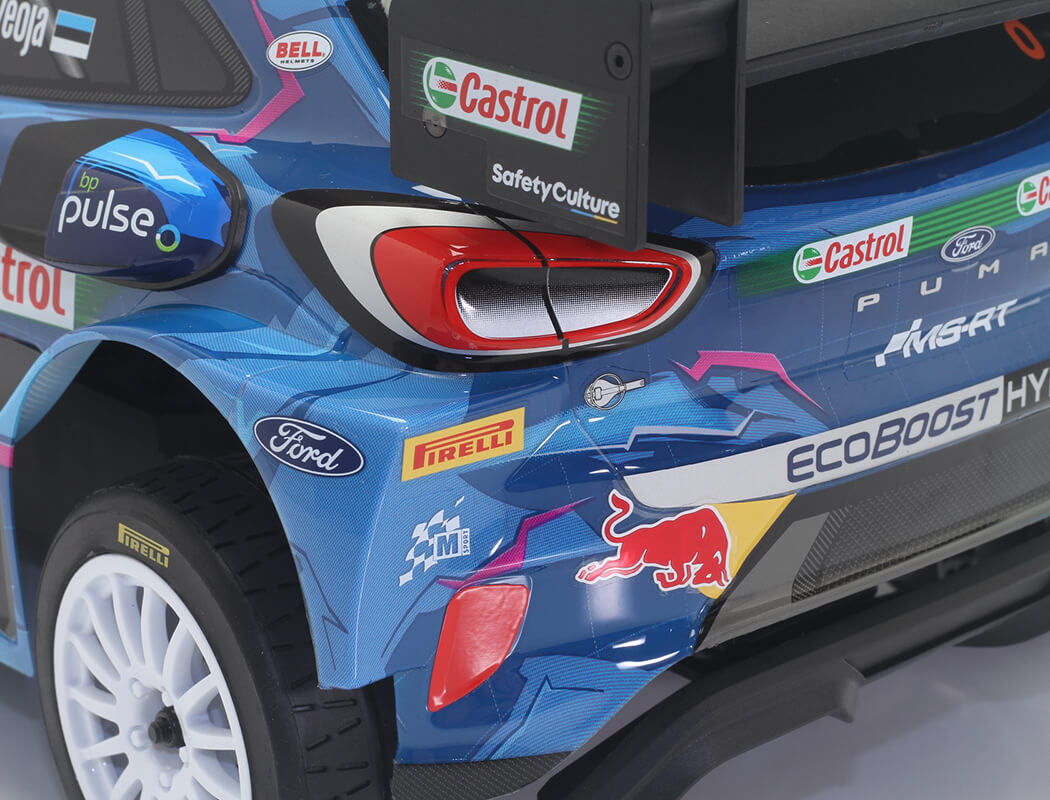

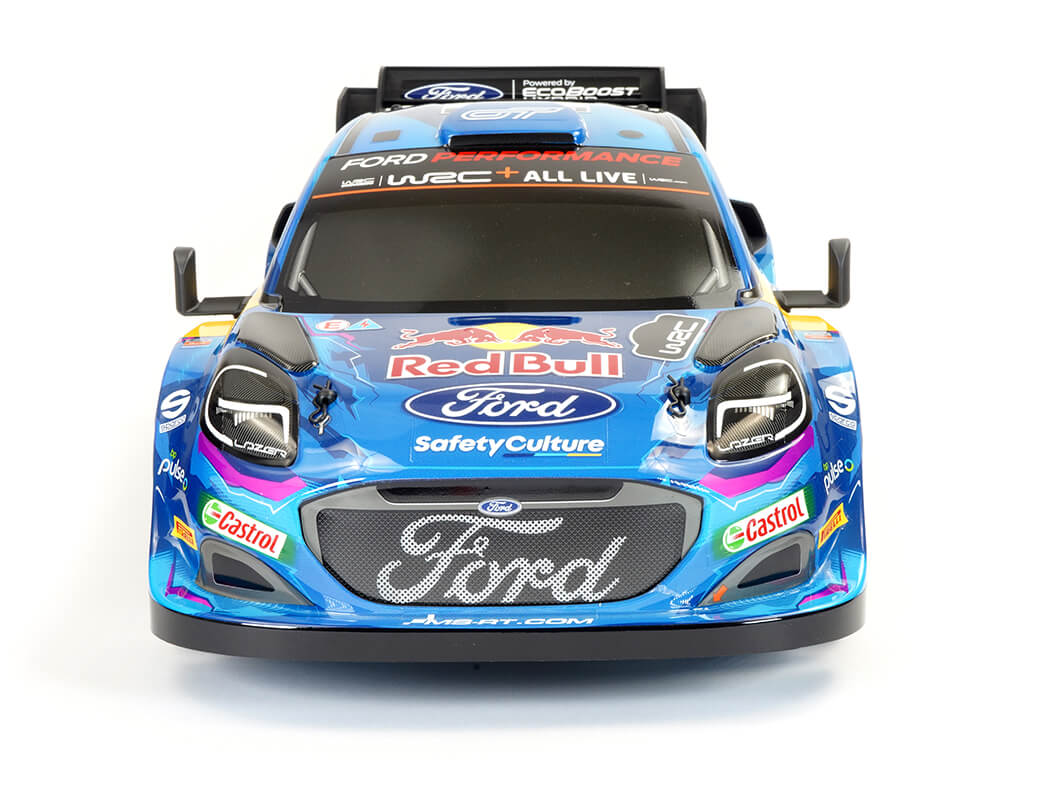

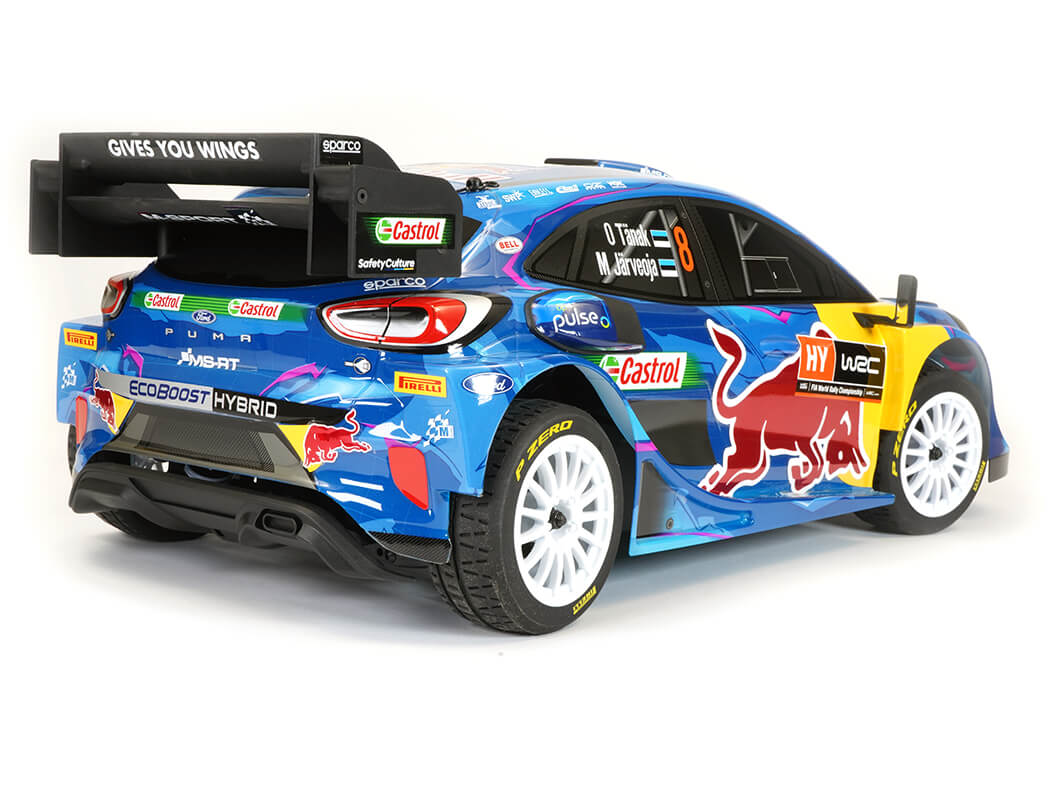

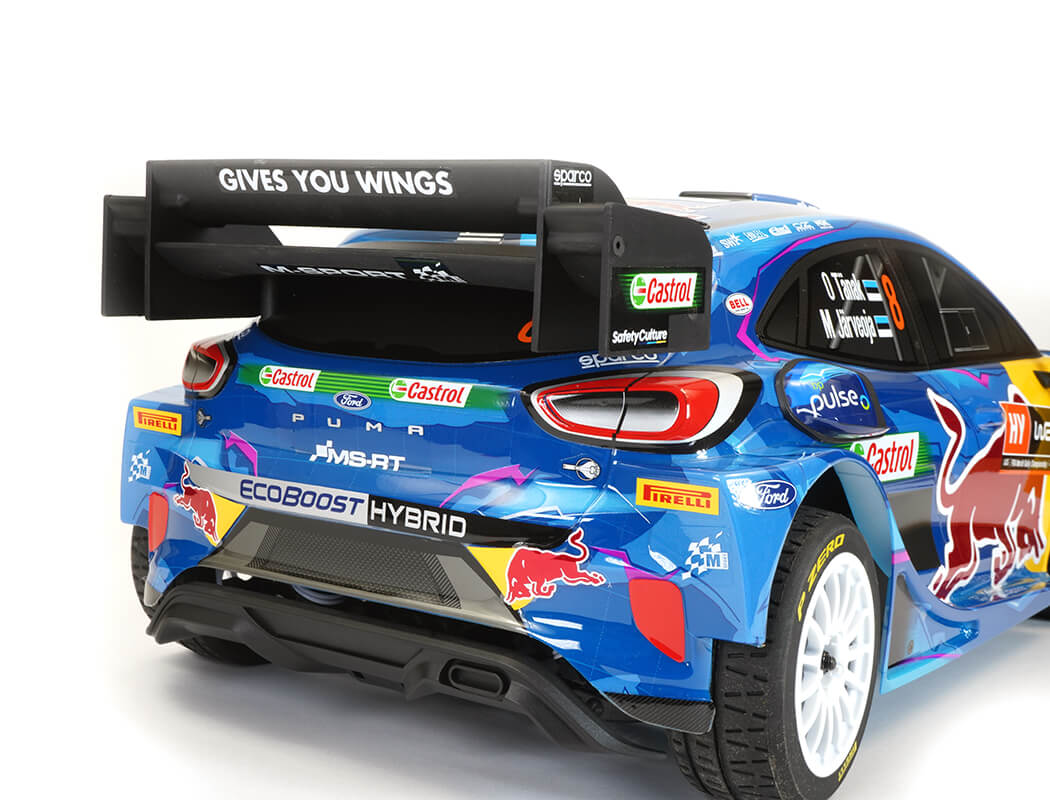

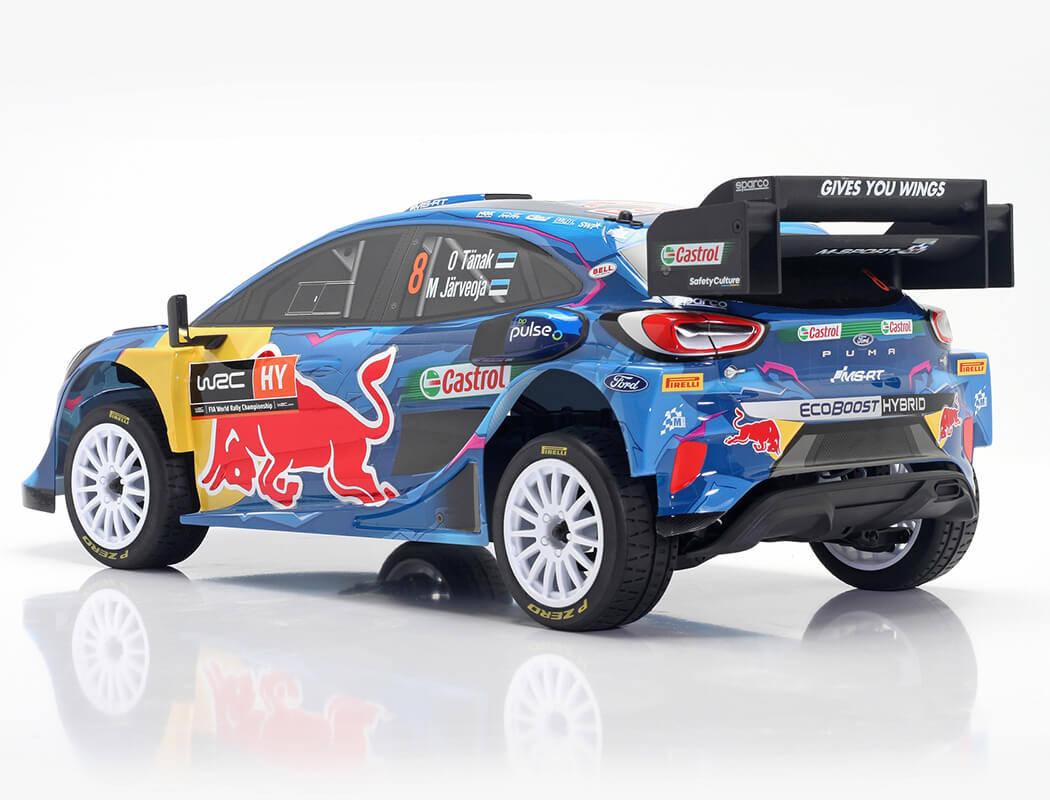

Body

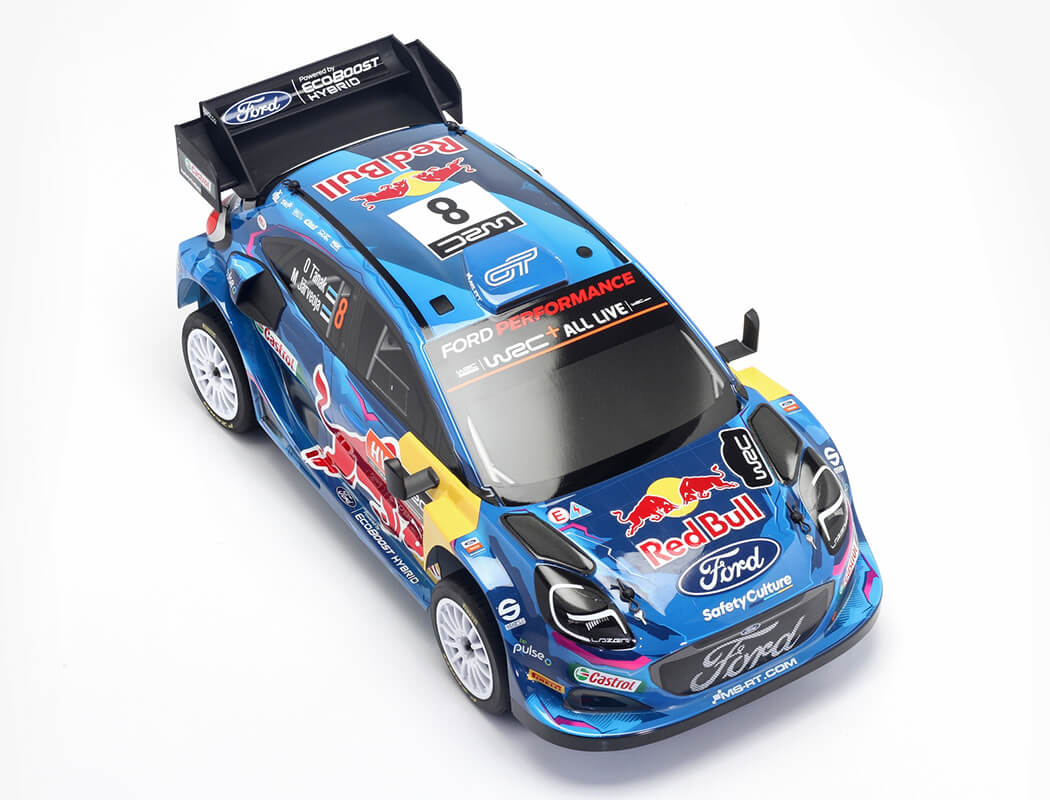

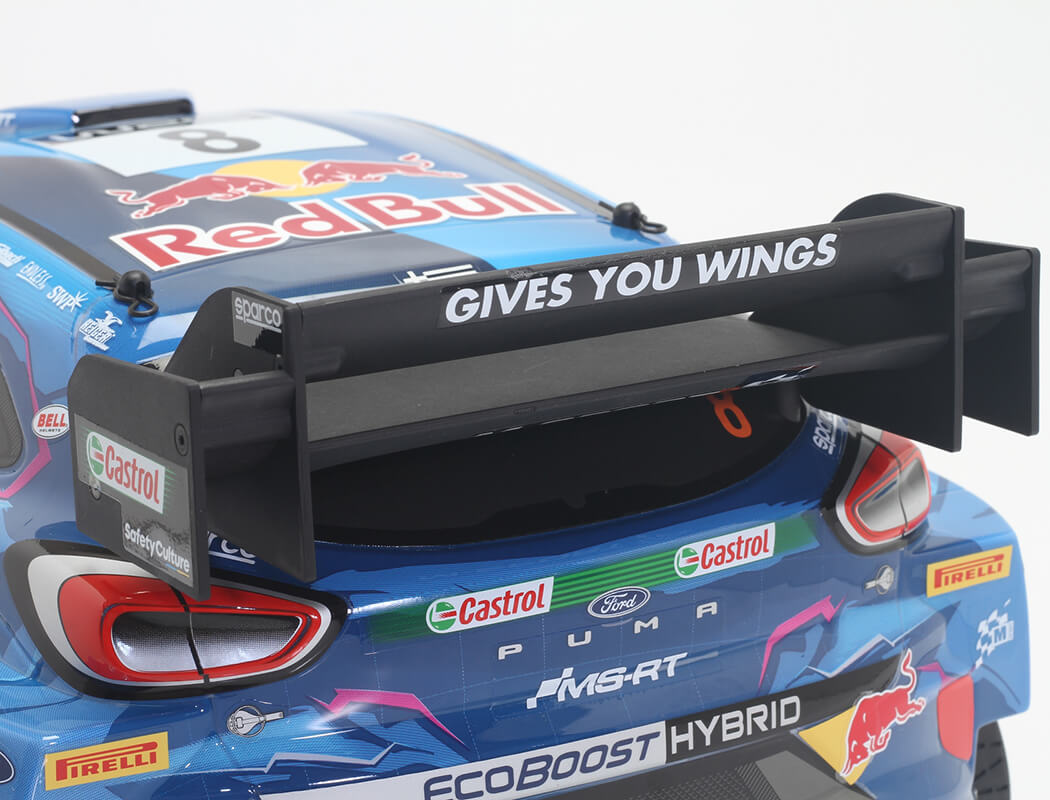

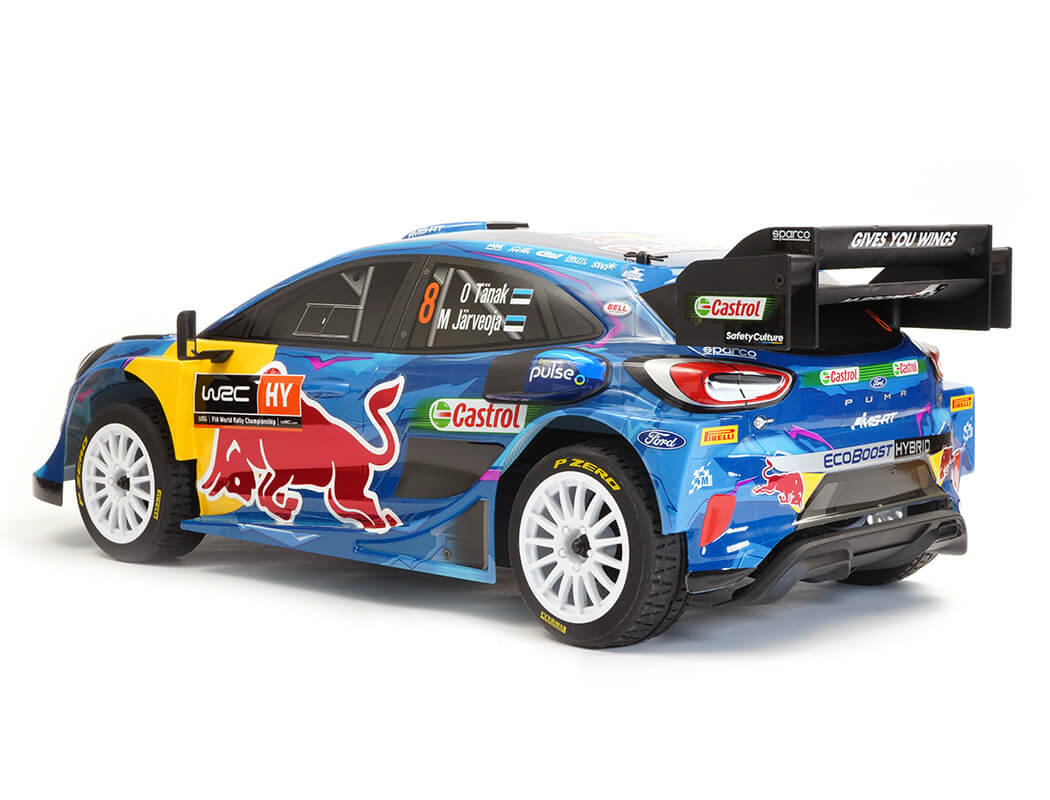

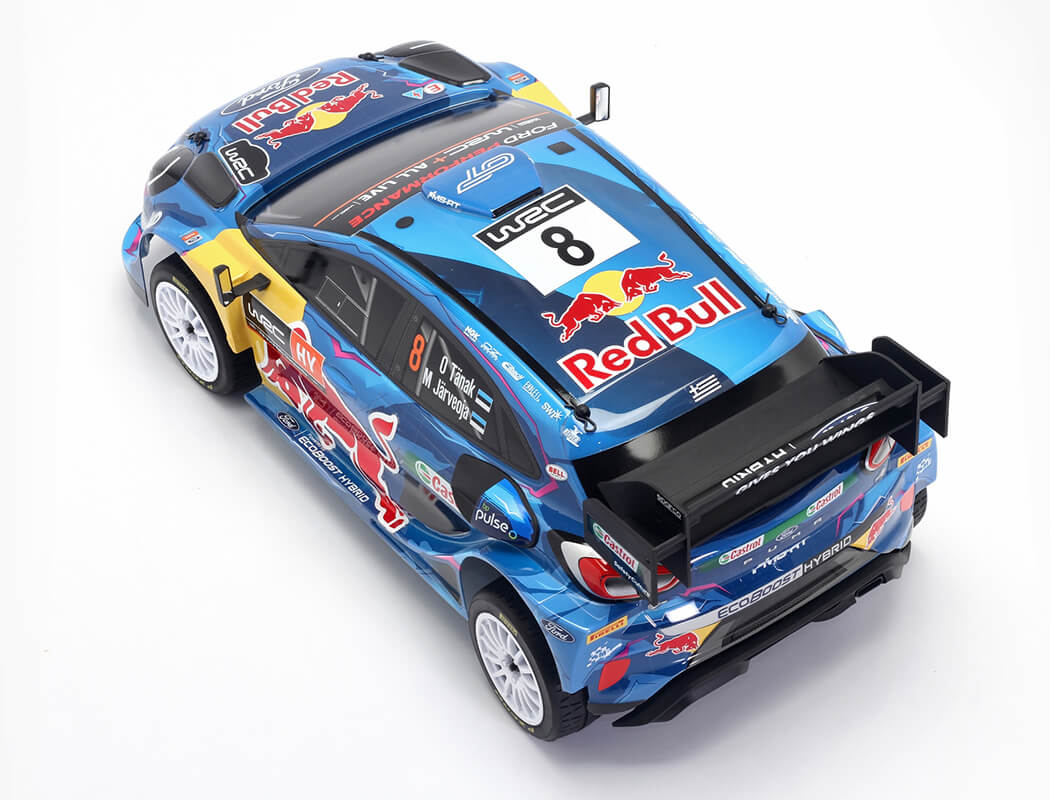

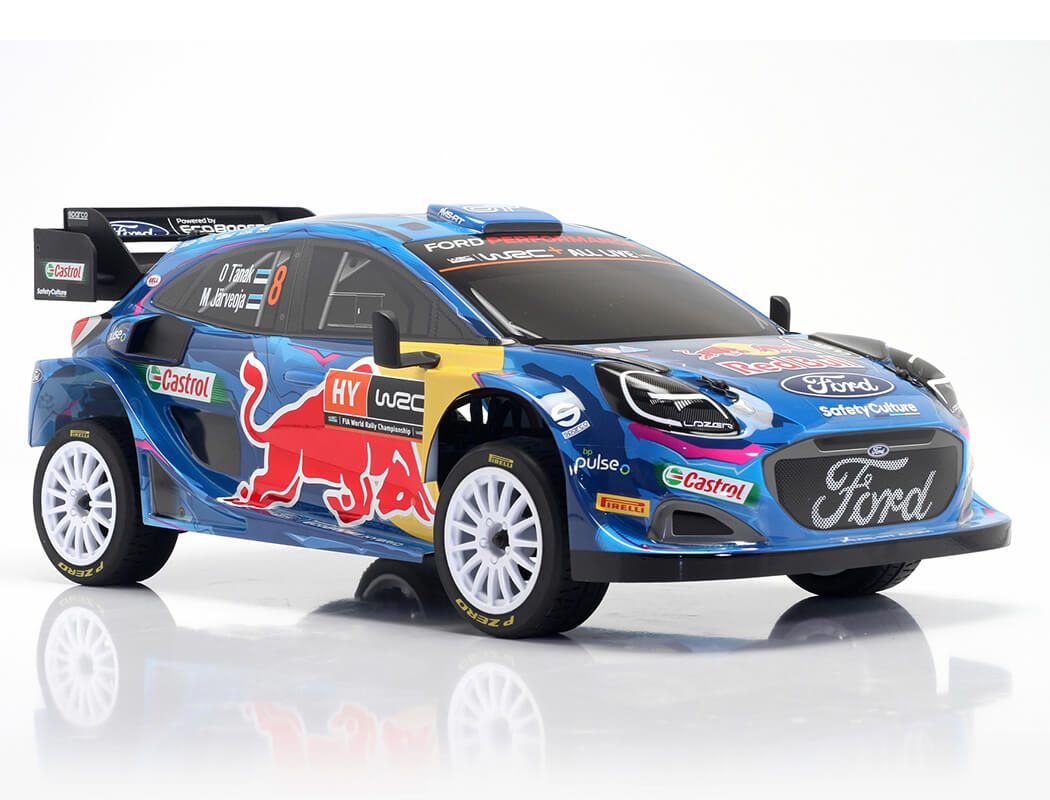

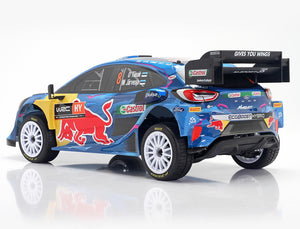

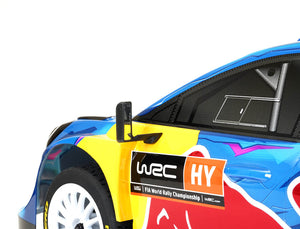

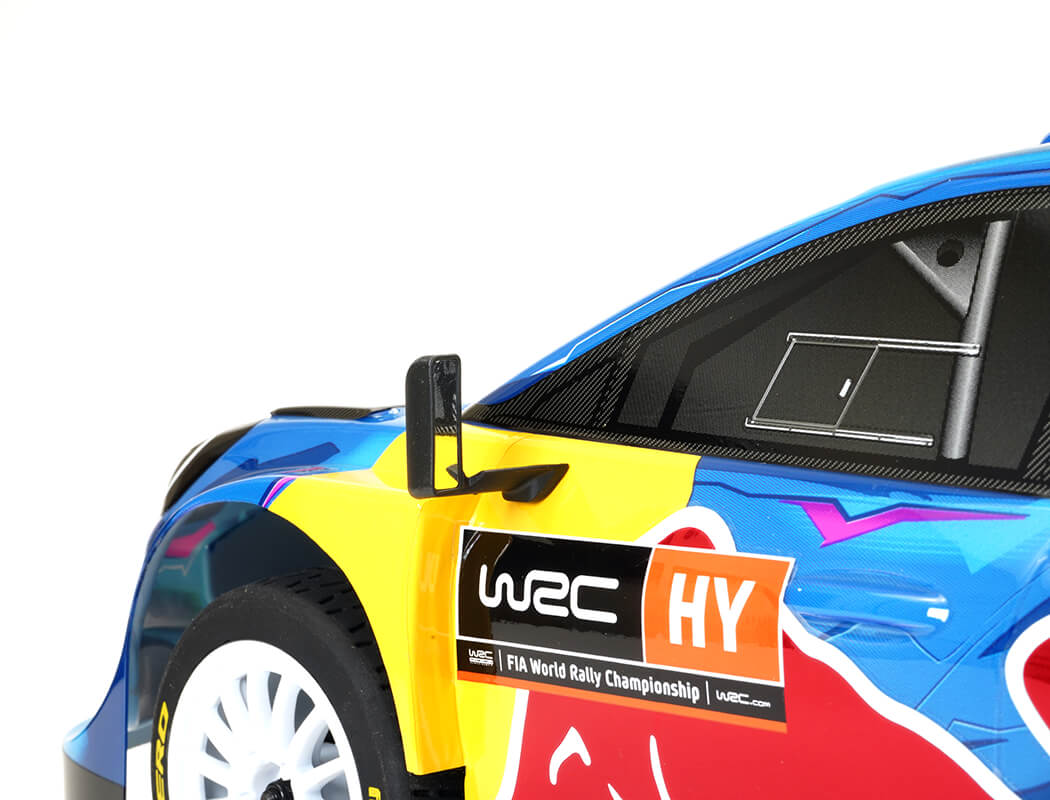

• Official Licensed 2023 M-Sport Ford Puma Rally 1 Edition

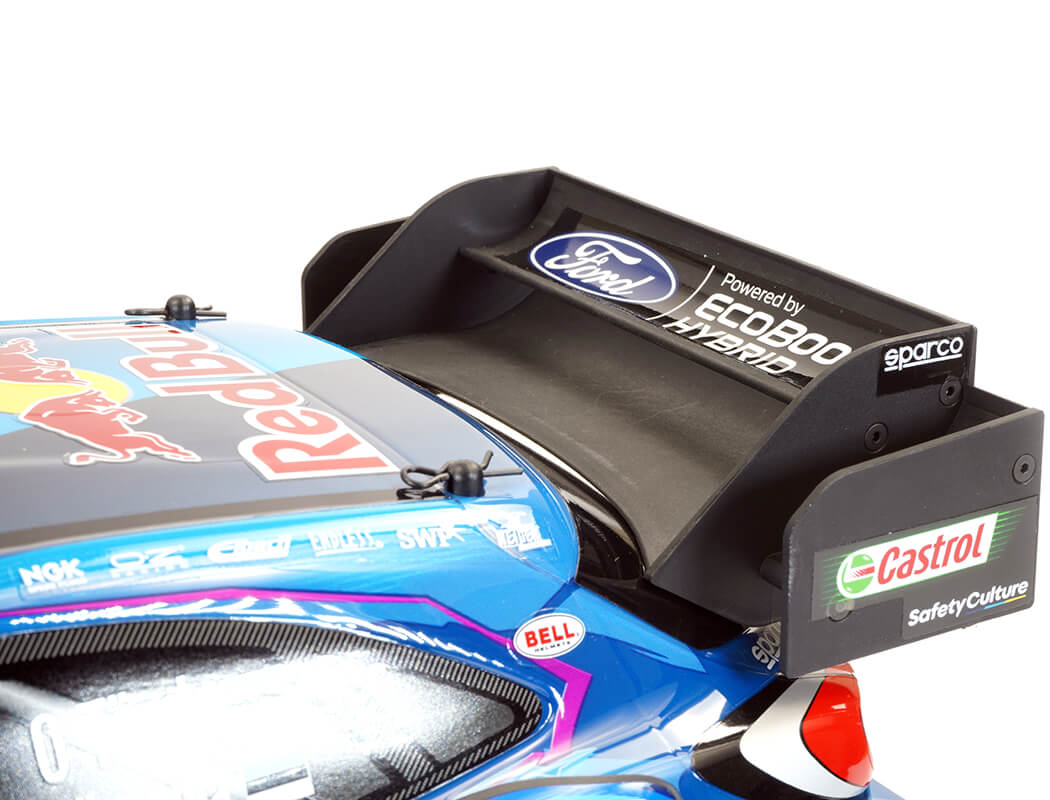

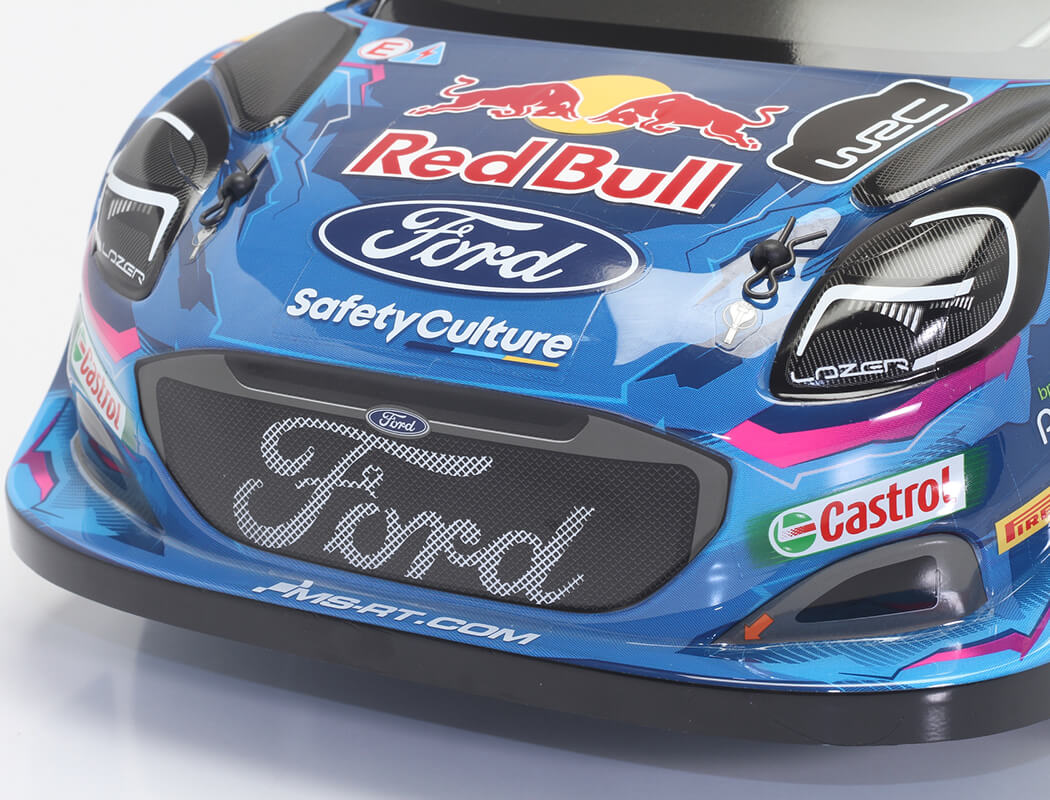

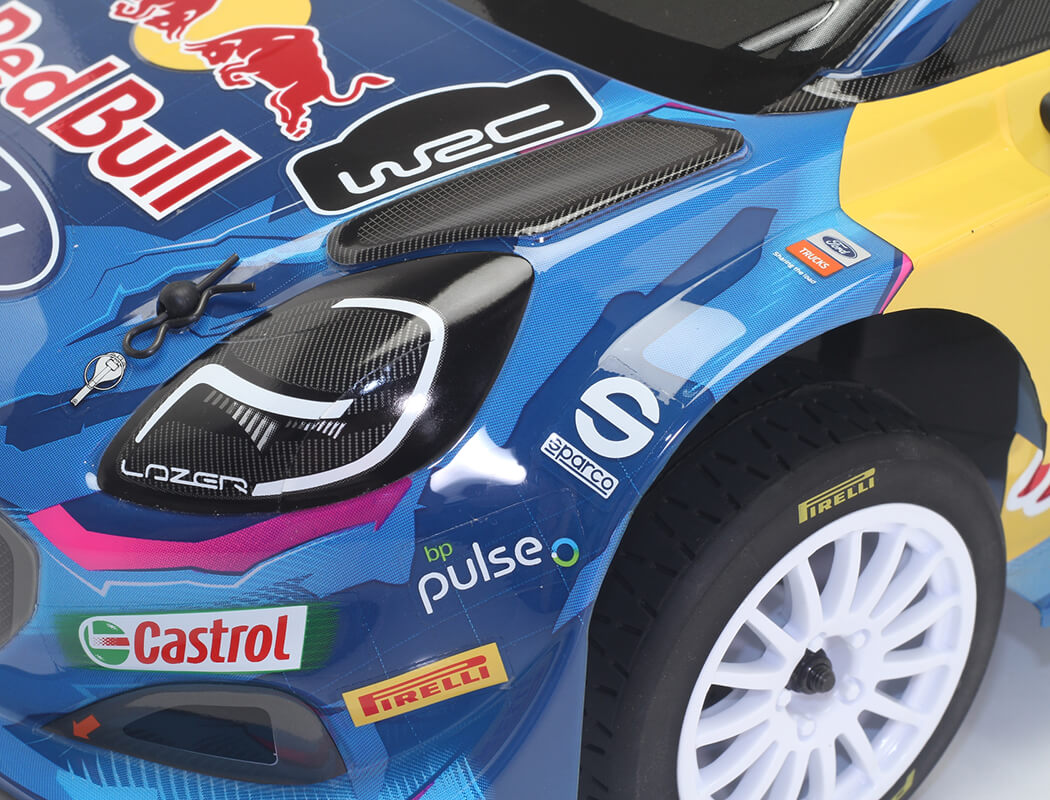

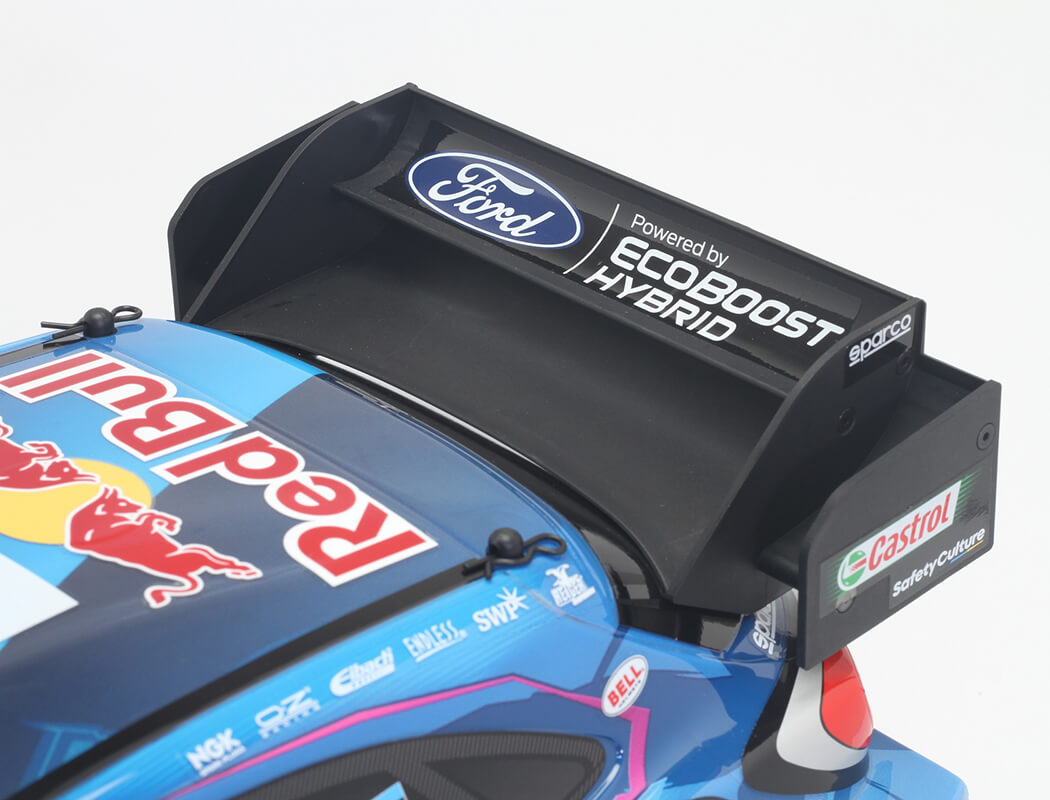

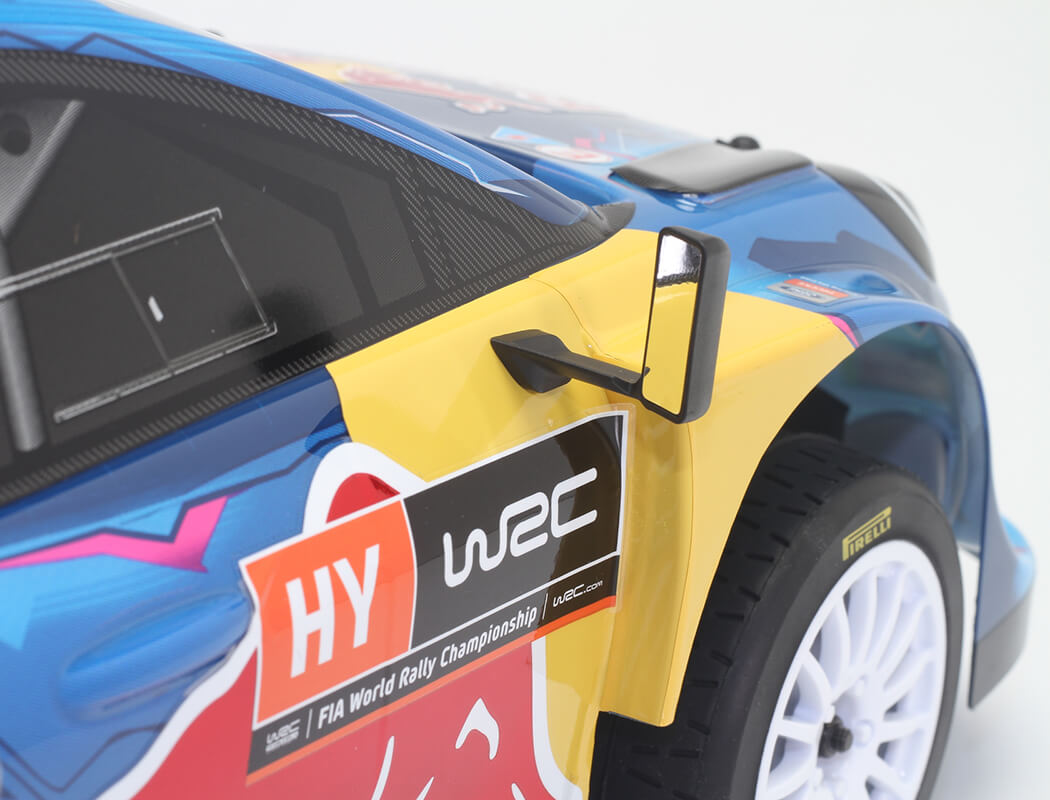

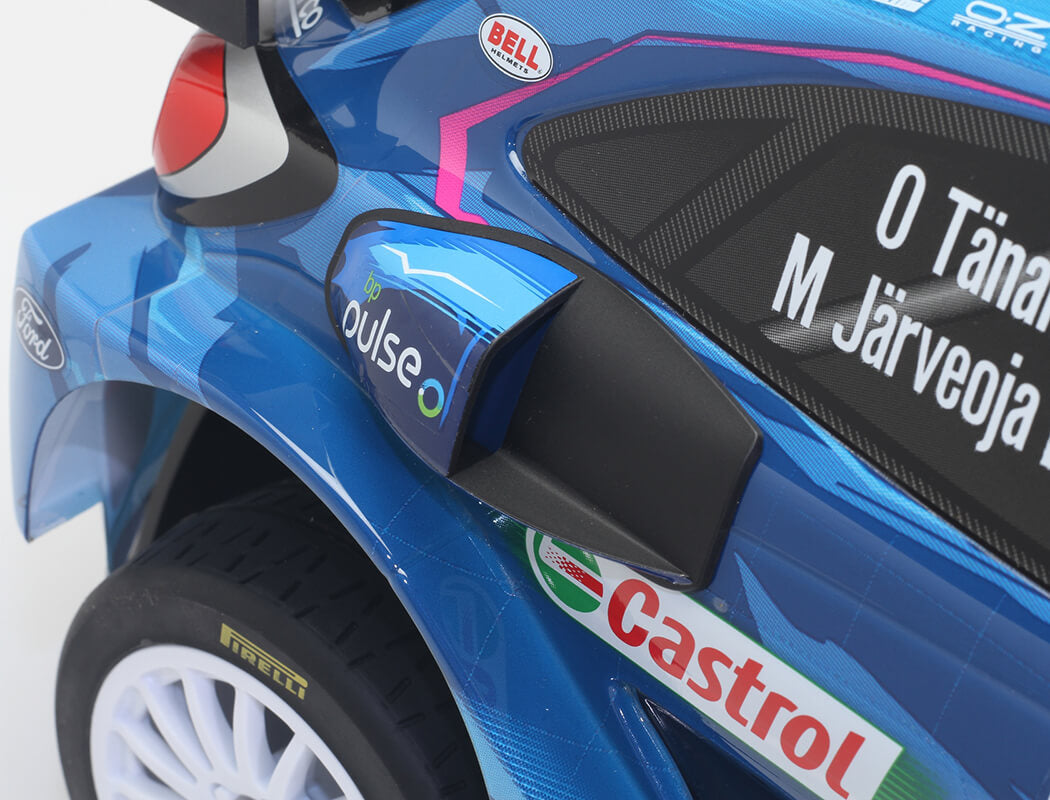

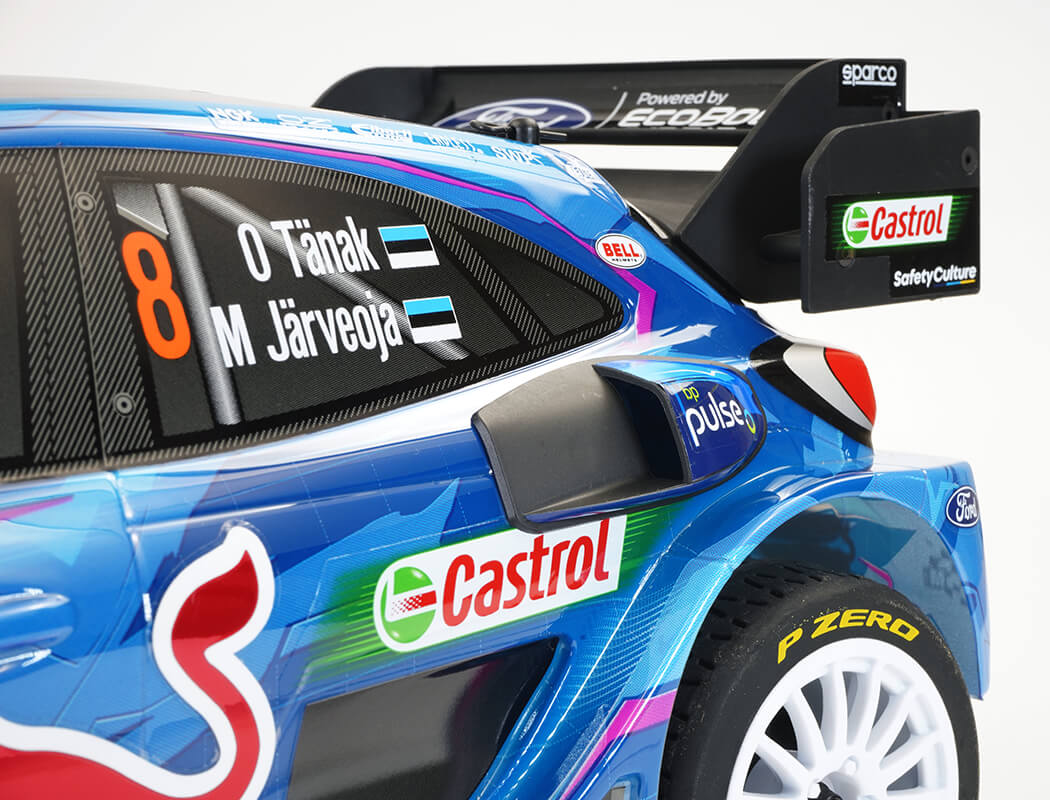

• Fully Detailed Injection-Molded Body Accessories Body Details
• Size: Length 20.08inches (510mm) / Width 9.45 inches (240mm)

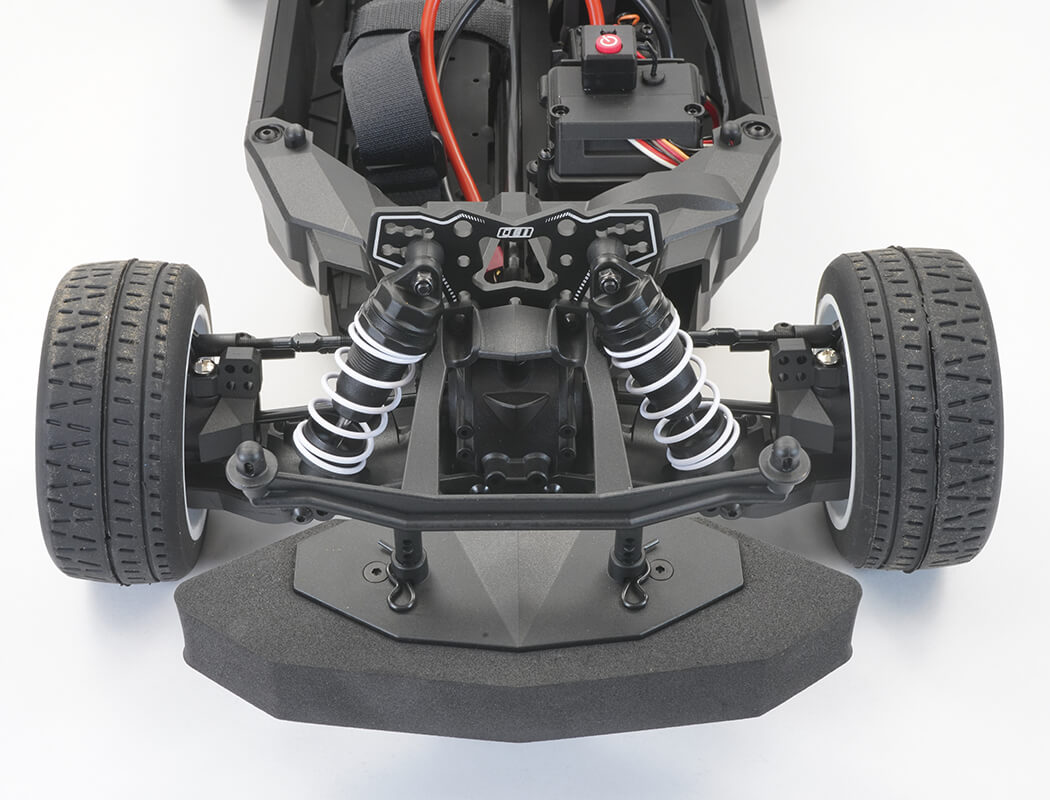

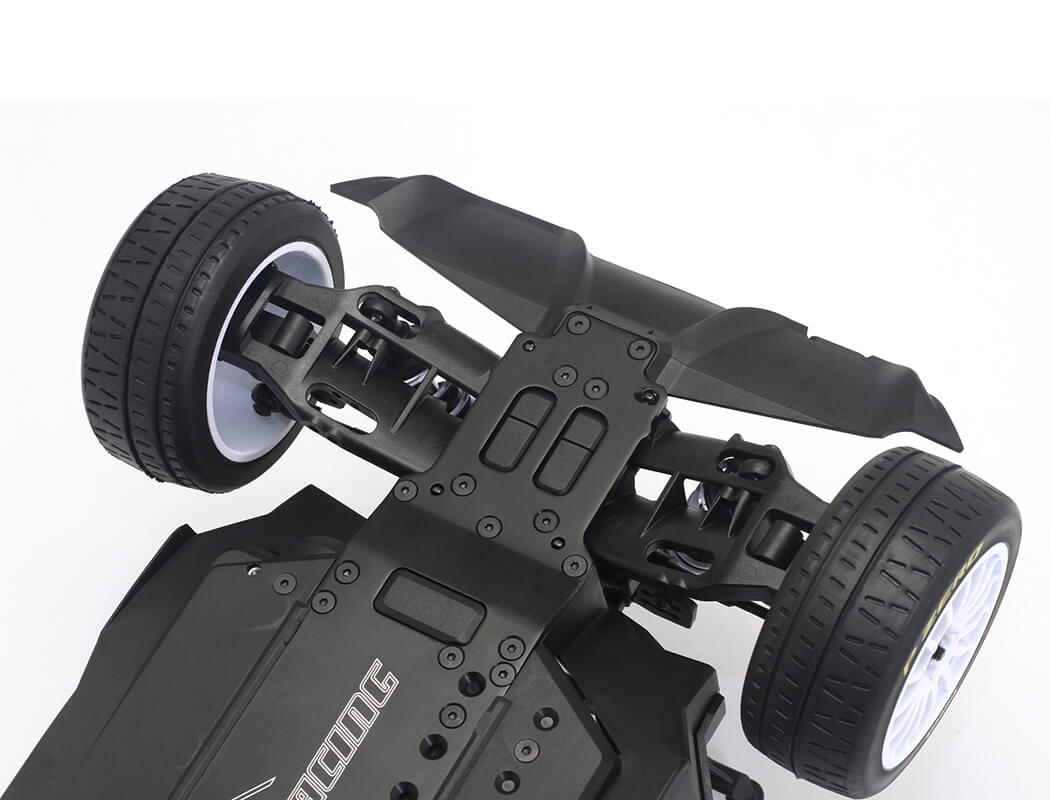

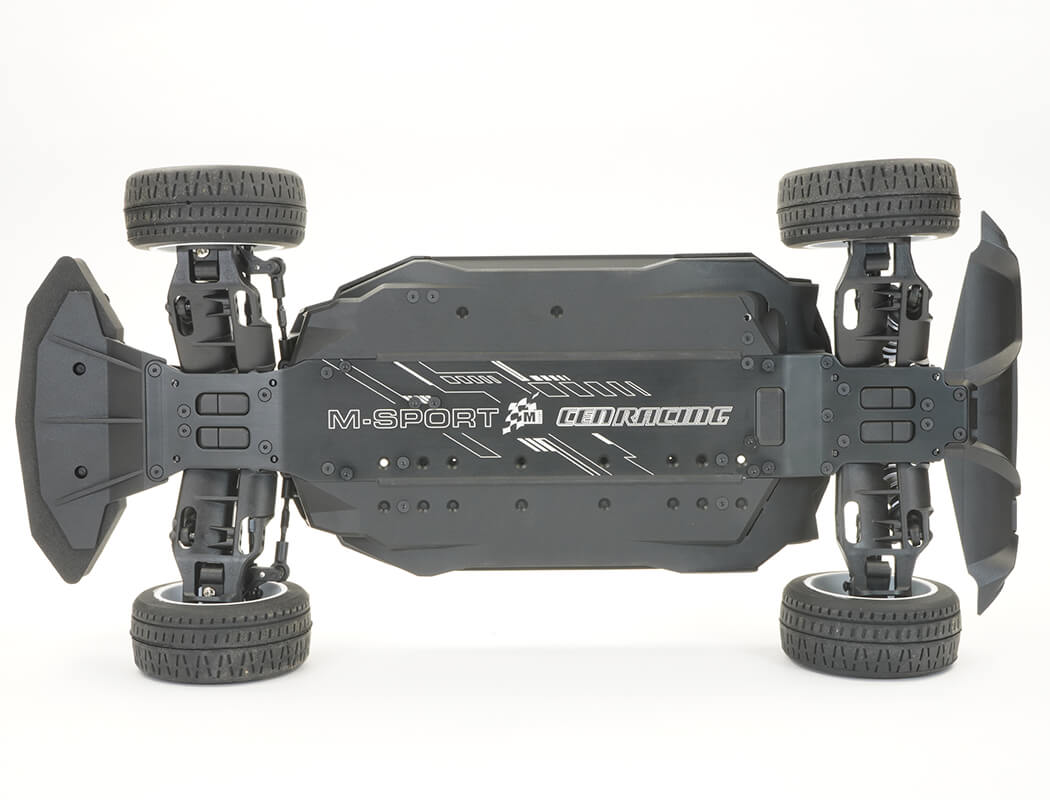

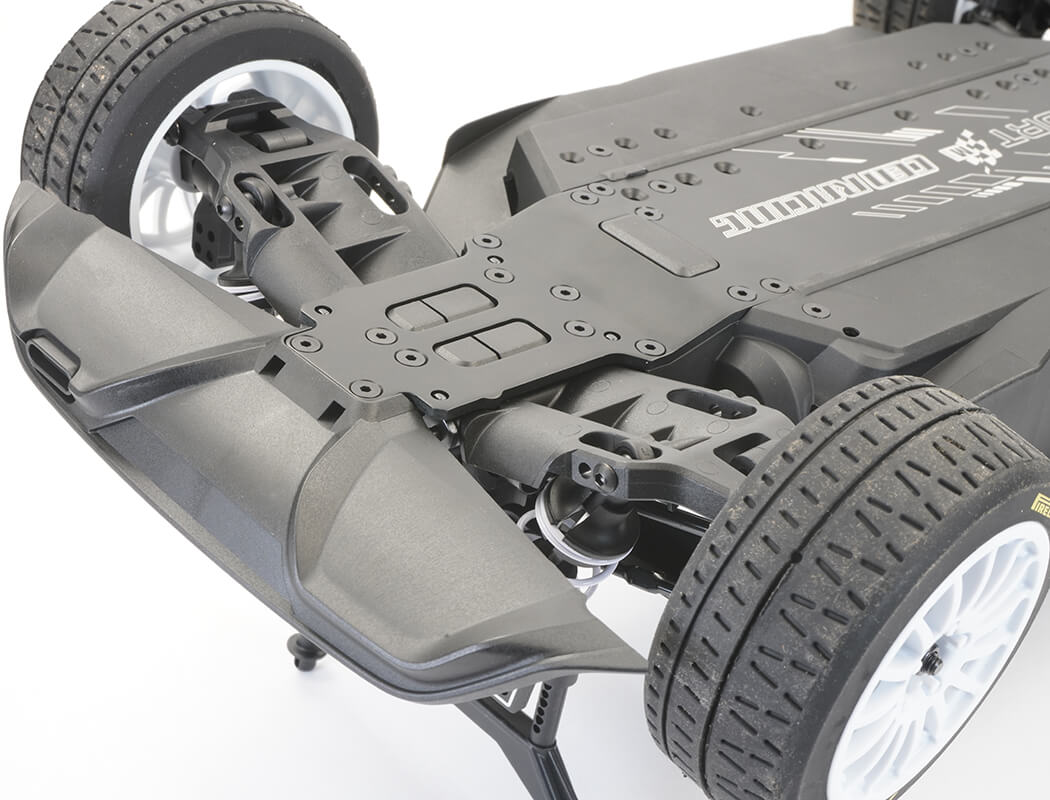

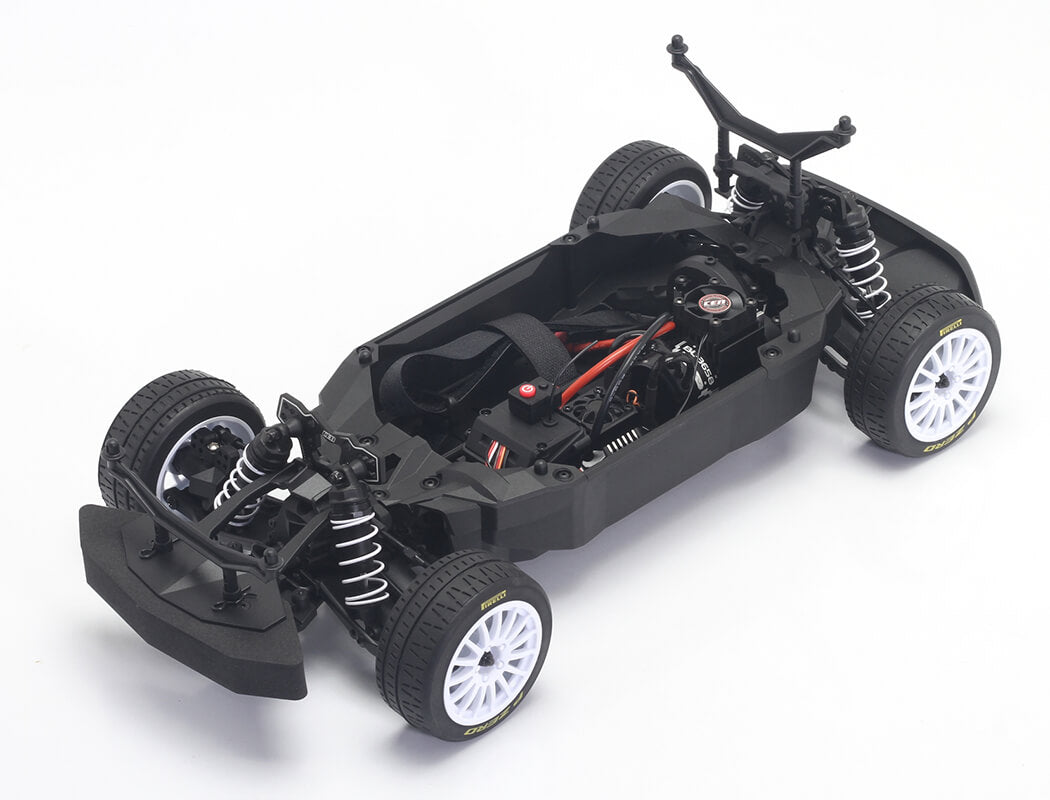

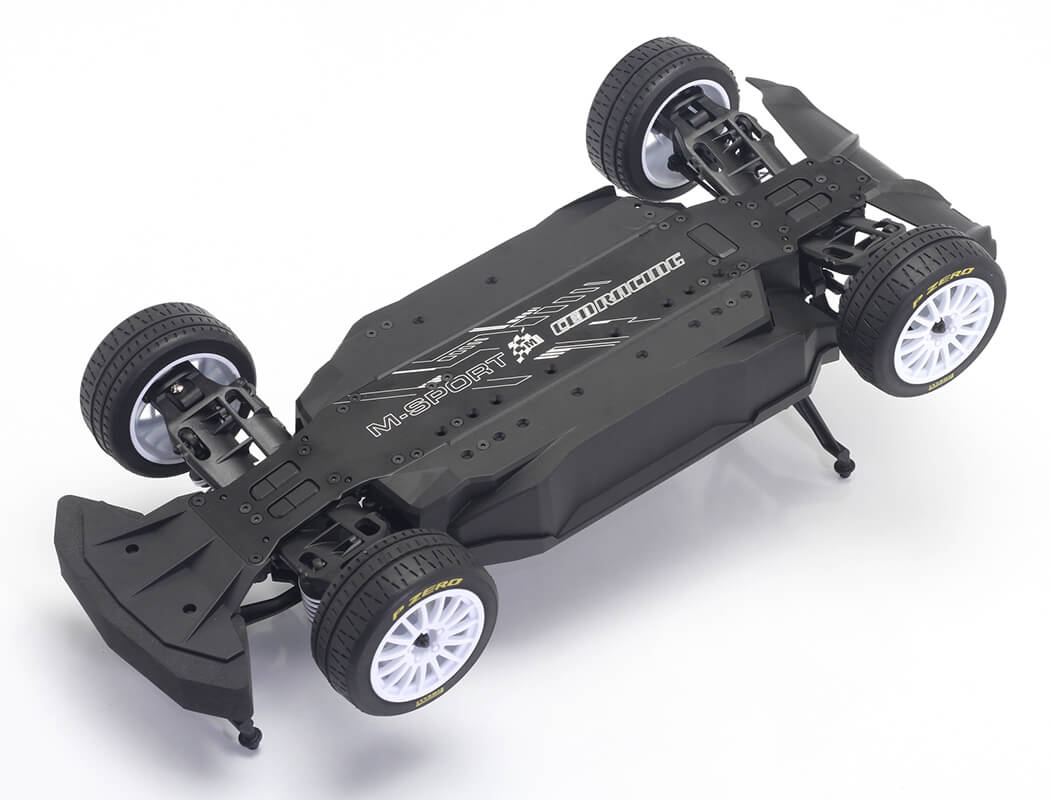

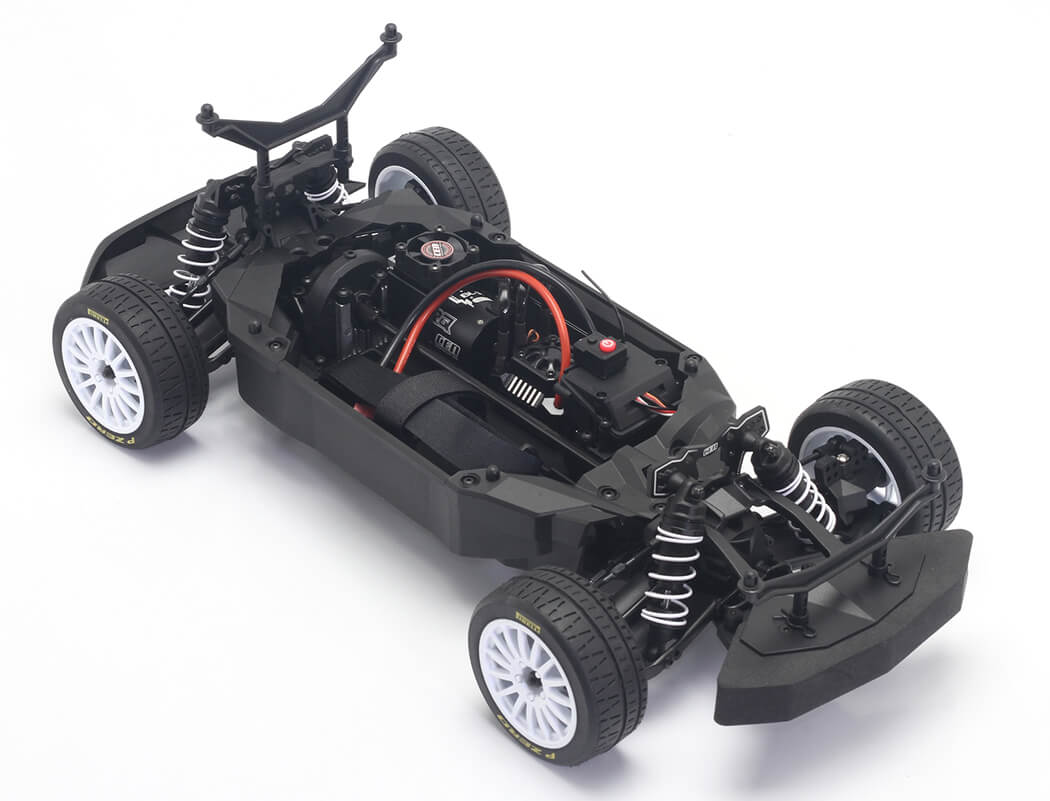

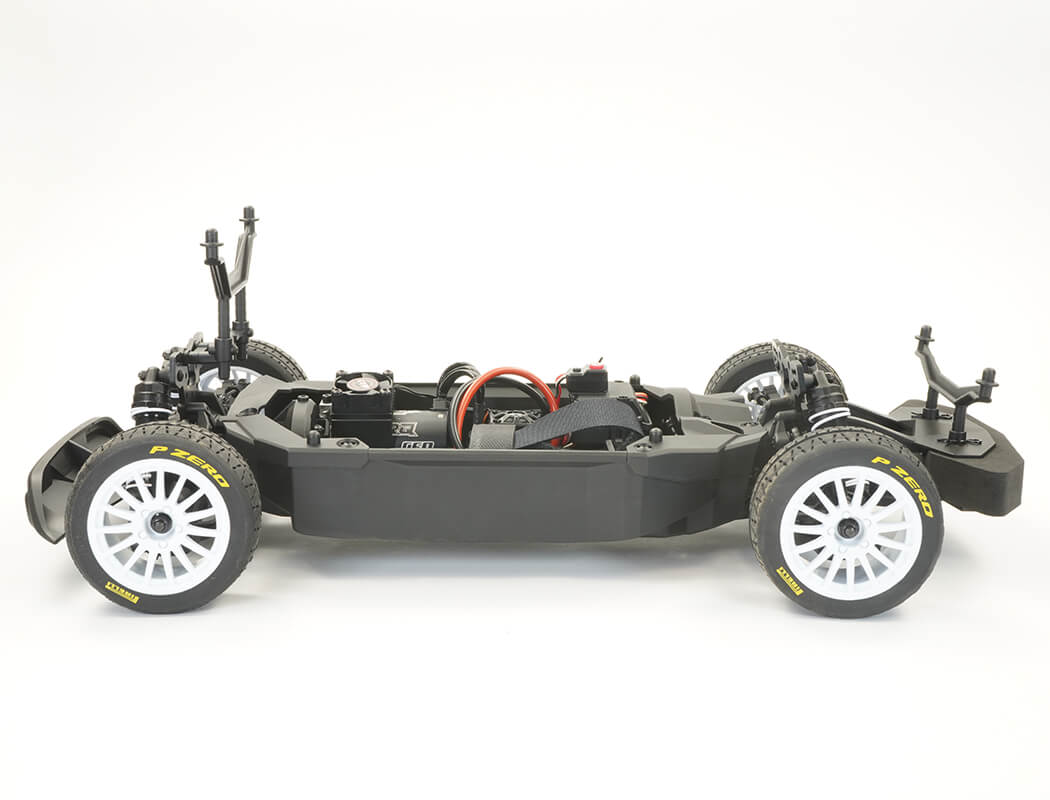

Chassis

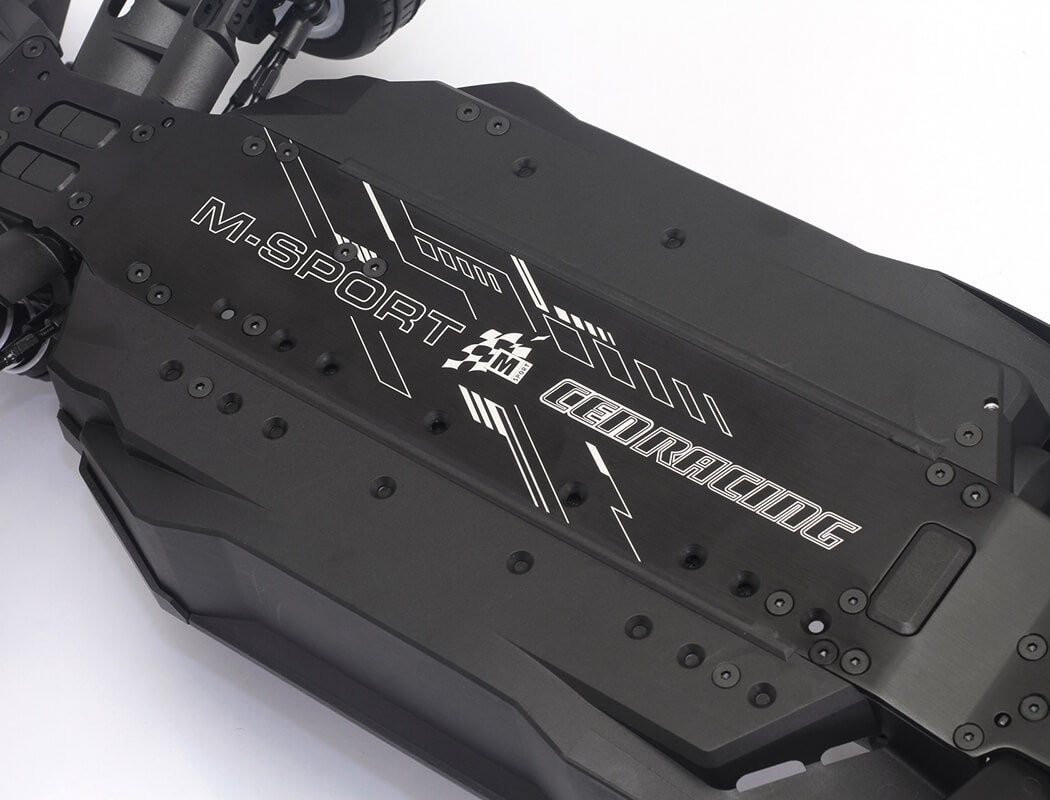

• 3mm Aluminum Chassis

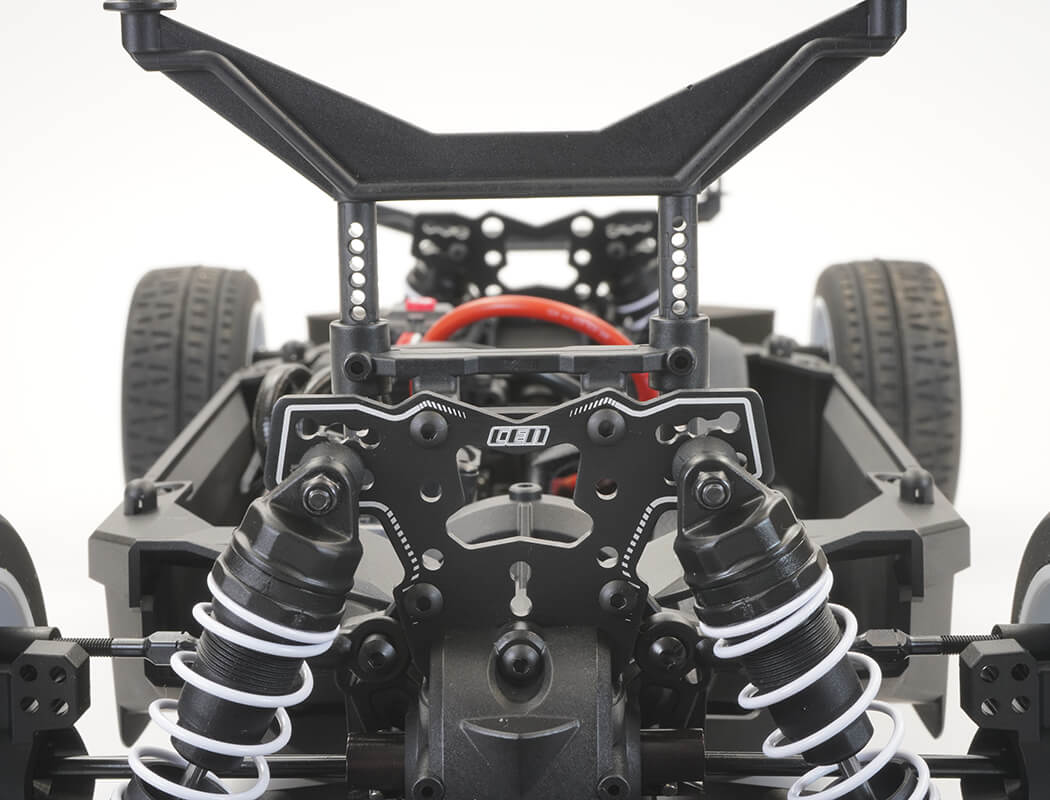

• Front and Rear 3mm Aluminum Shock Towers
• Aluminum Arm Brace
• Full Precision Ball Bearing Support
• Wider Body Mount Positions for Better Support

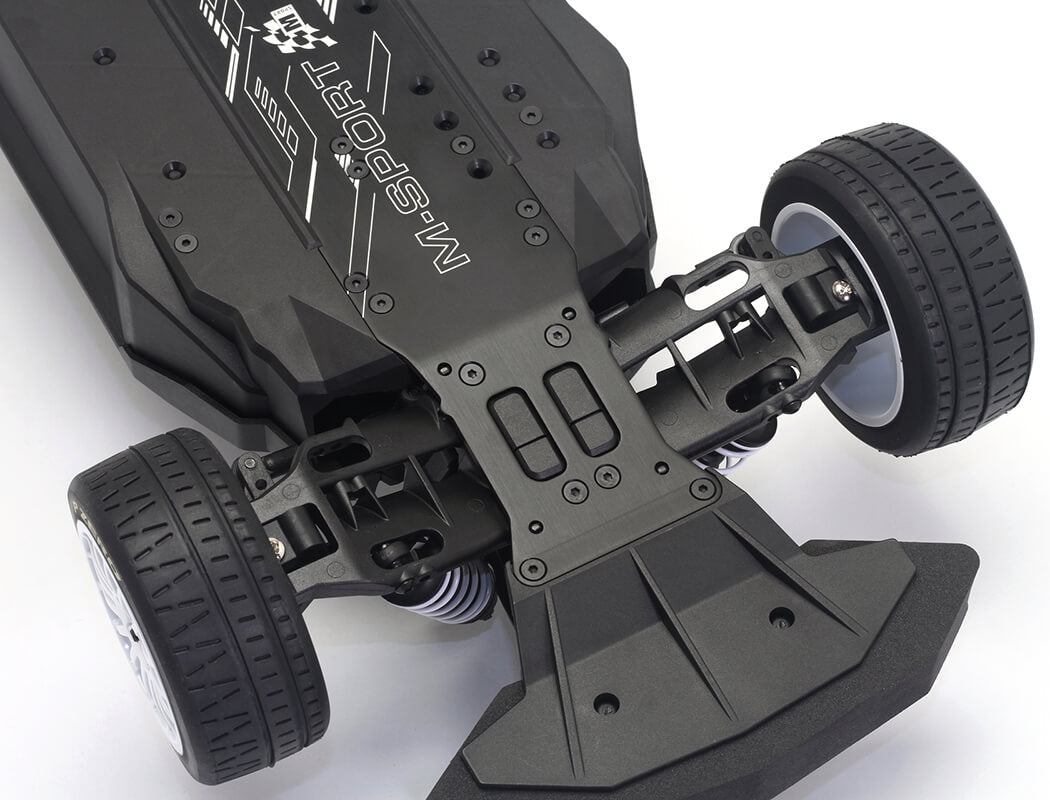

• Front Skid plate with Durable Foam Bumper

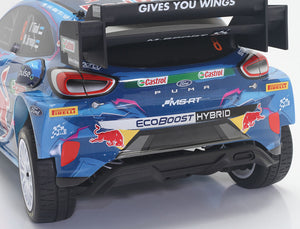

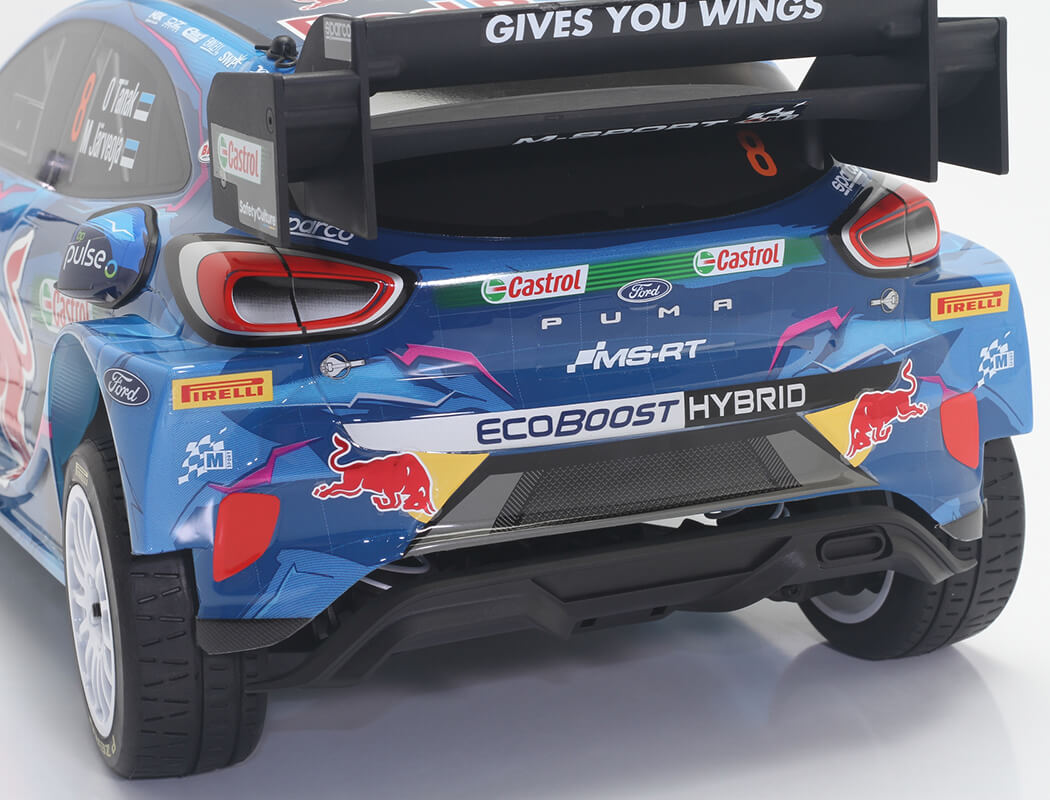

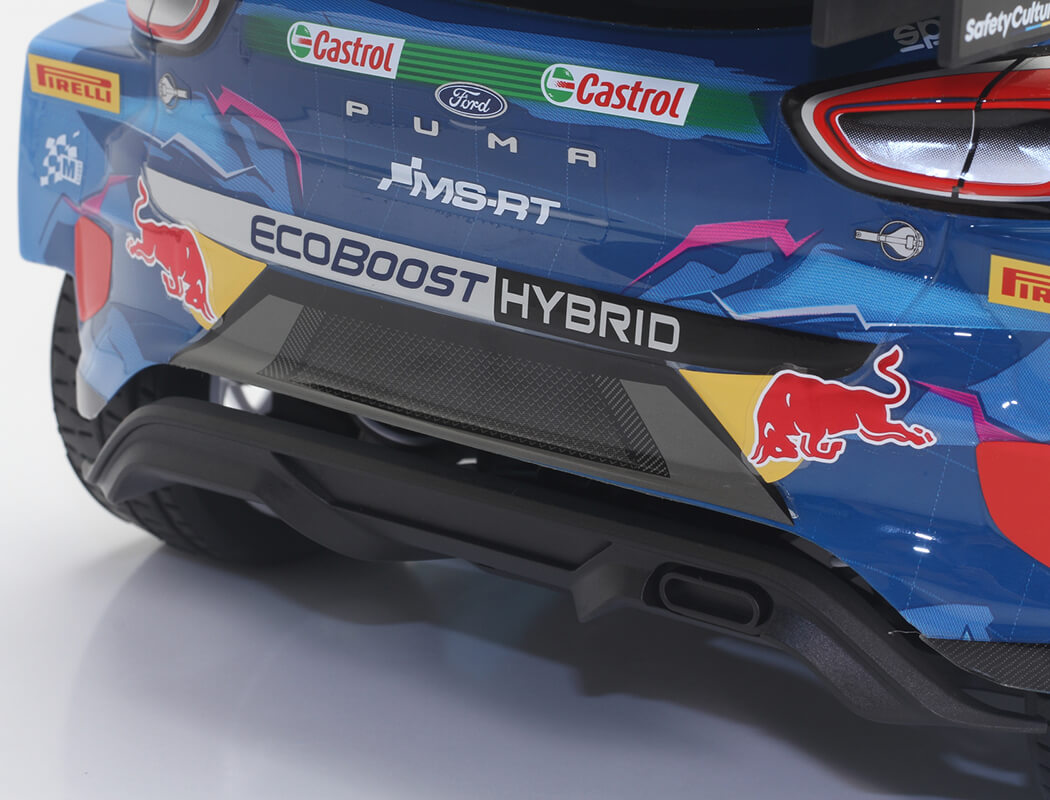

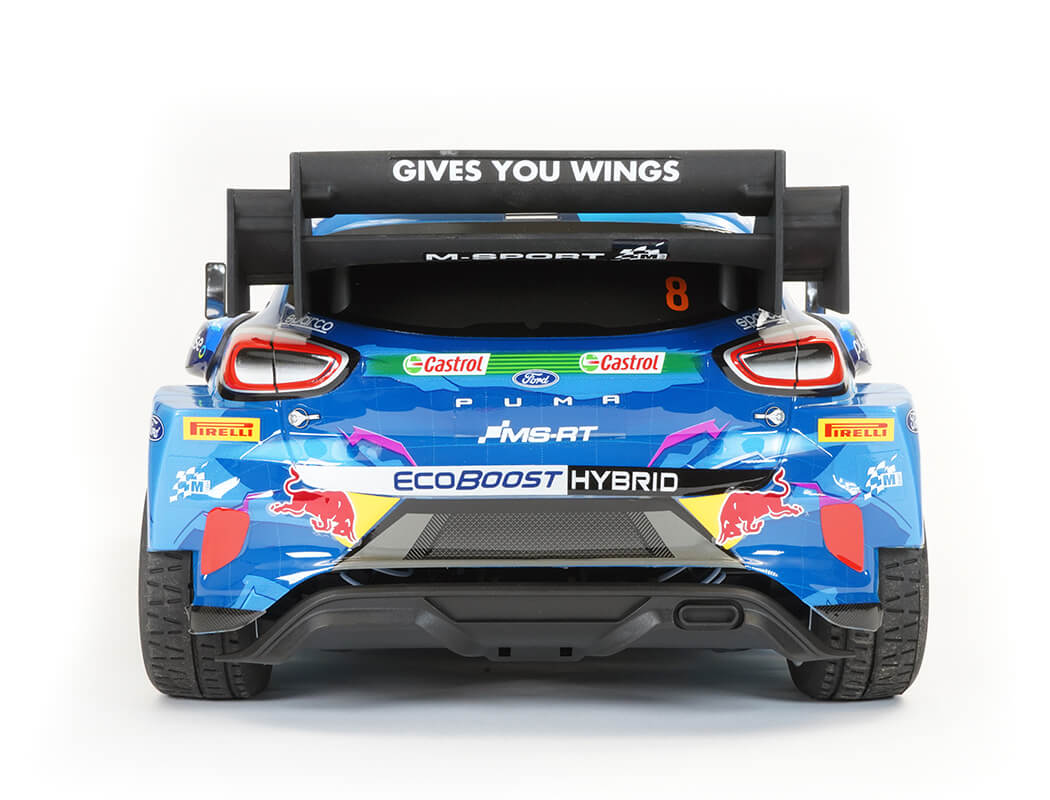

• Injection-Molded Rear Diffuser
• Easy Access Battery Tray
• Battery Tray Size 142mm x 48mm

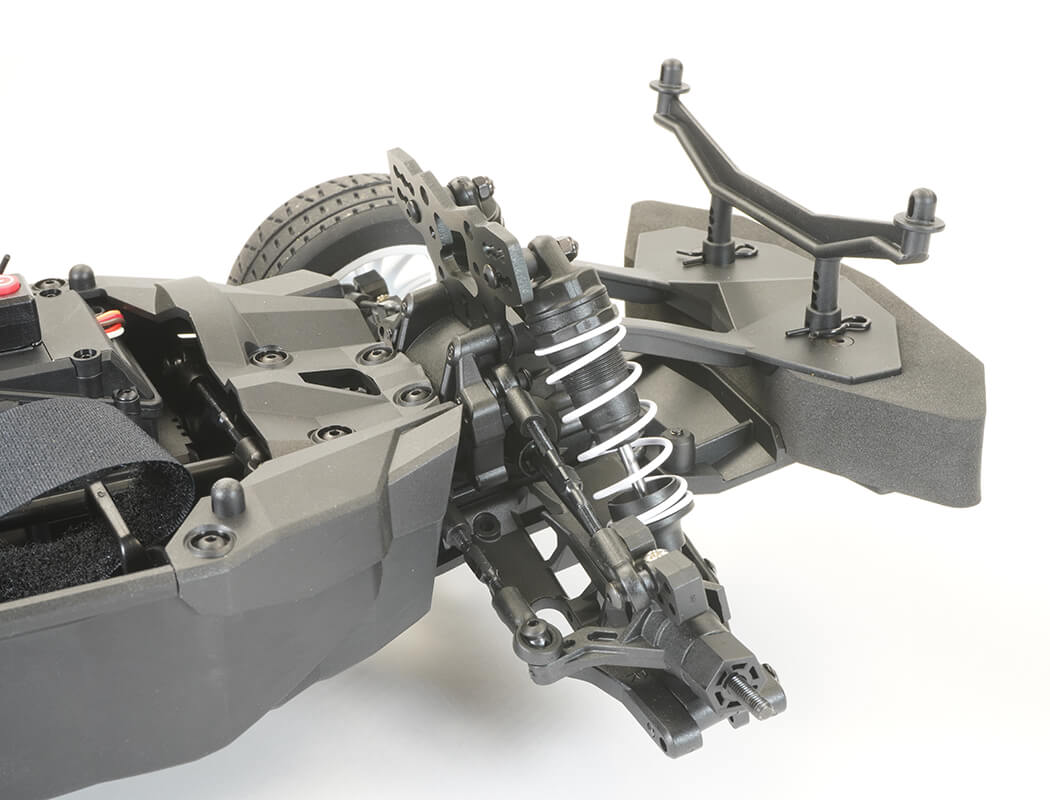

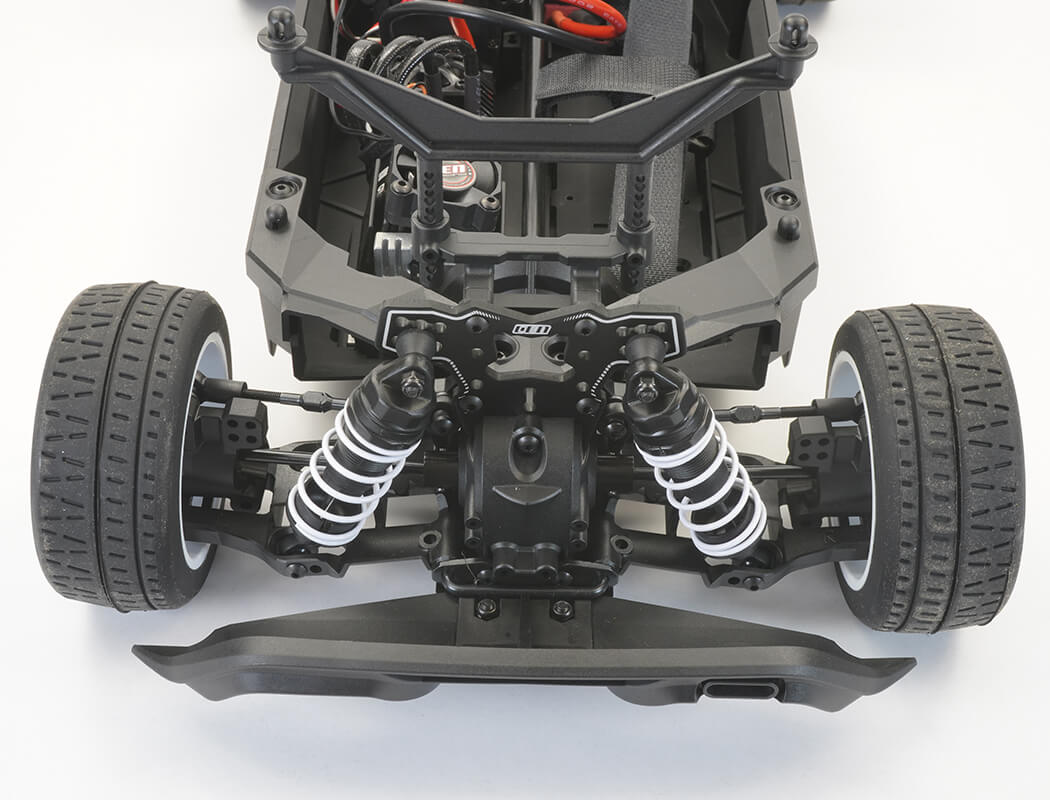

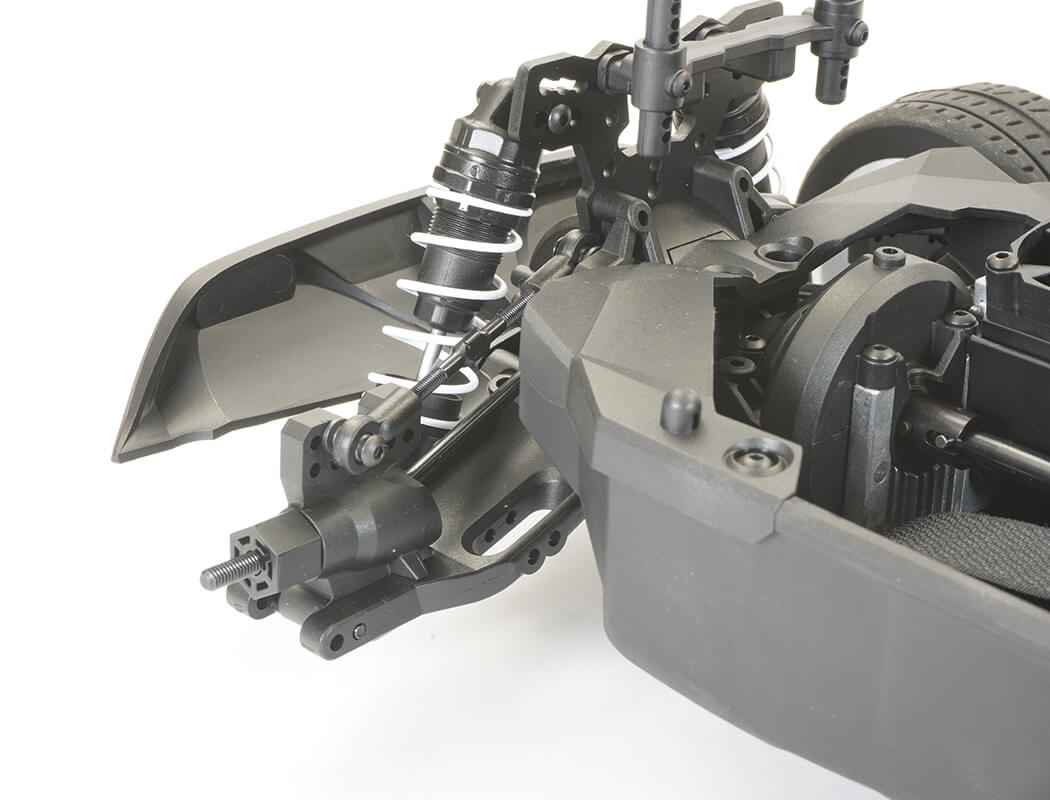

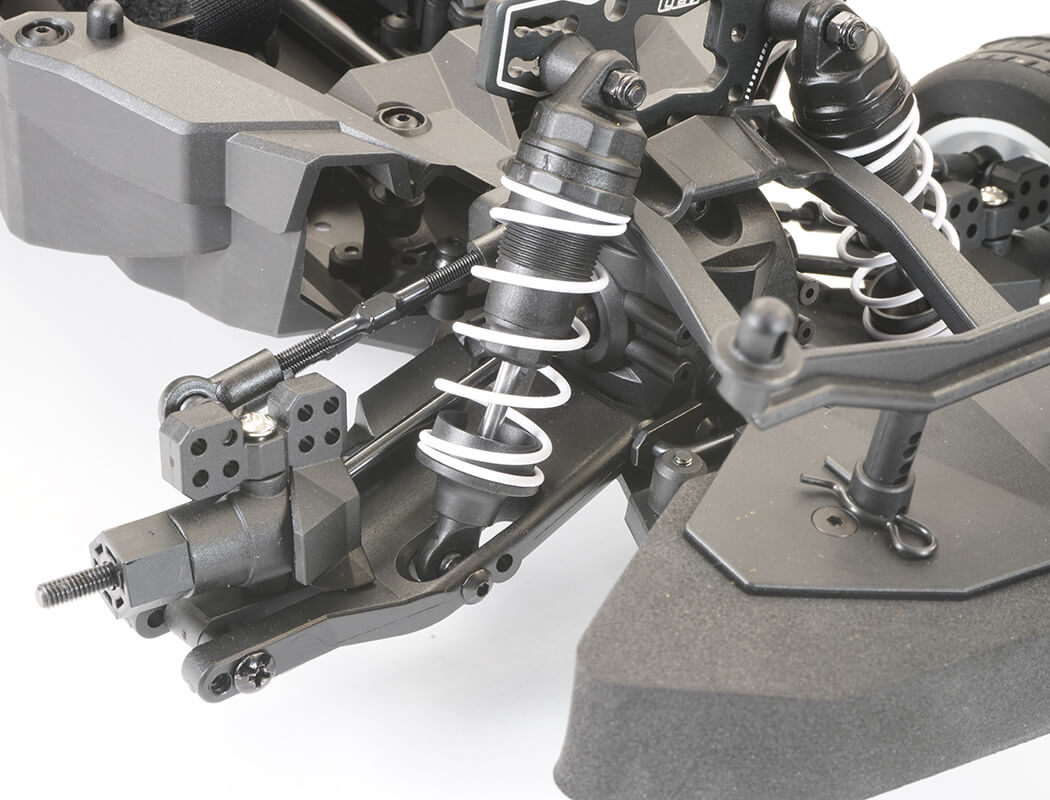

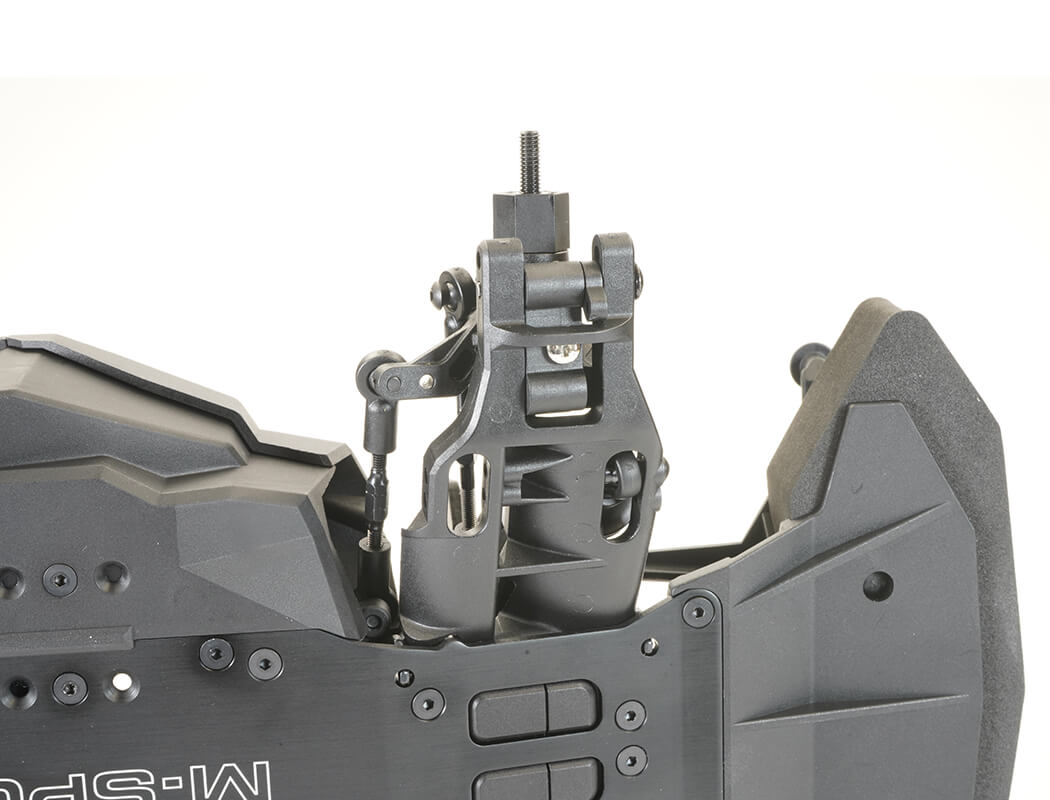

Suspension

• Aerodynamic Lower Arm Suspension Design

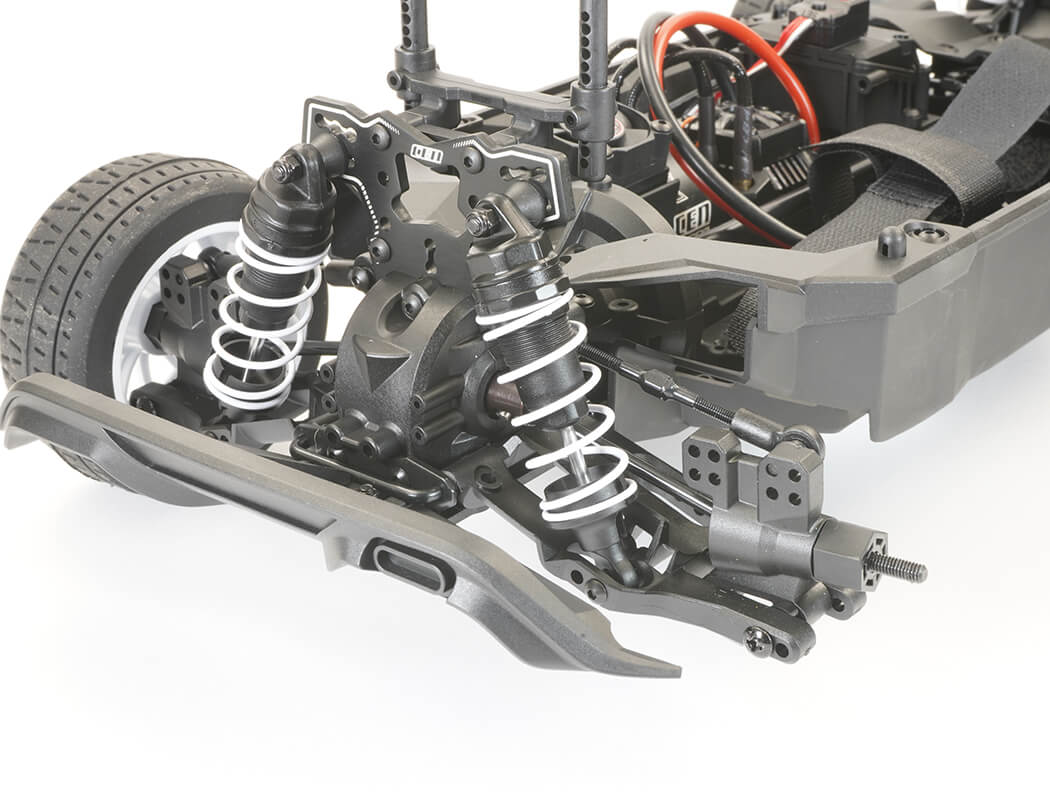

• Big Bore Oil Filled Adjustable Coil Over Shocks
• 12mm Over Size Shock Body with 3mm Hardened Steel Polished Shaft
• Racing Spring
• Adjustable Turnbuckles
• Adjustable Wheelbase +/- 6mm

Gear Ratio

• Spur / Pinion 46/14T 3.29:1
• Ring & Pinion 40/17T 2.35:1

Drivetrain

• Full Time 4-Wheels Drive
• Center Shaft Drivetrain for more power transferred to the wheels

Metal Transmission Gears

• Aluminum Adjustable Motor Mount
• Oil Filled Two Differential Drive System
• Center Direct Drive
• Hight Efficient Transmission System
• 6 Gear Bevel Gear Type Differential
• Front / Rear Harden Steel Dog Bone and outdrives

Wheel

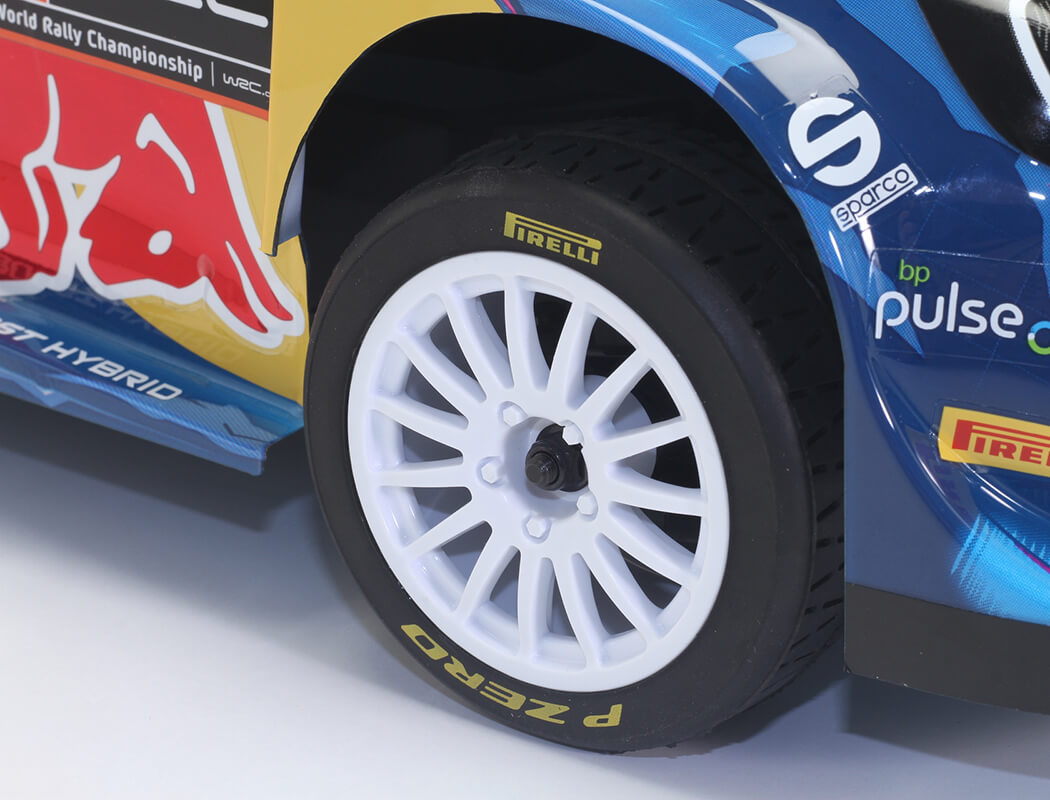

• High Impact & Light Weight WRC Racing Wheel 56 X 35.50 mm.

Tyres

• High Performance Racing Rubber Compound Tyres 56 x 80 x 35.50 mm.

Specifications

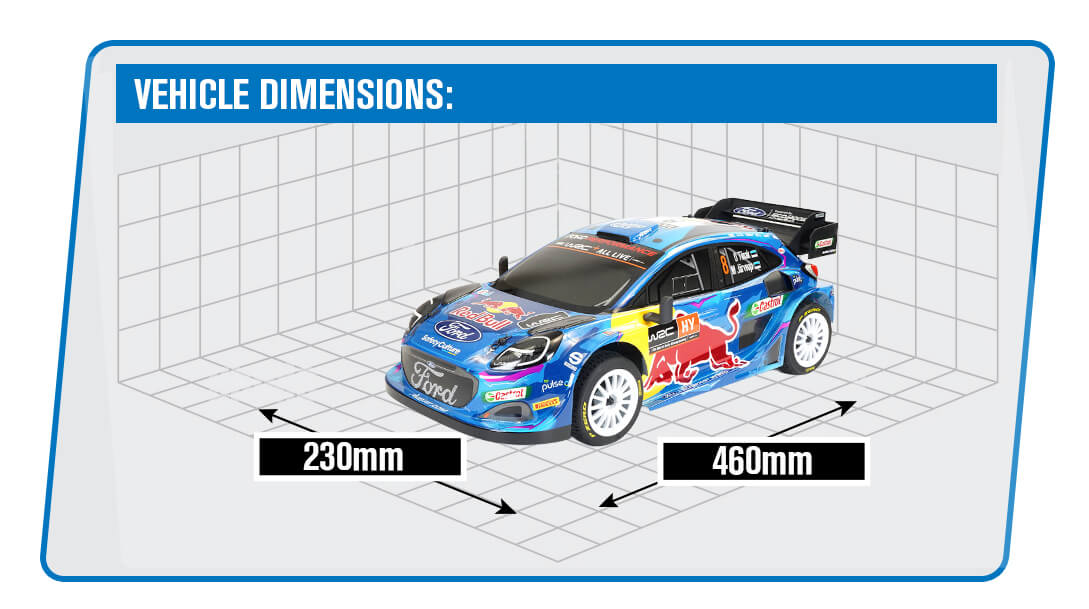

Chassis Length: 18.11 inches (460mm)
Chassis Width: 9.06 inches (230mm)
Wheelbase: 11.80 inches (300mm)
Ground Clearance: 0.98 inches (25mm)
Weight: 5.51 lb. 2.5kg

Needed To Complete

• Battery and charger (Recommend 2S - 3S Lipo Battery)
