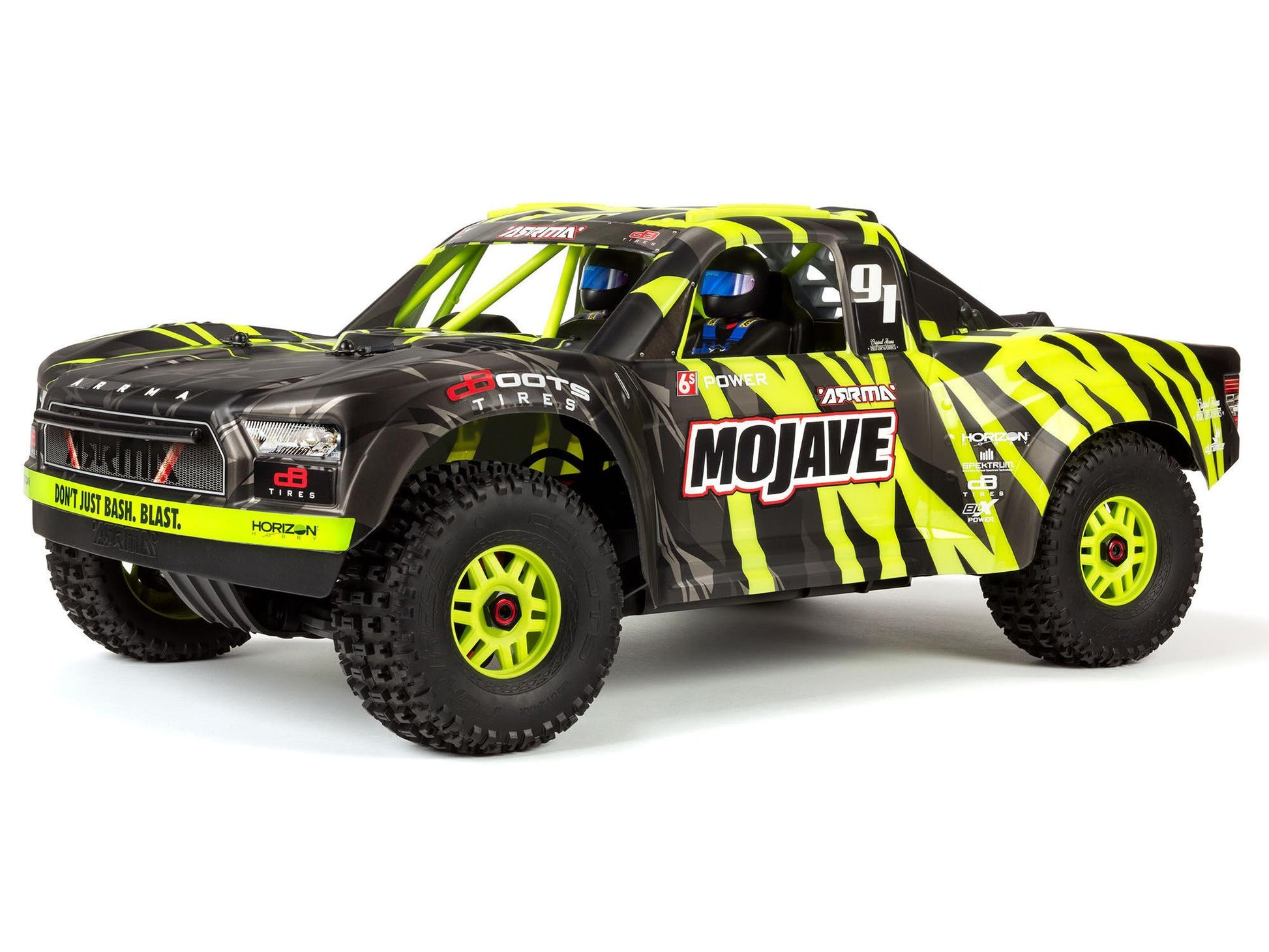

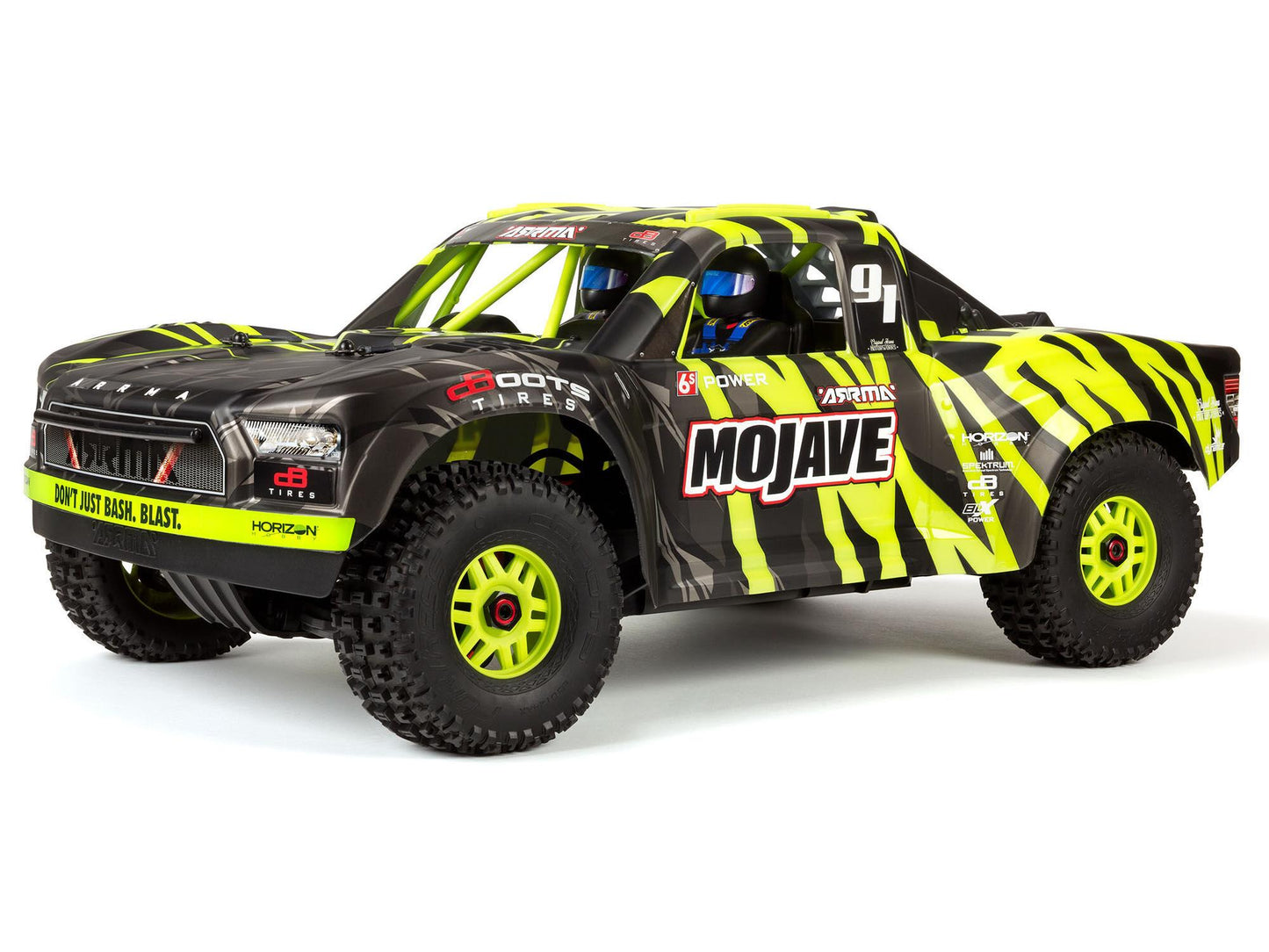

Mojave 6S BLX 1/7 Desert Truck Blk/Grn

Product Details
The 1/7 scale ARRMA MOJAVE 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum SLT3 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.
Key Features
Updated with Spektrum components and Smart compatible
60+ MPH (97km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the optional pinion gear included
EXB compatible front brace
Large volume waterproof receiver box
Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
In The Box
ARRMA MOJAVE 6S BLX 1/7 Desert Truck RTR
Spektrum Firma 150A Smart 4S/6S ESC (installed)
Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA Heatsink (installed)
Spektrum S652 Metal-Geared Digital Servo (installed)
Spektrum SR315 3-Channel Dual Protocol Receiver (installed)
Spektrum SLT3 2.4GHz 3-Channel Radio
Product Manual
Needed to Complete
4S or 6S LiPo Battery
LiPo Compatible Charger
LiPo Charging Bag
(4) AA Batteries
Introduction
Experience the speed and durability of ARRMA

bashing in a big way with the 1/7 scale brushless MOJAVE

6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it's ready for extreme performance right out of the box, whether you're thrashing through coastal sand dunes or blasting across concrete sidewalks
Features
Ready-to-run
Spektrum

SLT3

2.4GHz 3-Channel Radio
Spektrum

SR315 Dual Protocol 3-Channel Receiver
Spektrum

S652 Digital Servo
Spektrum

Firma

150A Smart ESC
Spektrum

Firma

4074 2050Kv Brushless Motor

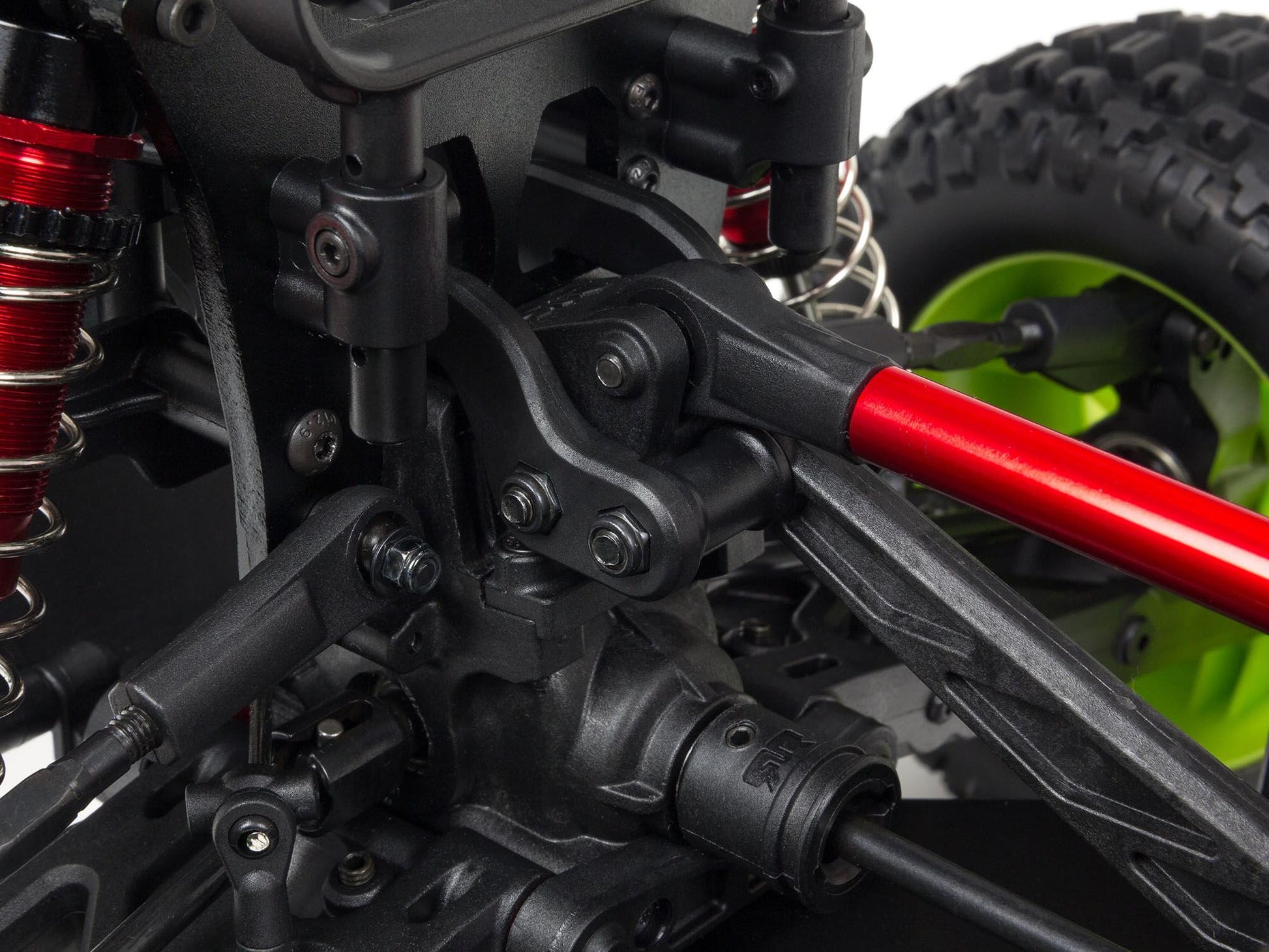

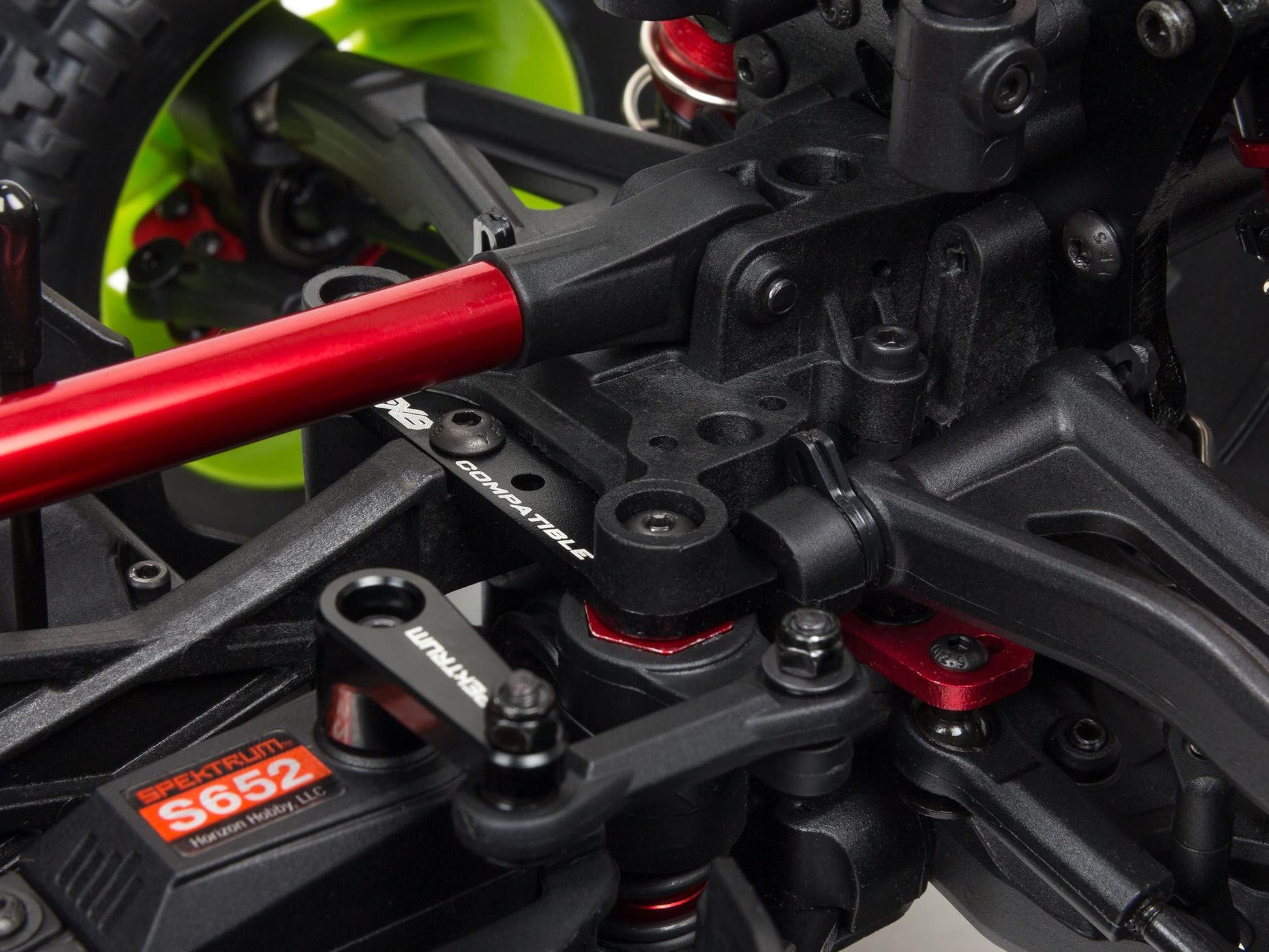

EXB compatible front brace
Stronger rear brace mount
Large volume waterproof* receiver box
+1mm wheel hexes
Stronger body mounts

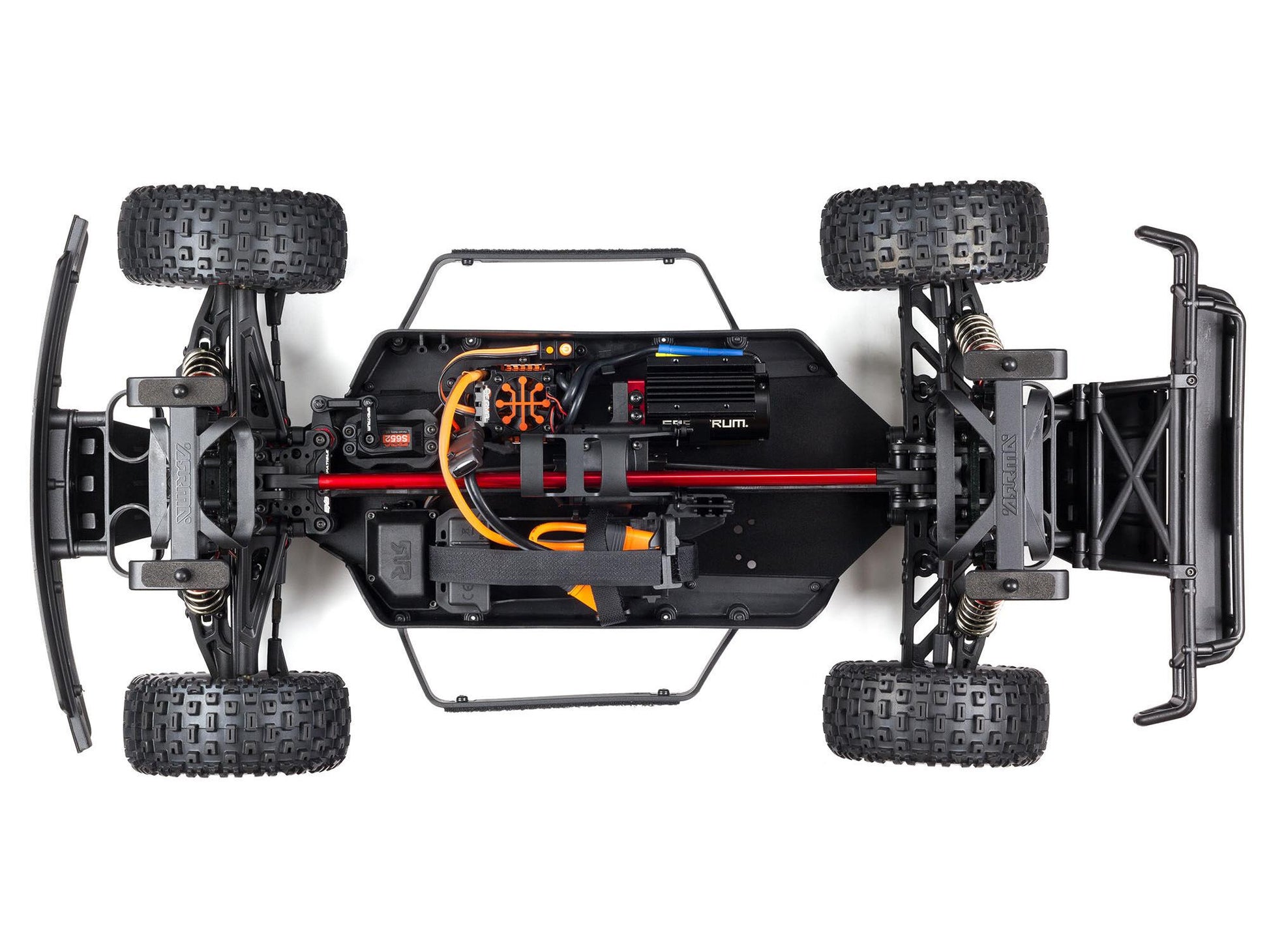

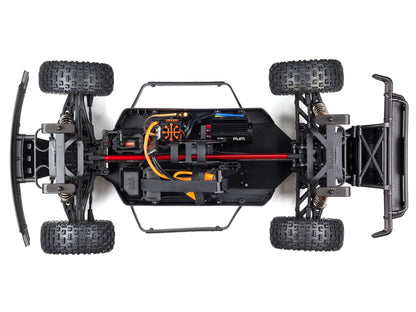

Anodised aluminium chassis
Strong composite chassis side pods
Centre brace for maximum durability
Centre roll hoop interfaces with body roll cage for enhanced body durability

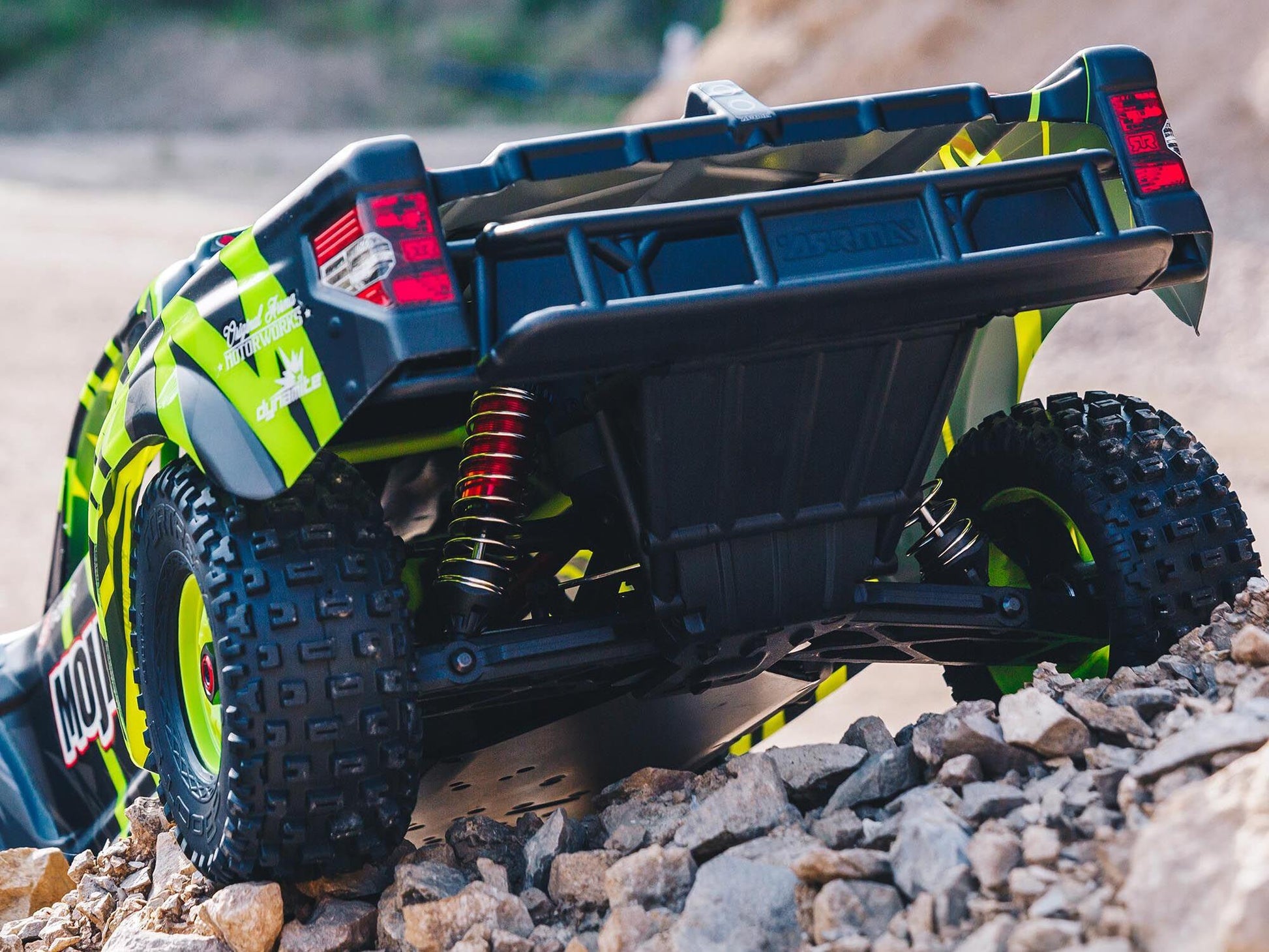

Nerf bars for body and side impact support
Realistic front and rear bumper protection
Independent suspension for superior handling

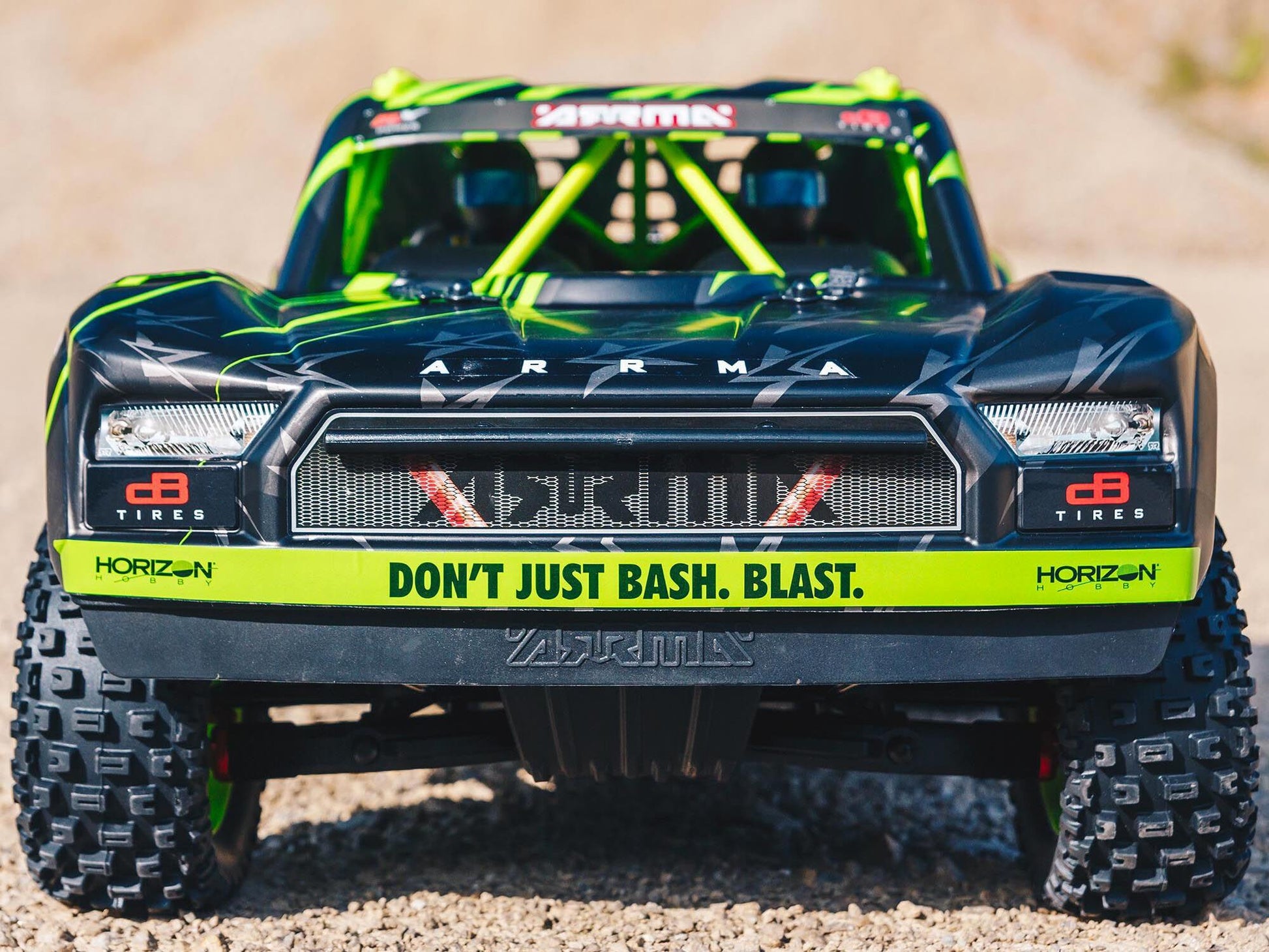

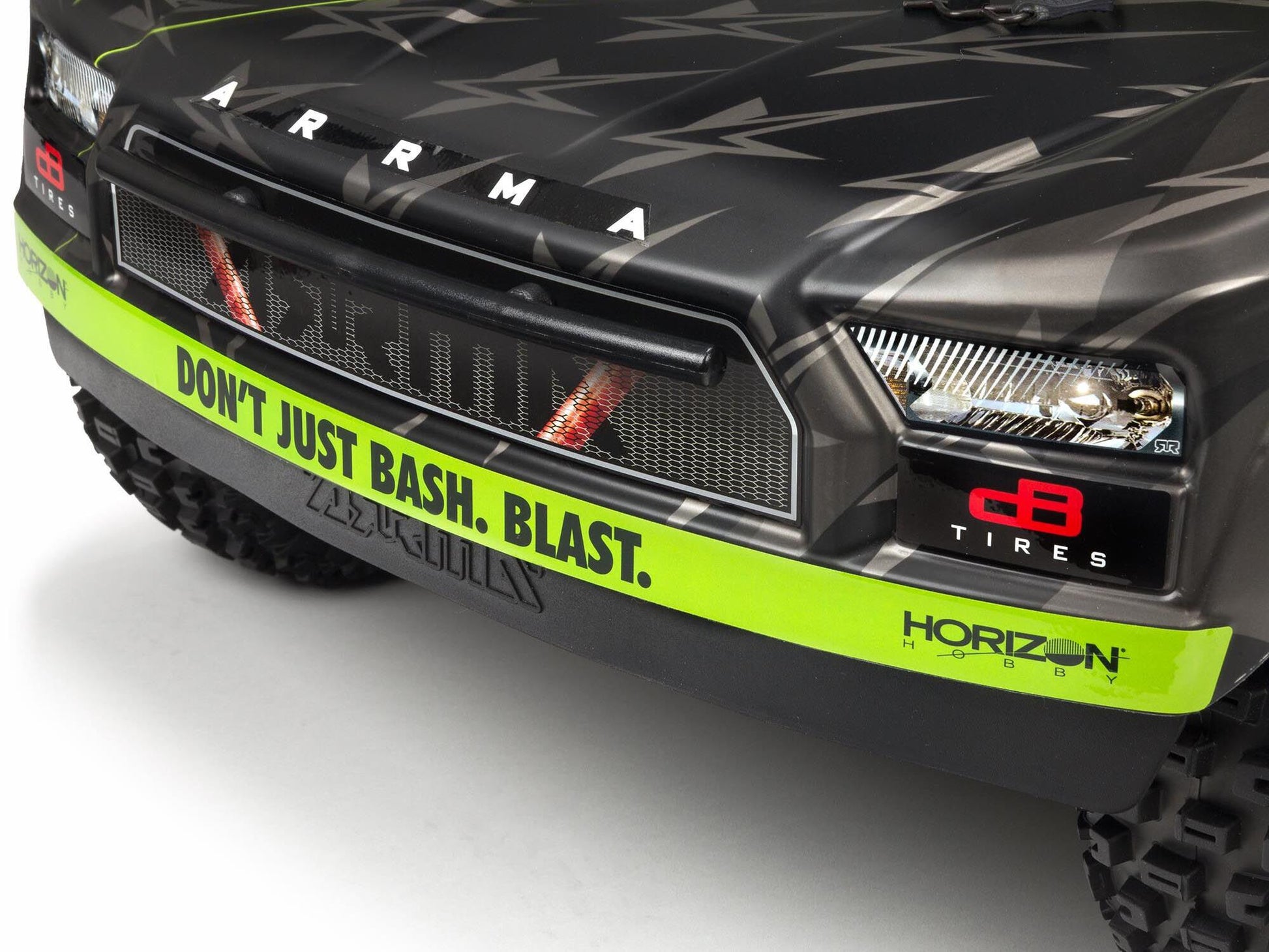

Flexible front bumper valance
Heavy-duty suspension arms with red-anodised aluminium strengthening cap

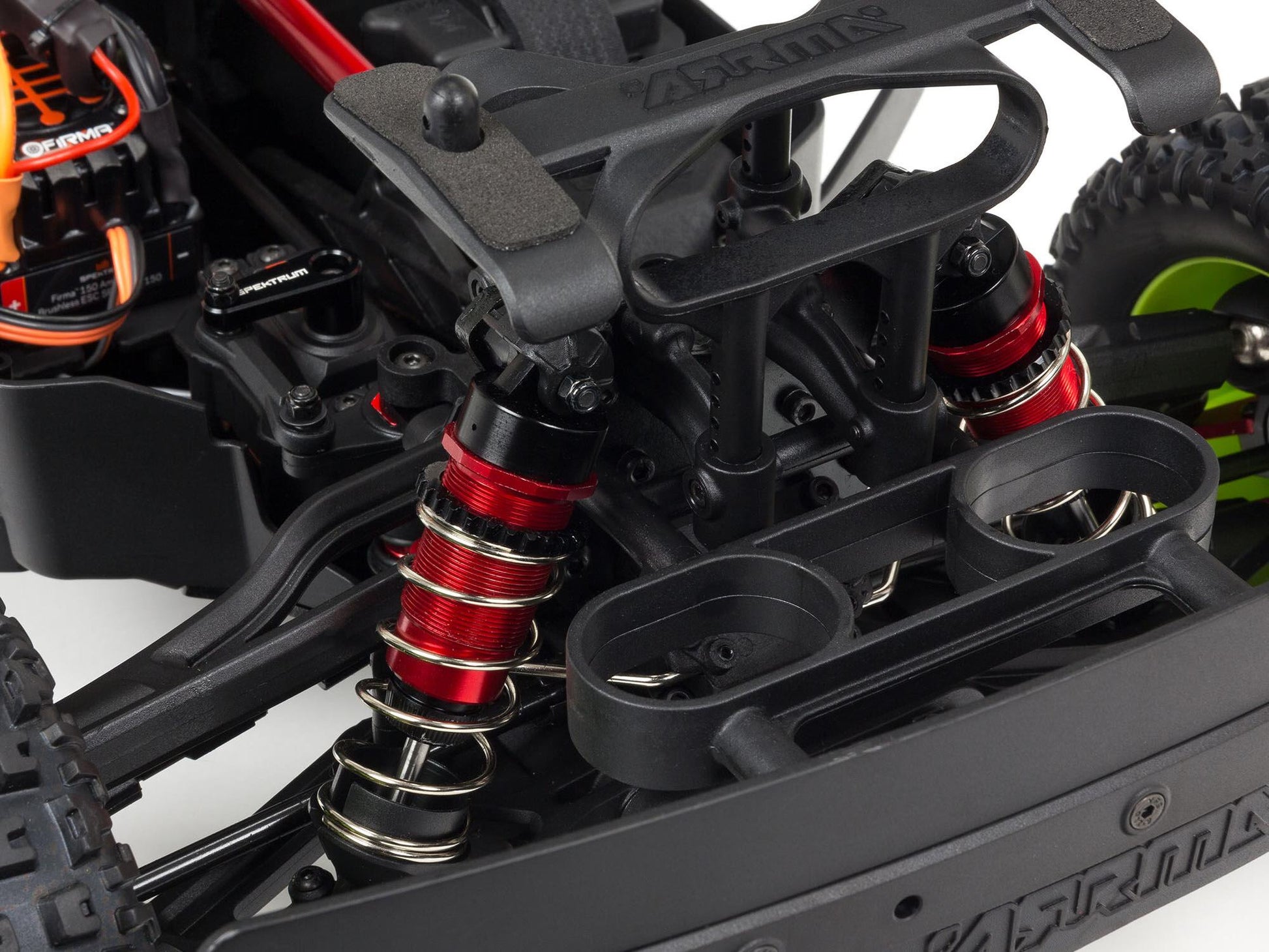

Oil-filled adjustable shocks

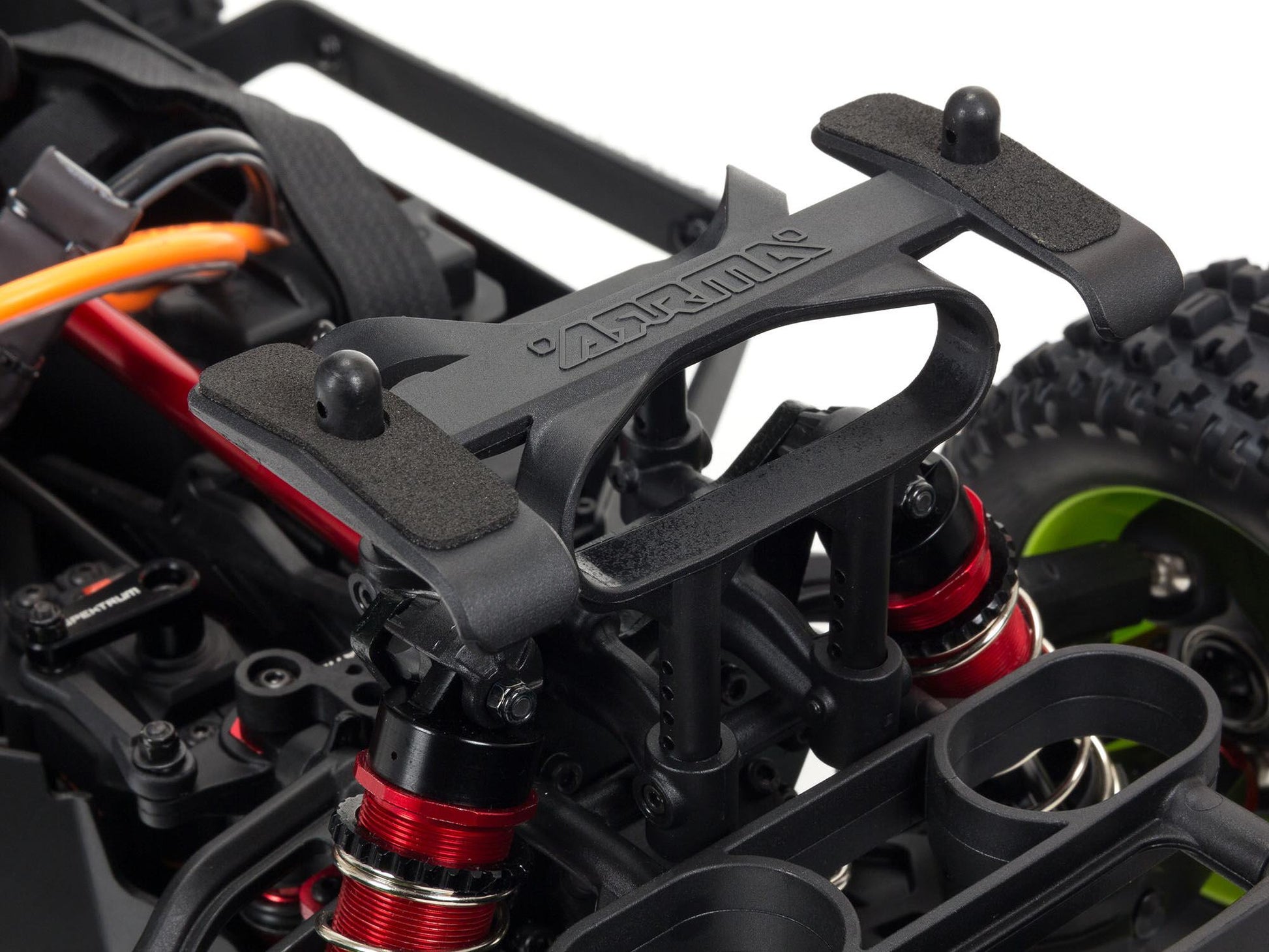

Black-anodised aluminium front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminium servo saver
Never-pop ball ends
5-Bolt center diff removal
Easy-access sliding motor mount for quick motor removal
Super-durable wheel hubs for increased strength
Color-coordinated multi split-spoke wheels
Multi-terrain dBoots

FORTRESS

tyres

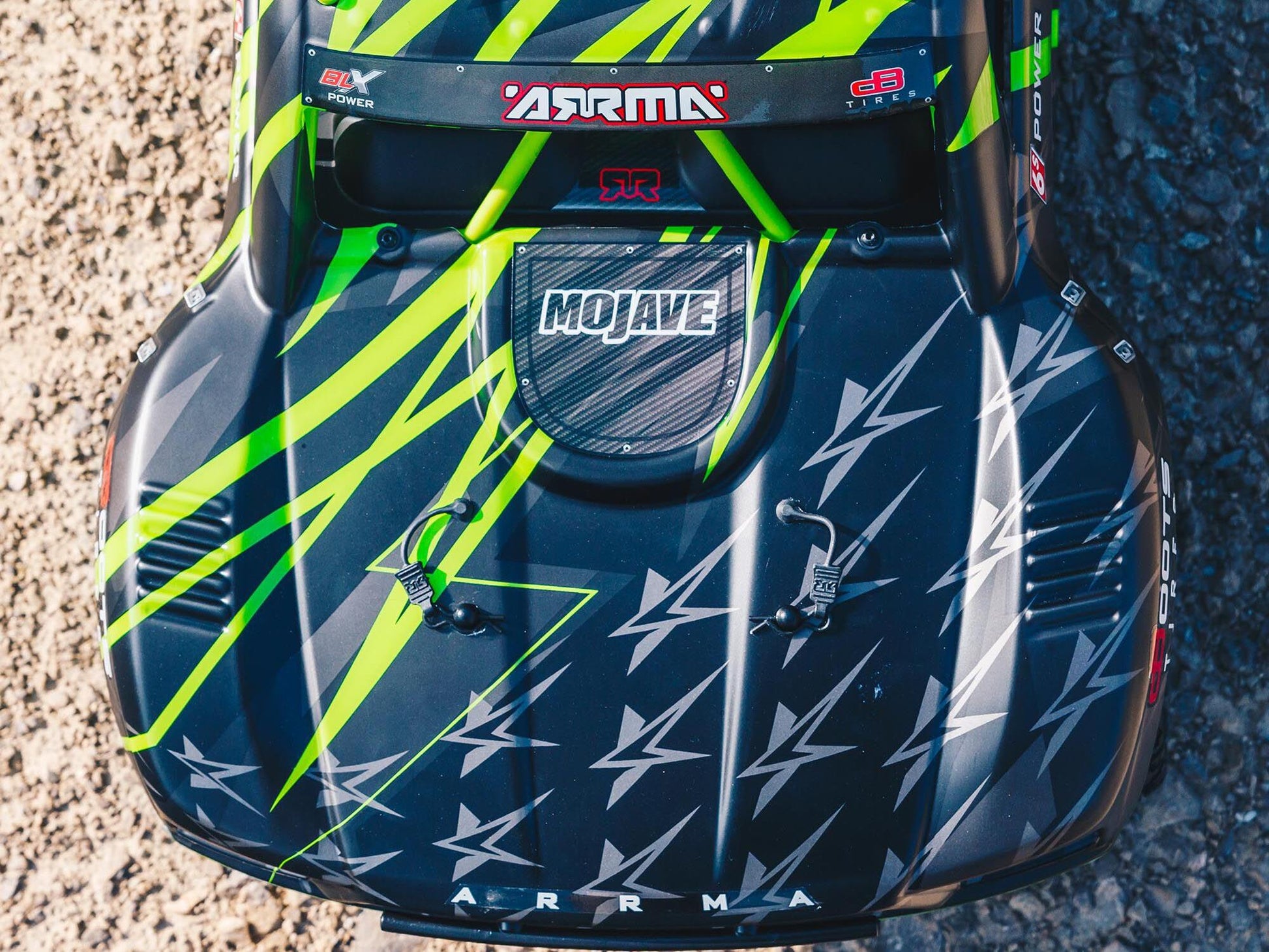

Multi-finish matte and gloss body

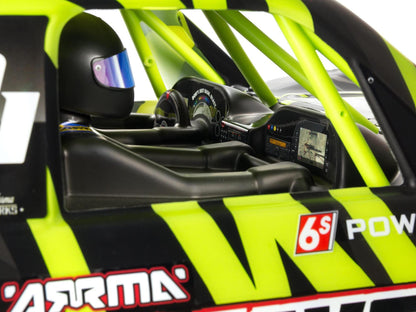

Realistic cockpit detail
Ultra-detailed decals
Color coordinated protective roll cage and roof rails
IC5

connectors (EC5

compatible)
2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manual
Overview
ARRMA

engineers have updated the MOJAVE

6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum

Firma

150A Smart ESC and Firma

2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminium and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA

also includes a new, steel gear Spektrum

S652 Digital Servo - which is 32% stronger and 5% faster than the previous version's ADS-15M servo.
The ready-to-run package now also includes a 3-channel Spektrum

SLT3

radio and Spektrum

SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3

is compatible with Tactic

SLT

receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT

and DSMR

protocols, you can easily upgrade to a Spektrum

DSMR

transmitter later - then, download the free Spektrum

Dashboard

app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma

electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
With the rugged construction of the MOJAVE

6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything - bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodised aluminium chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.
The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE

6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.
Multi-terrain dBoots

FORTRESS

tyres on multi split-spoke wheels give your MOJAVE

6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.

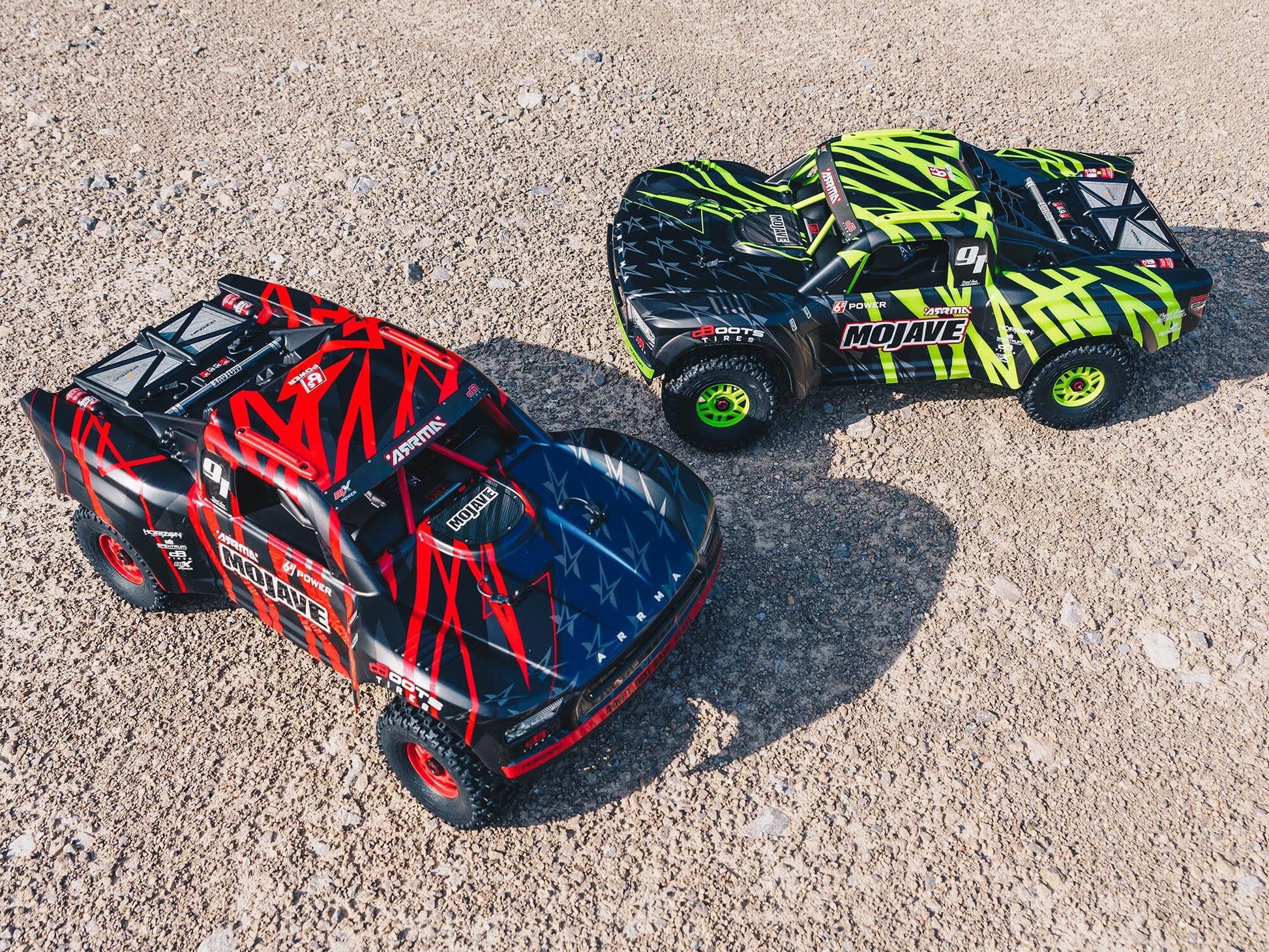

TWO BROTHERS, TWO COLORS
Each with colour coordinated wheels, roll cage, and roof rails

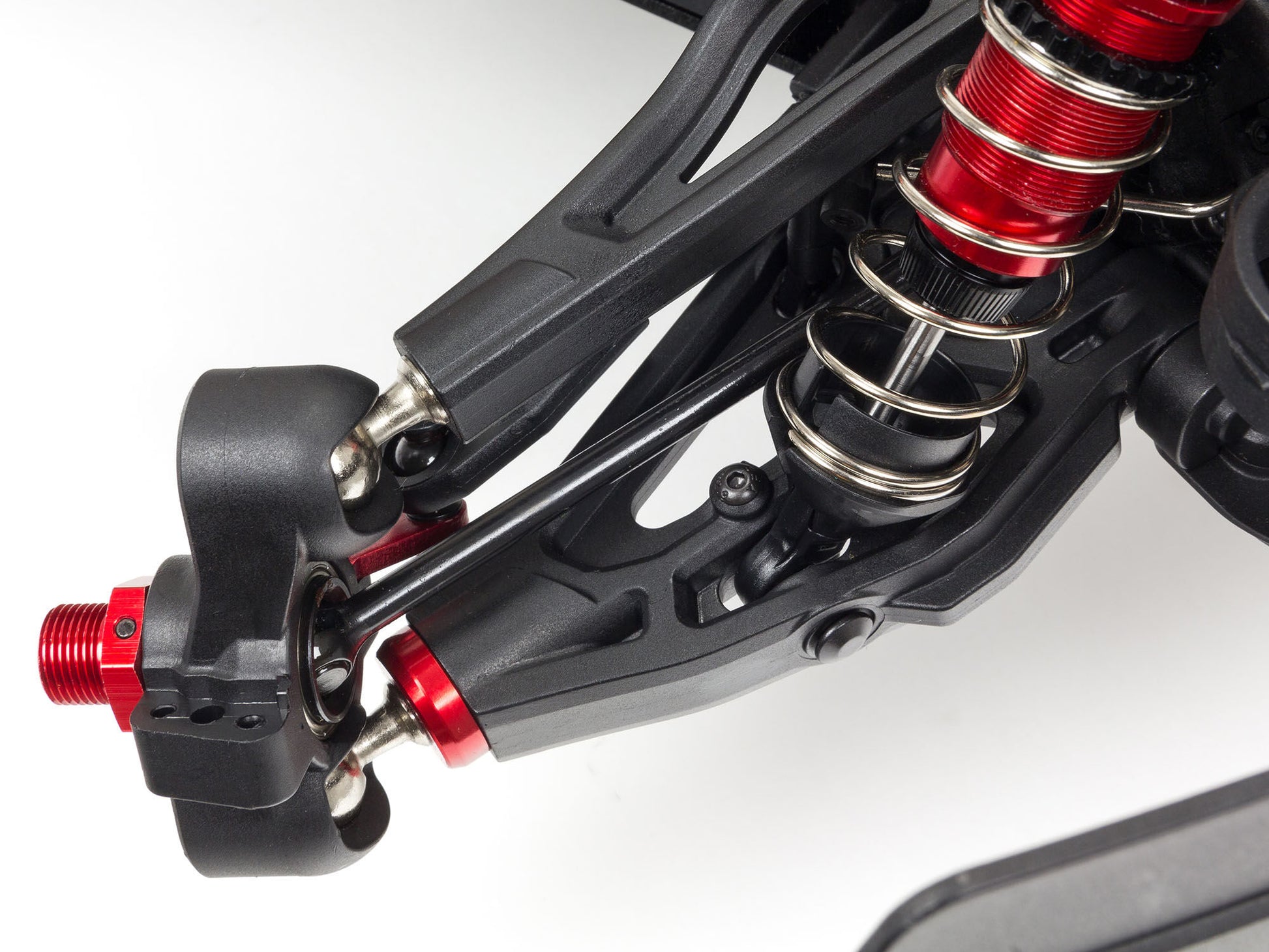

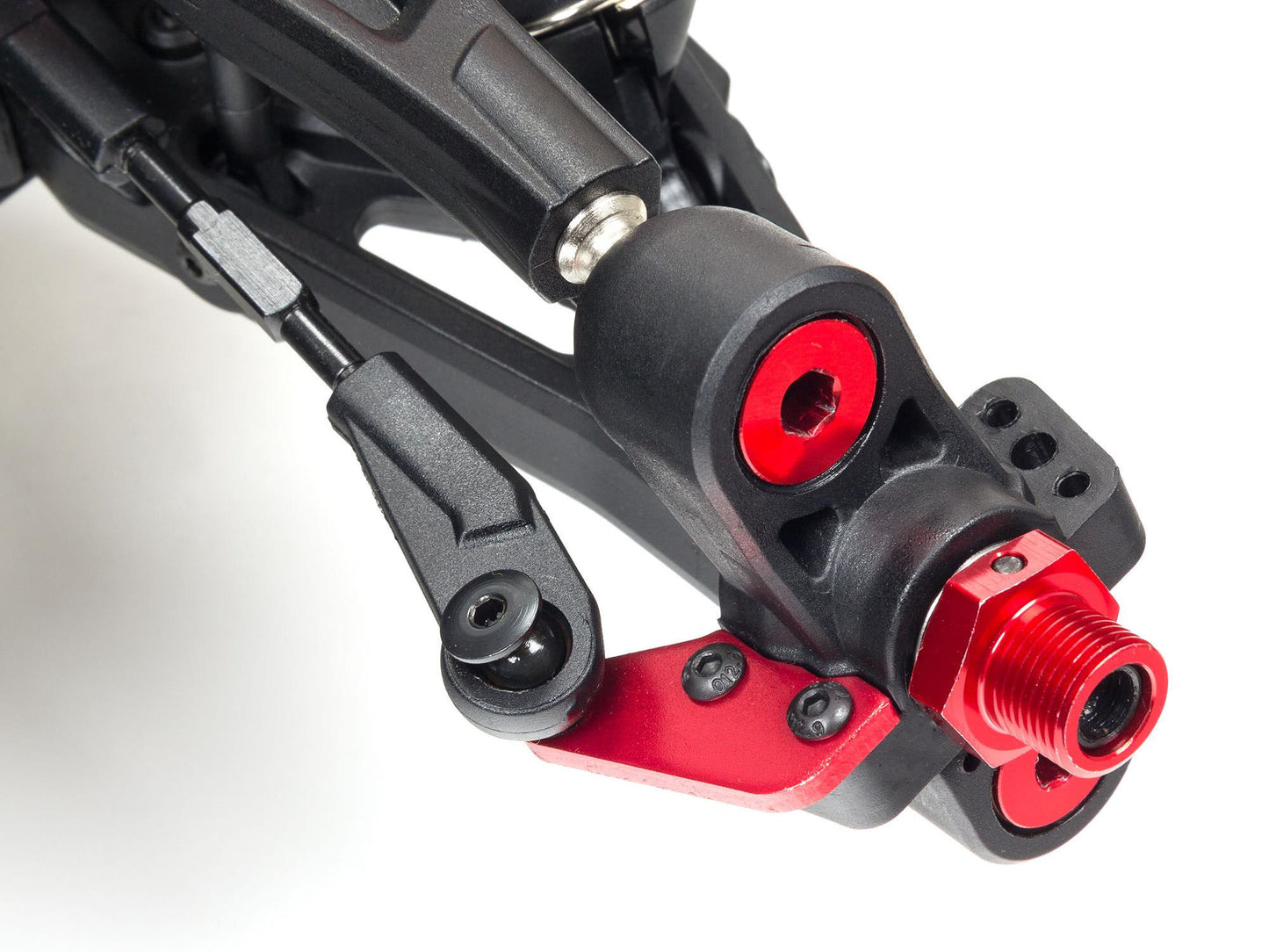

FROM STRENGTH TO STRENGTH
Red anodised aluminium strengthening cap with pivot ball geometry
LONG RANGE
Independent suspension for superior handling
SIDE NERF BARS
Attached to body for side impact support
SAFE-D FIRST
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.
FRONT PIVOT BALL SUSPENSION
For precise handling at top speeds
QUICK MAINTENANCE
5 bolt center diff removal for easy access
SPEKTRUM

SMART TECHNOLOGY INCLUDED
FIRMA

150A SMART Brushless ESC and FIRMA

4074 2050Kv Brushless Motor
RUBBER SHIELDED BEARINGS
Longer life, less maintenance
GO LARGE
Large volume waterproof receiver box
OPTIONAL SPEED PINION INCLUDED
Red anodised motor mount and Mod 1 spur and pinion gears to handle optimum performance.

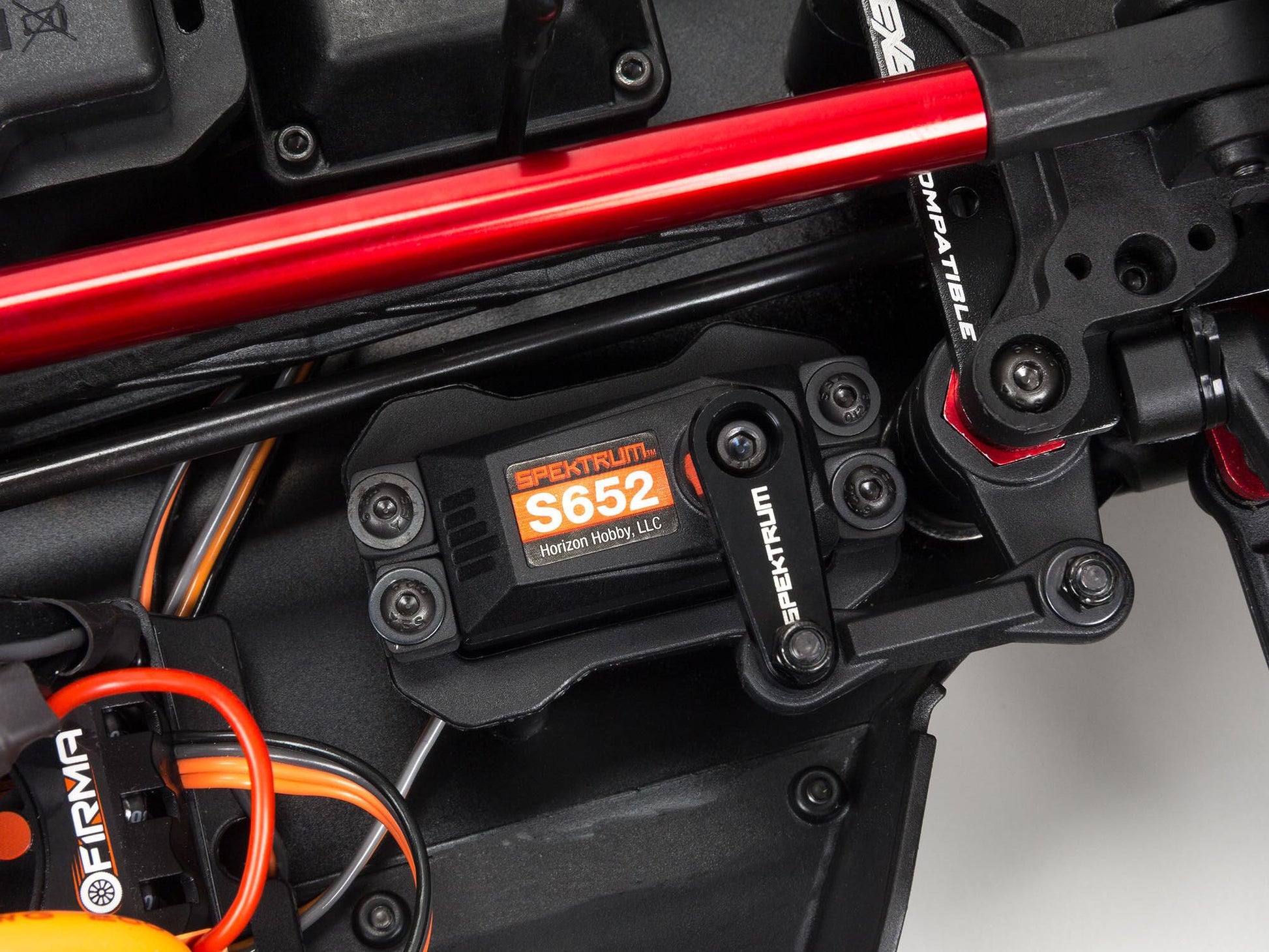

SPEKTRUM

SPMS652 DIGITAL SERVO
All Steel Gears
Waterproof*
19.08kg-cm/265oz-in Torque @7.4V
32% More Torque & 5% Faster than ADS-15M Servo
*For details on waterproof standards please refer to the product instruction manual

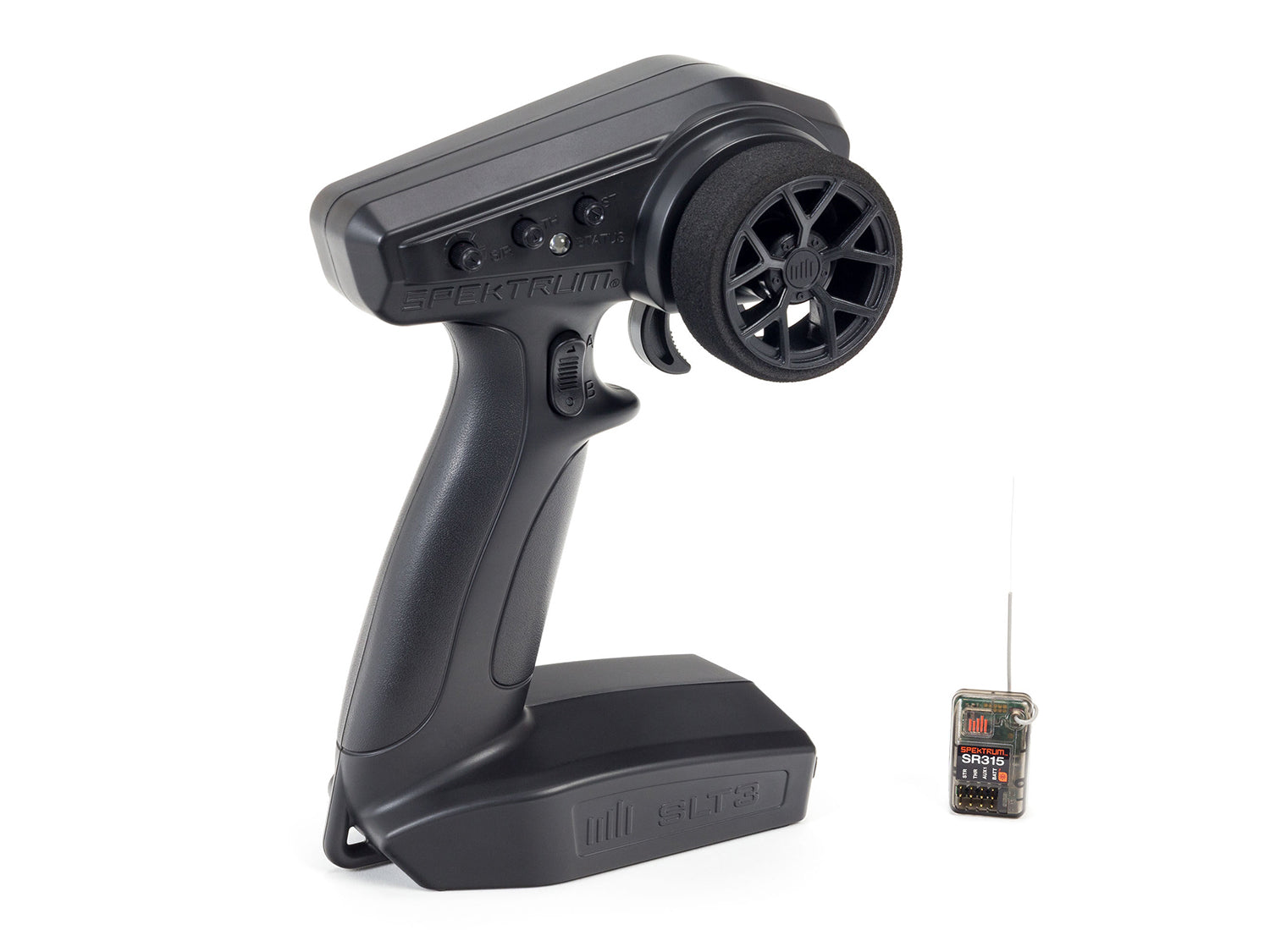

SPEKTRUM

SLT3

RADIO
Superb SLT response rate
50% and 75% throttle limited switch - great for beginners
Steering & throttle rate & trim adjustments with throttle and steering reversing
Foam steering wheel grip
Compatible with Tactic Receivers
SPEKTRUM

SR315 RECEIVER
Dual Protocol - Compatible with SLT and DSMR

2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels

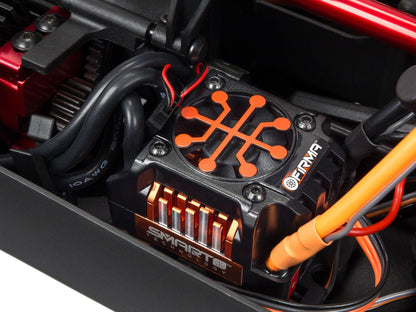

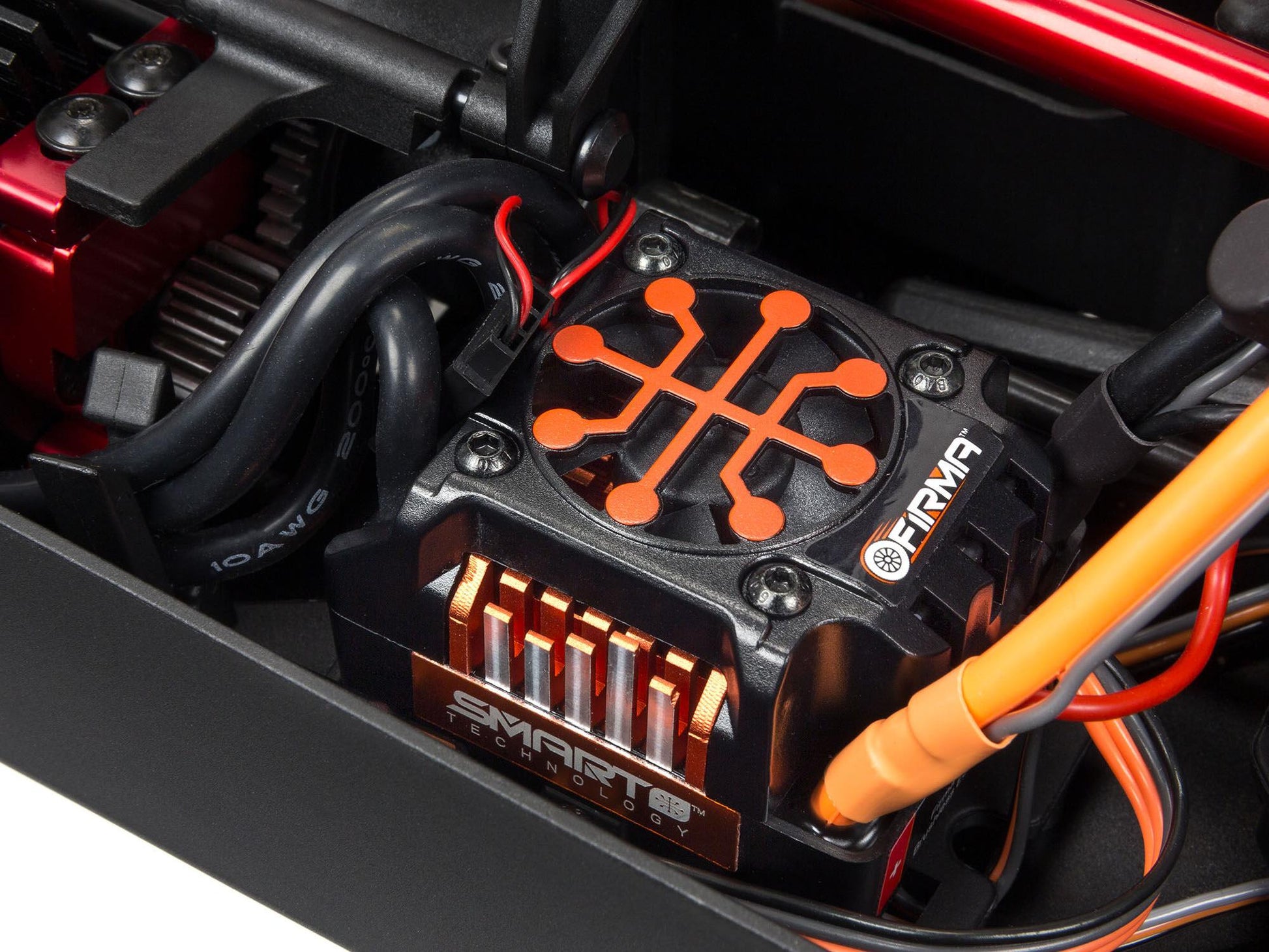

FIRMA

150A SMART Brushless ESC
Waterproof* and dustproof design
150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
Spektrum

SMART Technology
Fitted with reliable IC5

connectors (EC5

compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, reverse speed and motor timing settings
*For details on waterproof standards, please refer to the product instruction manual

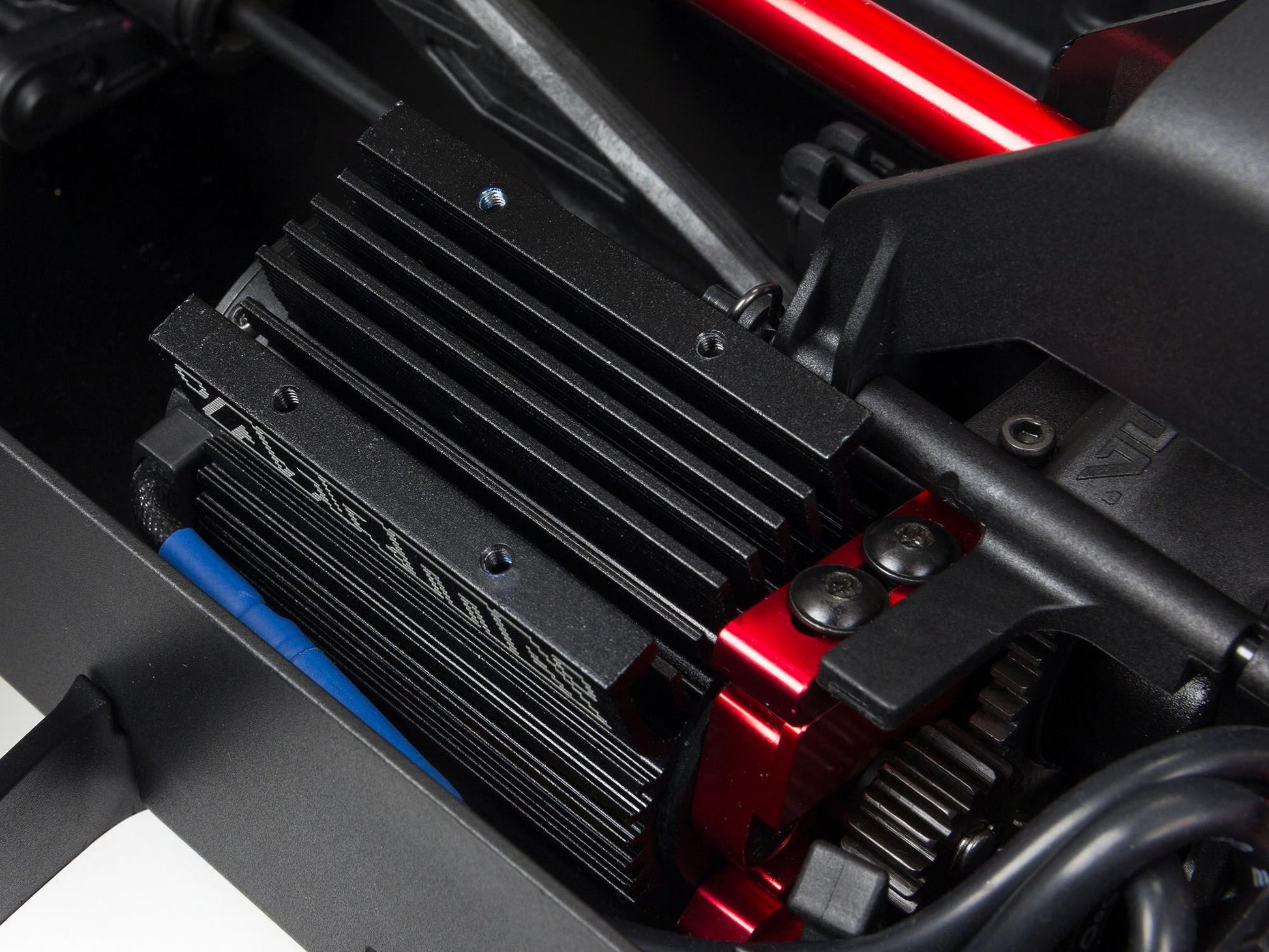

FIRMA

4074 2050Kv Brushless Motor
2050Kv 4074 size 6S brushless motor
Beautifully etched aluminium can
4-pole construction for smooth and consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodised aluminium motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
