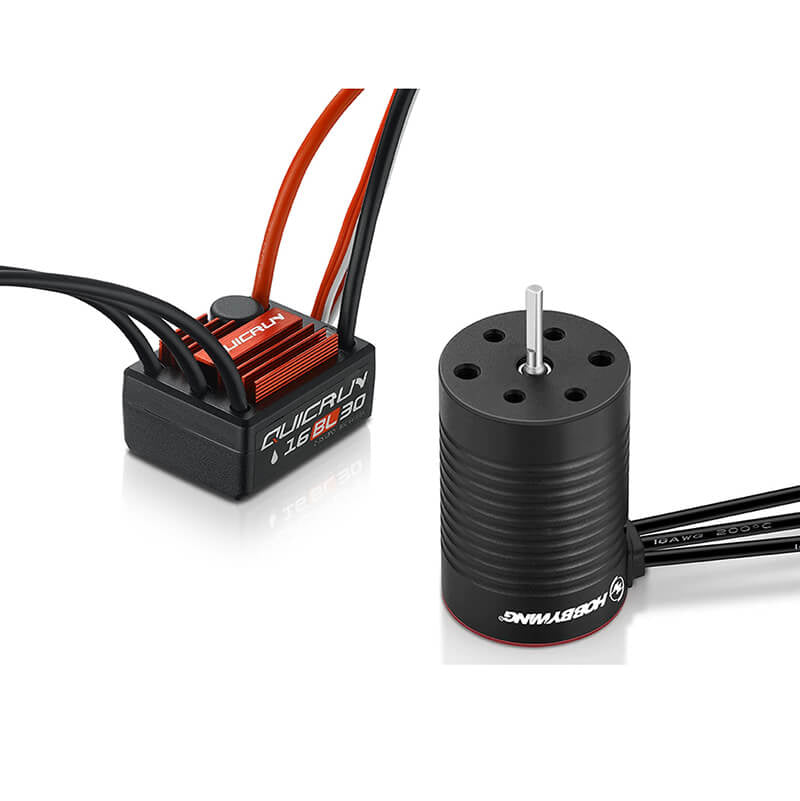

HOBBYWING QUICRUN COMBO 16BL30 ESC & 2435SL 6500KV G3 MOTOR

Benefits from the water-proof and dust-proof design, the QuicRun-WP-16BL30 speedo is fit for all weather races. The speedo owns these outstanding features as listed below. Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment. 9 steps of acceleration (/punch) adjustment from "soft" to "Very aggressive" to fit for different kinds of models, tires and tracks. Multiple protections like Low voltage cut-off protection, Over-heat protection, Throttle signal loss protection and Motor lock-up protection to extend the service life. One-button (the "SET" button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings. Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use.

ESC Specification

Current - 30A/180A
Input - 4-9 Cells NiMH, or 2-3S Lipo
BEC Output - 6V/1A (Linear Mode)
Resistance - 0.002
Motor Supported - Sensorless Brushless Motor (compatible with sensored motor but
not in sensored operating mode)
Cooling Fan - No cooling fan
Weight - 38g
Size - 36(L)X28(W)X16(H)mm

Motor Limit - For 2S Lipo or 6 cells NiMH
On-road: 2435-size or smaller motor with the KV 8000
Off-road/Buggy/Monster: 2435-size or smaller
motor with the KV 5000
For 3S Lipo or 9 cells NiMH:
On-road: 2435-size or smaller motor with the
KV ;5500
Off-road/Buggy/Monster: 2435-size or smaller
motor with the KV 3500.
Car Applicable - 1:18 ; 1:16 On-road/Off-road/Buggy/Monster



Motor Information

Better performance
Compared with the same specification of products under the same load conditions, the maximum output power is 60% higher, the maximum efficiency is 5% higher, and the temperature is reduced by approximately 30 degrees.

Upgraded materials
durable 0.2mm thick silicon steel, high-strength explosion-proof rotor, 200°C high-temperature-resistant enameled wire, and first-line brand high-precision and high-quality bearings make the motor durable.

Excellent protection
The output of the motor is sealed with a silicone rubber on the housing. It is dust-proof for off-road vehicles/trucks. Users will now enjoy bashing without having to worry in harsh operating environments such as outdoor sand, stones, and dust.
Note: It is recommended to block the unused mounting holes of the motor front cover with screws.

Plug and play, flexible play
The motor output line has been welded with high-quality gold-plated plugs. Plug and play without worrying about soldering.

One "machine" with multiple functions, compatible with a wide range of models
The product is applicable to 1:16 and 1:18 vehicles, from on-road to buggy, short course truck, and monster truck.

Specification

Scale - 1/16th
Brushed/Brushless - BL
Sensored/Sensorless - SL
Pole Count - 4
KV Rating - 6500KV
LiPo - 2-3s
No-load Current(A) - 3.4A
O.D. (mm) - 24
Length (mm) - 36
Shaft Diameter (mm) - 2
Weight (g) - 61.2
Connectors - 3.5mm (Male)
Front Bearing - D8*D3*T4
Rear Bearing - D8*D3*T4
Applications - 1/16th, 1/18th On Road, Off Road
