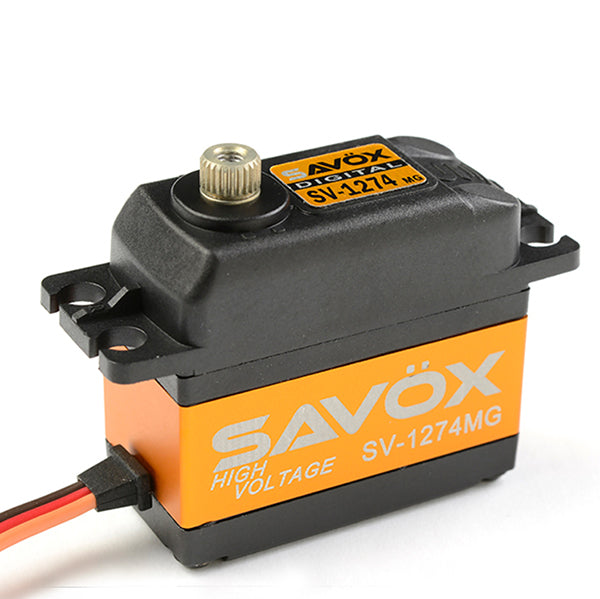

SAVOX 'HIGH VOLTAGE' STD SIZE ULTRA FAST 9KG/0.42@7.4V

Features

• Leading edge digital servo technology
• High efficiency Coreless motor
• Accurate and fast response
• Super high resolution
• Aluminium center case for improved motor cooling and total strength
• Ball beared
• Precision Metal gears

Technical Specifications

• Servo Technology: Digital High Voltage
• Input Voltage (V): 6.0V - 7.4V
• Servo Type / Size: Standard
• Motor Type: Coreless Motor
• Gear Material: Metal Gears
• Ball Beared: Ball Beared
• Servo Case: Aluminium - Composite
• Speed 60°/Sec @ 7.4V: 0.042 Sec/60°
• Torque kg/cm @ 7.4V: 9.0 Kg/cm
• Length (mm): 40.3 mm
• Width (mm): 20.2 mm
• Height (mm): 38.5 mm
• Weight (g): 61.0 g
• Connector type: JR
• Spline size: 25T Spline
