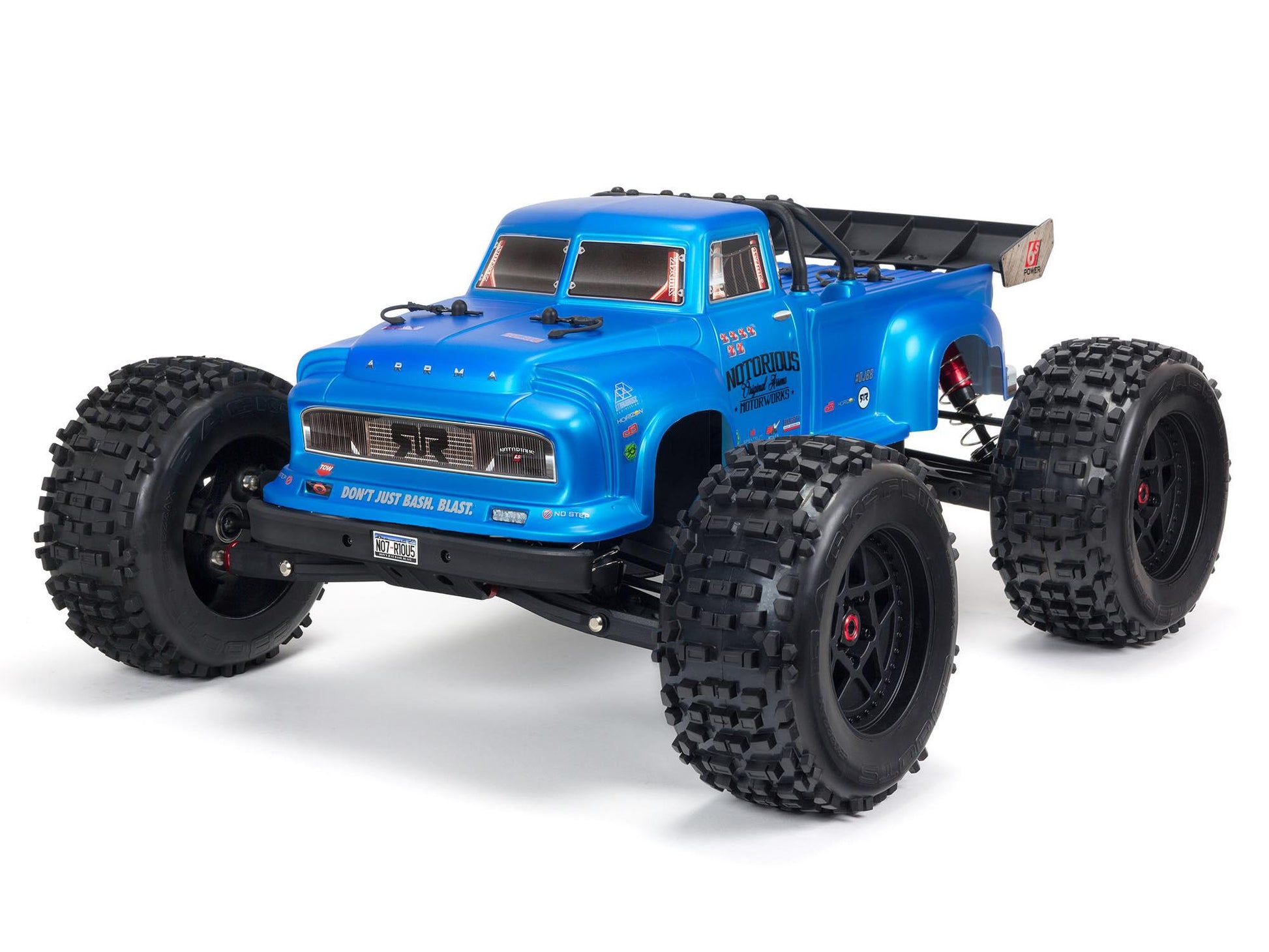

Notorious 6S 4WD BLX 1/8 RTR Blue

Product Details
Beneath its 1950s "Real Steel" body, the 1/8 scale NOTORIOUST 6S BLX 4WD has an ARRMA⌐ tough design that's ideal for wheelie-popping, back-flipping stunts - now made even easier with a Spektrum SLT3 radio, dual protocol receiver, Smart ESC and more.
Key Features
Updated with Spektrum components and Smart compatible
60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear
EXB compatible front brace
Large volume waterproof receiver box
Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice
In The Box
ARRMA NOTORIOUS 6S BLX 1/8 Stunt Truck 4WD RTR
Spektrum Firma 150A Smart 4S/6S ESC (installed)
Spektrum Firma 4074 2050Kv Brushless Motor with ARRMA Heatsink (installed)
Spektrum S652 Metal-Geared Digital Servo (installed)
Spektrum SR315 3-Channel Dual Protocol Receiver (installed)
Spektrum SLT3 2.4GHz 3-Channel Radio
Product Manual
Needed to Complete
4S or 6S LiPo Battery
LiPo Compatible Charger
LiPo Charging Bag
(4) AA Batteries
Introduction

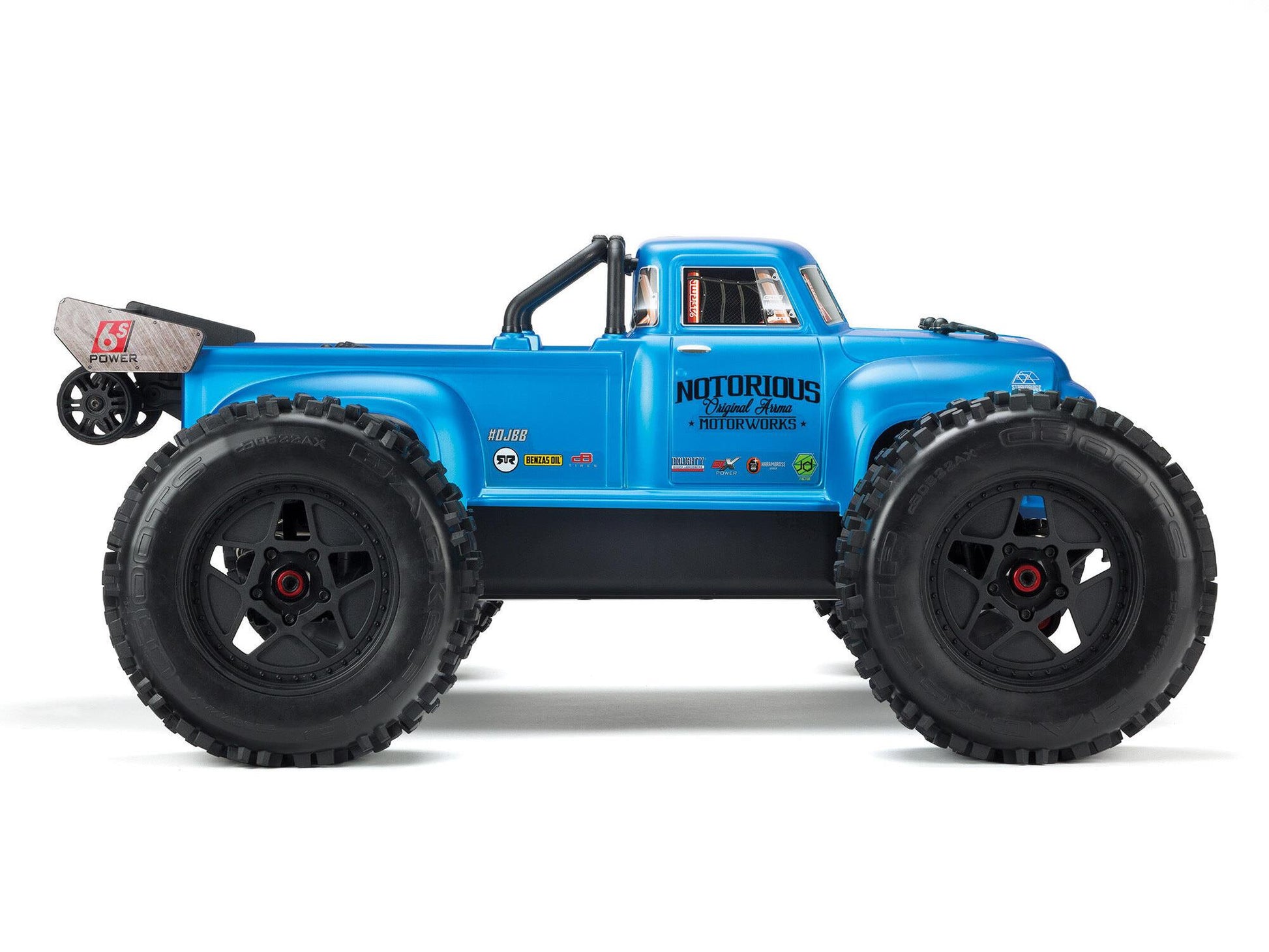

The 1/8 scale NOTORIOUS

6S BLX Stunt Truck 4WD unleashes wheelie-popping, back-flipping, outrageous action with one-of-a-kind style. Its custom 1950s body offers more than streamlined good looks and a matte black or matte blue factory finish. Its exclusive ARRMA

"Real Steel" effect adds eye-catching realism that only improves with severe bashing. The more scratched and scarred your Stunt Truck becomes, the more authentic and amazing it looks.
Features
Ready-to-run
Spektrum

SLT3

2.4GHz 3-Channel Radio
Spektrum

SR315 Dual Protocol 3-Channel Receiver
Spektrum

S652 Digital Servo
Spektrum

Firma

150A Smart ESC
Spektrum

Firma

4074 2050Kv Brushless Motor
Stronger chassis design
EXB compatible front brace
Heavy-duty arms front and rear
Updated Rear shock tower geometry
Large volume waterproof* receiver box
Anodised aluminium chassis
Strong composite chassis side pods
Centre body support and brace for maximum durability

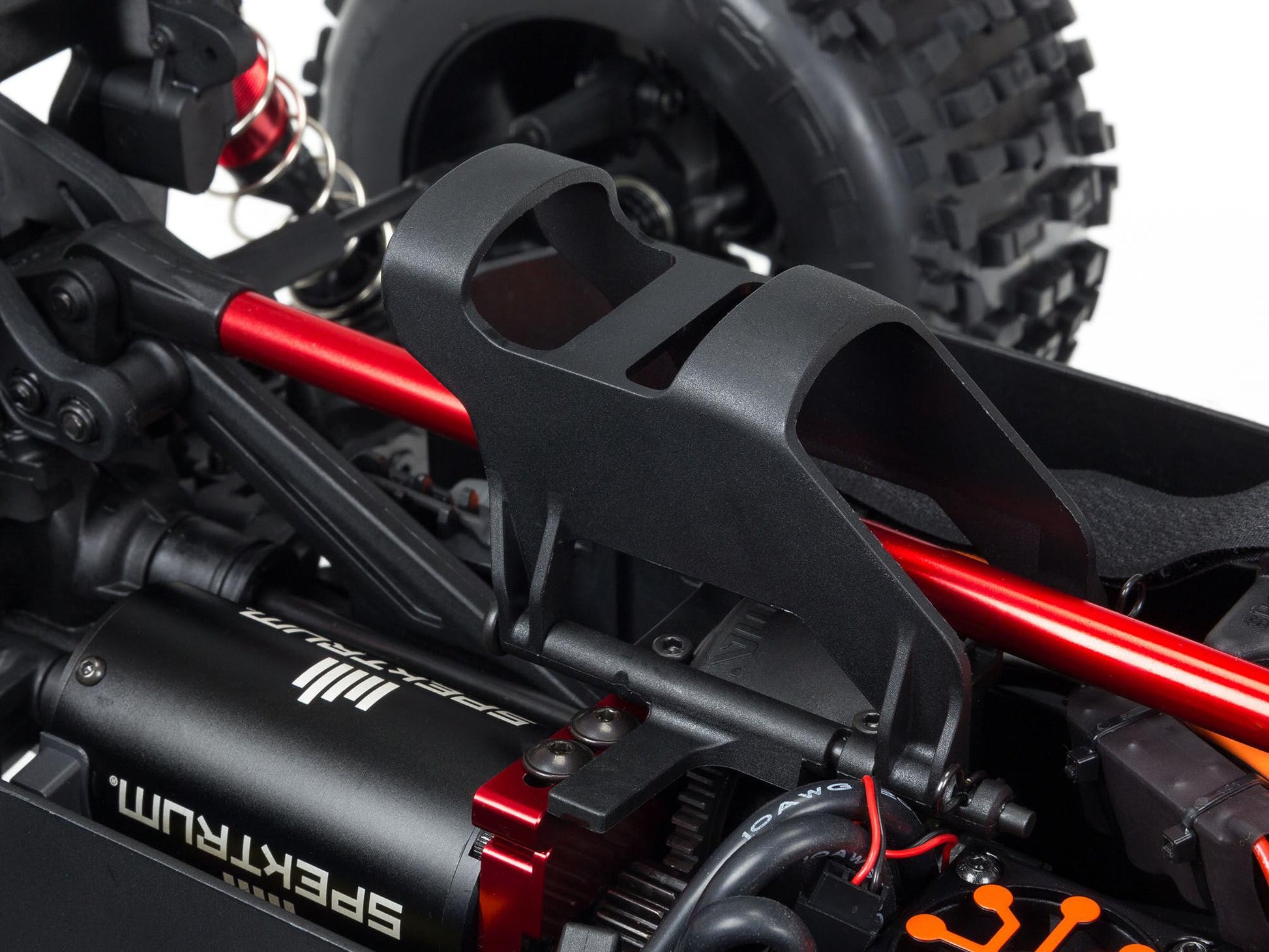

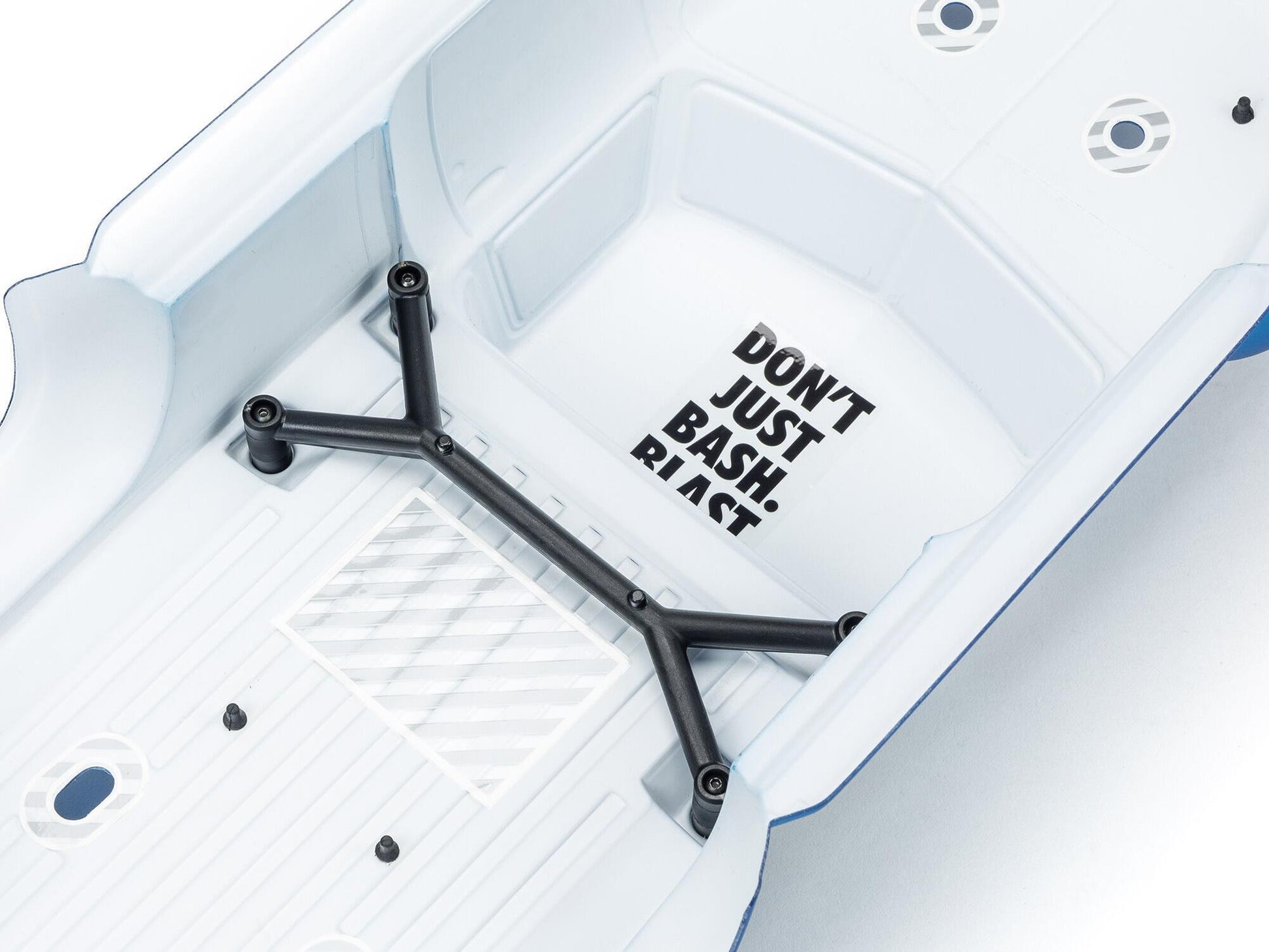

Internal body protection roll bar
High downforce wing

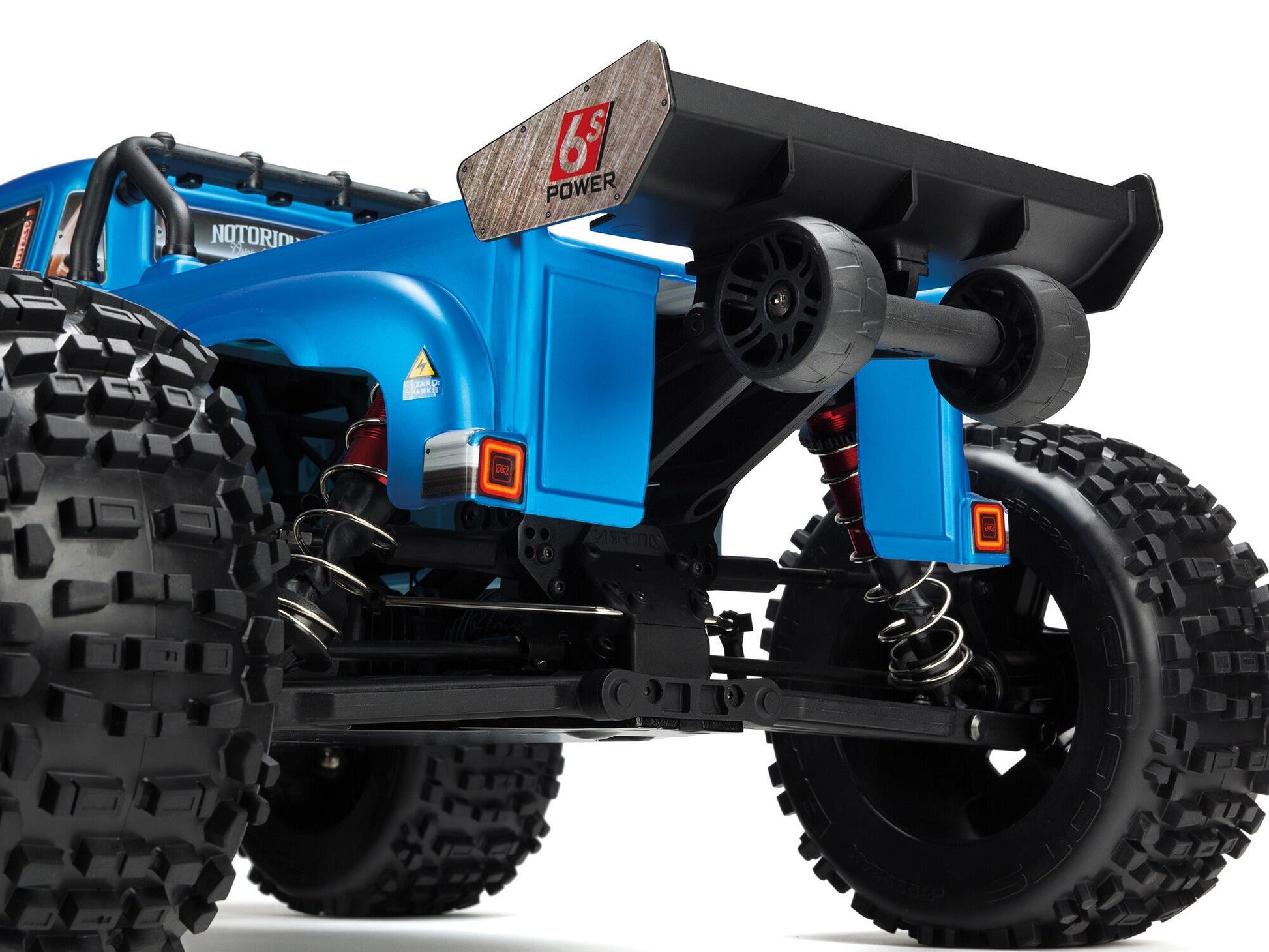

Wheelie bar
Oil-filled adjustable shocks
Black-anodised aluminium front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminium servo saver
Never-pop ball ends
5-Bolt center diff removal
Easy-access sliding motor mount for quick motor removal
Hub nut O-rings
Super-durable wheel hubs for increased strength
Tough stunt truck wheels
Multi-terrain dBoots

BACKFLIP

tyres

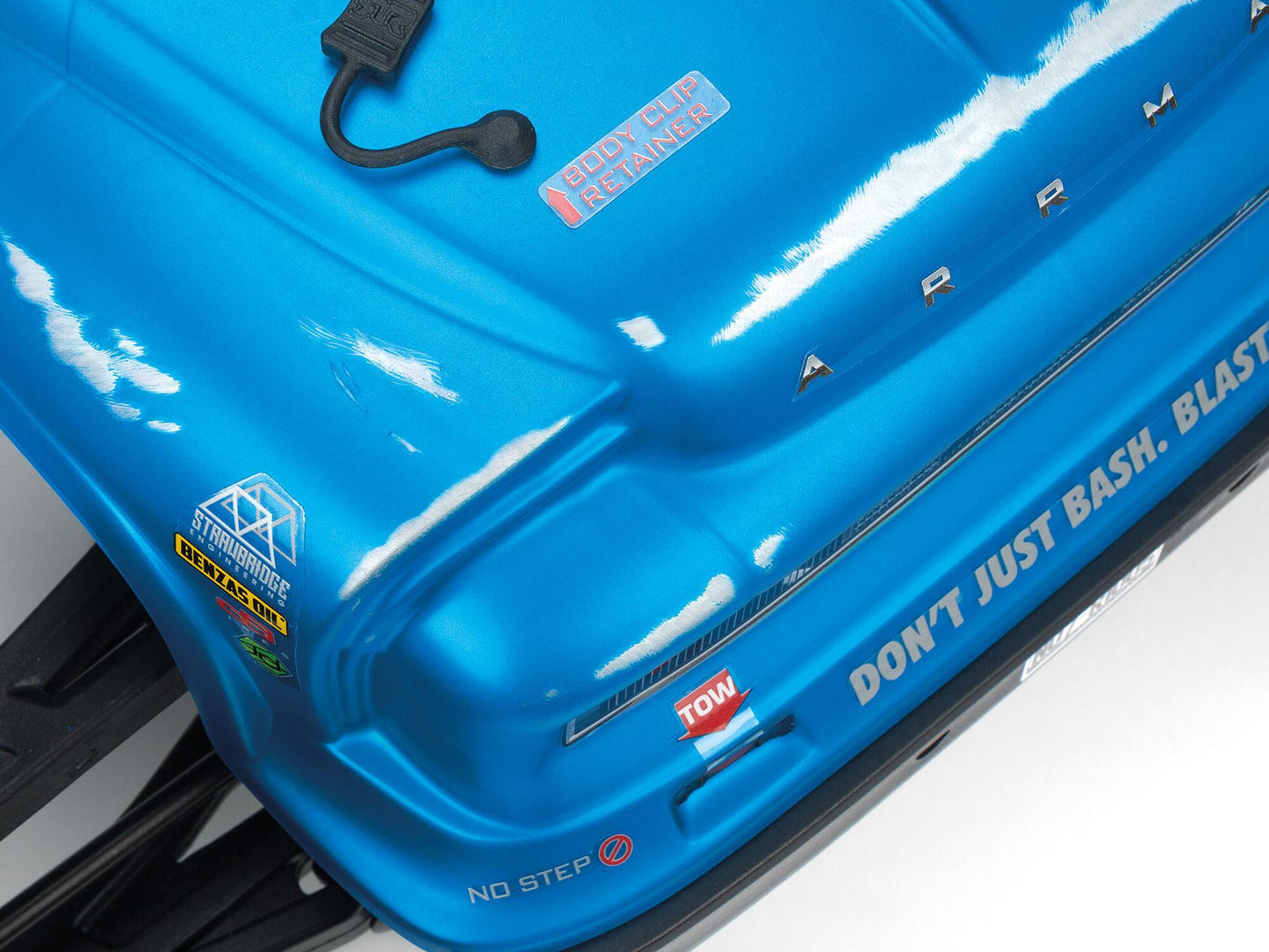

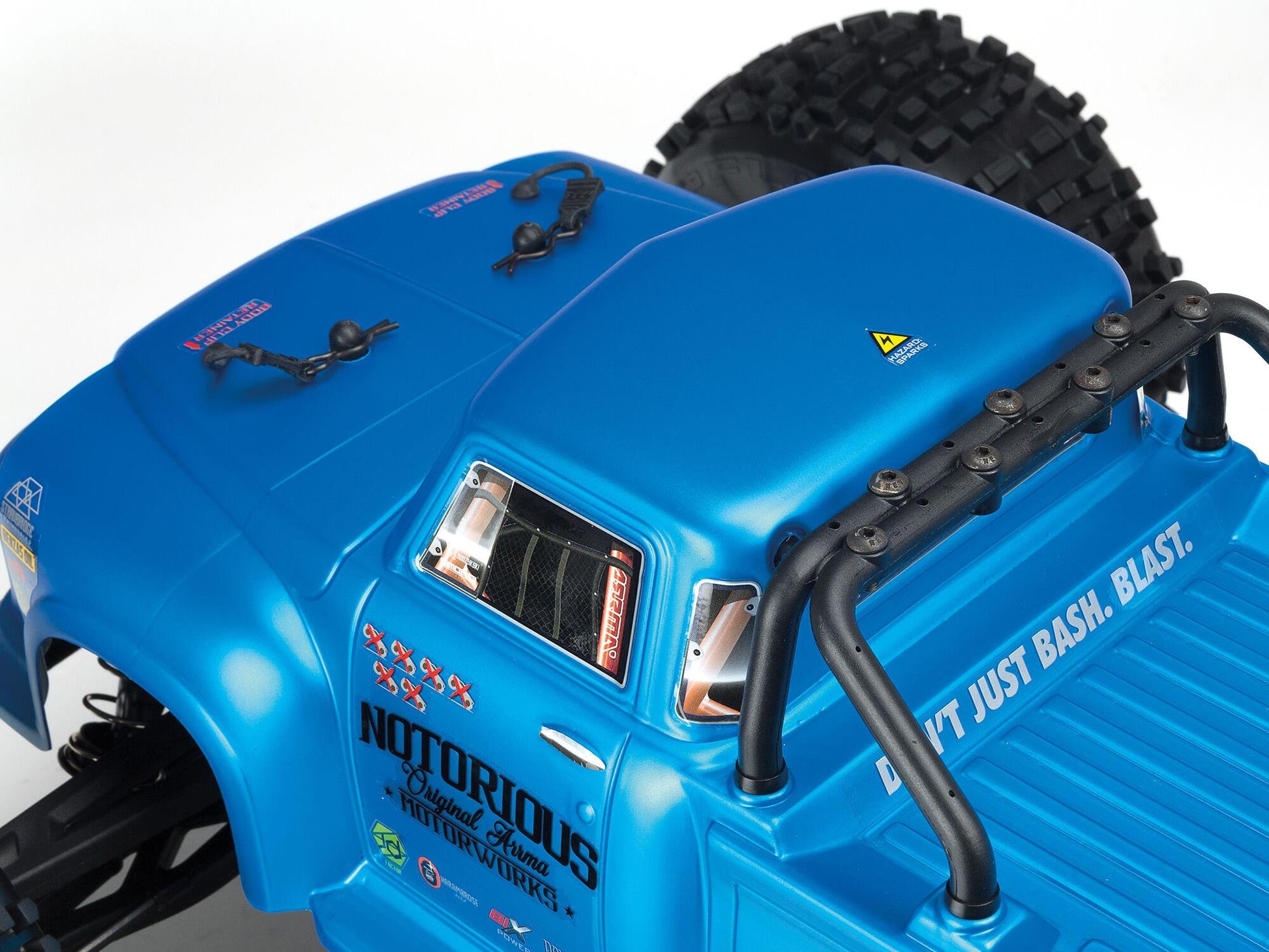

"Real Steel" effect body for enhanced realism
IC5

connectors (EC5

compatible)
2-year limited warranty (see manual for details)
*For details on waterproof standards, please refer to the product instruction manual
Overview
From its heavy-duty front bumper through the short wheelbase chassis to the wheelie bar in back, the NOTORIOUS

6S BLX 4WD is engineered to make you a stunt superstar. Its stiff roll cage and underbody will take all kinds of punishment and come back for more. The NOTORIOUS

6S BLX 4WD can do it all: long, tall wheelies.tight, fast donuts.standing and aerial backflips.high leaps into the air.and more.
For the power to perform that kind of stunt action, ARRMA

now equips the NOTORIOUS

6S BLX 4WD with a potent, 6S-capable brushless system featuring the Spektrum

Firma

150A Smart ESC and Firma

2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminium and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA

also includes a new, steel gear Spektrum

S652 Digital Servo - which is 32% stronger and 5% faster than the previous version's ADS-15M servo. Thanks to waterproof electronics, bashing is a "go" even through mud and snow. Just add your favorite 4S or 6S LiPo battery.
The ready-to-run Stunt Truck now also includes a 3-channel Spektrum

SLT3

radio and Spektrum

SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3

is compatible with Tactic

SLT

receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT

and DSMR

protocols, you can easily upgrade to a Spektrum

DSMR

transmitter later - then, download the free Spektrum

Dashboard

app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma

electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
With adjustable 16mm oil-filled shocks on aluminium towers soaking up bumps, the NOTORIOUS

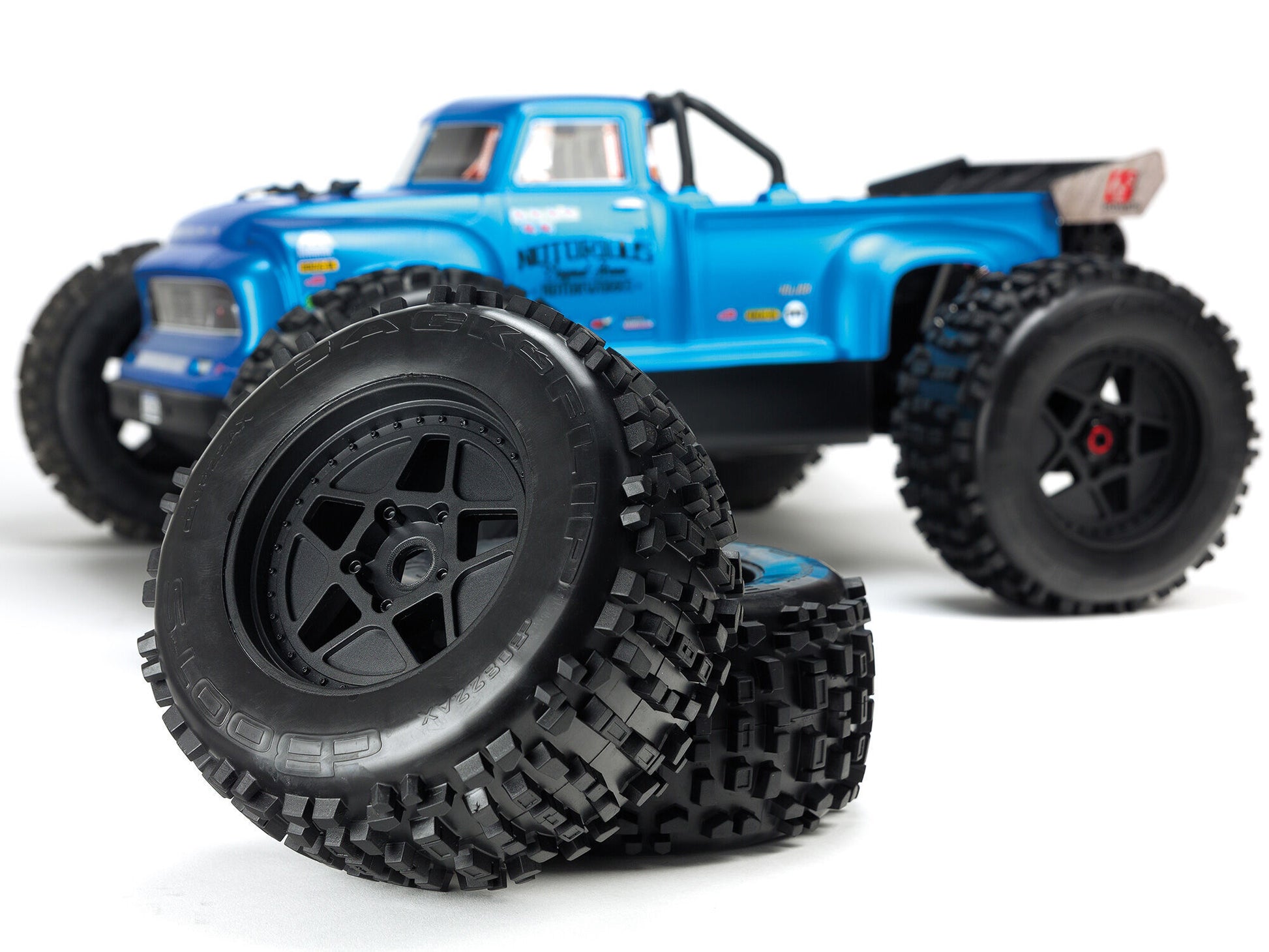

6S BLX 4WD Stunt Truck blasts over dirt, asphalt, and grass - over all terrain, in all conditions. Its tough stunt truck wheels come outfitted with multi-terrain dBoots

BACKFLIP

tyres that provide all the traction you'll need to flip, grip, wheelie and spin. A high downforce wing helps keep the vehicle grounded. Everything about the NOTORIOUS

6S BLX 4WD contributes to confident control and responsive handling at thrilling high speeds.
For the toughness needed to support extreme stunts, ARRMA

uses a strengthened anodised aluminium chassis as the foundation. A center body support and aluminium center brace plus composite chassis side pods add more durability. All-metal diff outdrives and gearbox internals plus durable steel driveshafts provide a reliable, heavy-duty drivetrain that holds up to extreme stunts and high-speed bashing. A "never loose" aluminium steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.
ARRMA

keeps your maintenance downtime to the minimum by giving the NOTORIOUS

6S BLX 4WD an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just five bolts.
STANDING BACKFLIP?
No Problem. The NOTORIOUS 6S flips for fun.

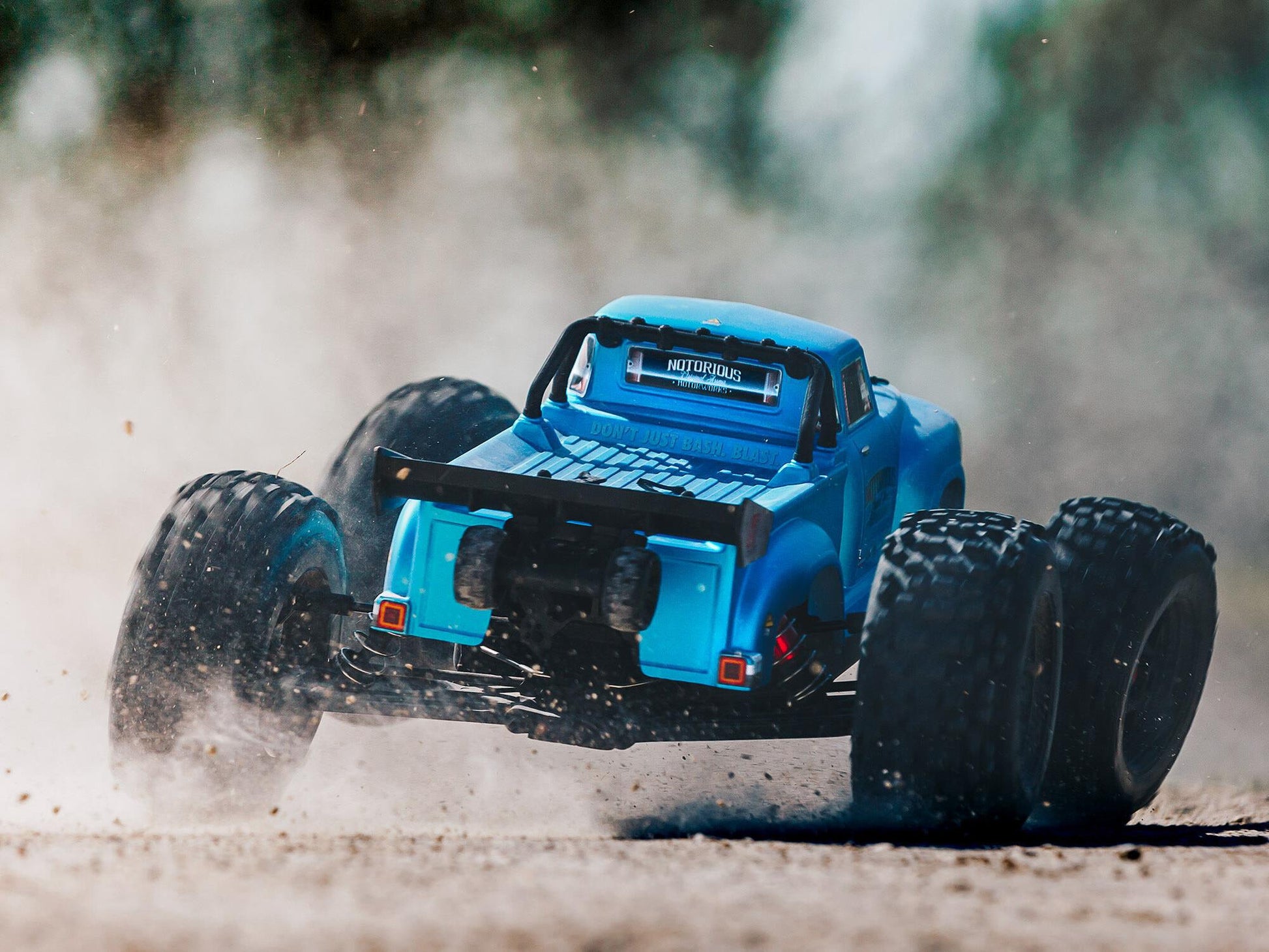

CATCH THE DRIFT
Can you control this much power long enough?

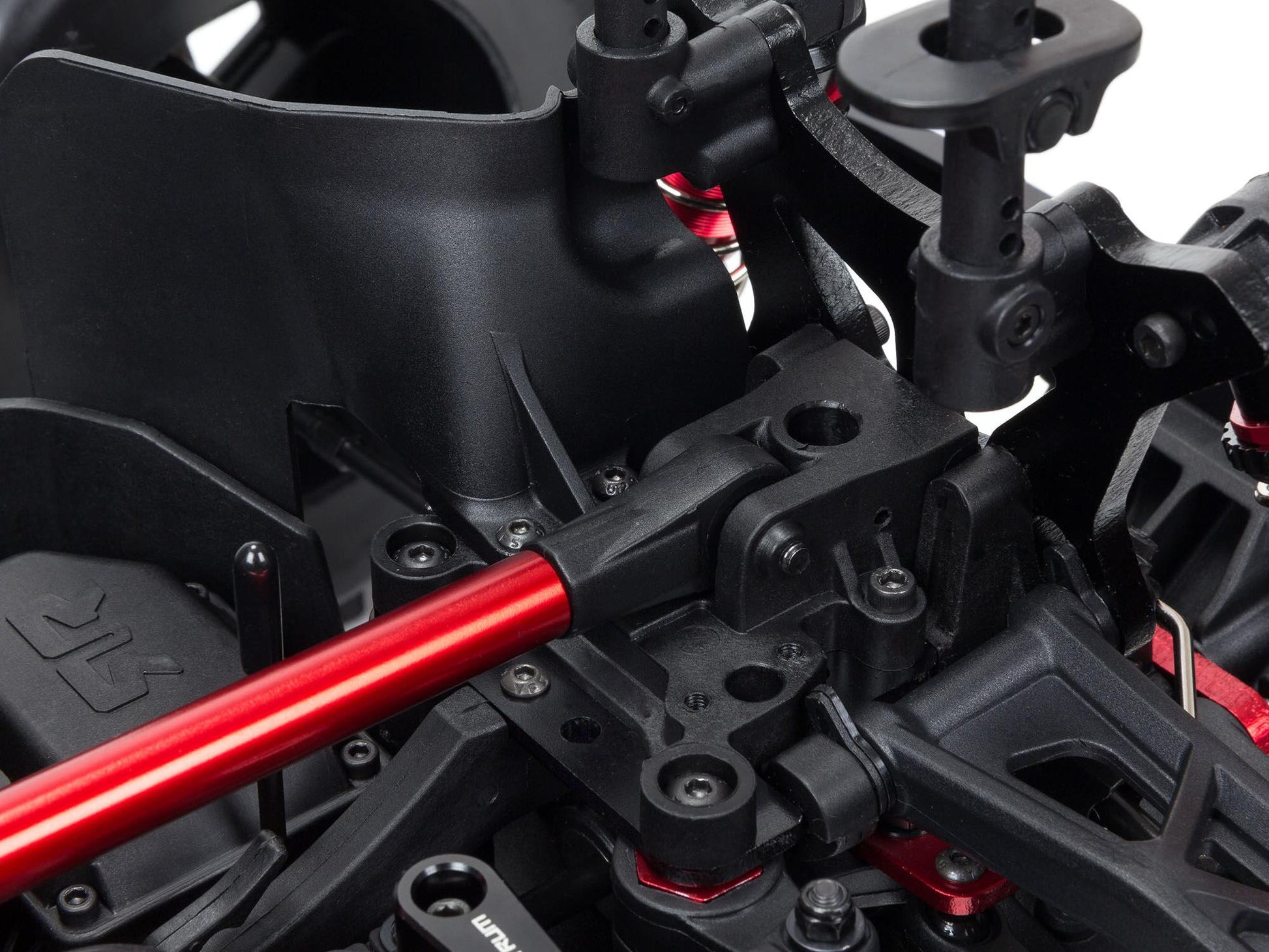

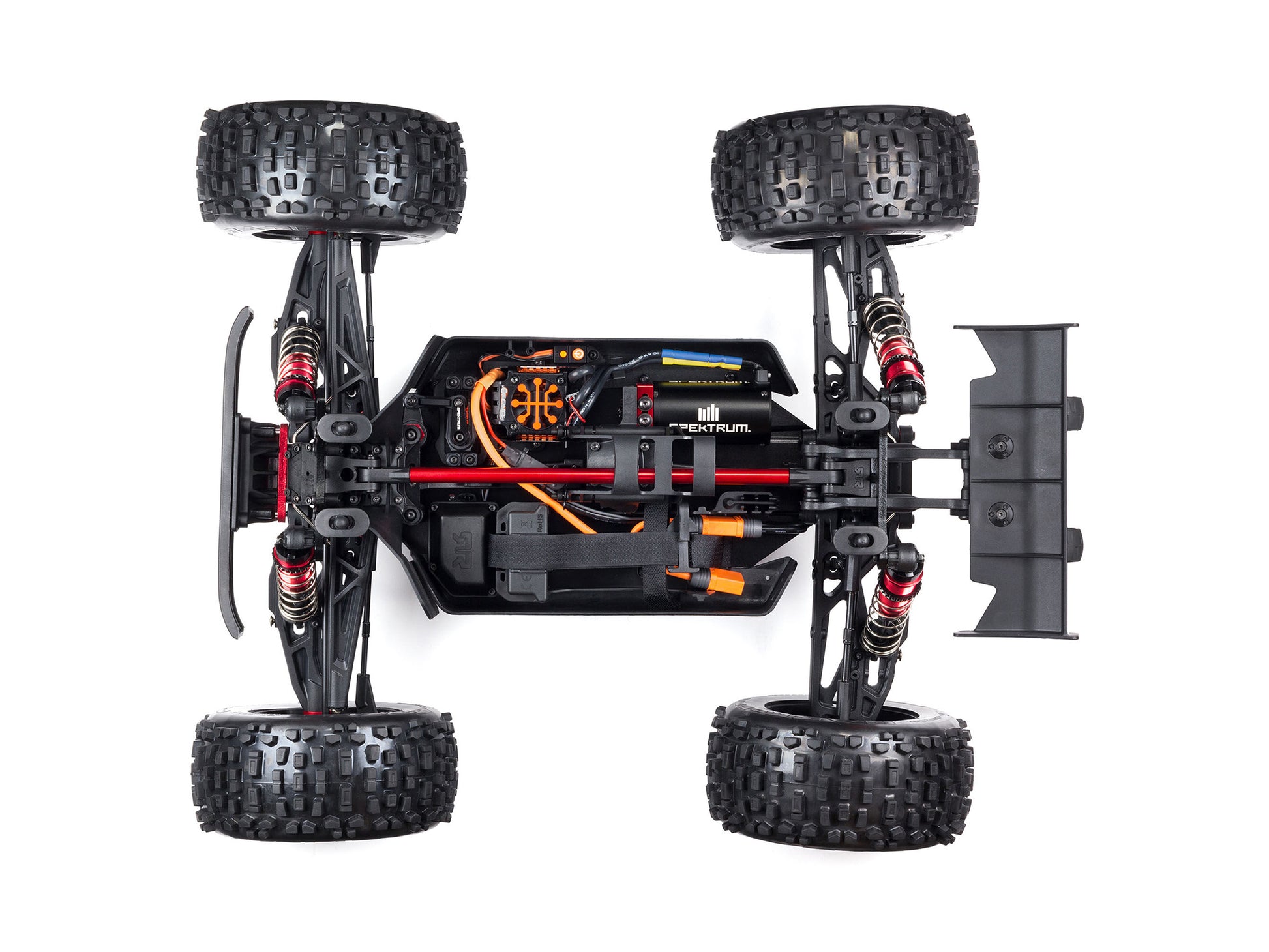

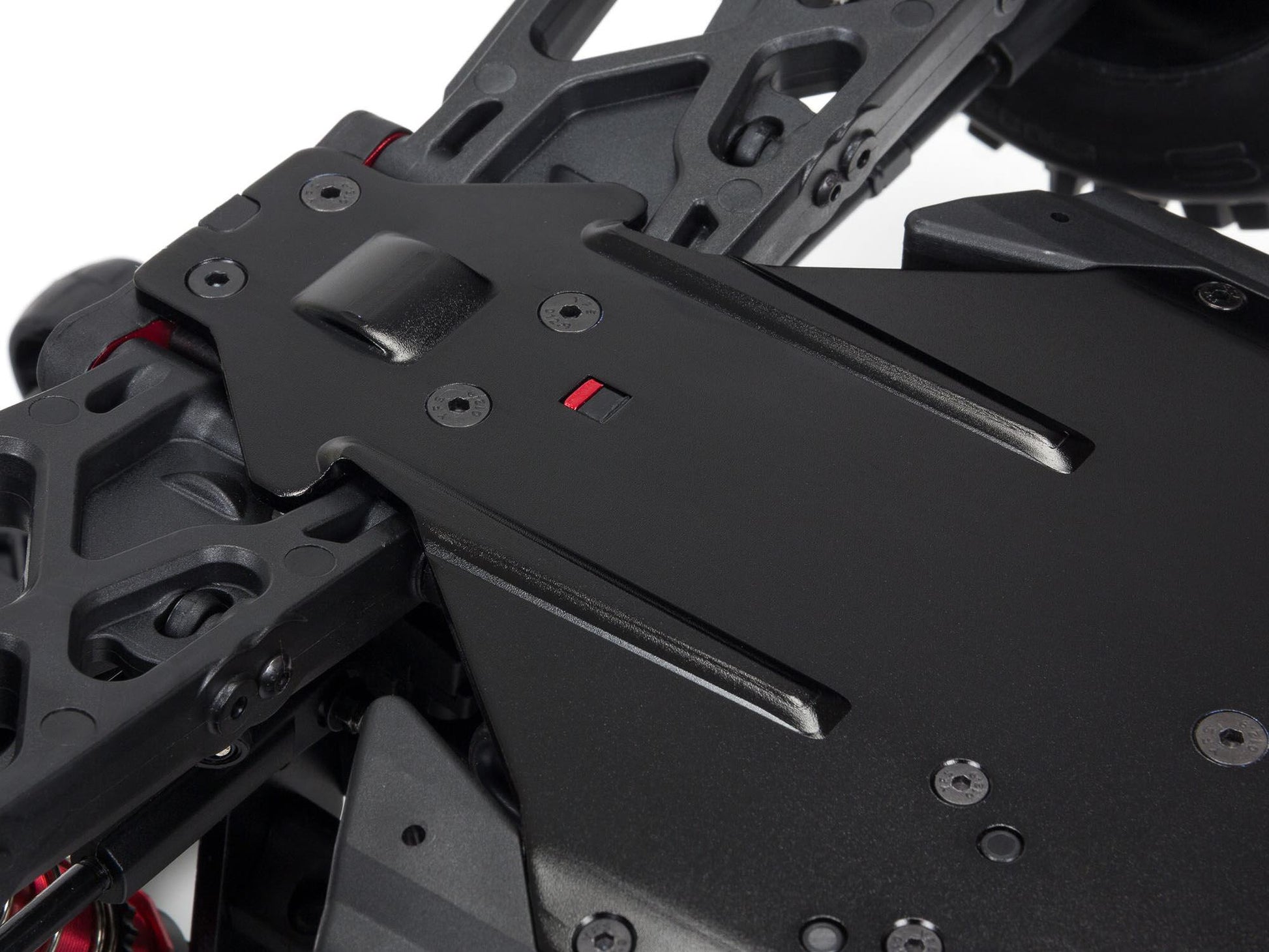

UPDATED CHASSIS DESIGN
Wider rear section and 3D form introduced in key areas to greatly improve strength.

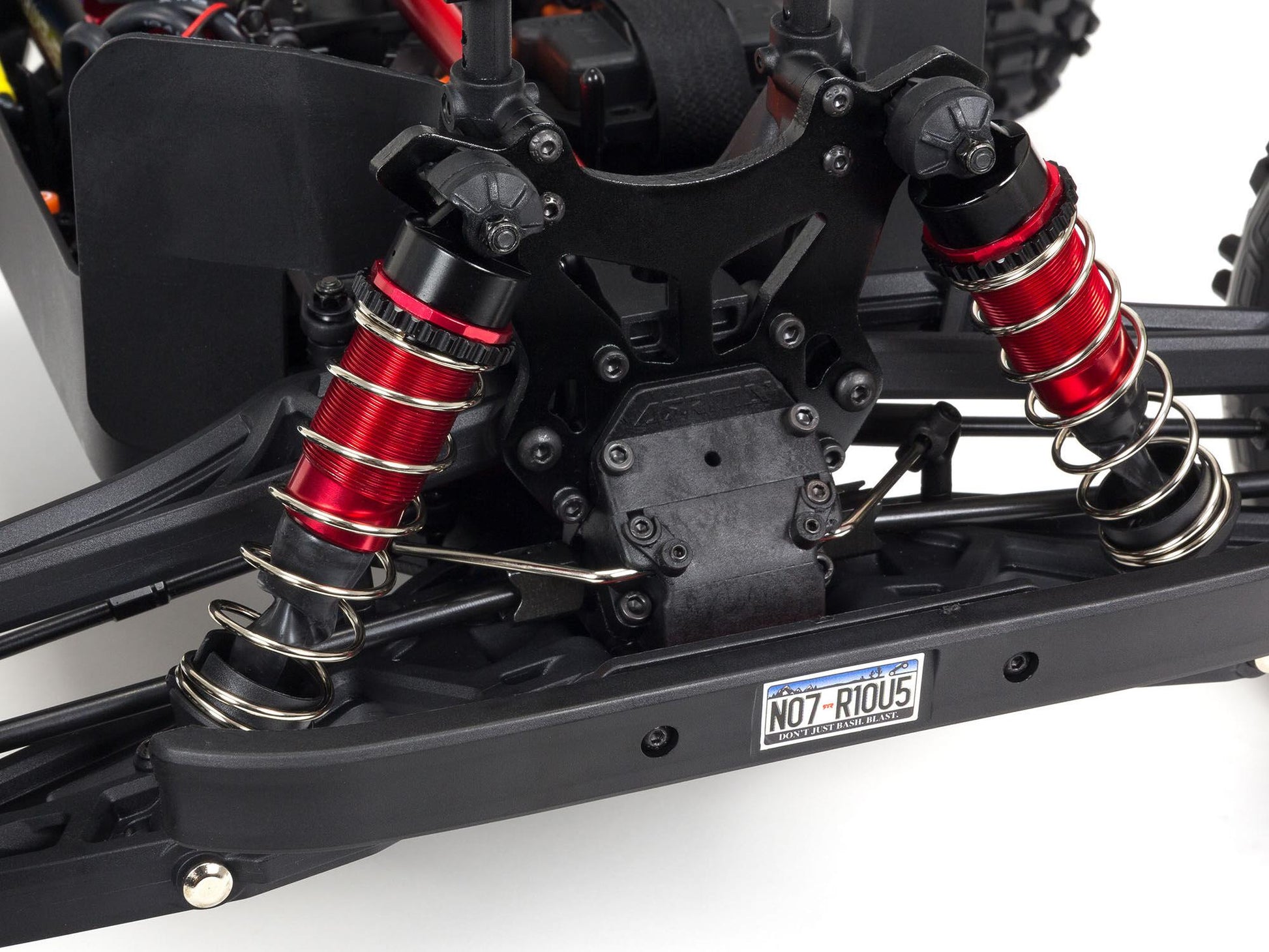

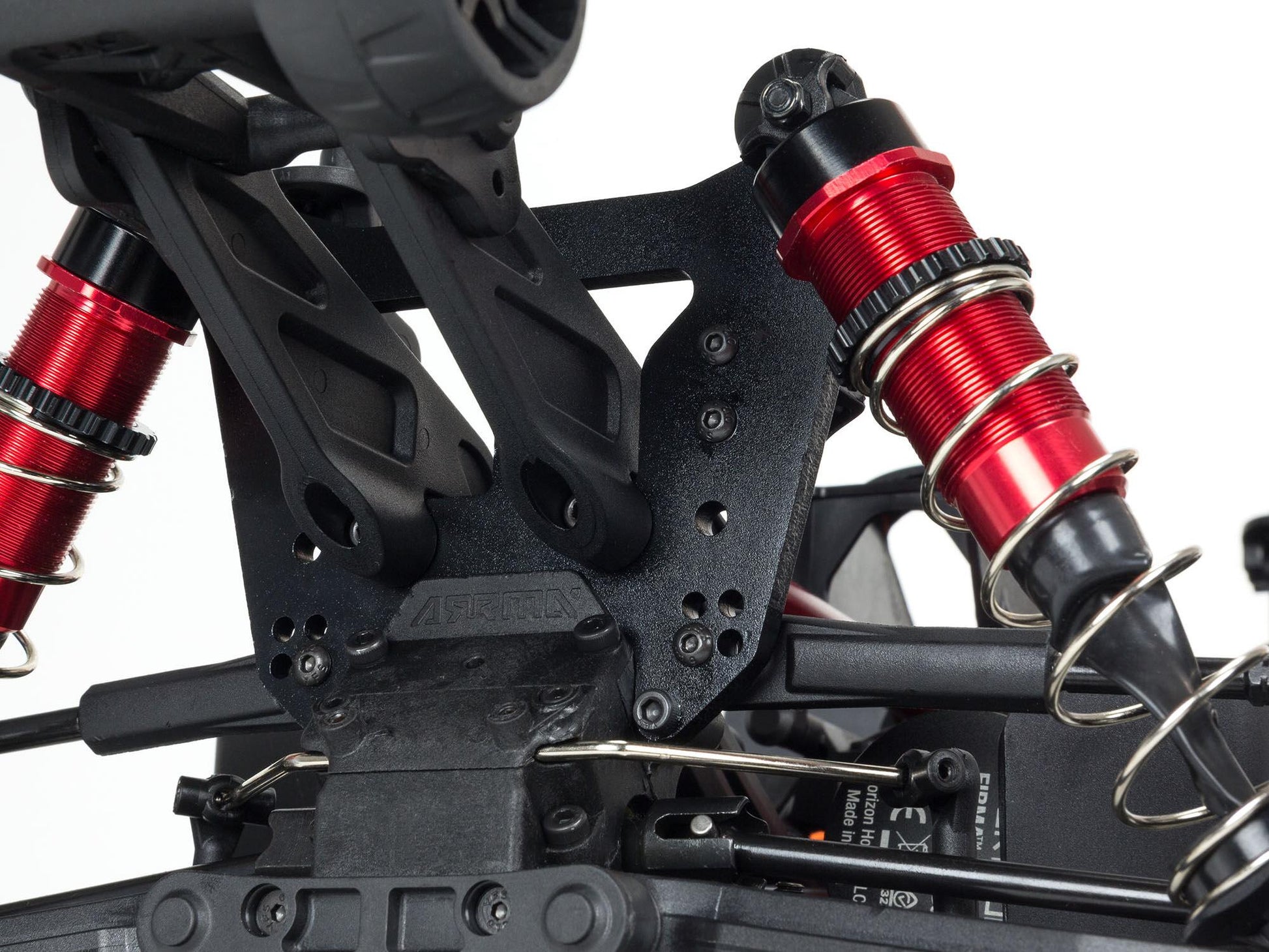

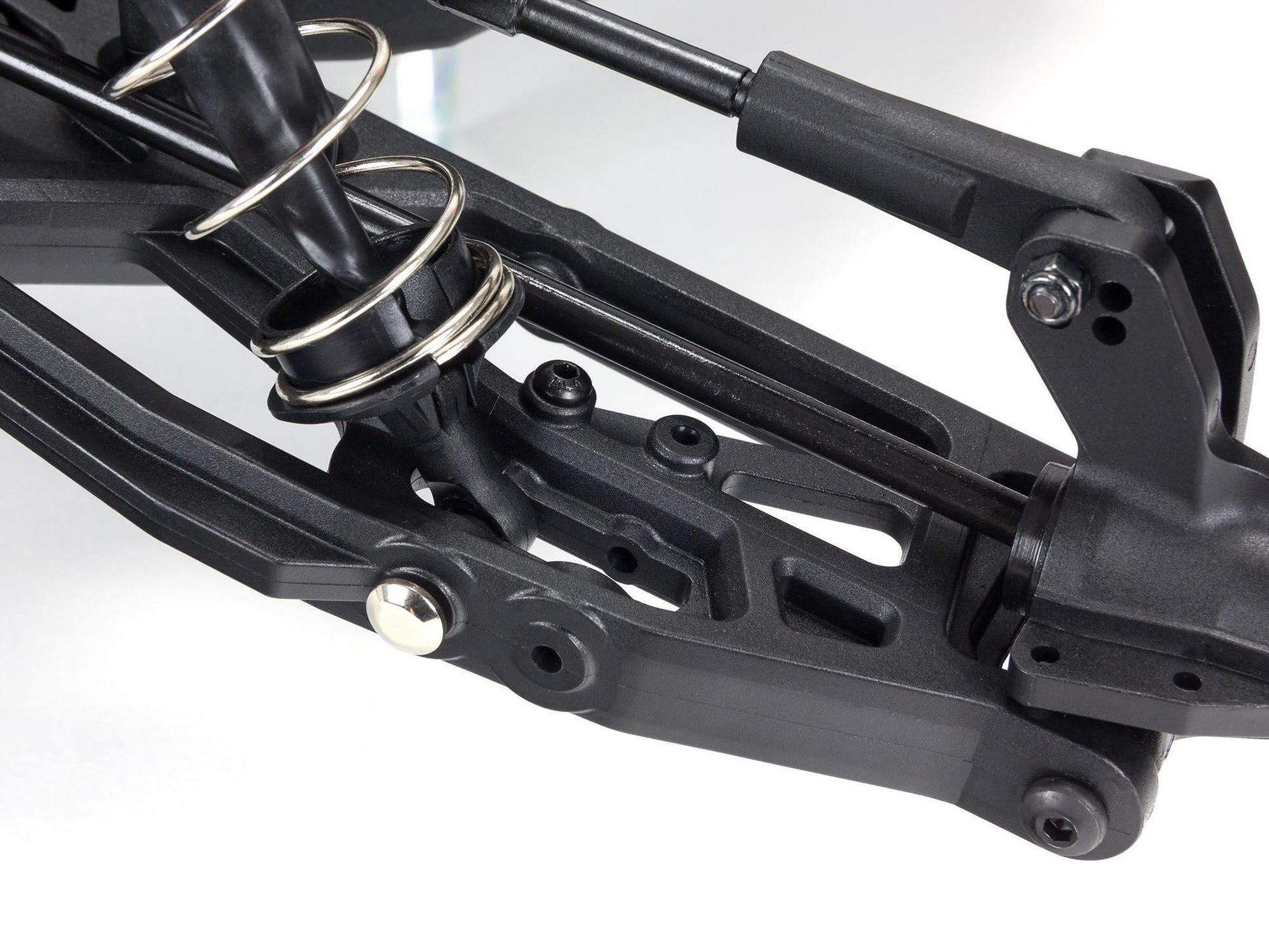

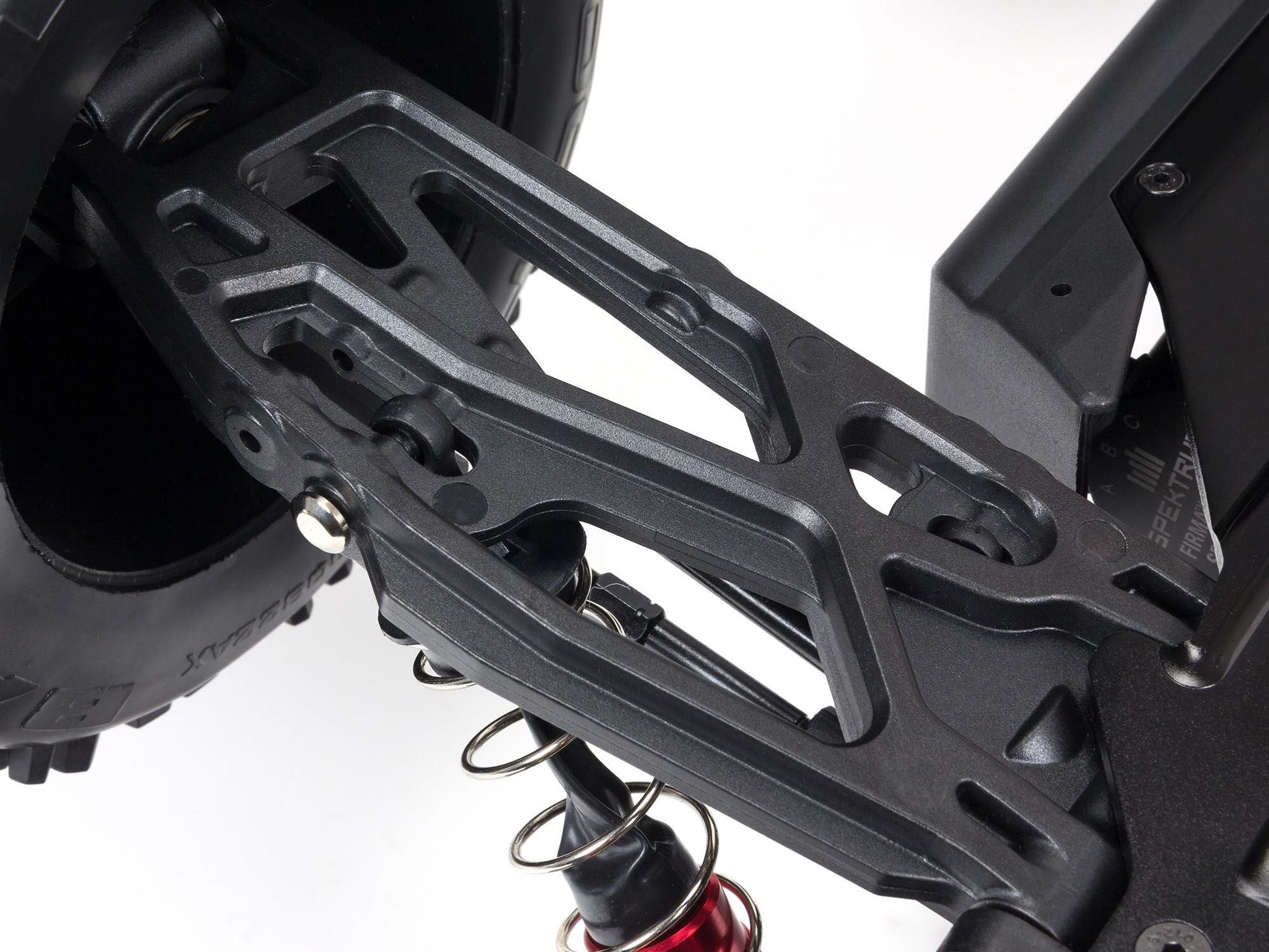

UPDATED REAR SUSPENSION GEOMETRY
Updated rear shock tower geometry works in conjunction with updated rear suspension arm geometry to provide a plusher rear end
More compact rear shock tower, being less exposed, is better protected from being bent during upside-down impacts

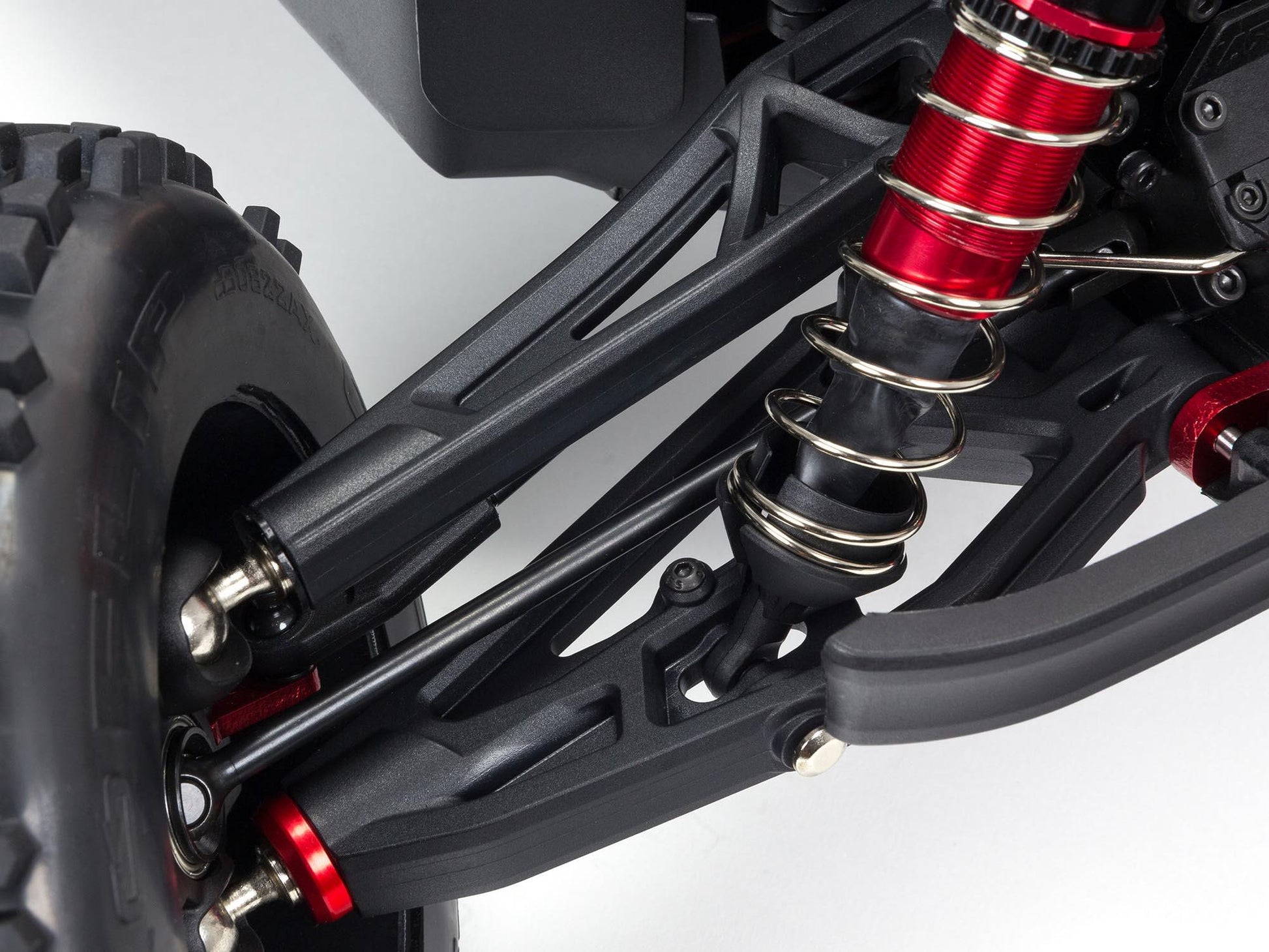

FRONT PIVOT BALL SUSPENSION
For precise handling at top speeds

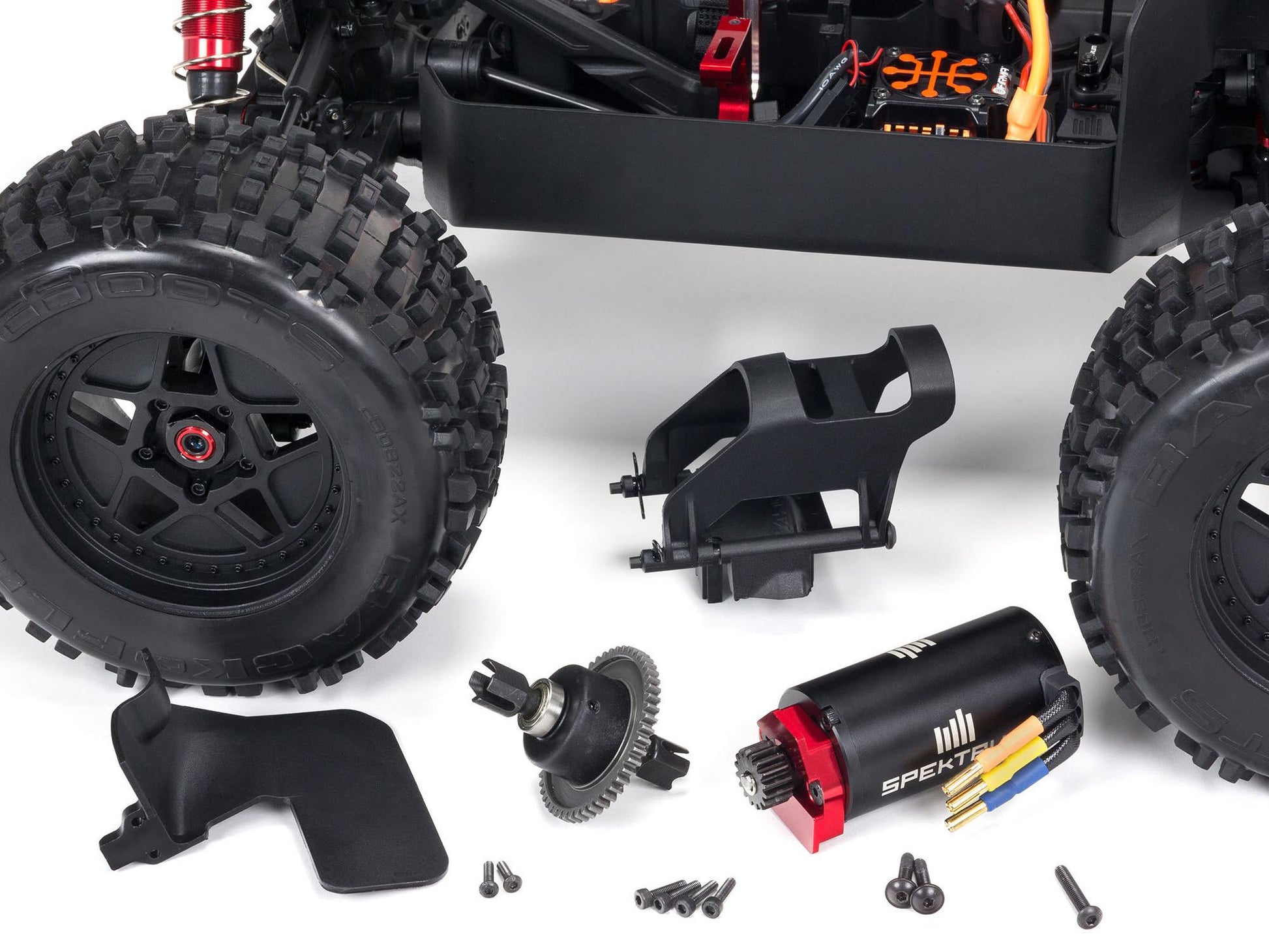

QUICK MAINTENANCE
5 bolt center diff removal for easy access
SPEKTRUM

SMART TECHNOLOGY INCLUDED
FIRMA

150A SMART Brushless ESC and FIRMA

4074 2050Kv Brushless Motor

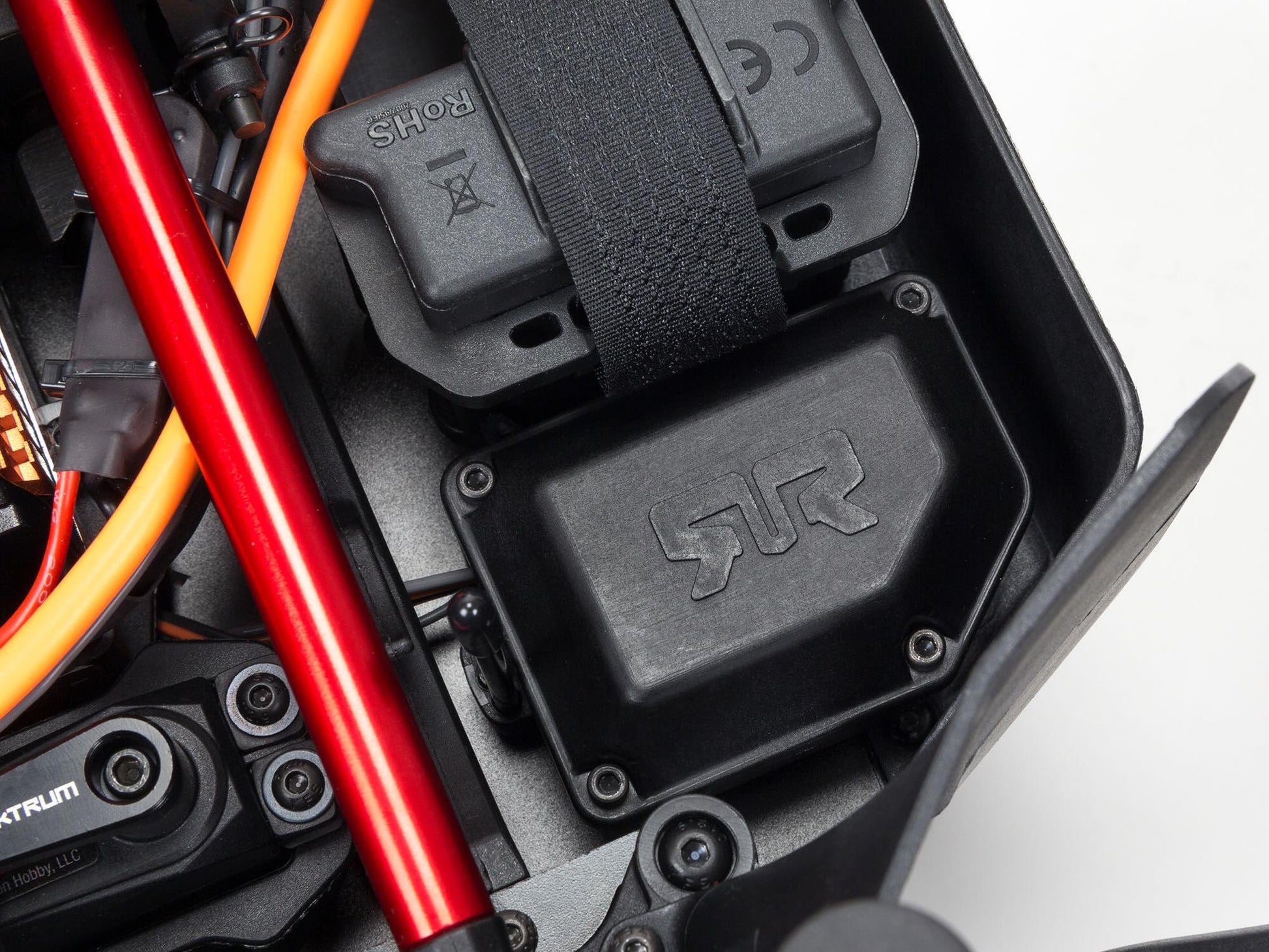

GO LARGE
Large volume waterproof receiver box
RUBBER SHIELDED BEARINGS
Longer life, less maintenance
OPTIONAL SPEED PINION INCLUDED
Red anodised motor mount and Mod 1 spur and pinion gears to handle optimum performance.

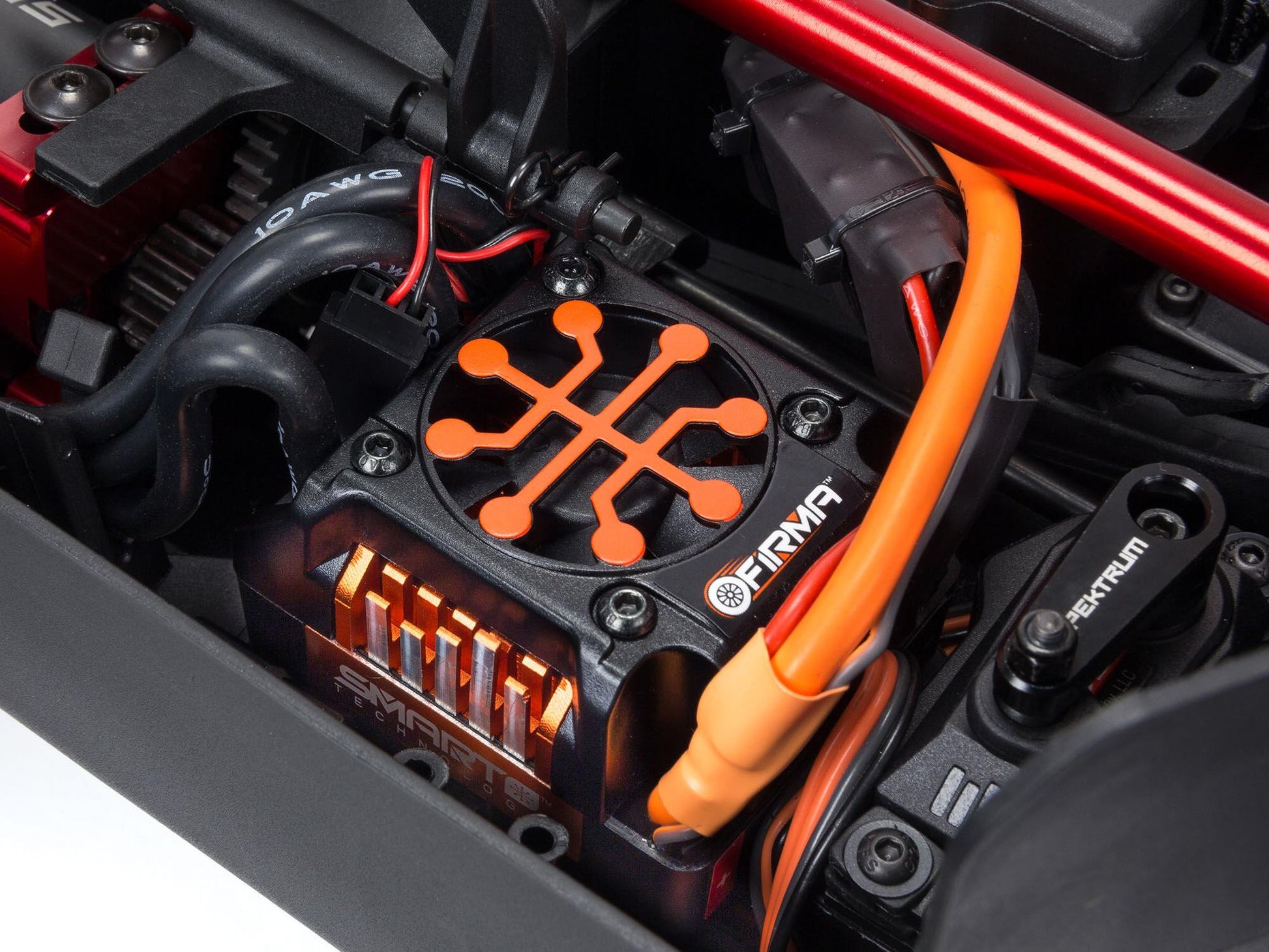

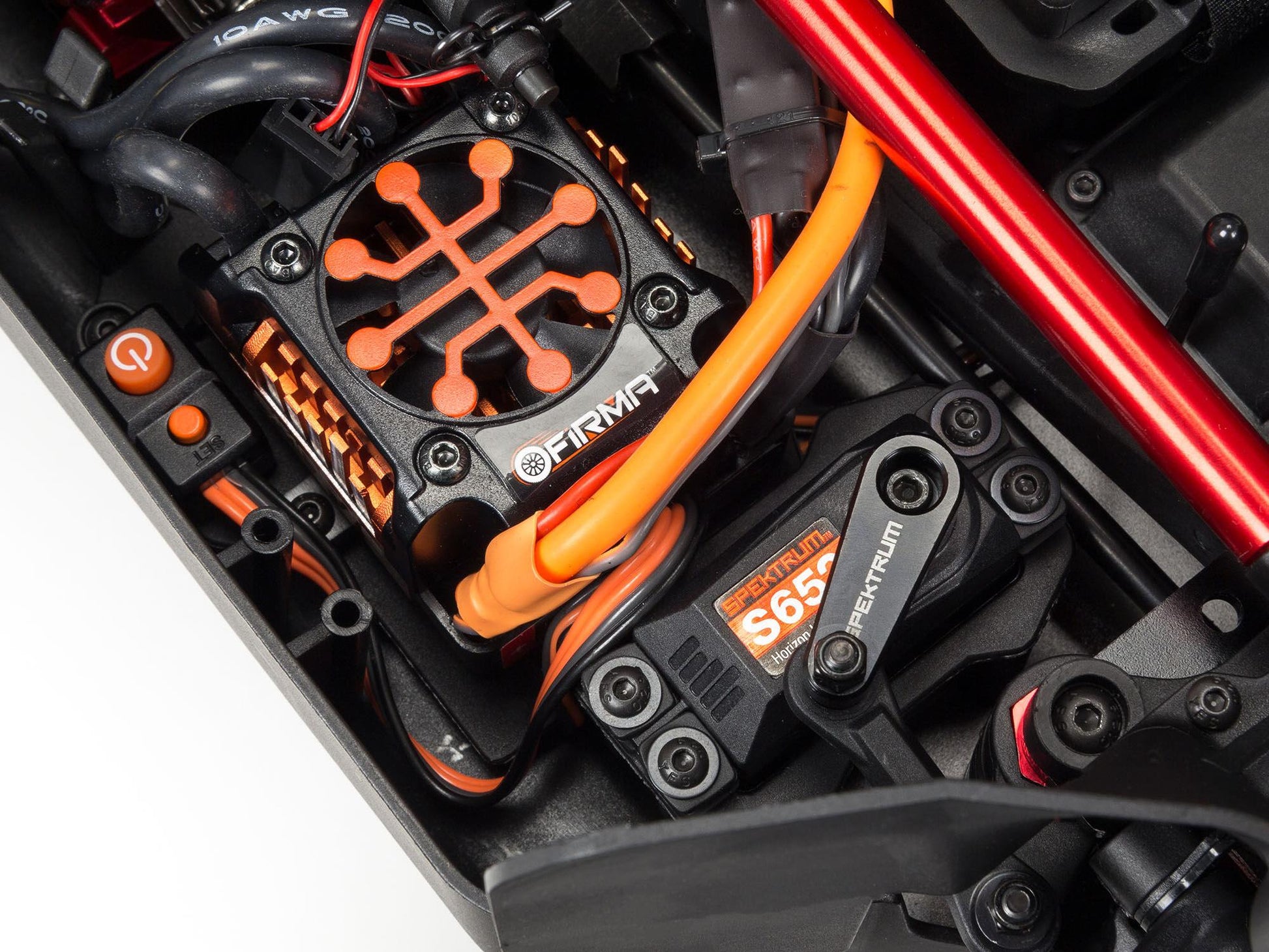

FIRMA

150A SMART Brushless ESC
Waterproof* and dustproof design
150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
Spektrum

SMART Technology
Fitted with reliable IC5

connectors (EC5

compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, reverse speed and motor timing settings
*For details on waterproof standards, please refer to the product instruction manual

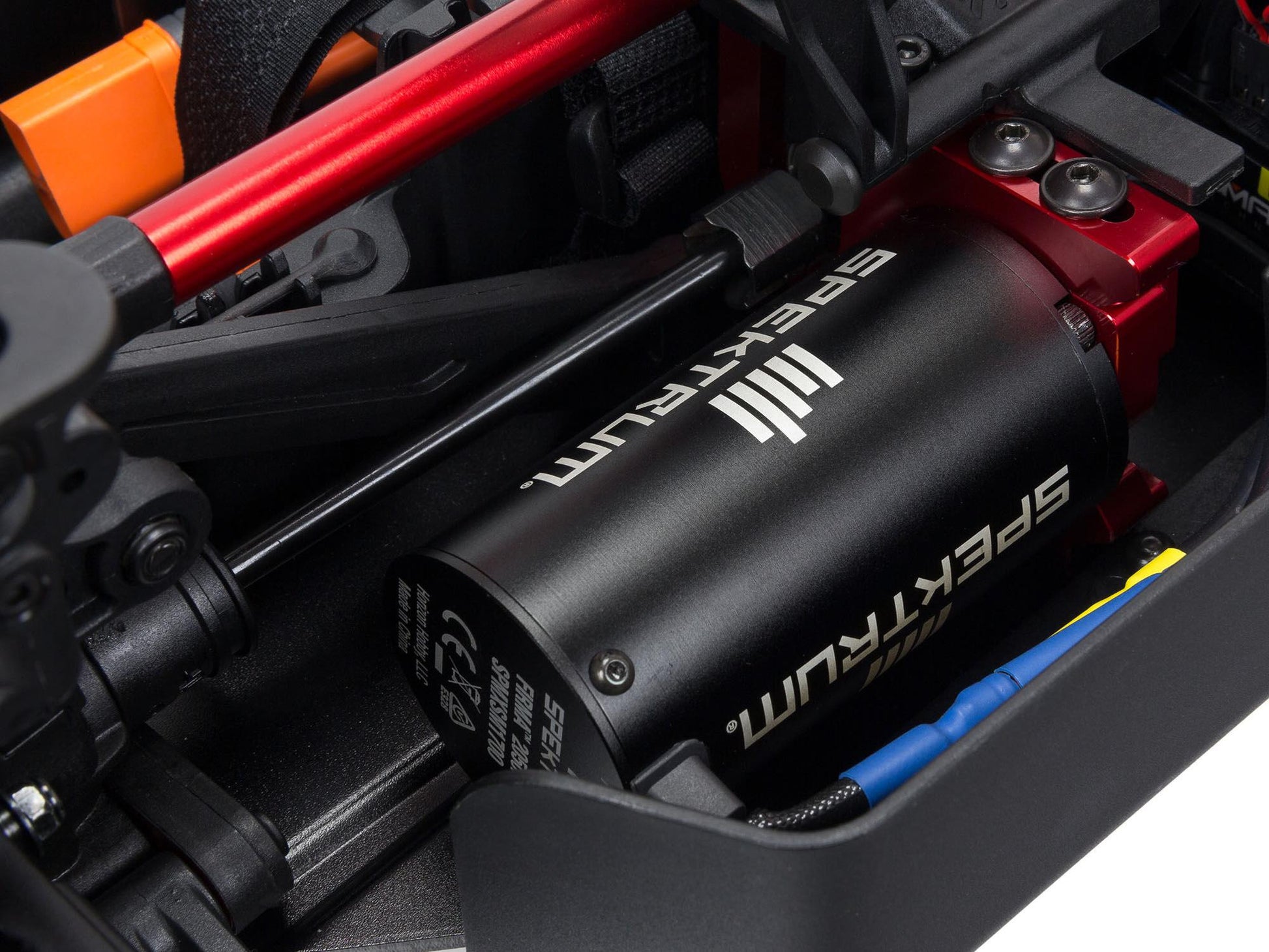

FIRMA

4074 2050Kv Brushless Motor
2050Kv 4074 size 6S brushless motor
Beautifully etched aluminium can
4-pole construction for smooth and consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodised aluminium motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

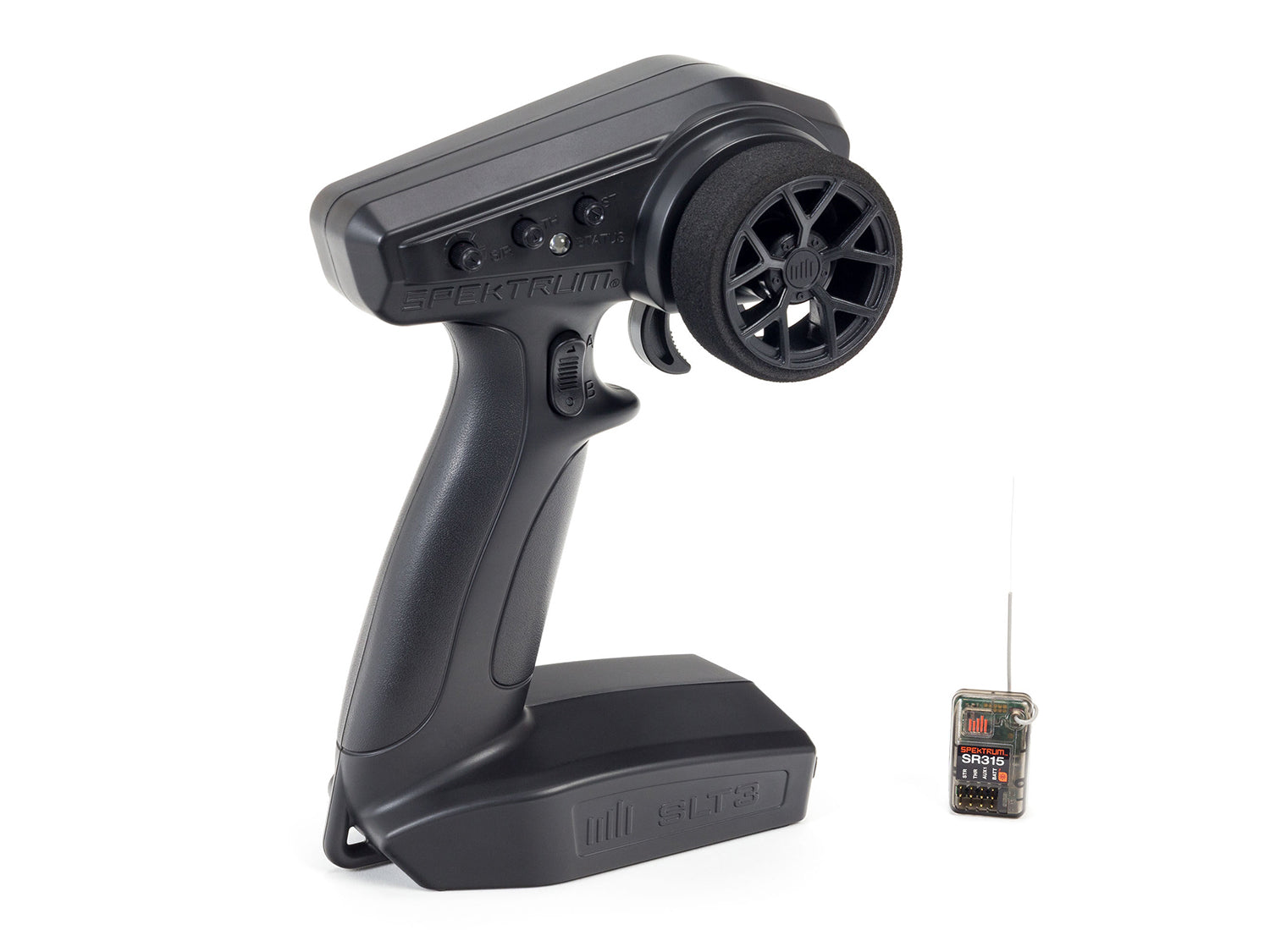

SPEKTRUM

SLT3

RADIO
Superb SLT response rate
50% and 75% throttle limited switch - great for beginners
Steering & throttle rate & trim adjustments with throttle and steering reversing
Foam steering wheel grip
Compatible with Tactic Receivers
SPEKTRUM

SR315 RECEIVER
Dual Protocol - Compatible with SLT and DSMR

2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels
SPEKTRUM

SPMS652 DIGITAL SERVO
All Steel Gears
Waterproof*
19.08kg-cm/265oz-in Torque @7.4V
32% More Torque & 5% Faster than ADS-15M Servo
*For details on waterproof standards, please refer to the product instruction manual
