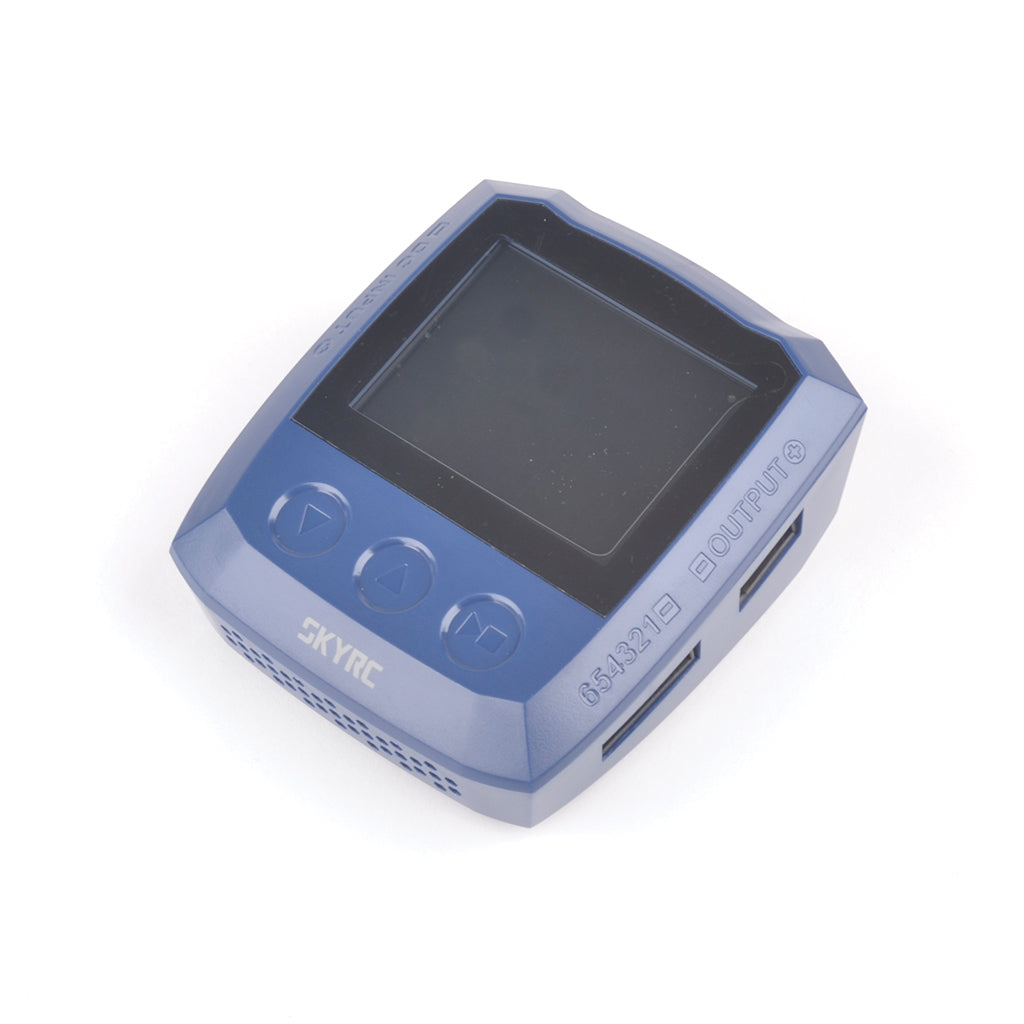

SKY RC B6 Lite DC Charger

B6 Lite, a tiny but mighty charger, especially designed for hobbyist. With B6 Lite, charging becomes faster and more pleasant.

Capacitive Touch Button

B6 Lite adopts touch button, advantages of which are sturdy and durable, quick-responsive and easy operative.Charging is now more rigid.

Powerful, Tiny, Smart, that is it!

B6 Lite is highly optimized in firmware and structure, while monster power is delivered from such a tiny body. Black screen and touch button contribute to better overall experience on visualization and portability.

Case Size: 76x85x37mm Weight: 130g

Power
DC Input Voltage : 7-32V
Charge Wattage: 220W
Discharge Wattage: 5W

Battery
BatteryTypes/Cells:
LiPo/LiIon/LiFe/LiHV:1-6cells
NiMH/NiCd: 1-15cells

Battery Capacity Range:
NiMH/NiCd:100-50000mAh
LiPo/LiIon/LiFe/LiHV:100-50000mAh
Pb: 100-50000mAh

Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo:3.0-3.3V/cell
LiFe:2.6-2.9V/cell LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell

Charge Current: 0.1A-13.0A
Discharge Current: 0.1A-3.0A
Balance Cells: 2-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.

Powerful and High Speed Micro Controller

ARM® Cortex®-M4F 32 bits high speed processor, data process capability improves 20 times. Using industry leading 2.5V-5.5V wide range input voltage, has strong anti-interference ability.

Smart & Efficient Cooling System

Temperature controlled 16000rpm high speed sleeve bearing cooling fan effectively blows the air through the extruded aluminum heat sink, effectively cooling the device.

No more scrolling through complex menu, what you see is what you need.

Large black screen, active visual size is 50x37.5mm, all information at a glance.

We are Certified, We are Qualified!

B6 lite products comply with the laws and regulations into each country. Products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.

Includes XT60 male to female lead for input or output.
